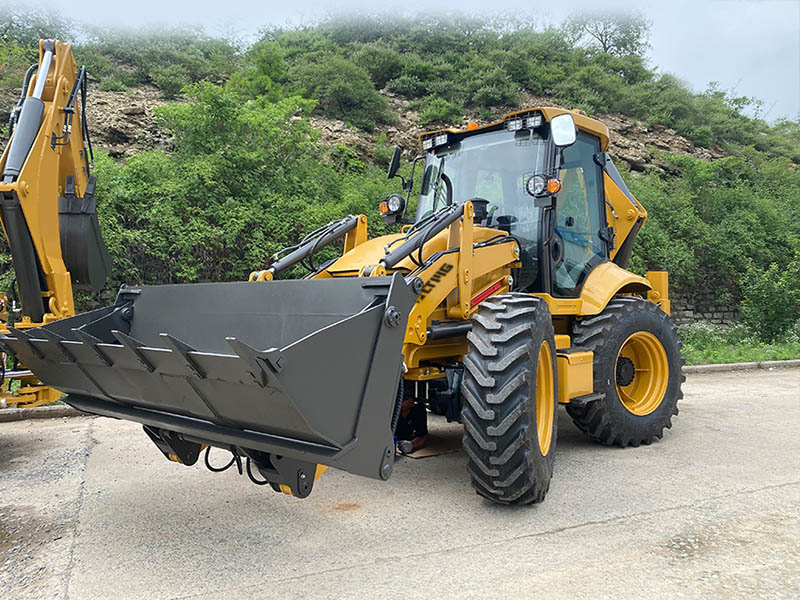

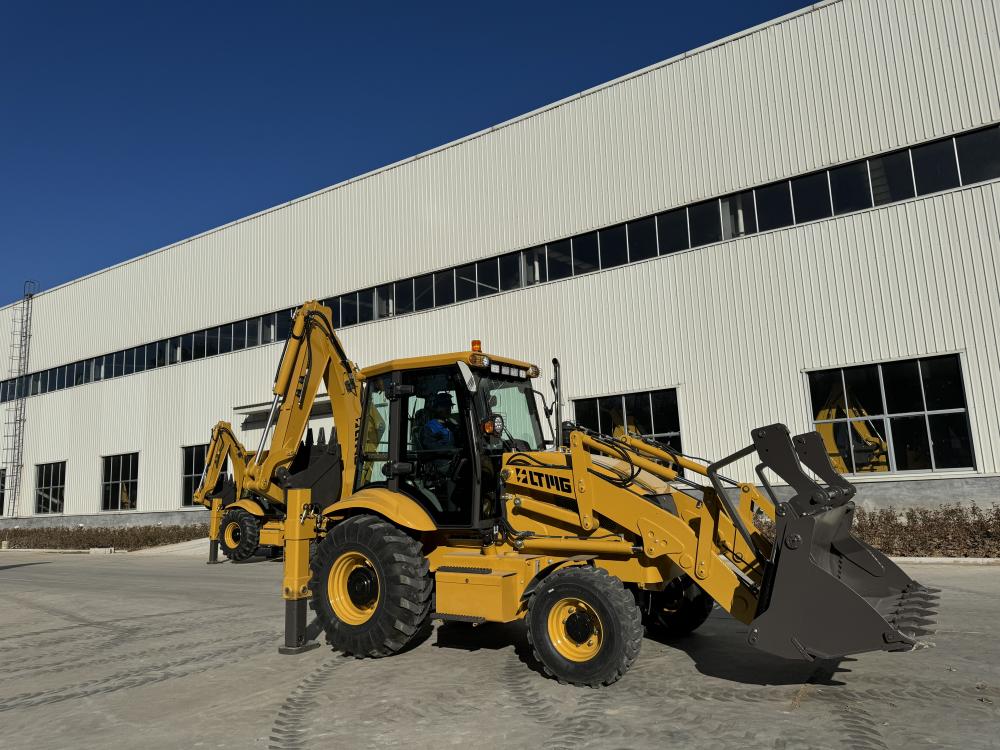

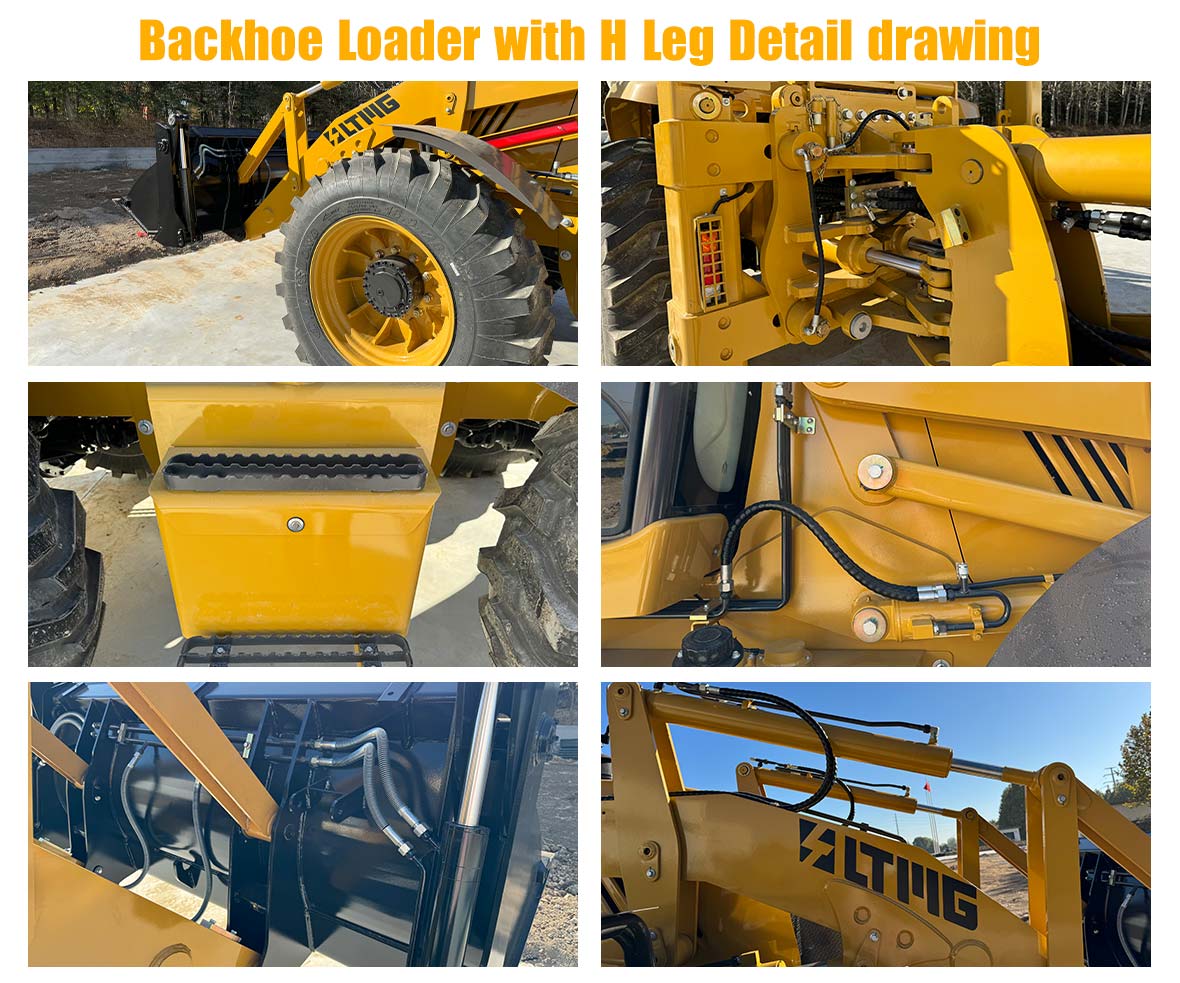

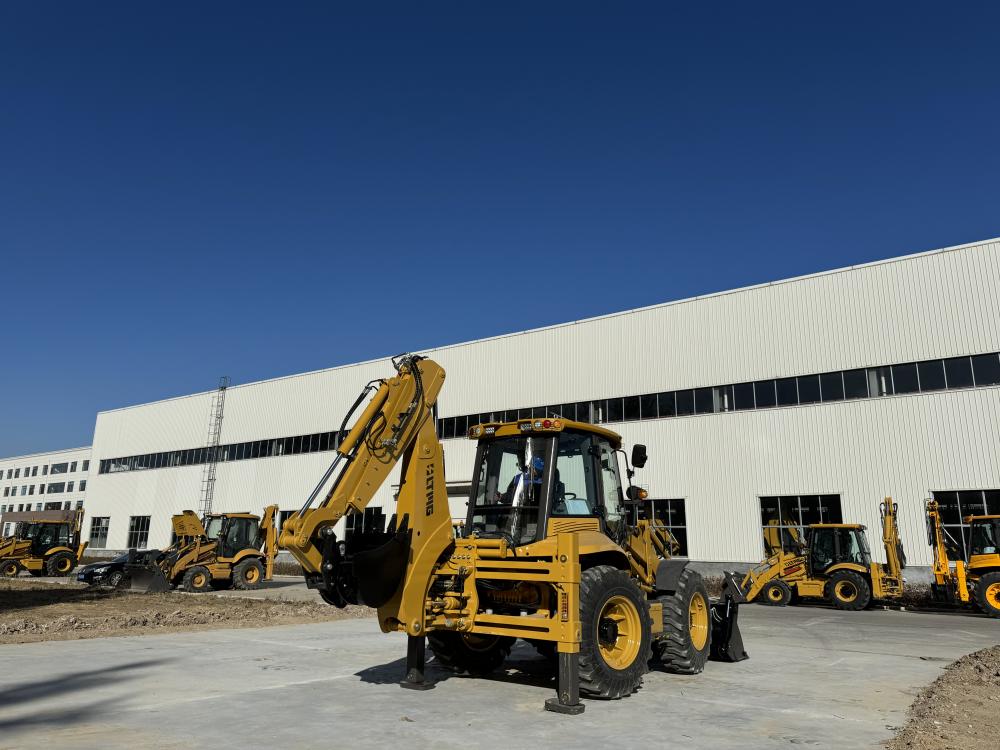

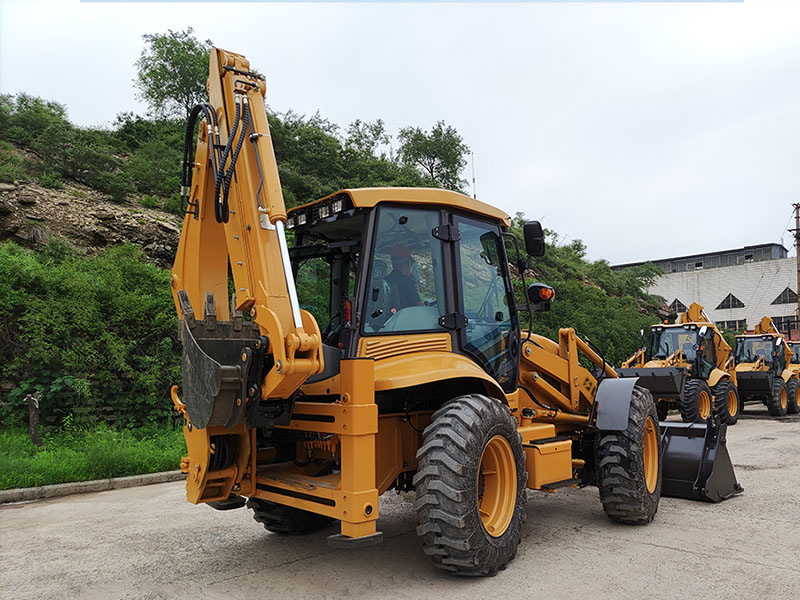

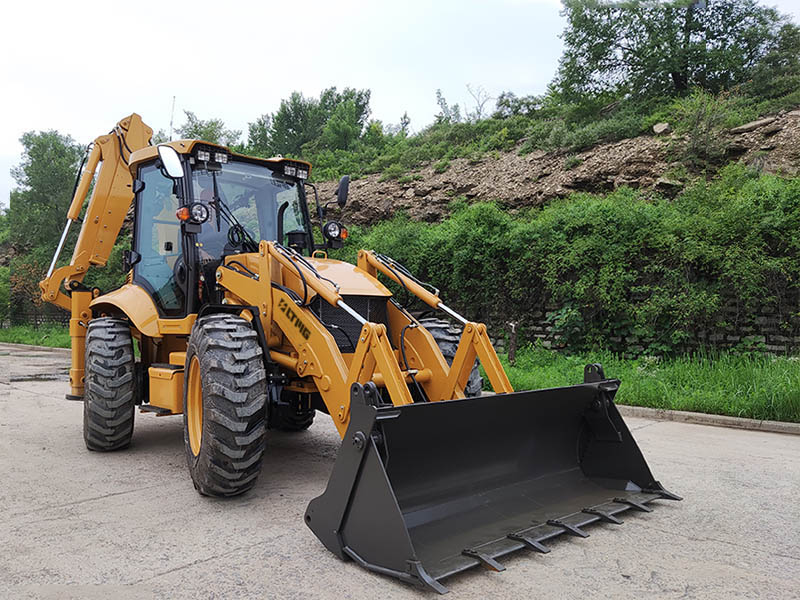

2.5 ton Backhoe Loader with H Leg 4 wheel steering, crab walk, equipped with ROPS cabin
Model :
BLT388HLoad Capacity :
2500kgOperating Weight :
10050kgBucket Capacity :
1.2/0.3m³ODM/OEM :
SUPPORT
2.5 Ton backhoe loader Characteristics：
1. Yuchai 75KW national two engine is a powerful and reliable engine that provides excellent performance.
2.It features front and rear mechanical operation, air conditioning Shanmang bridge and box, 16.9-28 tires,
3.Four-wheel steering（Four wheels the same size, crab walking, ROPS&FOPS cabin, and standard with A legs, H-legs, V-legs and other configurations.
4.This engine is ideal for agricultural applications such as tractors and combines. It is also suitable for industrial applications such as construction machinery.
2.5 Ton Backhoe Technical Parameters
| Model | BLT388H |
| Total length bucket at ground | 6450士80mm |
| Total width | 2650士20mm |
| Bucket width | 2620mm |
| Total height cab in top | 3120+10mm |
| Total height digging boom top | 3940±20mm |
| Wheel base | 2335+10 mm |
| Wheel tread | 2139 10mm |
| Hydraulic torque | Model---315 |
| convertor | Coolingway--Pressured oil circle |
| Gearbox | Model---28 Type：Mechanically Operated/Hydraulic Synchronized |
| Driving axles | Model---WZL100 |
| Gear shift | Forward 4 Backwar 4 |
| Tyres model | 16.9-28 |
| Rated digging bucket capacity | 0.3m3 |
| Max.Digging radius | 3820±20 mm |
| Max.Digging depth | 5345±20mm |
| Max.Loading height | 3740±20mm |
| Max.Digging force | 5100kgf |
| Max.Digging height | 5470 ±20mm |
| Lifting forceat Max.Digging radius | 1220kg |
| Max. Digging depth with arm extended (telescopic arm) | 4970±20 mm |
| Max. Digging height with arm extended (telescopic arm) | 6680±20mm |
| Working pump displacement | 63ml/r |
| Working pump pressure | 20Mpa |
| Diverter model | BZZ5-250 |
| Rod diameter (mm) | 68-70 |
| Working pressure (Mpa) | 11-14 |
| lmpact frequency | 500-900 |
| Flow scope( Umin) | 25-45 |
| kinetic energy (KN) | 49 |
| Engine model | YC4A105Z-T20 |
| Cooling type | Water cooling |
| Rated power | 75 (kW) |
| Displacement | 4.8(L) |
| Rated speed | 2200(r/min) |
| Max.Torque | 400(N.M) |
| Manufacturer | YUCHAl |
| Hydraulic oil tank | 125 |
| Fuel tank | 125 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
