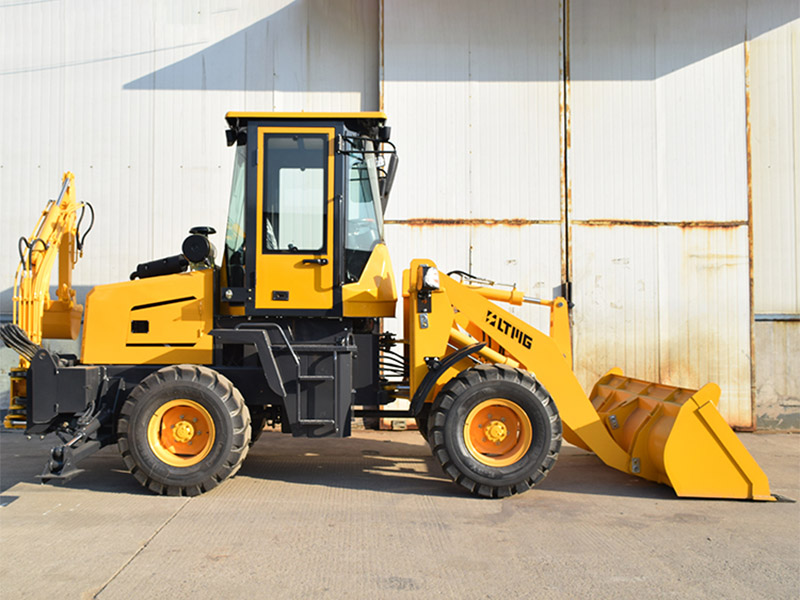

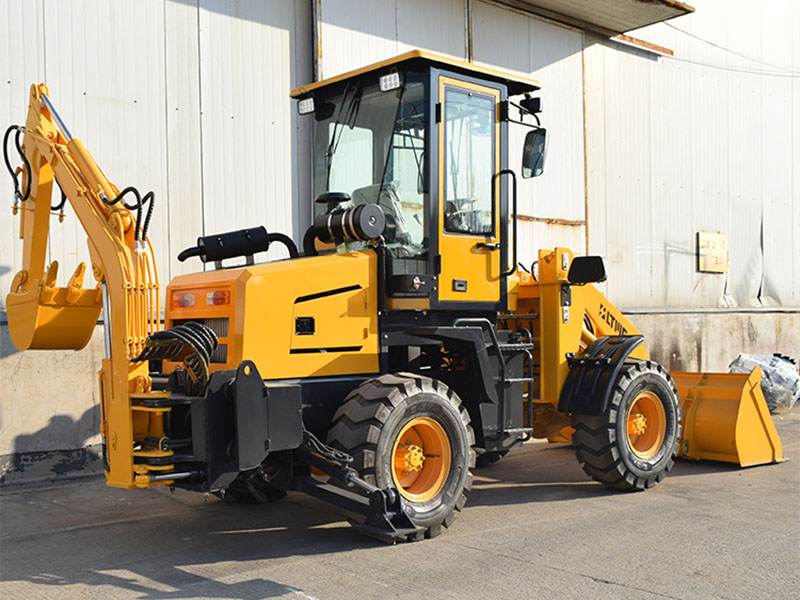

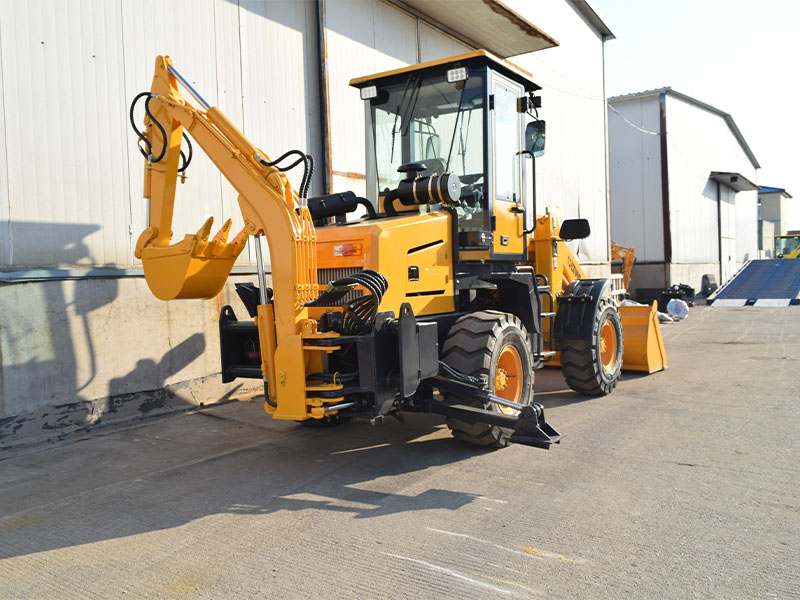

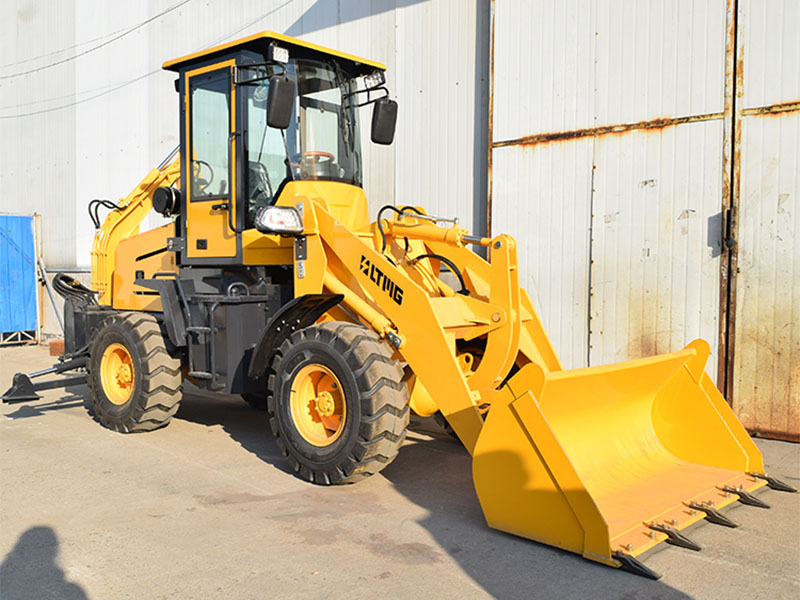

WZ15-26 Front End Loader Digger is a cost-effective small multifunctional construction machinery, which is widely used in various construction projects such as highway construction and maintenance, cable laying, power and airport engineering, municipal construction, excavation, and stone quarrying in both urban and rural areas.
Model :
WZ15-26Operating Weight :
4800Bucket Capacity :
0.7CBMODM/OEM :
SUPPORT
Backhoe Loader Characteristics
The WZ15-26 Front End Loader Digger is indeed very useful. When operating the machine for construction, the operator only needs to rotate the seat to switch between the working ends. The reason why the Front End Loader Digger is used on various construction sites is that excavation and soil transportation are required in many different projects.
For example, trenches need to be excavated for pipeline and underground cable installation, as well as for laying foundations and establishing drainage systems for buildings. While other tools can also accomplish such tasks, the Front End Loader Digger significantly improves efficiency. Compared to large single-function equipment like crawler excavators, the Front End Loader Digger has a compact size. It can be easily maneuvered on various construction sites and even run on roads. Although there may be smaller loaders and excavators available, if contractors need to perform both excavation and loading tasks, using a Front End Loader Digger saves a significant amount of time and money.
Backhoe Loader Technical Parameter
| Model | WZ15-26 |
|---|---|
| Dimensions (mm) | 5800*1850*2750 |
| Wheelbase (mm) | 2315 |
| wheel tread(mm) | 1500 |
| Min. ground clearance (mm) | 220 |
| performance parameters | |
| System pressure (MPa) | 16 |
| Machine weight (Kg) | 4800 |
| Max. speed (Km/h) | 26 |
| Max. climbing capacity (°) | 25 |
| Min. turning radius (mm) | 4000 |
| Digging parameters | |
| Max. digging depth (mm) | 2700 |
| Dig unloading height (mm) | 2200 |
| Max. digging radius (mm) | 4600 |
| Bucket width (mm) | 500 |
| Bucket capacity (m3) | 0.2 |
| max. digging height (mm) | 4200 |
| Maximum digging force (kN) | 28 |
| Rotary Angle of excavator (°) | 180 |
| Loading parameters | |
| Max. unloading height (mm) | 3300 |
| Max. unloading distance (mm) | 850 |
| Bucket width (mm) | 1900 |
| Bucket capacity (m³) | 0.7 |
| Max. loading lifting height (mm) | 4200 |
| Max. breakout force (kN) | 36 |
| Forward shovel action time (S) | 12 |
| Engine | |
| Model | Yunnei YN27GBZ |
| Type | Turbocharged, 4 strokes |
| Rate power (KW) | 58 |
| Rate speed (r/min) | 2400 |
| Cylinders-inside diameter | 4-90 |
| Transmission system | |
| Gearbox | Fixed shaft power shift |
| Number of gear | 2 first/ 2 after |
| Hydraulic torque converter | ZL29A |
| Steering system | |
| Type | Hinged full hydraulic steering |
| Steering Angle (°) | 33 |
| Bridge | |
| Type | Hub reduction |
| Tire | |
| Specifications | 23.5-16 |
| Front wheel pressure (kPa) | 250 |
| Rear wheel pressure (kPa) | 250 |
| Crane brake | Oil brake drum brake |
| The parking brake | Manul |
| Oil amount | |
| Fuel tank (L) | 40 |
| Hydraulic tank (L) | 40 |
| Other | |
| Drive type | Four-wheel drive |
| Variable speed type | Hydraulic variable speed |
| Braking distance (mm) | 450 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
FAQ
Q: As a backhoe loader factory, what are the different advantages of LTMG?
A: LTMG's factory implements stricter control over the production process and has expanded its range of loader models with various configurations. In comparison to other factories in the same industry, LTMG offers a wider range of product categories and more options for customers to choose from.
Q: How long is the lead time for LTMG backhoe loaders?
A: For standard front end loader digger, the lead time is typically 30 days. However, for customized orders, the lead time is longer, usually ranging from 45 days.
Q: How is your after-sales service of backhoe loader?
A: We offer a range of after-sales services that provide 24-hour technical support via phone and email.
