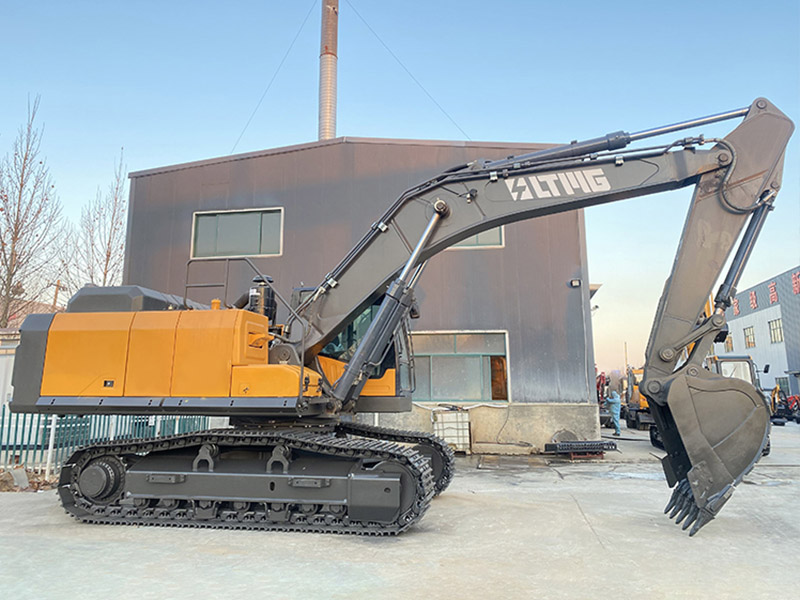

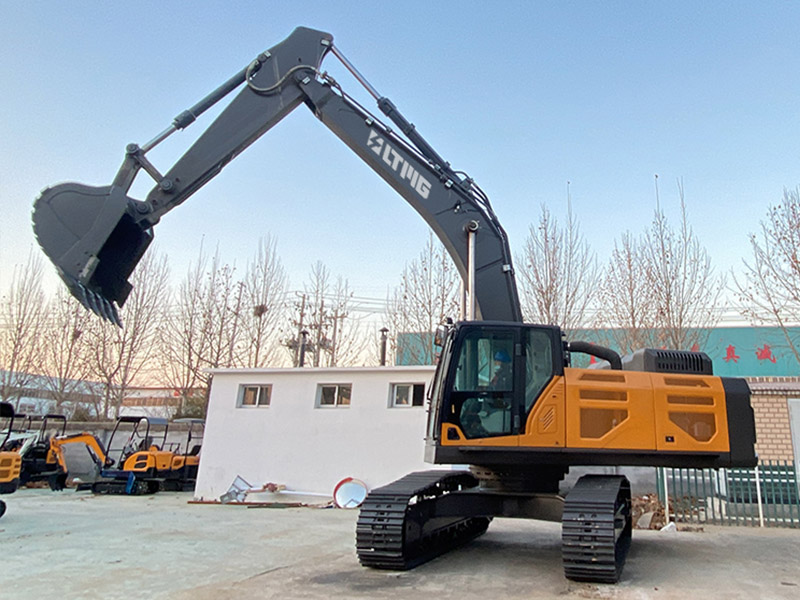

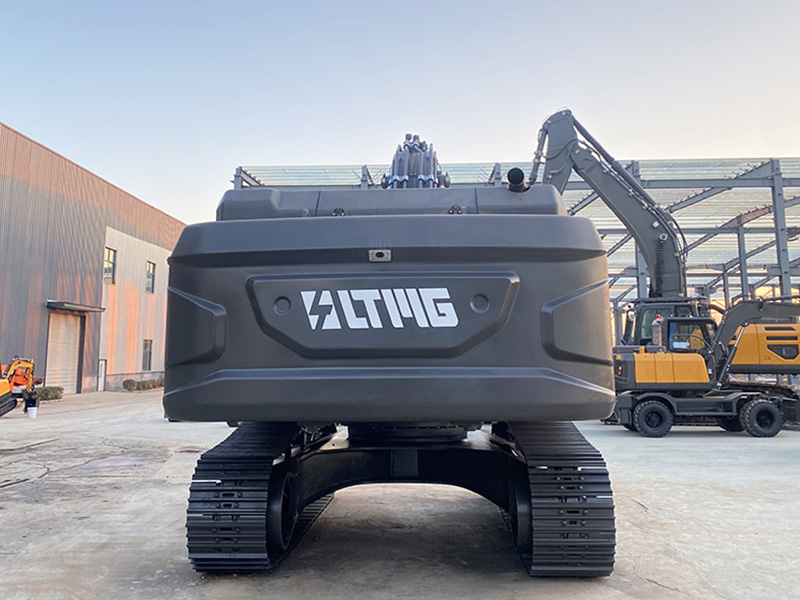

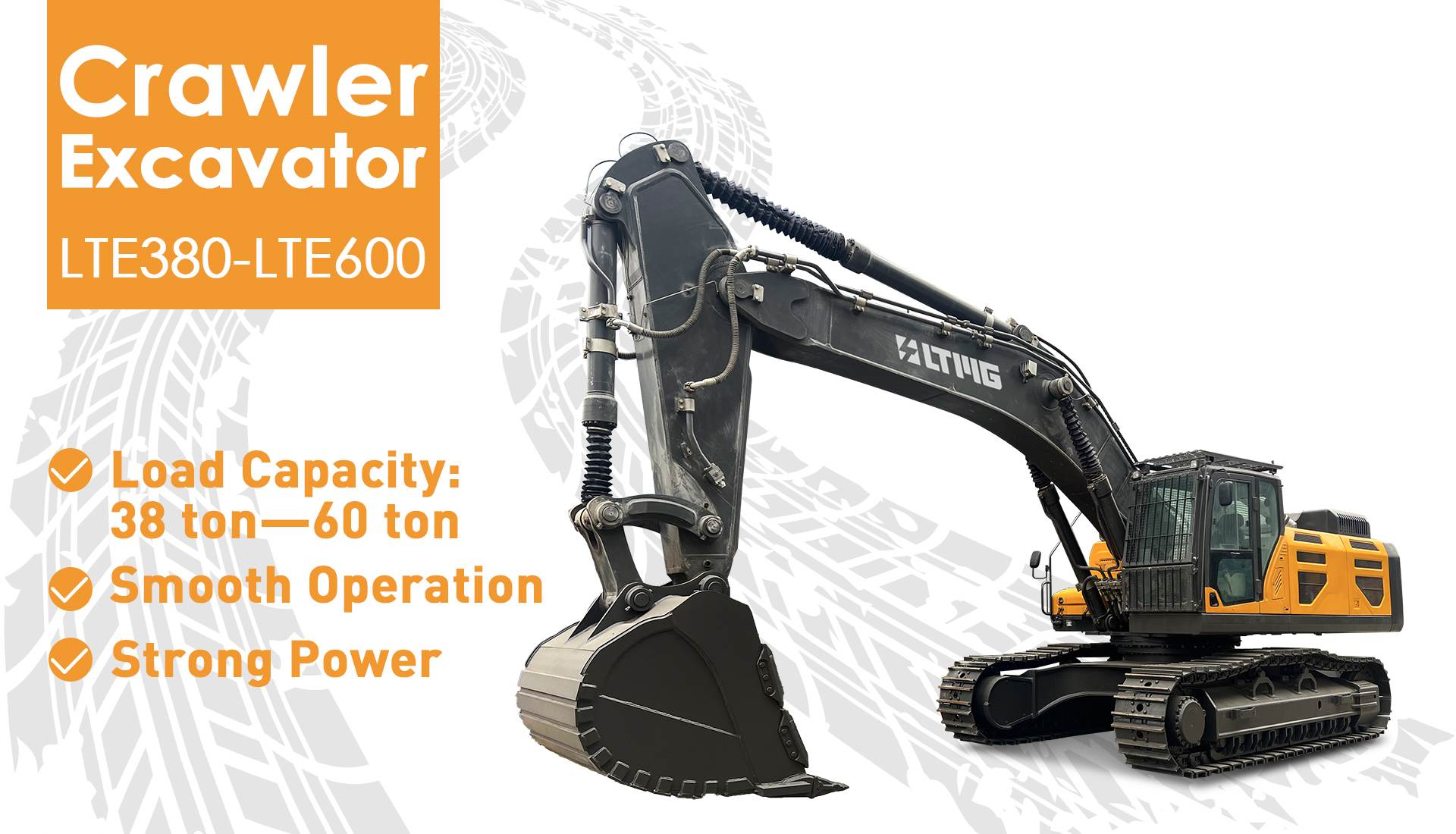

The 38 ton large crawler excavator is a powerful and machine features with powerful configurations, high dependability hydraulic system, high-rigidity new cab. It can be used for a variety of tasks, like mining, construction, demolition, forestry etc.
Model :
LTE380Load Capacity :
38000kgOperating Weight :
38000kgBucket Capacity :
1.7-1.9m³ODM/OEM :
SUPPORT

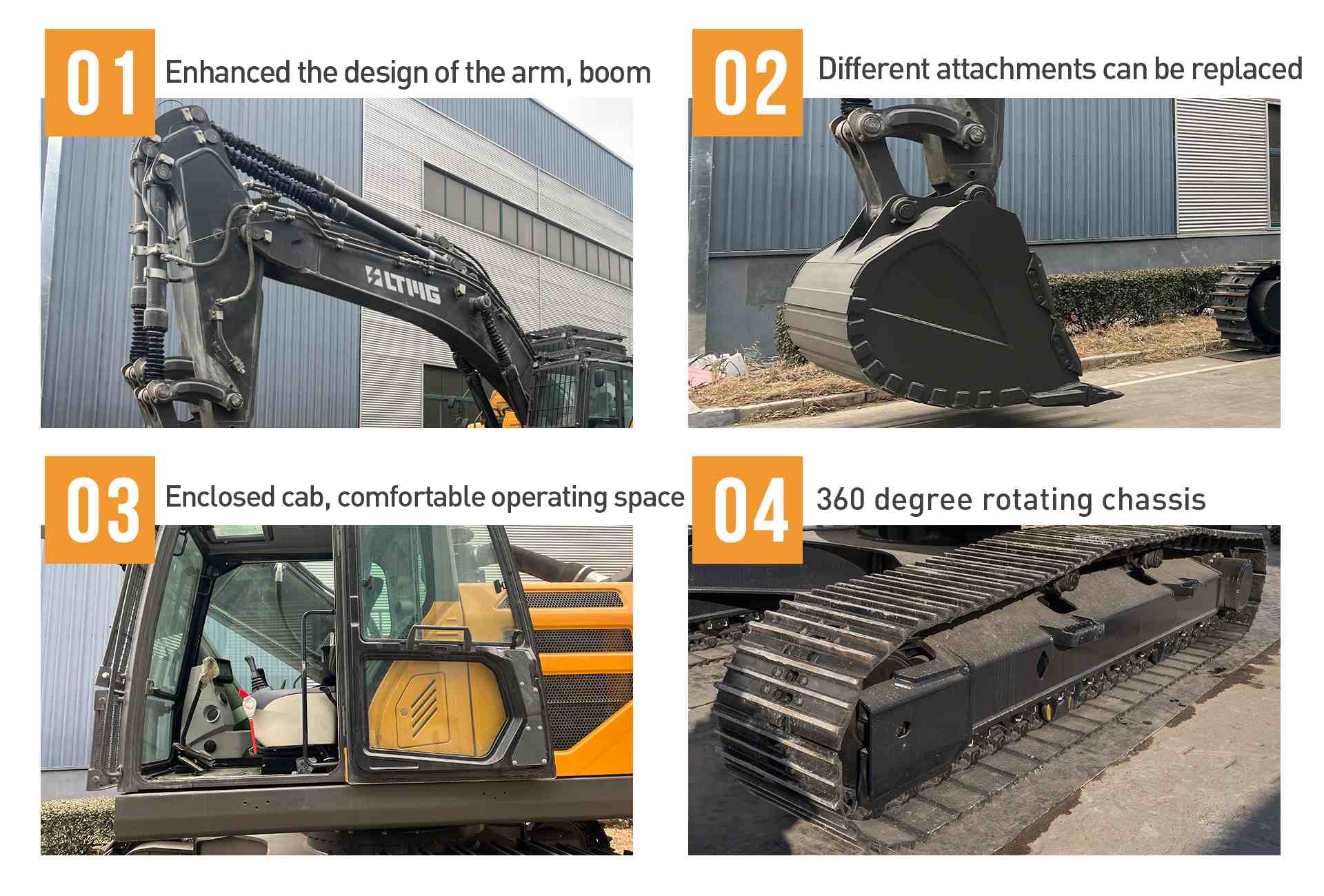

38 Ton Excavator Main Feature
1.Powerful configurations, that meets emission standards for energy and fuel efficiency
2.International brand main pump and valve, world-renowned hydraulic components to guarantee the hydraulic system's high dependability.
3.With advanced features such as intuitive controls, robust protective structures, and enhanced visibility from the spacious operator cabin, you can rest assured knowing that the excavator will be operating in a secure environment.
4.Enhanced comfort with a high-rigidity new cab for a quiet and comfortable experience.
5.Colour LCD monitor for easy monitoring and maintenance with multiple operation modes available.
6.Strong, reinforced boom, stick, and bucket structure, offering superior digging power, greater lifting capacity, and improved fuel efficiency compared to smaller excavators.
38 Ton Crawler Excavator Technical Parameters
| Performance Parameters | Unit | LTE380 |
| Operating Weight | Kg | 3800 |
| Engine Model | Cummins SL9 | |
| Rated Power | Kw | 219KW/1900rpm |
| Bucket Capacity | m³ | 1.7-1.9 |
| Max Digging Force | Kn | 244 |
| Swing Speed | rpm | 0-11 |
| Traveling Speed | km/h | 2.4-4.4 |
| Gradeability | ° | 58° |
| System Working Pressure | Mpa | 35 |
| Boom Length | mm | 6470 |
| Arm length | mm | 3185 |
| Operating Range | ||
| Max. Digging Radius | mm | 11178 |
| Max. Digging Depth | mm | 7327 |
| Max. Digging Height | mm | 10511 |
| Max. Dumping Height | mm | 7572 |
| Max. vertical digging depth | mm | 6731 |
| Overall Dimensions | ||
| Overall Length | mm | 11285 |
| Overall Width | mm | 3190 |
| Overall Height | mm | 3664 |
| Mini.Ground Clearance | mm | 490 |
| Track Width | mm | 600 |
| Axle base(Track length on ground) | mm | 2580 |
| Track Gauge | mm | 2590 |
| Swing radius at tail | mm | 3590 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Video of LTMG 38 Ton Crawler Excavator

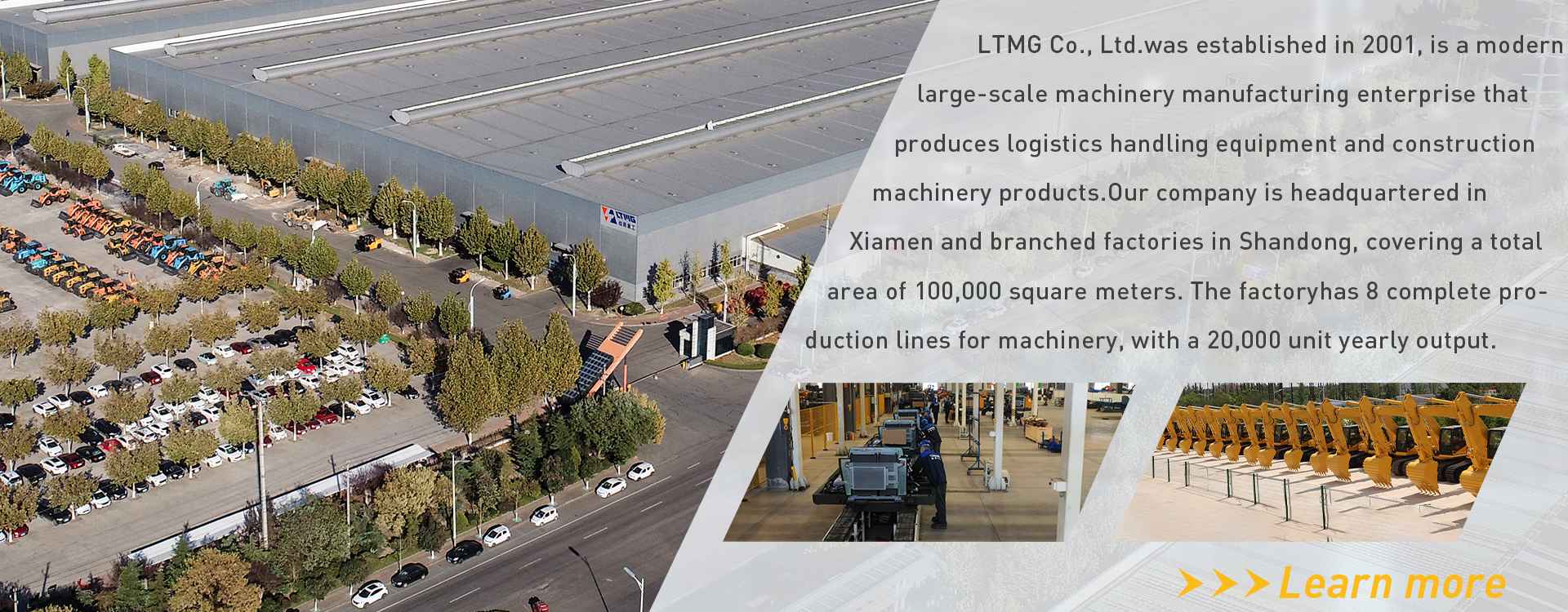

More about LTMG Co., Ltd.
38t Large Crawler Excavator FAQ
Q: How do our large crawler excavators promote efficiency?
A: Efficiency is at the core of our large crawler excavators. Equipped with advanced hydraulic systems and intelligent controls, these excavators allow for precise and smooth operations, optimizing productivity while minimizing fuel consumption. With customizable features and attachments, your specific job requirements are met effortlessly.
Q: Are our large crawler excavators built for comfort and safety?
A: Indeed! Operator comfort and safety are our top priorities. Our large crawler excavators are designed with spacious and ergonomic cabins that offer panoramic visibility, reduced noise levels, and advanced climate control systems. Enhanced safety features, including intuitive controls and comprehensive protection mechanisms, ensure smooth and secure operation at all times.
Q: Why choose us?
A: As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, such as large crawler excavator but also in-time delivery and comprehensive 7/24 after-sale services.
Q: Can we provide OEM service?
A: LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
