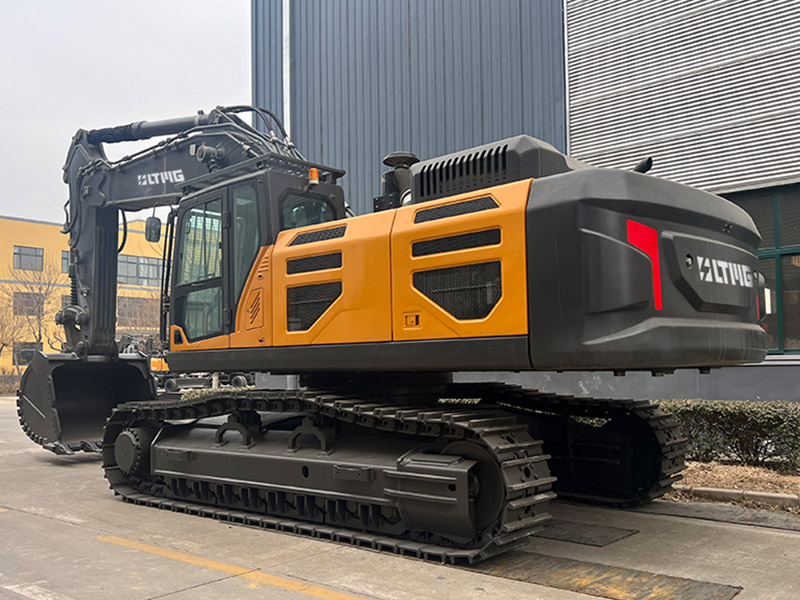

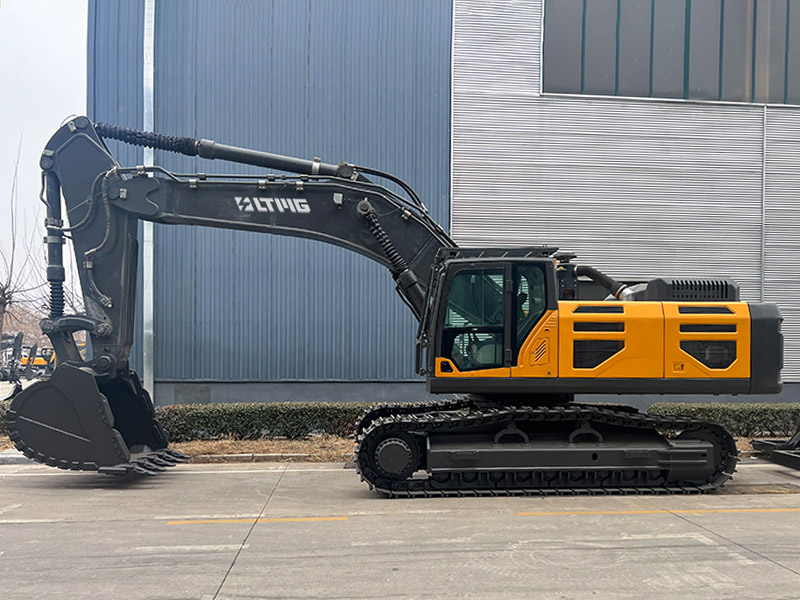

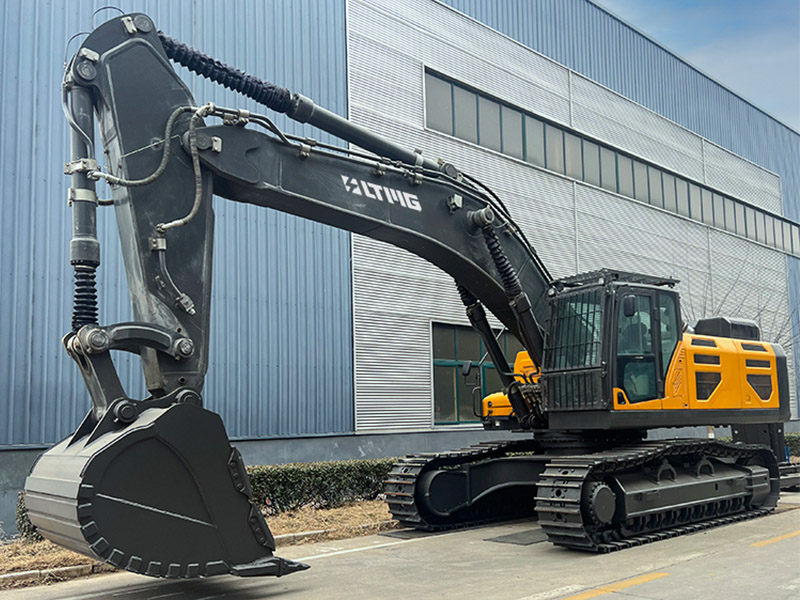

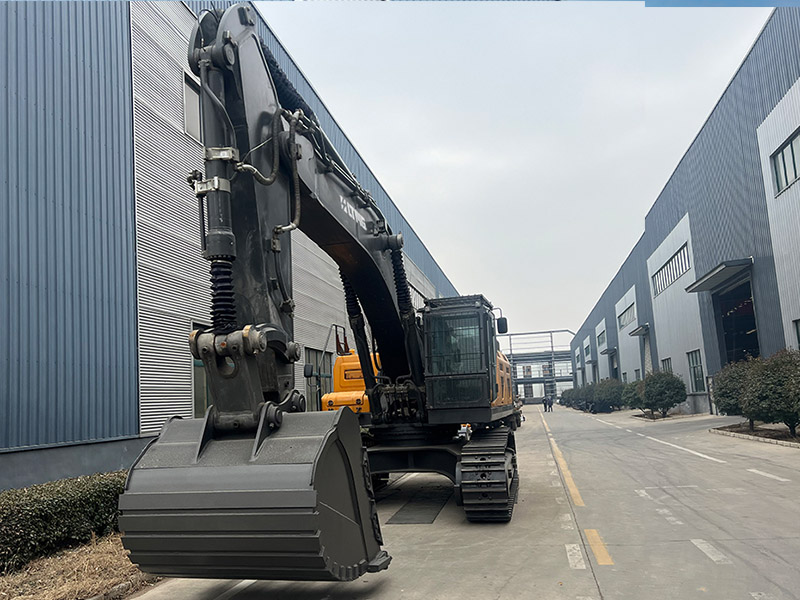

60 tonne excavators are heavy-duty machines used for large-scale earthmoving and excavation projects. They are suitable for a variety of applications, such as mining, quarrying, road construction, demolition, and land clearing. They offer powerful digging force and excellent stability in challenging terrain.
Model :
LTE600Load Capacity :
60000kgBucket Capacity :
3m³ODM/OEM :
SUPPORT

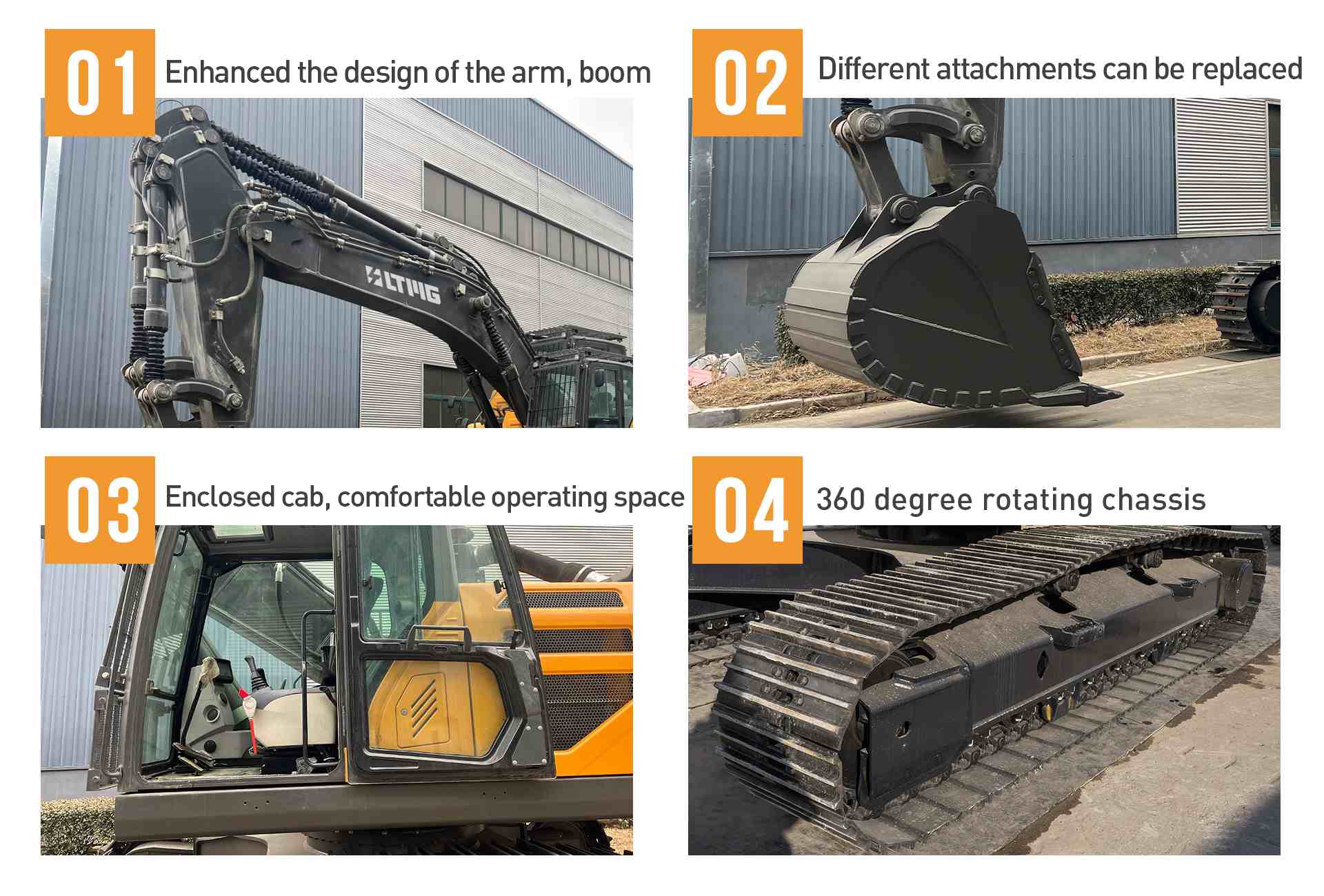

60 Ton Excavator Main Feature
1. The hydraulic main pump adopts imported Rexroth A8VO225 positive flow electric control main pump, with larger displacement, faster response speed and more significant energy saving.
2. American original imported Cummins QSM11 engine. Customized configuration, strong power, sufficient torque reserve and smooth output, low fuel consumption, fast action response, timely and convenient after-sales service.
3. The main valve adopts RCS35 electronically controlled main valve, with more precise control and quicker response.
4. Doosan TM100 travel motor, mainstream configuration, more powerful travel driving force
5. Centralized lubrication for the whole machine. There are many parts of the whole vehicle that are difficult to fill with grease. Using centralized lubrication can fill grease regularly and quantitatively, which saves labour and also standardizes the grease filling time and filling amount, avoiding early wear of structural parts caused by untimely filling.
60 Ton Excavator Technical Parameters
Performance Parameters | Unit | LTE600 |
Operating Weight | Kg | 53000 |
Engine Model | Cummins QSM11 | |
Rated Power | Kw | 298KW/2000rpm |
Bucket Capacity | m³ | 3 |
Max Digging Force | Kn | 325 |
Swing Speed | rpm | 0-11 |
Traveling Speed | km/h | 2.4-4.4 |
Gradeability | ° | 35° |
System Working Pressure | Mpa | 35 |
Boom Length | mm | 6500 |
Arm length | mm | 2550 |
Operating Range | ||
Max. Digging Radius | mm | 10726 |
Max. Digging Depth | mm | 5756 |
Max. Digging Height | mm | 11142 |
Max. Dumping Height | mm | 7779 |
Max. vertical digging depth | mm | 5064 |
Overall Dimensions | ||
Overall Length | mm | 11690 |
Overall Width | mm | 3360 |
Overall Height | mm | 3810 |
Mini.Ground Clearance | mm | 602 |
Track Width | mm | 600 |
Axle base(Track length on ground) | mm | 4021 |
Track Gauge | mm | 2760 |
Swing radius at tail | mm | 3760 |
With technological innovation our product configuration and parameters will continue to change without notice
if there is any doubt the specific confirmation of our international trade sales shall prevail;
