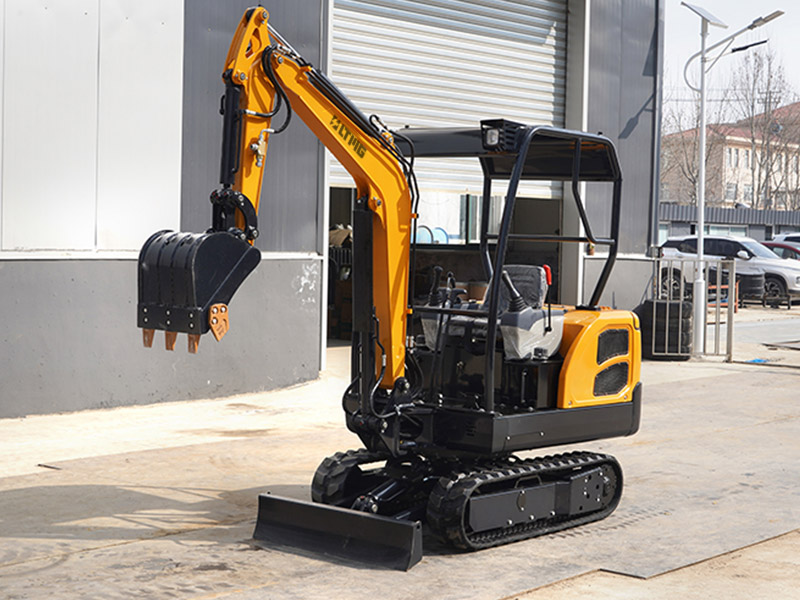

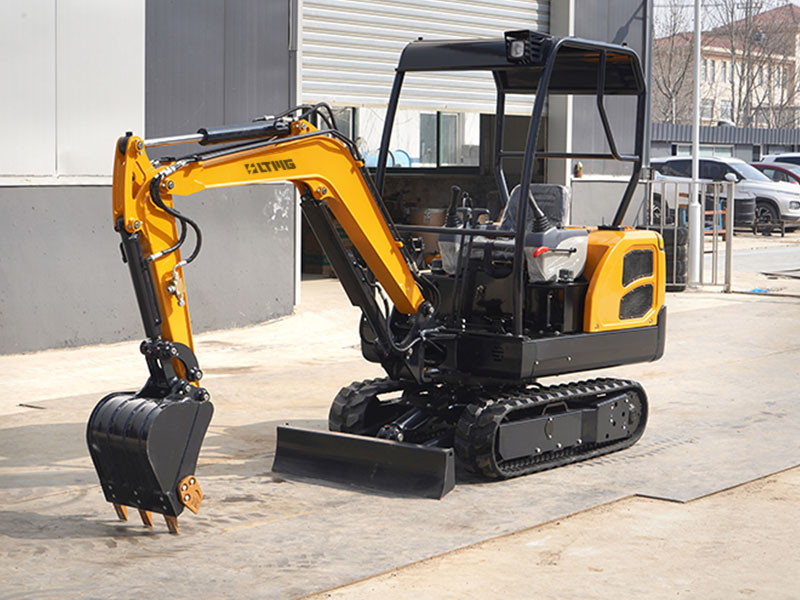

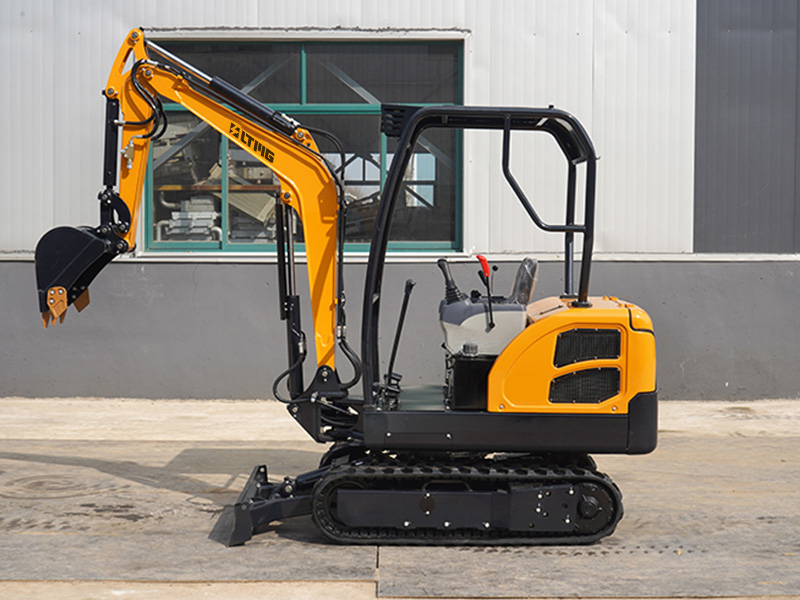

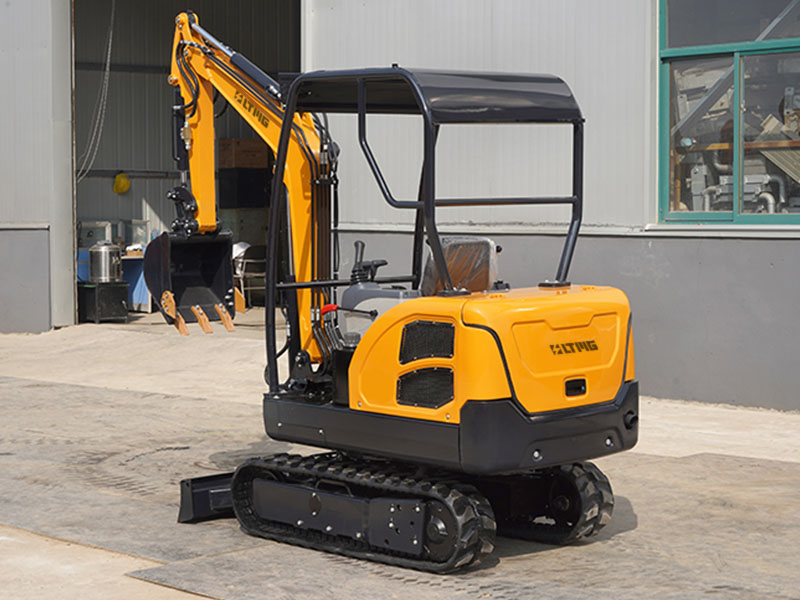

Energy Efficient 2 Ton Micro Crawler Excavator
Energy Efficient 2 Ton Micro Crawler Excavator
Energy Efficient 2 Ton Micro Crawler Excavator
Energy Efficient 2 Ton Micro Crawler Excavator
Energy Efficient 2 Ton Micro Crawler Excavator

Energy Efficient 2 Ton Micro Crawler Excavator

2 tonne micro digger machine, the standard configuration bulldozer can be flat site, earth backfill, increase machine stability. Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.

  • Model :

    LTE20H
  • Operating Weight :

    1950kg
  • Bucket Capacity :

    0.06m³
  • ODM/OEM :

    SUPPORT
  • Share to :
  • Youtube
  • Facebook
  • Instagram
  • linkedin
  • twitter

2 ton crawler excavator

2 Ton Micro Crawler Main Feature

1.The use of high-strength welding plate, strong lifting capacity, U-shaped cross-section main arm, more uniform force and higher safety.

2.The chassis can be flexibly matched, the structure is simple, the steering is light, the power transmission is stronger and more fuel-efficient, and the luxurious cab is more comfortable.

3.Adopt high-strength sheet composite structure, increase the weight of the frame, prevent distortion and breakage.

4.Equilibrium valve for smooth operation.Hardened gear with surface hardening, low noise and smooth operation, modular design, high temperature resistance, anti-seepage oil.



2 Ton Micro Crawler Technical Parameters

Performance Parameters

Unit

LTE20H

Operating Weight

Kg

1950

Engine Model



Laidong 3TE25

Rated Power

Kw

18.1

Bucket Capacity

0.06

Bucket Width

mm

435

Max Digging Force

Kn

11.5

System Working Pressure

Mpa

18

Swing Speed

rpm

10-12

Traveling Speed

km/h

2.8

Gradeability

°

35

Ground Pressure

Kpa

38





Operating Range





Max. Digging Distance

mm

3860

Max. Digging Depth

mm

2050

Max. Digging Height

mm

3370

Max. Dumping Height

mm

2390

Min. Turning Radius

mm

1720





Overall Dimensions





Overall Length

mm

3800

Overall Width

mm

1050

Overall Height

mm

2280

Min. Ground Clearance

mm

210

Track Ground Length

mm

1050

Track Width

mm

230

  • With technological innovation our product configuration and parameters will continue to change without notice

     if there is any doubt the specific confirmation of our international trade sales shall prevail;
