Explore our 2.5-ton excavator featuring a tailless design, raised boom, standard swing offset, top-tier Parker triple hydraulic pump from the USA, and fully hydraulic controls. Unleash unmatched efficiency and precision on any job site.
Model :
LTE25Operating Weight :
2500 KGBucket Capacity :
0.06m³ODM/OEM :
Available

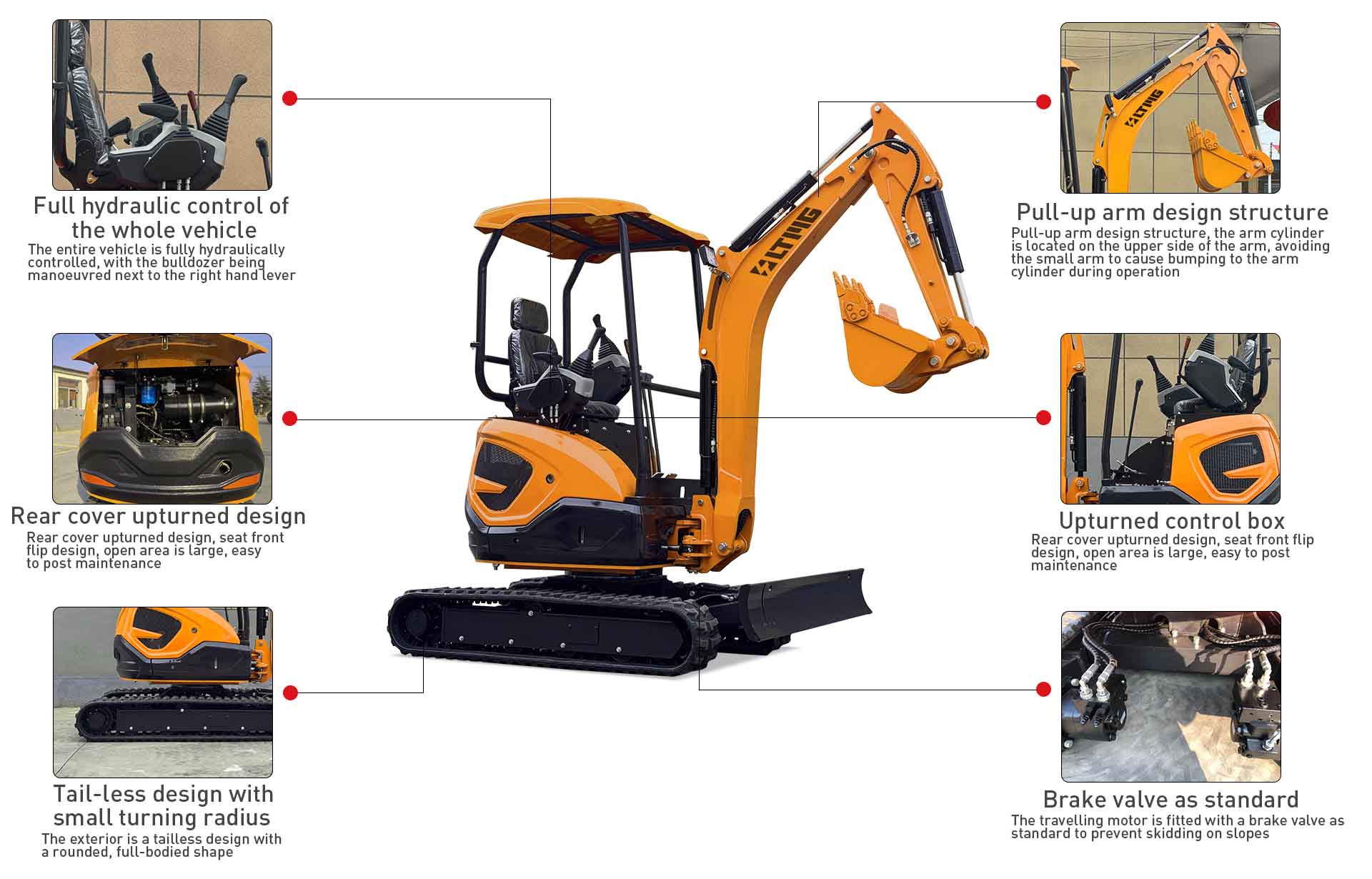

LTMG LTE25 Mini Digger Product Features
- Streamlined Appearance: Boasts a sleek, tailless design for enhanced maneuverability and agility on job sites.
- Standard With Side Swing: Facilitates easy maneuvering in tight spaces, ensuring maximum efficiency and productivity.
- Hydraulic System: Features a triple-circuit hydraulic pump from Parker, coupled with a load-sensitive hydraulic system, delivering optimal performance and responsiveness.
- Compact Chassis: With a length of 1800mm and a track width of 250mm, it effortlessly navigates through narrow passages and confined areas.
- Enhanced Safety: Includes a standard brake valve on the travel motor to prevent slippage on slopes, ensuring operator safety and stability.
- Fully Hydraulic Controls: Enables precise operation of functions such as travel, bucket tilting, and attachment control, ensuring smooth and efficient performance across all tasks.
The Specification Of 2.5 Ton Mini Excavator
| Model | LTE25 |
| Bucket capacity | 0.06m³ |
| Bucket width | 420mm |
| Track width | 250mm |
| Track length | 1800mm |
| Digging height | 3388mm |
| Digging depth | 2600mm |
| Transport length | 3980mm |
| Unloading height | 2673mm |
| Vehicle height | 2290mm |
| Ground clearance | 420mm |
| Wheelbase | 1050mm |
| Chassis width | 1300mm |
| Chassis length | 2160mm |
| Digging radius | 4163mm |
| Turning radius | 756mm |
| Dimension of the whole machine | 2300x1300x2550mm |
| Shovel Lifting Height | 290 |
| Engine | Kubota |
| Engine power | 14.2kw/21kw |
| Weight | 2000 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
The Configuration Of LTE25 Mini Excavator

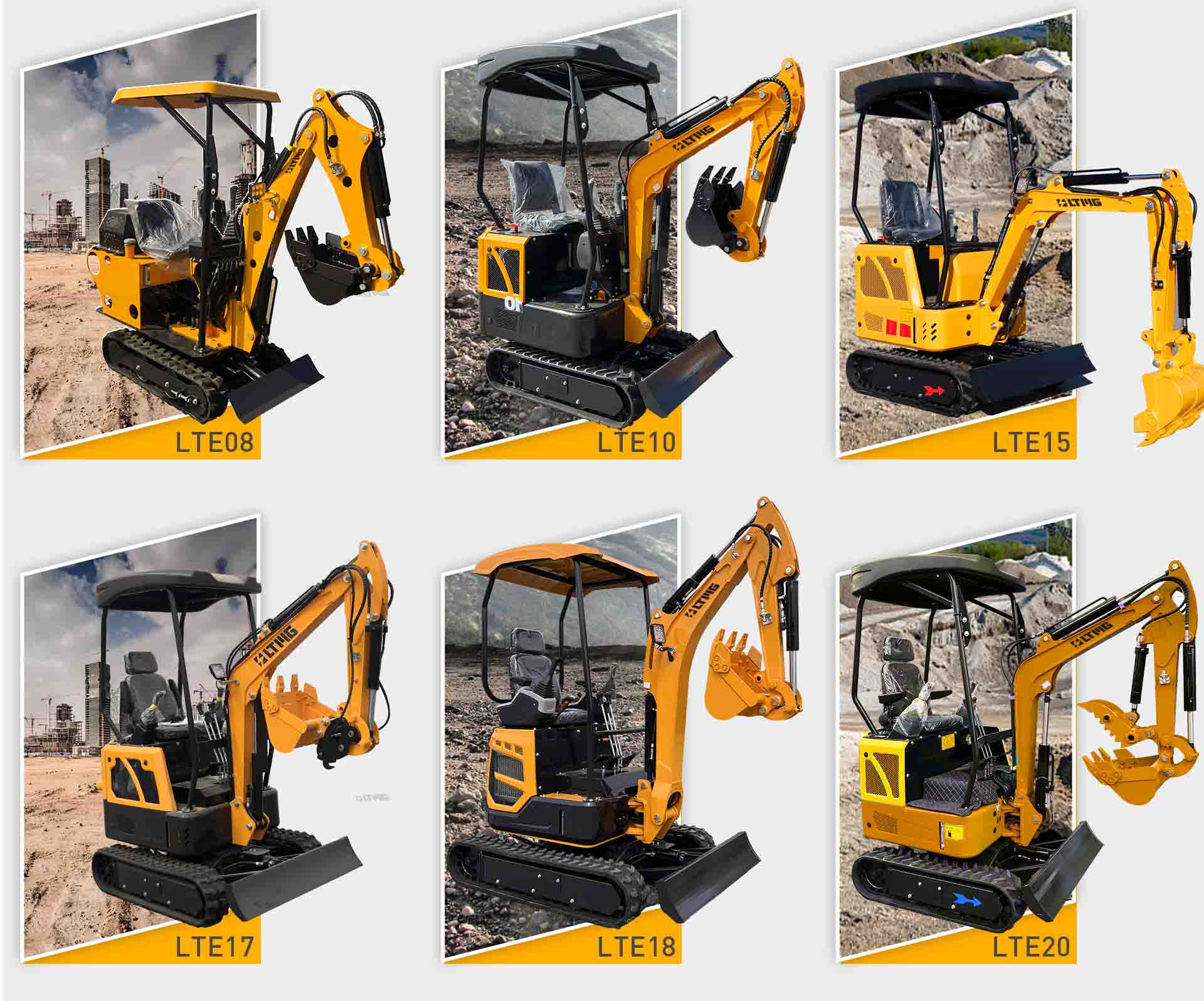

Other Models Of LTMG Mini Excavator
FAQ
Q: How about the cooling system of this LTMG excavator?
A: The LTMG excavator is equipped with a large water tank and auxiliary water tank to prevent high temperature problems. The fan uses a ten-sided fan, which is more effective in dissipating heat than an 8-sided fan. Enlarge the hydraulic oil radiator to ensure that it does not overheat for a long time. Dual engine filters improve engine protection and life.
Q: What's the after-sales service of LTMG Machinery?
A: Yes, LTMG Machinery Group focuses on providing comprehensive pre-sales and after-sales services. We have a professional sales team to provide consulting and technical support, and have a perfect after-sales service network to provide customers with timely maintenance and spare parts support.
Q: Is the construction machine easy to maneuver in tight spaces?
A: Yes, the construction machine is designed with a side swing feature that facilitates easy maneuvering in tight spaces, ensuring maximum efficiency and productivity.
