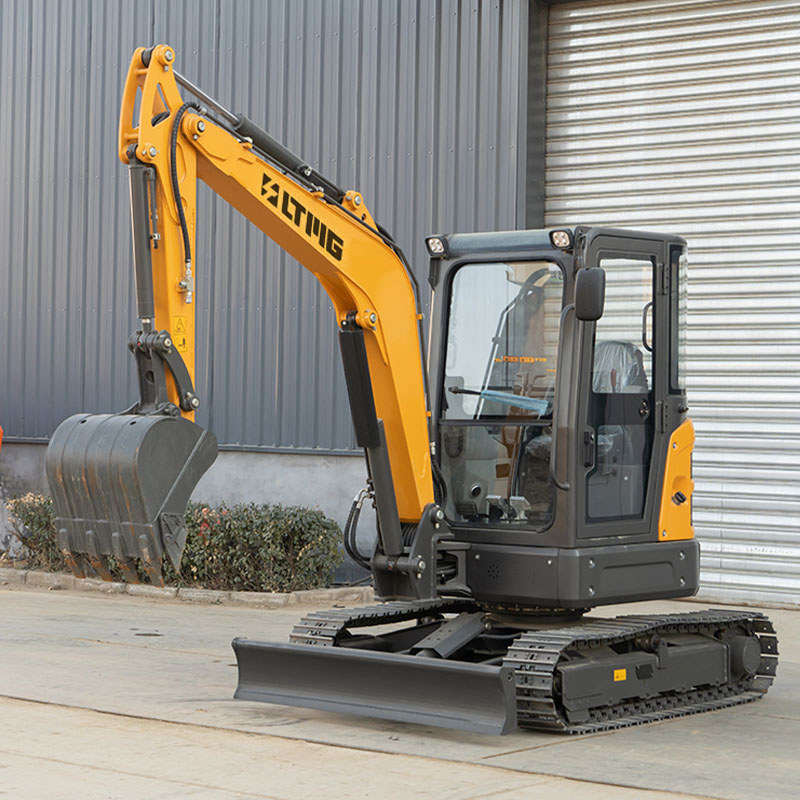

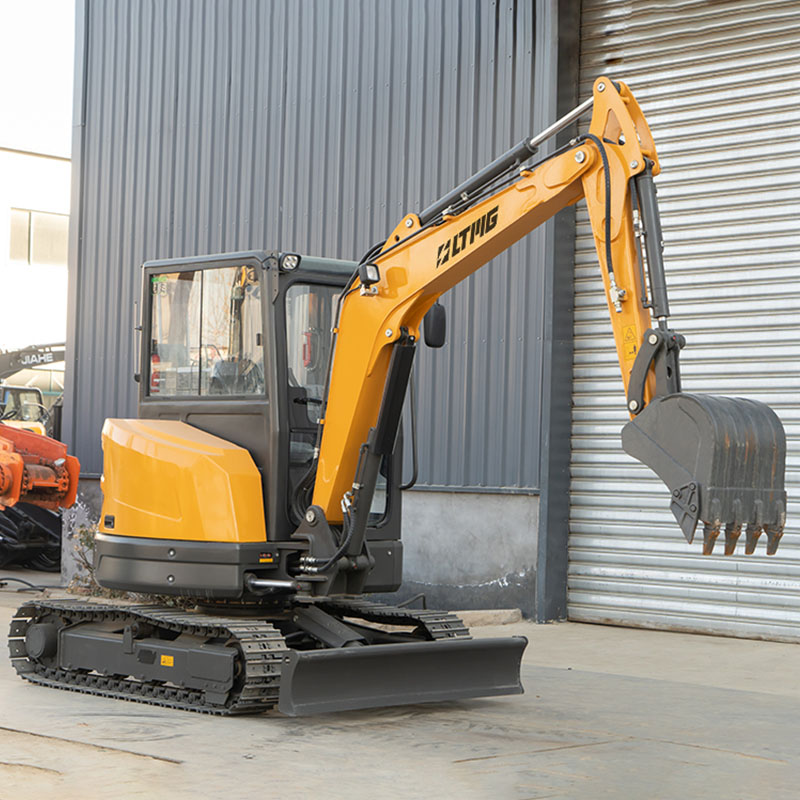

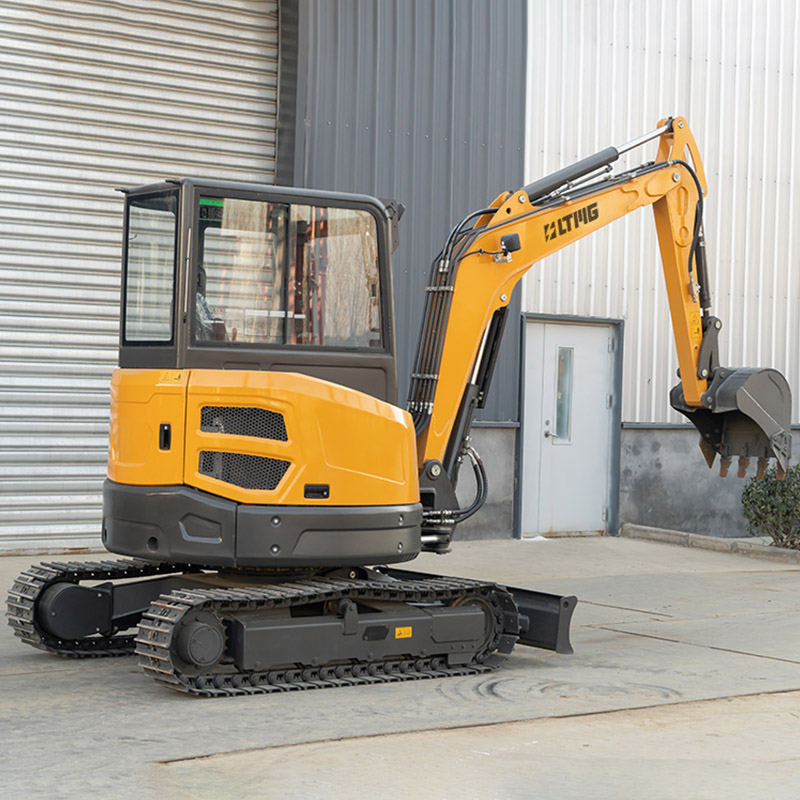

A batch of 3.5 Ton Compact Crawler Excavator is about to be completed, come and order! LTMG 3.5-ton crawler hydraulic excavator features a zero-tail exterior design while retaining a spacious cab and a well-known brand of air conditioning. This 3.5 ton diesel excavator gives customers great comfort and excellent working performance
Model :
LTE35Operating Weight :
3810KGSBucket Capacity :
0.12m³ODM/OEM :
Support
Product characteristics of 3.5 tons crawler excavator on LTMG
1.The design of the connecting rod allows the operator to operate the 3500kg crawler excavator more efficiently. The operation is lighter and clearer.
2.The hydraulic pipeline arrangement is clear, and the pipeline will not rub against each other because of chaos. Increased hydraulic line durability.
3.The spacious cab, luxurious interior and comfortable seats give the excavator operator a good mood and a positive face to the work every day.
4.The additional hydraulic line provides an additional option for customers who need to install accessories.This allows customers to avoid the trouble of re-designing pipelines due to the temporary need to install accessories.
5.Integral casting process accessories. Casting parts are accurate in size, more robust and durable.The thickened steel plate is also thicker than that of other excavators on the market.
Product specifications of 3.5 tons Compact Crawler Excavator
Model | LTE35 | |
Engine | ||
Engine Power | Kubota D1703 18.5KW/2200rpm | |
Max. Turque | 97.4NLm/1500RPM | |
Type | In-line, water cooled, Mechanical pump, nomally aspiraled | |
Main Performance | ||
Swing Speed | rmin | 0-11 |
Traveling Speed(high/low) | km/H | 4.4/2.4km/h |
Machine Weight | KG | 3810 |
Boam Length | Mm | 2535 |
Arm Length | Mm | 1400 |
Carrier roller(each side) | 1 | |
Supporting roller(each side) | 4 | |
Overall Dimensions | ||
Overall Length | mm | 4915 |
Overall Width | mm | 1720 |
Overall Height | mm | 2525 |
Mini Ground clearance | mm | 295 |
Track width | mm | 300 |
Axie base(Track length on ground) | mm | 1670 |
ength of track | mm | 2154 |
Track Gauge | Mm | 1420 |
Operation parameters | ||
Bucket Capacity | m² | 0.12 |
Max. Digging Radius | mm | 5480 |
Max. Digging Depth | mm | 3208 |
Max. Digging Height | mm | 4800 |
Max. Dumping Height | mm | 3406 |
Max, vertioal digging depth | mm | 3208 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

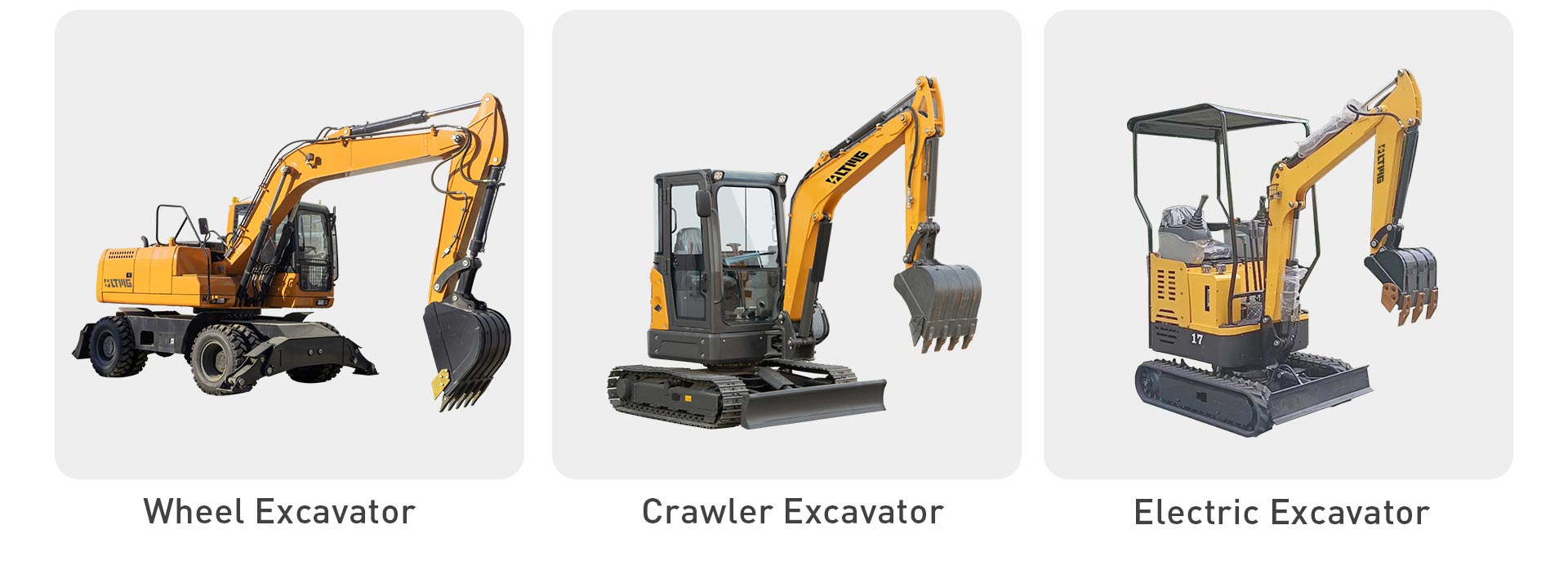

LTMG 3.5 tons Hydraulic Excavator Crawler and Other Styles of Excavator
In the field of diesel track excavator, LTMG not only produces 3500kg hydraulic diesel zero tail excavator, but also produces other tonnage excavator. We also produce wheeled hydraulic excavators and electric crawler small tonnage excavators.Have various needs, welcome to make inquiries at any time.
LTMG's Professional Shipping Department and Perfect Shipping Process
In terms of the delivery of 3.5 tons compact crawler excavator and other types of excavator, LTMG achieves safe and stable packaging and fixing in strict accordance with the regulations of sea and rail transportation. This makes the goods in the process of transportation, not because of bumps and wear.
FAQ
Q1: What kind of engine does this 3.5-ton diesel crawler excavator come with?
A1: This 3.5-ton diesel crawler excavator is equipped with a Kubota engine. The Kubota engine is a reliable and efficient diesel engine with excellent power and fuel economy.
Q2: What are the cab facilities of this excavator?
A2: The cab of the excavator is designed for comfort and provides a good view and operating environment. The cockpit is equipped with adjustable seats, air conditioning systems, front and rear view mirrors, multi-function dashboards and more to improve operator efficiency and comfort.
Q3: How about the track brake system of this excavator?
A3: This excavator is equipped with an advanced track braking system to provide reliable braking effect. The system adopts hydraulic braking technology, which can effectively control the moving speed and stopping distance of the excavator during construction.
Q4: What are the maintenance and maintenance points of this excavator?
A4: Proper maintenance and maintenance is crucial to the performance and life of the excavator. You need to pay attention to regularly changing oil and filters, cleaning radiators and air filters, checking and tightening bolts, and regularly lubricating key components. In addition, following the operating manual and maintenance plan provided by the manufacturer is also the key to keeping the excavator in good condition.
Q5: Is the excavator equipped with safety devices?
A5: Yes, this excavator is equipped with a variety of safety devices to ensure the safety of the operator and those around it. Including safety belt, anti-roll frame, alarm device, fire extinguishing system, etc. Always follow safety rules and wear personal protective equipment when operating the excavator.
