Wonderful, zero tail style of 1.5 ton excavator surprisingly has such a good price and quality. The 1.5 ton crawler small excavator, Kubota engine provides a strong power. Zero tail style, moderate size. This small excavator has flexible turns, high working efficiency and excellent performance.
Model :
LTE15Operating Weight :
1500KGSBucket Capacity :
0.025m³ODM/OEM :
Support
Product Characteristics of 1.5 tons Hydraulic Crawler Excavator
1.LTMG 1500kg excavator uses high quality hydraulic lines and is also equipped with a large brand of hydraulic oil radiator. This makes the customer in the operation of the excavator, the performance of the excavator is excellent, will not cause the machine to overheat the machine strike.
2.The digging machine is designed for long-term durability and has high resistance to bending and torsional stresses. The arm of the excavator is made of high tensile strength steel plate and has a large cross-sectional area. This allows the mini excavator to have a better load carrying capacity when working
3.Crawler excavator standard configuration of dodging plate can level the site, backfill earth, increase the stability of the machine. The Kubota engine provides a strong power, so that the excavator's dodging plate will be more powerful when performing the dodging work.
4.Colors can be customized. We can modulate the same or similar color according to the color number provided by the customer. Professional painting process, so that the excavator is not easy to be scratched when working, so that the excavator is not easy to rust when idle. Integral spray painting process, a whole structure is processed in the spray painting room, the paint surface is smooth and beautiful. The colors are bright.
Product Specifications of Small Hydraulic Crawler Excavator
| LTE15 Technical Specification | ||
| Engine | ||
| Model | Kubota D722 10.4KW/2500rpm | |
| Max. Turque | 45N.m/2500RPM | |
| Type | In-line, water cooled, 4 stroke, Mechanical pump, normally aspirated | |
| Displacement | 0.719 | |
| No. of cylinder | 3 | |
| Main Performance | ||
| Swing Speed | r/min | 12-13 |
| Traveling Speed(high/low) | km/H | 2.1/3.2km/h |
| Grade ability | ° | 58% |
| Max. Bucket Digging Force | kN | 9 |
| Arm Digging Force | kN | 5.5 |
| Ground Pressure | Kpa | 23 |
| Hydraulic system pressure | Mpa | 20 |
| Machine Weight | KG | 1400 |
| Fuel Tank capacity | L | 14.5 |
| Hydraulic Tank capacity | L | 14.5 |
| Engine oil capacity | L | 3.2 |
| Overall Dimensions | ||
| Overall Length | mm | 3329 |
| Overall Width | mm | 990 |
| Overall Height | mm | 2267 |
| Mini Ground clearance | mm | 153 |
| Track width | mm | 200 |
| Axle base(Track length on ground) | mm | 1190 |
| Track Gauge | Mm | 790(1100) |
| Swing radius at tail | Mm | 655 |
| Swing radius at front | Mm | 1812 |
| Height of blade | Mm | 210 |
| Max.Dozer blade cutting | Mm | 229 |
| Max.Dozer blade lifting | mm | 236 |
| Bucket Capacity | m3 | 0.025 |
| Max. Digging Radius | mm | 3529 |
| Max. Digging Depth | mm | 2017 |
| Max. Digging Height | mm | 2955 |
| Max. Dumping Height | mm | 2077 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Attachments Of Excavators

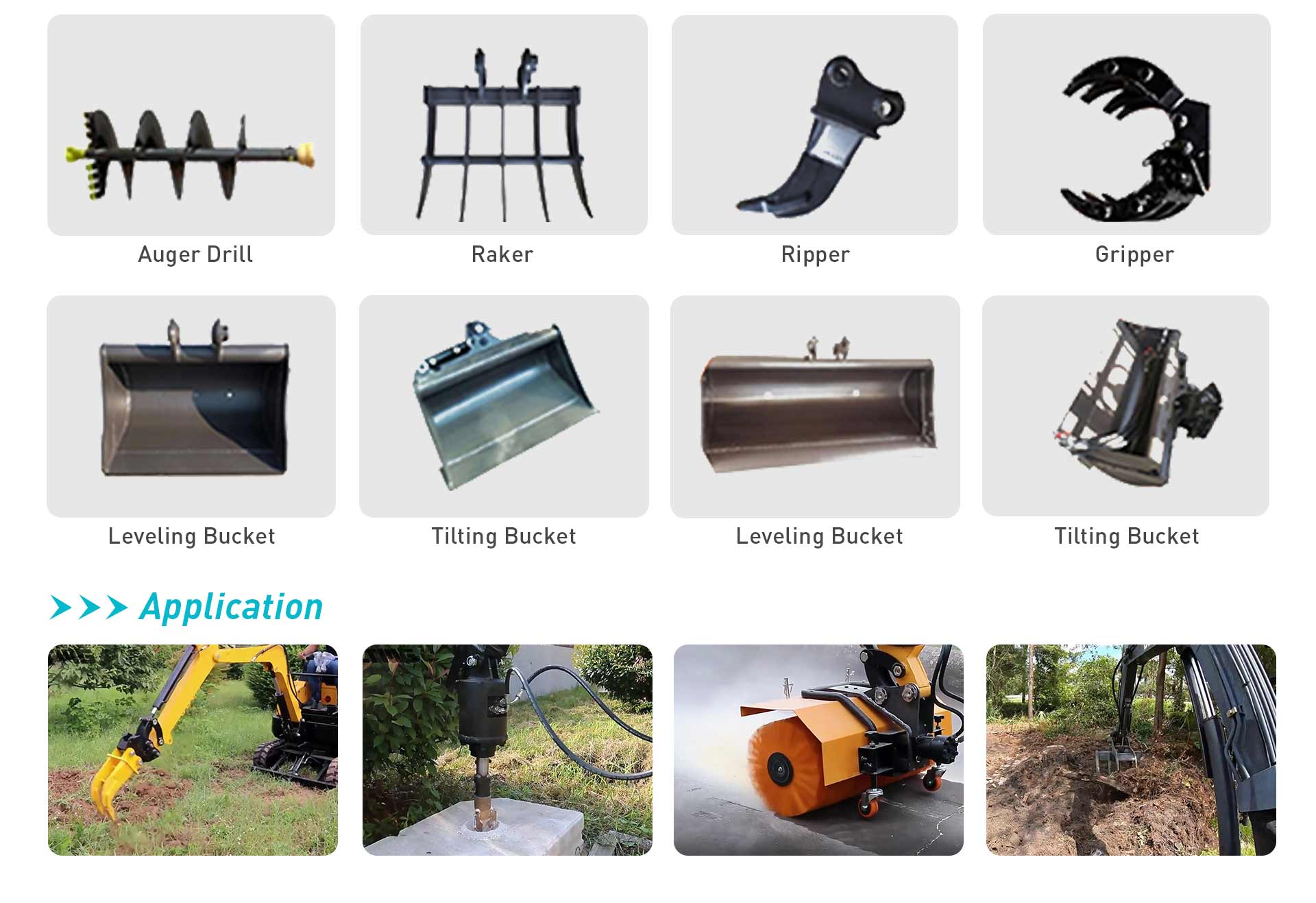

The picture shows some attachments that can be installed for LTMG excavator. Diggers can be selected with different hydraulic or mechanical accessories. Different devices are used in different working environments. It depends on the needs of the customer. Different fittings with the LTMG 1.5ton crawler hydraulic excavator enable efficient work in different environments.
LTMG excavator with different tonnage applications in various countries
LTMG currently exports a wide range of small, medium and large scale excavators. Especially 1500KG track excavator. At present, more than 100 countries in the world, we have sold dredging machines. These excavators are well received by our customers.
