Introducing a versatile machine! The 3.5-ton small tracked excavator with attachment is standardized with a breaker pipeline, oil dispersal, and air conditioning, making it designed to tackle a wide range of excavation tasks with ease. Equipped with a host of impressive features, it ensures efficiency, performance, and operator comfort.
Model :
LTE35Operating Weight :
3500KGBucket Capacity :
0.12CBMODM/OEM :
Available
Features of 3.5Ton Small Tracked Excavator
The compact tracked excavator standarded with breaker pipeline, allowing for effortless attachment of hydraulic breakers and other tools, expanding the excavator's versatility. Additionally, the excavator is equipped with an EPA and Euro V compliant engine, ensuring reduced emissions and environmental friendliness. The hydraulic pilot controls further enhance the machine's precision and responsiveness, thanks to the Korean pilot control joystick, providing smooth and intuitive handling.
The small tracked excavator boasts a compact design with a tailless body, allowing for enhanced maneuverability in confined spaces with limited access. This ensures that the machine can excel in various applications, such as landscaping, construction, and maintenance projects.
Operators will certainly appreciate the comfort-focused features of this excavator. The comfort cabin is designed to provide a pleasant working environment, reducing operator fatigue during extended work periods. The wide-view sight offers excellent visibility from the operator's seat, enhancing safety and increasing overall efficiency on the job site.
The inclusion of standard features like oil dispersal and air conditioning adds convenience and makes working in diverse weather conditions more comfortable. Furthermore， LTMG Machinery offer the flexibility to customize and select various attachments based on individual requirements. One such option is the clamp attachment, which enhances the machine's capabilities for gripping and lifting objects.
The crawler xcavator is a well-rounded machine that combines power, versatility, and operator comfort. Its features, ranging from breakout pipeline to EPA/Euro V engine, tailless body, and comfort cabin with wide-view sight, make it an excellent choice for a variety of excavation tasks. Whether it's digging, demolition, or any other related job, this excavator is sure to deliver outstanding performance and reliability.
Technical Parameter of 3.5T Small Tracked Excavator
| Engine | ||
| Engine Power | Kubota D170318.5KW/2200rpm | |
| Max. Turque | 97.4NLm/1500RPM | |
| Type | In-line, water cooled, Mechanical pump | |
| Displacement | 1.647L | |
| No. of cylinder | 4 | |
| Main Performance | ||
| Swing Speed | rmin | 0-11 |
| Traveling Speed(high/low) | km/H | 4.4/2.4km/h |
| Grade ability | 58% | |
| Max. Bucket Digging Force | kN | 30.4 |
| Arm Dioging Foroe | kN | 18.2 |
| Ground Pressure | Kpa | 32 |
| Hydraulic system pressure | Mpa | 22.5 |
| Machine Weight | KG | 3810 |
| Boam Length | Mm | 2535 |
| Arm Length | Mm | 1400 |
| Fuel Tank capacity | L | 42 |
| Hydraulic Tank capacity | L | 48.5 |
| Engine oll capacity | L | 7 |
| Carrier roller(each side) | 1 | |
| Supporting roller(each side) | 4 | |
| Overall Dimensions | ||
| Overall Length | mm | 4915 |
| Overall Width | mm | 1720 |
| Overall Height | mm | 2525 |
| Mini Ground clearance | mm | 295 |
| Track width | mm | 300 |
| Axie base (Track length on ground) | mm | 1670 |
| Length of track | mm | 2154 |
| Track Gauge | Mm | 1420 |
| Swing radius | Mm | 860 |
| Swing radius at front | Mm | 2538 |
| Height of blade | Mm | 350 |
| Operation parameters | ||
| Bucket Capacity | m² | 0.12 |
| Max. Digging Radius | mm | 5480 |
| Max. Digging Depth | mm | 3208 |
| Max. Digging Height | mm | 4800 |
| Max. Dumping Height | mm | 3406 |
| Max. digging depth | mm | 3208 |
|---|---|---|
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
More About LTMG Machinery

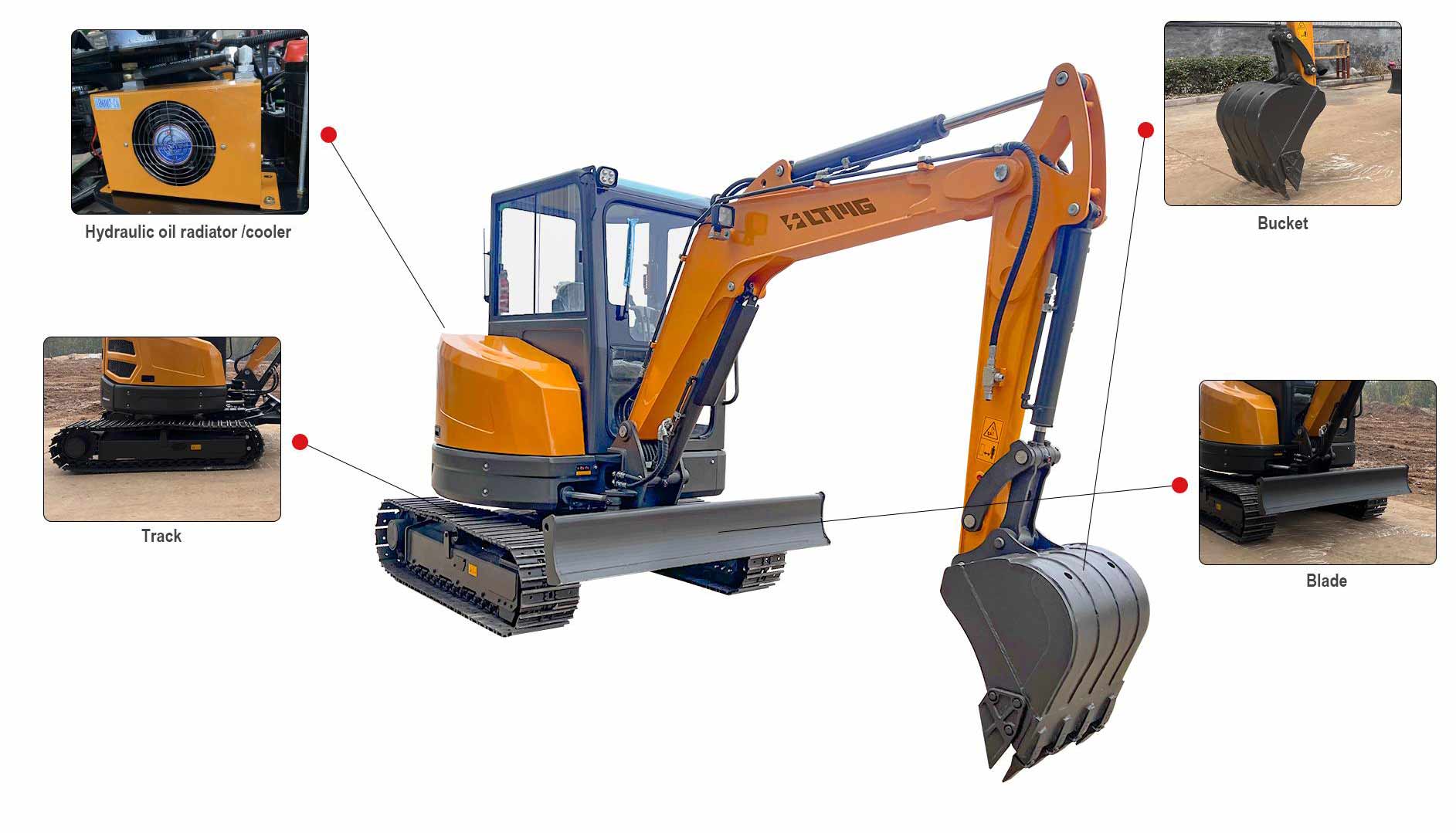

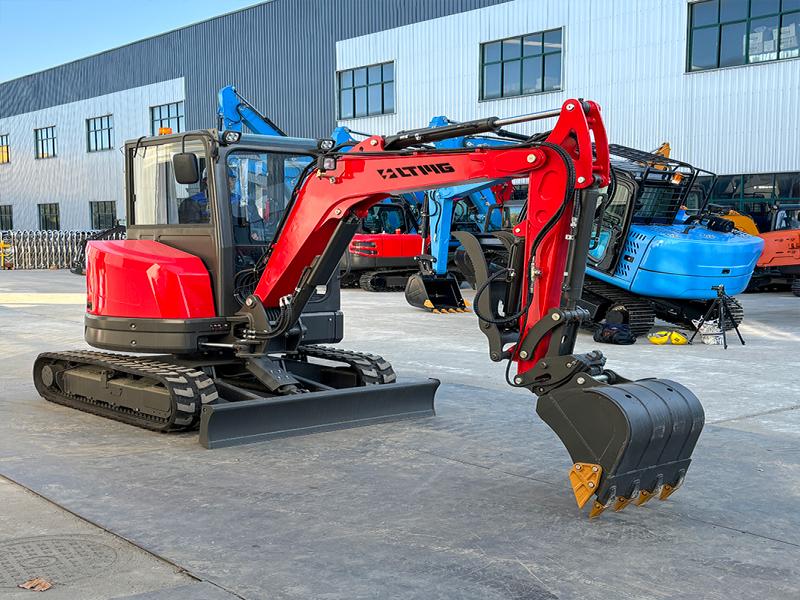

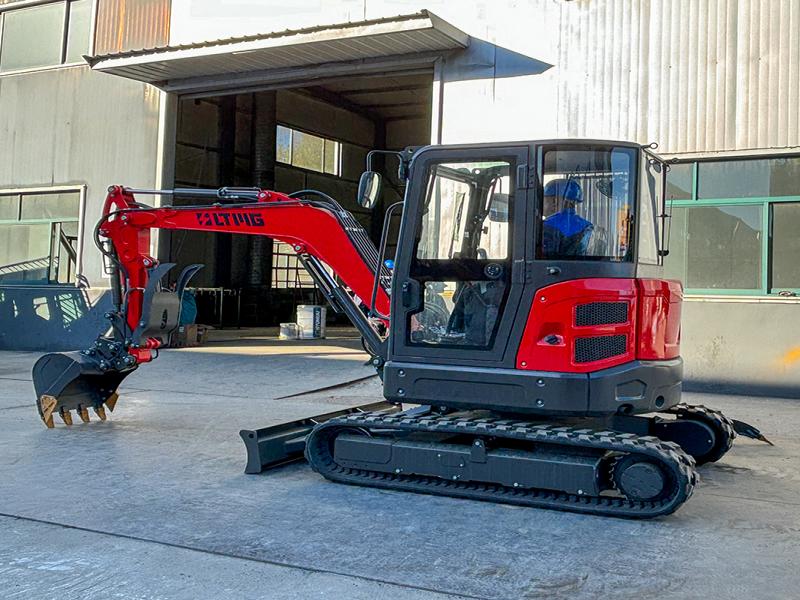

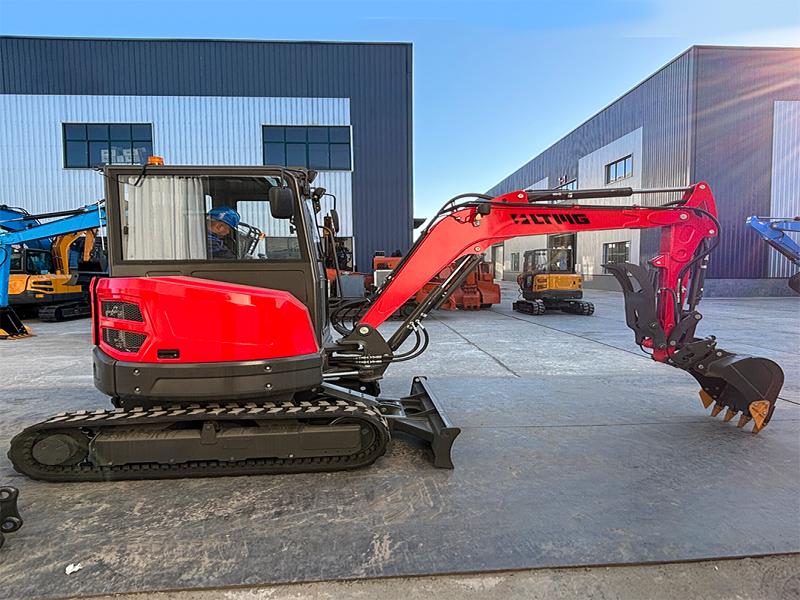

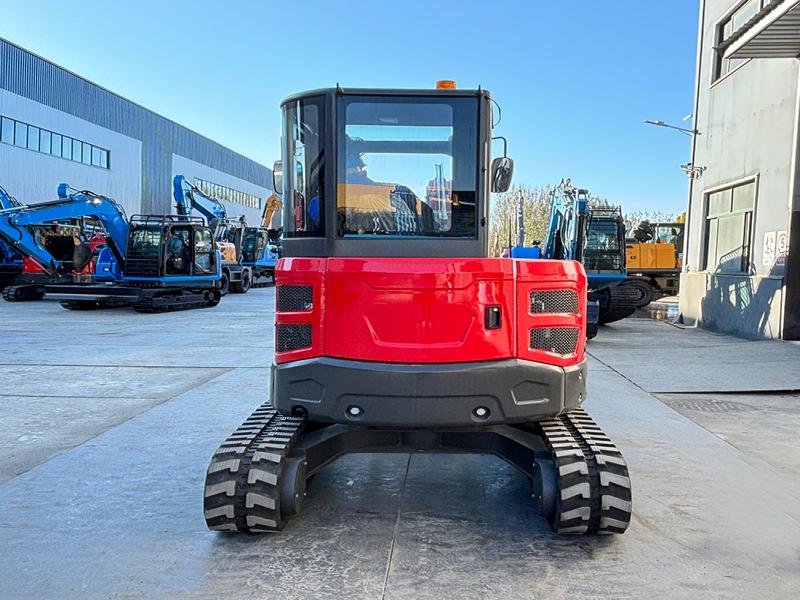

The Detailed Picture of 3.5Ton Small Tracked Excavator
3.5Ton Small Tracked Excavator FAQ
Q: What is a mini crawler excavator?
A: A mini crawler excavator is a compact construction vehicle designed for excavation and digging tasks in restricted spaces. It typically features a hydraulic-powered bucket or arm mounted on a rotating platform called the "house," supported by tracks or crawlers for mobility.
Q: What are the advantages of using a mini crawler excavator?
A: Versatility, maneuverability, increased efficiency, lower operational costs, reduced environmental impact and so on.
Q: What applications can a mini crawler excavator be used for?
A: Digging and trenching, landscaping and gardening, construction projects, maintenance and repairs, roadwork and many other working sites.
Q. What types of machines are LTMG Industries specialized in?
A. LTMG Industries specializes in construction and logistics machinery such as loaders, forklift trucks, excavators, etc. and customized products.
