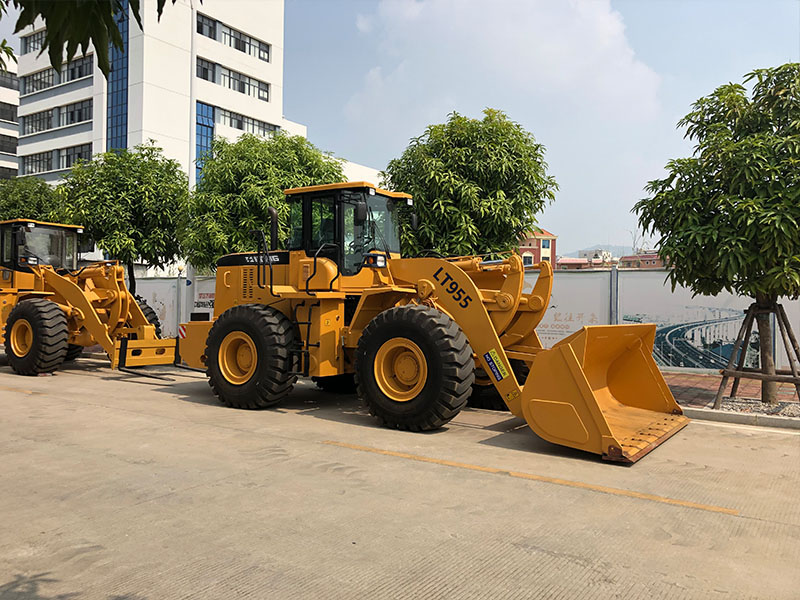

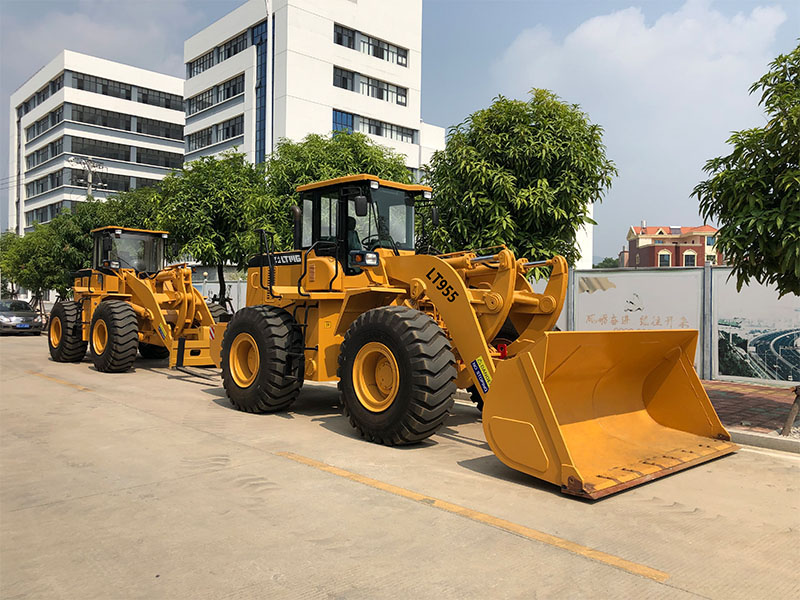

Large Wheel Loader 5 ton High-Power With Weichai Engine
Large Wheel Loader 5 ton High-Power With Weichai Engine
Large Wheel Loader 5 ton High-Power With Weichai Engine

Large Wheel Loader 5 ton High-Power With Weichai Engine

Large 5 ton high-power diesel engine wheel loader with dual rock boom,excellent driving visibility and driving experience,smaller turning radius for greater manoeuvrability

  • Model :

    LT955
  • Load Capacity :

    5000kg
  • Operating Weight :

    16500kg
  • Bucket Capacity :

    3m³
  • ODM/OEM :

    SUPPORT
  • Share to :
  • Youtube
  • Facebook
  • Instagram
  • linkedin
  • twitter



5 ton wheel loader  large wheel loader









5 Ton Wheel Loader Characteristics

1.Rear tires: 11.00R20 .

2.The rock boom is a type of crane that is used for lifting and moving heavy objects such as rocks and boulders. It consists of two booms, one on each side of the vehicle, which are connected by a central pivot point.

3.The Weichai 162KW engine provides power to the crane and the Yitong gearbox helps to control the speed and direction of movement. The Longkin drive axle transfers power from the engine to the wheels, while the 11.00R20 tires provide traction and stability on different surfaces.







5 Ton Wheel Loader tech

Model LT955
Rated power 162KW/2200r/min
Engine Weichai/Cummins
Overall dimensions 7600mm*3000mm*3350mm
Operating weight 16500KG
Rated loading capacity 5000KG
Bucket capacity 3m3
Bucket width 3000mm
Wheel base 2760mm
Tread width 2250mm
Dumping height 3180mm
Dumping reach 1250mm
Turning angle 35°± 1°
Max.climbing Gradient 28°
Turning radius 6650mm
Max.breakout forth 145kN
Max.torque 745.3N.m
Lifting time ≤6.8s
Hydraulic cylinder time ≤12.55s
Specification of tire 23.5-25
Travel speed
Forward gear I 11.5km/h
Forward gear II 38km/h
Reserve gear I 16km/h

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
