4 Ton Front End Loader with 2.0m³ Bucket

4 Ton Front End Loader with 2.0m³ Bucket

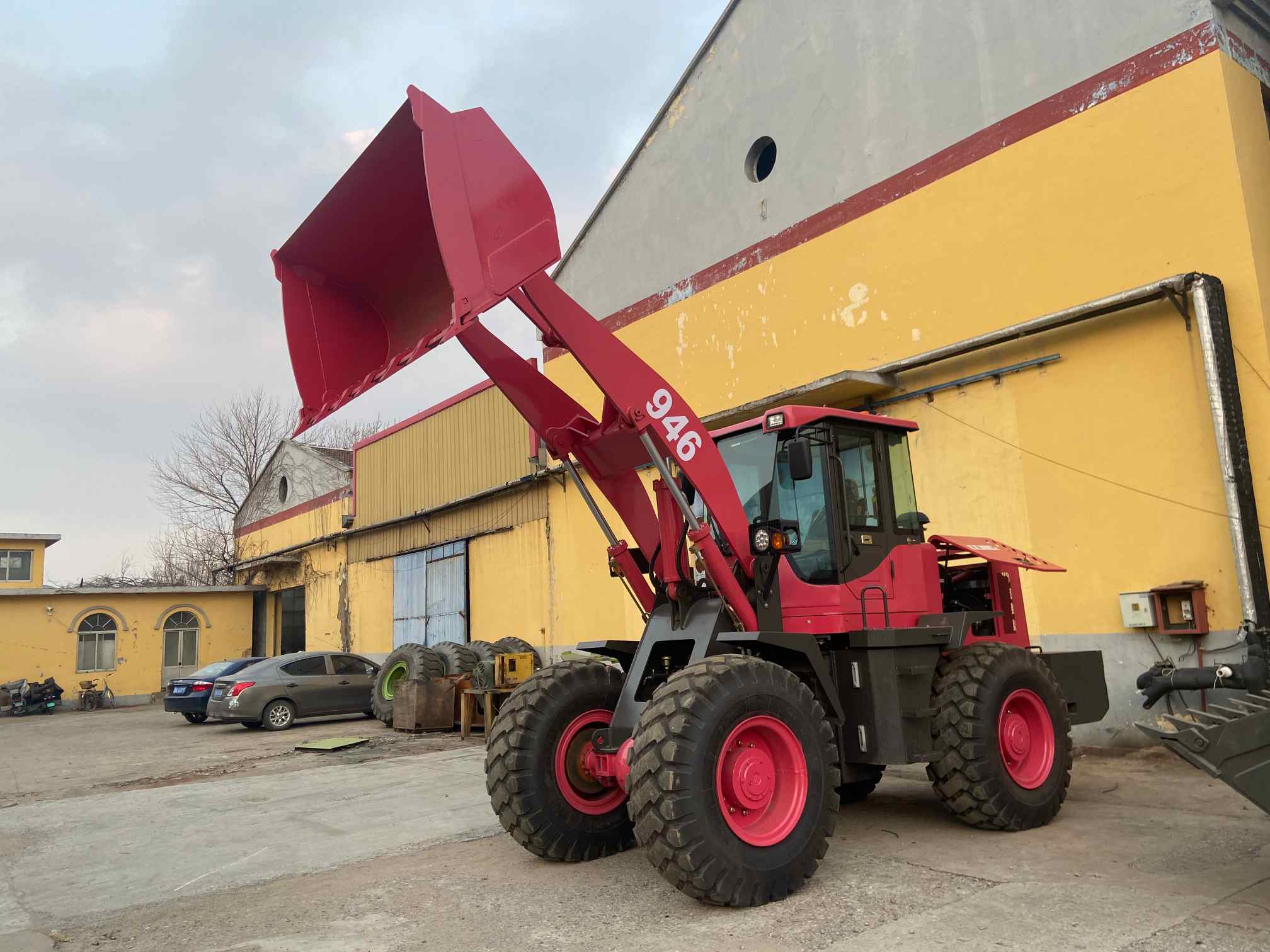

The LT946 4 ton front end loader is a compact articulated wheel loader designed for construction, agriculture, and material handling. With a 2.0m³ bucket, hydraulic steering, and pilot control system, it delivers strong performance, flexible operation, and reliable durability in tough working conditions.

Model :
LT946
Operating Weight :
4000KG
Bucket Capacity :
2m³
ODM/OEM :
Support

Inquiry now

Share to :

Product Details

Flexible Mobility & Easy Control: The central articulated frame provides a small turning radius for narrow spaces. Full hydraulic steering and power-shift transmission ensure smooth and effortless maneuvering.
High Breakout Power & Efficiency: A twin-pump flow merging system boosts breakout and lifting force, significantly increasing overall operational efficiency for this front end loader.
All-Around Visibility & Safe Braking: The spacious panoramic cab offers excellent visibility. Combined with clear gauges and an air-over-hydraulic disc brake system, it ensures maximum safety and control.
Heavy-Duty Build for Harsh Conditions: Reinforced front and rear frames with a large articulated design extend bearing life. Premium wear-resistant tyres ensure reliable performance on any tough job site.
Reliable Drivetrain & Durable Bucket: A mature transmission system guarantees long-term stability. The bucket is equipped with a high wear-resistant blade to maximize its service life.
Quick & Easy Maintenance: The wing-spread hood, large side doors, and steel covers provide ample space for fast, convenient daily servicing.

4 Ton Front End Loader Technical Parameters

Performance	rated loading	4000kg
	overall weight	11000kg
	bucket capacity	2.0m3
	maximum traction force	95KN
	maximum breakout force	127KN
	maximum grade ability	30℃
	maximum dump height	3200mm
	maximum dump reach	1260mm
	overall dimension (L×W×H)	756024403300mm
	minimum turning radius	5929mm
	Digging depth(minimum)	150 mm
	Tipping load	9860KG
	Max angle of steering	45°
Engine	model	weichai
	type
	NO. of cylinder-bore*stroke
	rated power	129kw—2000r/min
	maximum torque	640N.m
	min. fuel-consume ratio	≦210Kw h
	Emission standards	Euro Ⅱ
	torque converter	YJ315-X
Transmission system	gearbox mode	The power shaft is normally engaged straight gear
	gears	2 forward 1 reverse
	maximum speed	38km/h
Drive axles	main reducing spiral	bevel gear grade 1reduction
Drive axles	decelerating mode	Planetary reduction grade 1
Hydraulic system	wheel base (mm)	2820mm
	wheel tread	1300mm
	ground clearance	400mm
	system working pressure	16,5MPa
	boom lifting time	4.83
	total time	9.15±0.5s
Brake system	service brake	air assist disc brake on 4 wheels
Brake system	parking brake	Manual disk brake
Tyre	type specification	20.5-25
	front tyre pressure	0.4Mpa
	rear tyre pressure	0.35Mpa

With technological innovation, our product configuration and parameters will continue to change without notice. If there is any doubt, the specific confirmation of our international trade sales shall prevail.

About LTMG

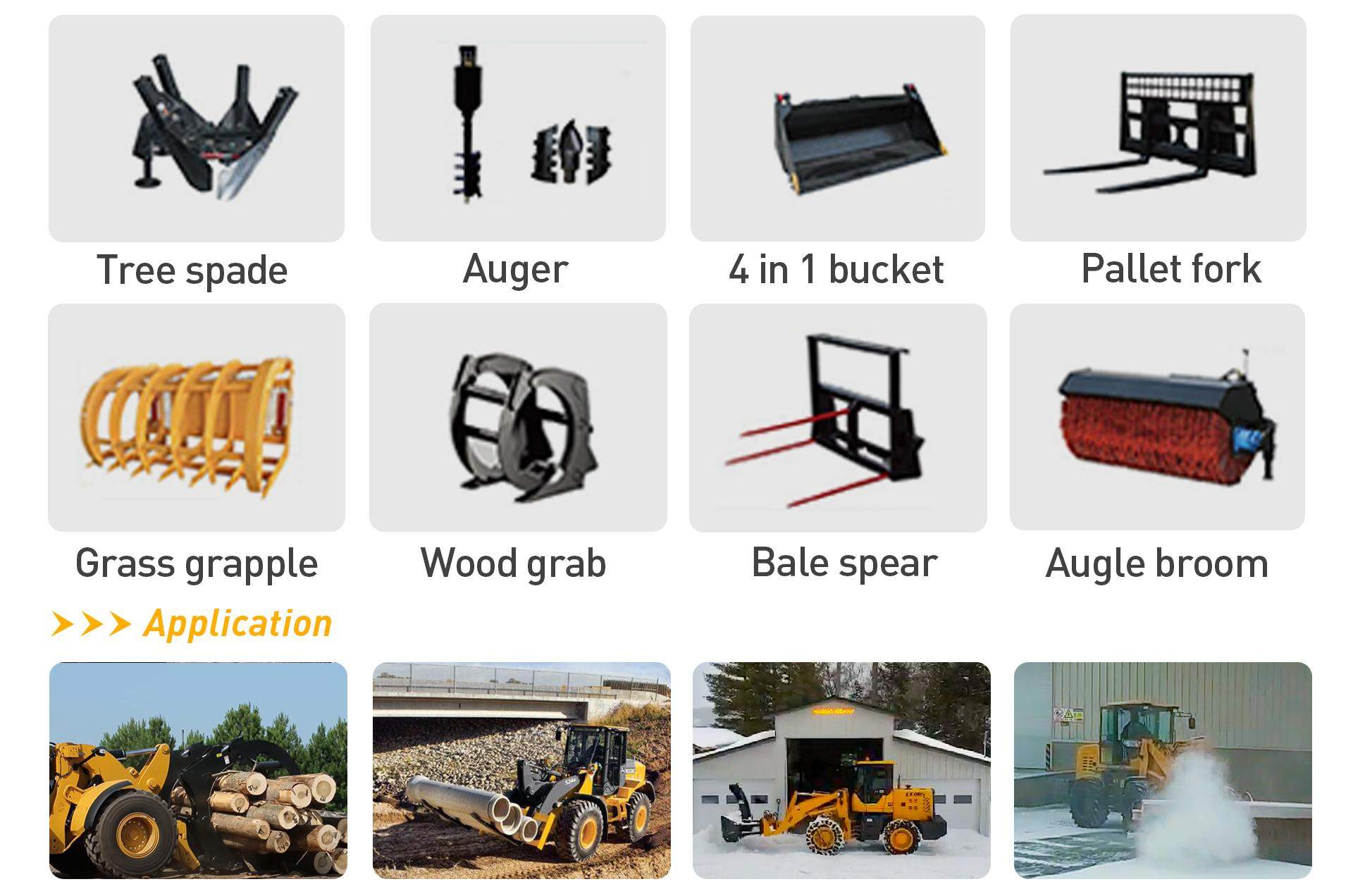

The Attachments for 4 Ton Front End Loader

Wheel loader attachments greatly expand the machine’s versatility, allowing it to handle different materials and job requirements with ease. From general-purpose buckets and pallet forks to log grapples, snow blades, and quick couplers, each attachment is designed to improve efficiency, safety, and productivity on site. By selecting the right attachment, operators can maximize the loader’s performance across construction, agriculture, mining, and material-handling applications.

Guaranteed Safety in Every Shipment

Customer Feedback of 4 Ton Front End Loader

Customers consistently highlight the strong performance, efficiency, and reliability of our 4-ton front-end loader in daily operations. Many praise its smooth hydraulic control, comfortable cabin design, and powerful lifting capability, noting that it delivers excellent value across construction, agriculture, and material-handling projects. Positive feedback also reflects its low maintenance needs and dependable productivity on tough job sites.

Quality and Safety Certifications

review

FAQs

What is a front end loader?

It is a heavy-duty wheel loader with a front-mounted bucket, used to quickly scoop, lift, and move loose materials like soil, sand, and gravel across job sites.

How to operate a front end loader?

After a quick safety check, start the engine, select your gear, and use the joystick controls to raise, lower, or tilt the front bucket to move materials.
