Mini 2 Ton Wheel Loader with EPA Engine
Mini 2 Ton Wheel Loader with EPA Engine
Mini 2 Ton Wheel Loader with EPA Engine
Mini 2 Ton Wheel Loader with EPA Engine
Mini 2 Ton Wheel Loader with EPA Engine

Mini 2 Ton Wheel Loader with EPA Engine

2 ton mini wheel loader with EPA engine,environmentally friendly, meets EPA emission standards and has a wide range of applications

  • Model :

    LT920
  • Load Capacity :

    2000kg
  • Operating Weight :

    6200kg
  • Bucket Capacity :

    1.2 m³
  • ODM/OEM :

    SUPPORT
  • Share to :
  • Youtube
  • Facebook
  • Instagram
  • linkedin
  • twitter

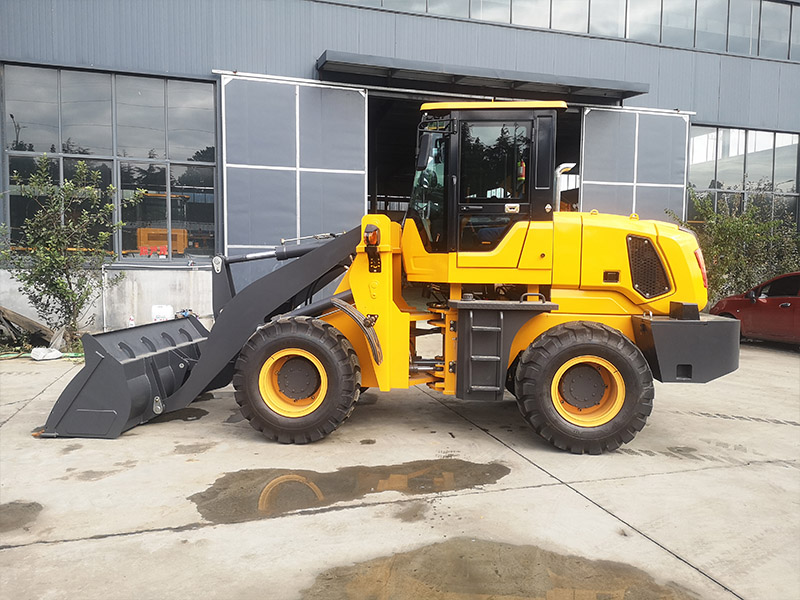

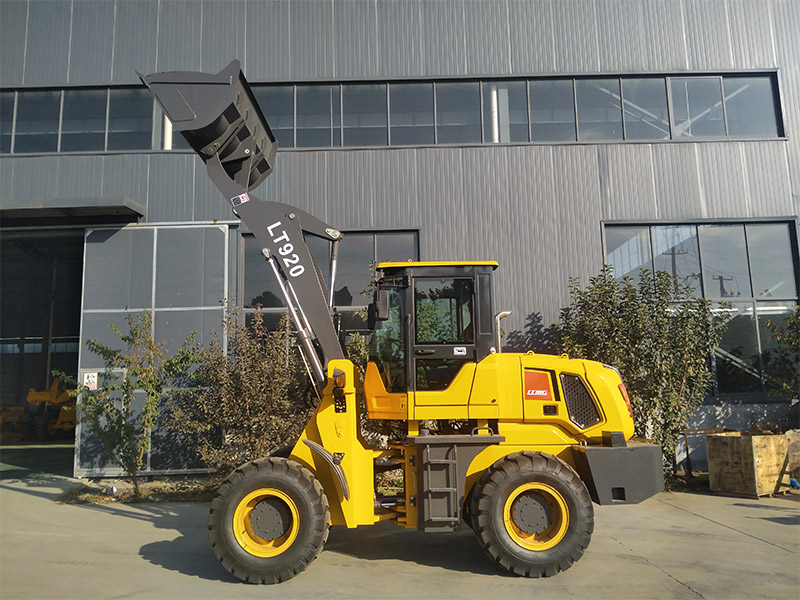

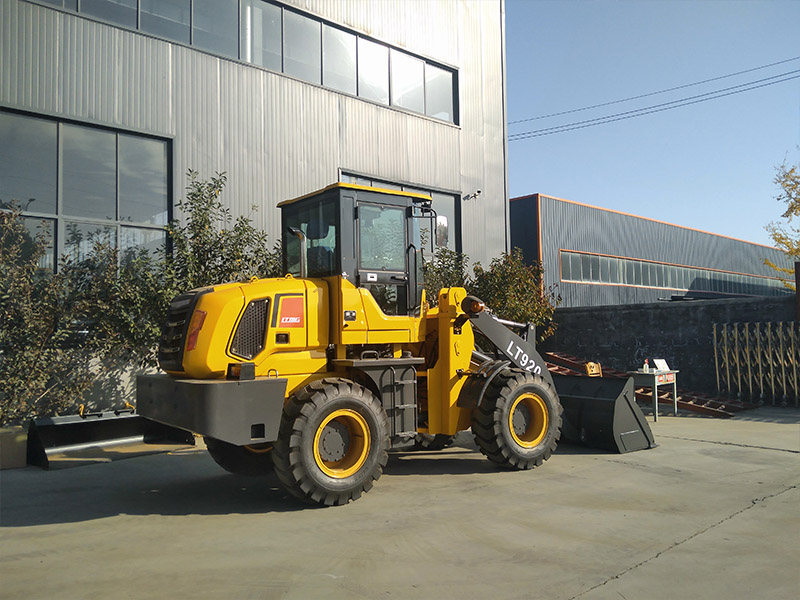

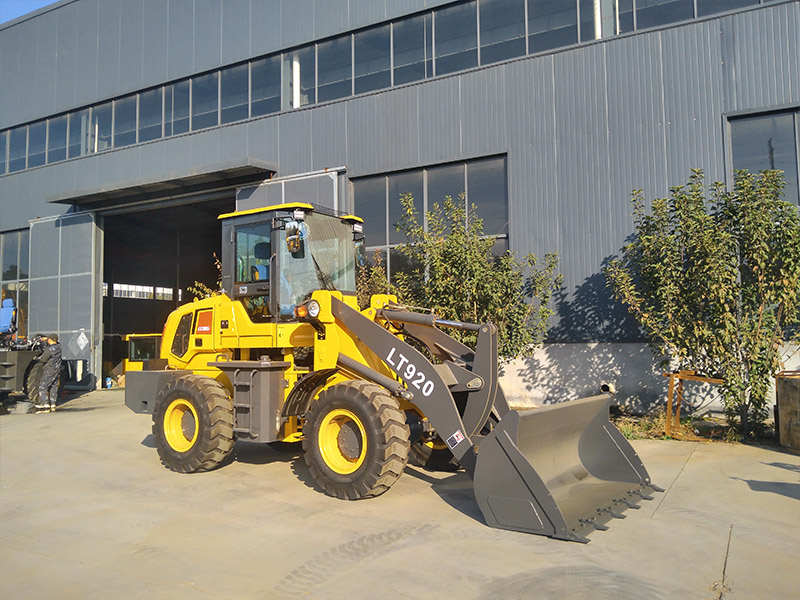

LT920 wheel loader



2  Ton Wheel Loader Characteristics

1.horsepower: 130HP The Jonyang JY29A is a medium to large wheel side axle with integrated high and low speed. It has a thickened front tilt frame and can unload up to 3.65m. The arm thickness is 30mm and the articulated is 45mm.

2.It comes with 16/70-20 tires and weighs 5200kg. It is powered by a Cummins engine with 130HP of horsepower.



2  Ton Wheel Loader Technical parameters

Model

LT920

Bucket capacity

1.2 m³

Rated load

2000 kg

Overall dimension

6500*2100*2950mm

Operating weight

6200 kg

Max. dumping height

3500 mm

Max. dumping distance

960 mm

Engine

Yunnei 4108 turbo

Cylinder number

4-cylinders

Rated power

92 KW (125HP)

Optional Engine

Yuchai 4105 turbo, 85KW (115.6HP)

Steering type

Full-hydraulic, articulated

Torque converter type

Automatic, hydraulic converter

Gear shift

2 forward, 2 reverse

Max. speed

25 km/h

Axle

4WD, big hub reduction

Tyre size

16/70-24

Service brake

Gas cap oil disc brake on 4 wheels

Parking brake

Hand operated caliper disc

Operating type

Mechanical single joystick

Optional operating type

Pilot control

Optional configuration

Air conditioner, rearview camera etc.

Optional attachment

Quick hitch, fork, log grapple etc.

Package

2 units in 1*40HQ Container

With technological innovation, our product configuration and parameters will continue to change without notice;

 if there is any doubt, the specific confirmation of our international trade sales shall prevail.
