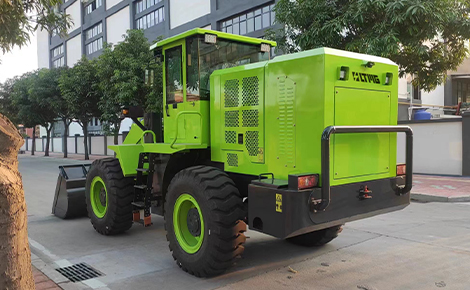

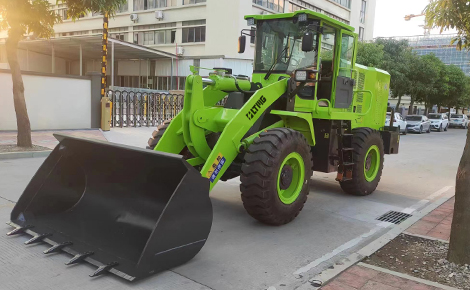

3 tons loading capacity electric power front end loader, 2 cubic meter bucket. Only 1 hour charging time, 7 hours working time.
Model :
LT930EVLoad Capacity :
3000KGOperating Weight :
10500KGBucket Capacity :
2m³ODM/OEM :
Support

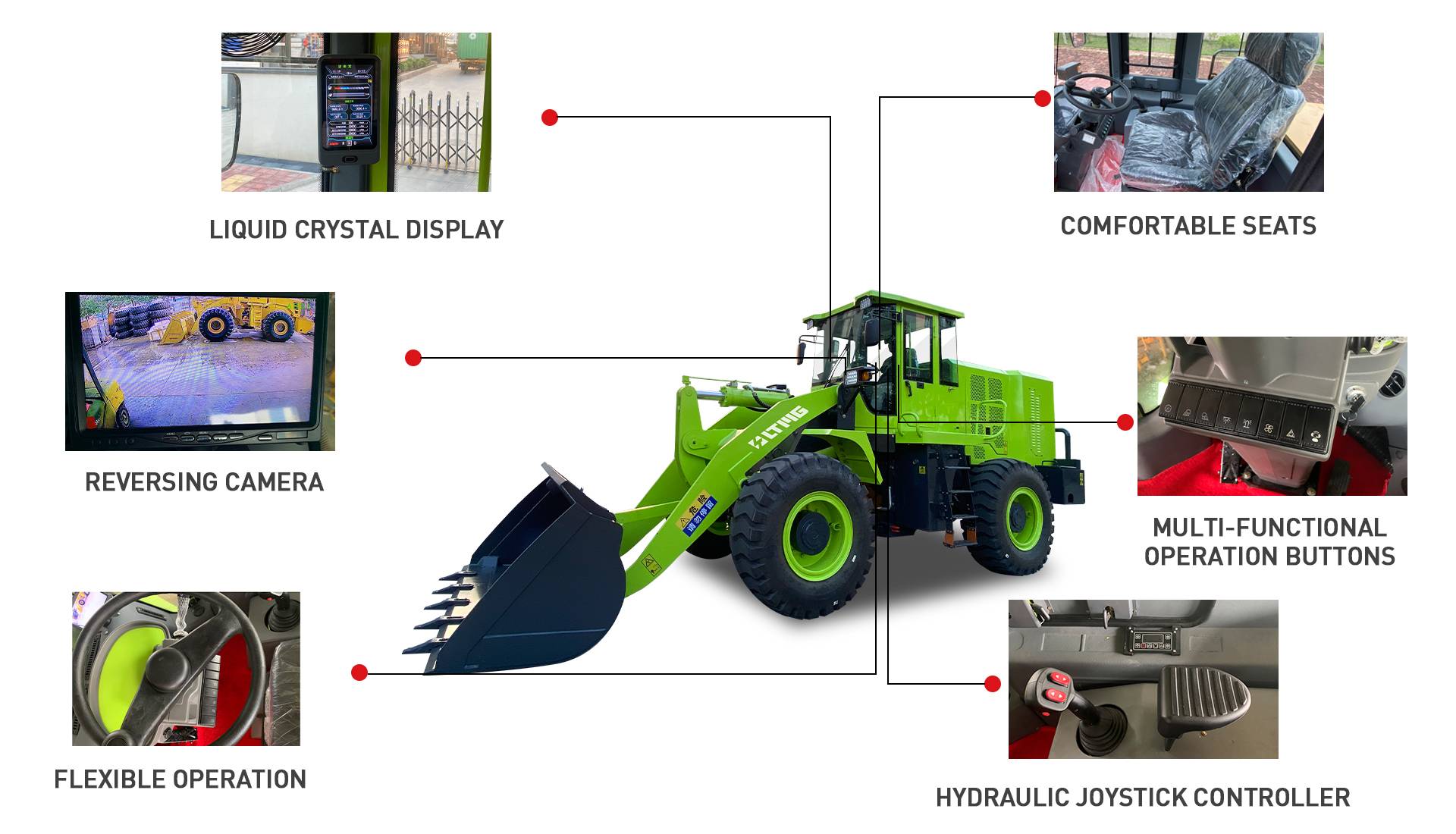

3Ton Electric Wheel Loader Characteristics
1. The lithium battery electric front end Loader has the advantages of quiet driving, fast speed increase and smooth operation, and can be used as a pure electric loader without refueling and low cost in the environment of short working time and easy charging;
2. LTMG electric loaders offer superior performance with high energy density, extended cycle life, and enhanced safety. The LiFePO4 battery ensures longer operational hours between charges, increased durability for heavy-duty applications, and resilience in diverse temperature conditions.
3. Optimized engine operating conditions by peak cutting and valley filling, reduced engine rated power, improved energy conversion efficiency, and effectively reduced fuel consumption and emissions;
4. Adjust the output flow of motor pump according to working conditions, reduce useless work, less heat, high efficiency and energy saving;
5. Low vibration, comfortable operation and improved driving experience;
3 Ton Electric Wheel Loader Technical Parameter
Model | LT930EV | |
Rated load | 3000kg | |
Bucket capacity | 2m³ | |
Operating weight | 10500kg | |
Dumping height | 3200mm | |
Dumping reach | 1250mm | |
Wheel Base | 2840mm | |
Track Base | 1900mm | |
Maximum traction | 170KN | |
Maximum Rising Power | 98±5KN | |
Maximum climbing angle | 28° | |
Steering angle | 35±1° | |
Forward gear | 12/20 Km/h | |
Back gear | 12/20 Km/h | |
Overall dimensions(L*W*H) | 7200X2250X3220mm | |
Drive axles | Wet Bridge | |
Working hydraulic system | Type | Double pump confluence |
Operation method | pilot control | |
Steering hydraulic system | priority valve | |
Braking System | Service brake | Hydraulic brake |
Hand brake | clamp type | |
Air Conditioning System | Type | Electric, heating and cooling |
Control System | System voltage | DC24V |
Control System | Specification | 17.5-35 |
Battery life | General working conditions | 6~8h |
Heavy load condition | 5~6h | |
Charging time | 300kW charging pile | 30~40min |
Charging pile specifications | Optional Specifications | 240-360kW |
Oil filling | Antifreeze | 45L |
Transaxle oil | 26L | |
Hydraulic oil | 160 L | |
Battery Motor | ||
Power Battery | Type | Lithium manganate battery |
Rated Capacity | 21Ah | |
Store energy | 143.52KWH | |
Voltage | V | |
Protection class | IP65 control box | |
IP67 control box | ||
Cooling method | liquid cooling | |
Drive motor | Rated power | 90/130 kw |
Protection class | IP67 | |
Cooling method | water cooling | |
Ambient temperature | ‘-35~135°C | |
Altitude | ≤4000m | |
Hydraulic motor | Rated power | 90/130kw |
Protection class | IP67 | |
Cooling method | liquid cooling | |
Ambient temperature | -35~135°C | |
Altitude | ≤4000m |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

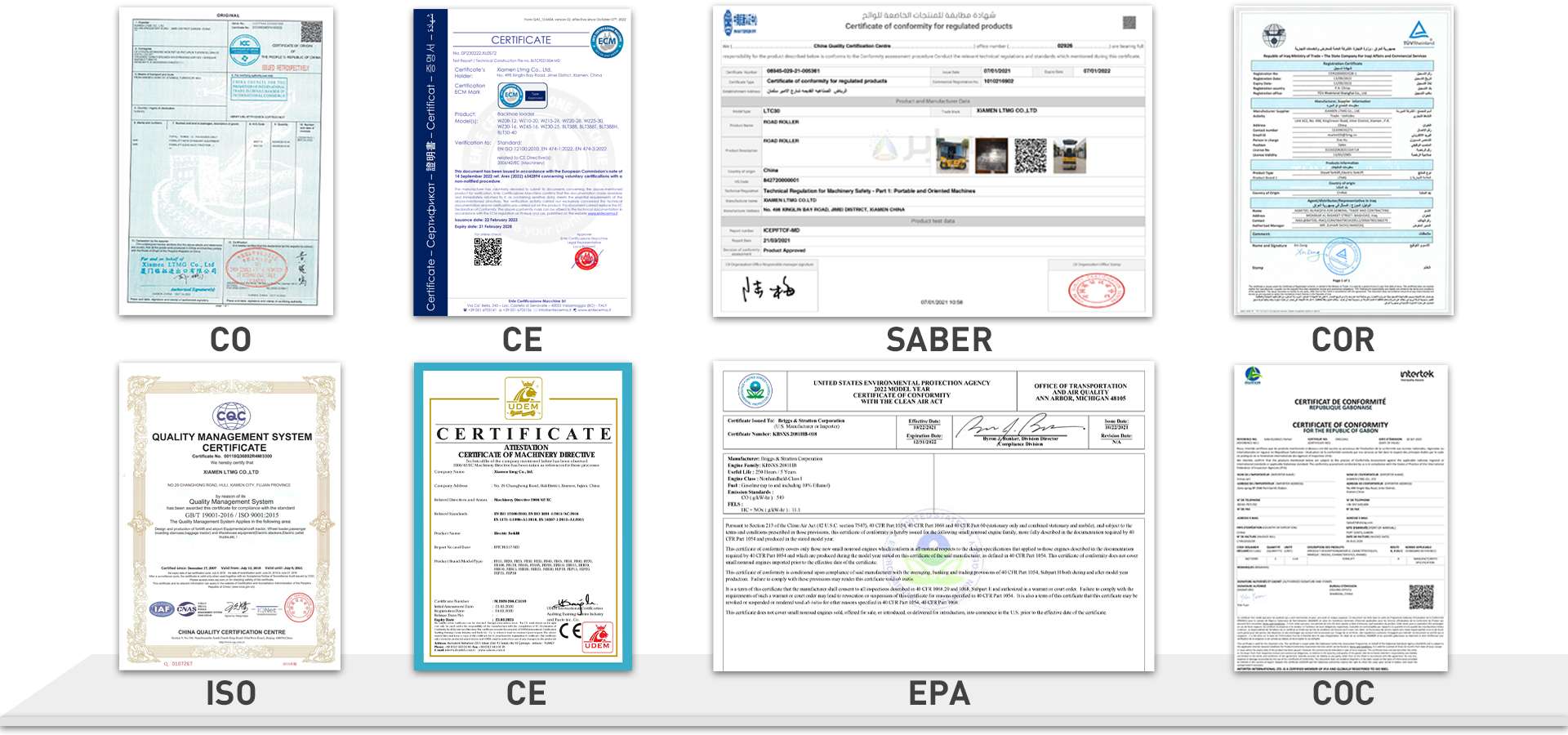

3 Ton Electric Wheel Loader Certificates
3 Ton Electric Wheel Loader FAQ
Q: As a loader factory, what are the different advantages of LTMG?
A: LTMG's factory implements stricter control over the production process and has expanded its range of loader models with various configurations. In comparison to other factories in the same industry, LTMG offers a wider range of product categories and more options for customers to choose from.
Q: How long is the lead time for LTMG wheel loaders?
A: For standard Electric Front End Loader, the lead time is typically 30 days. However, for customized orders, the lead time is longer, usually ranging from 40 to 45 days.
Q: How is your after-sales service of wheel loader?
A: We offer a range of after-sales services that provide 24-hour technical support via phone and email.
