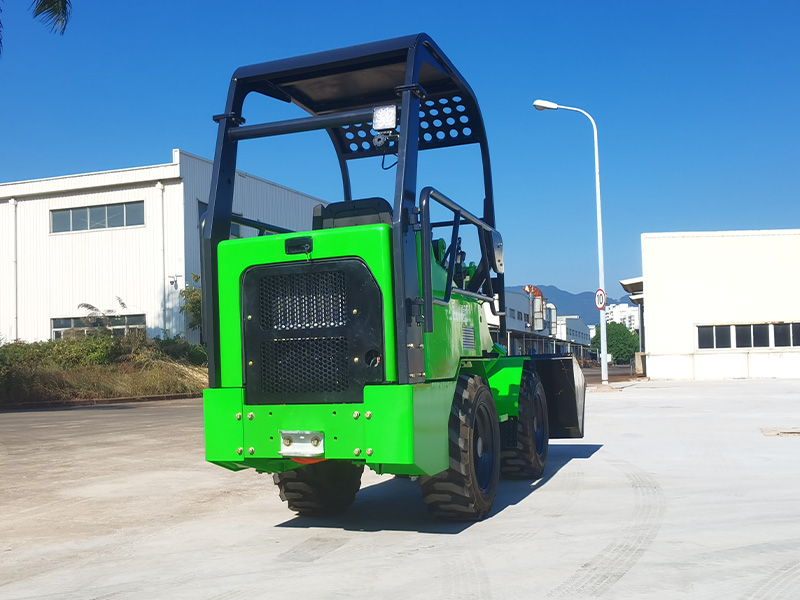

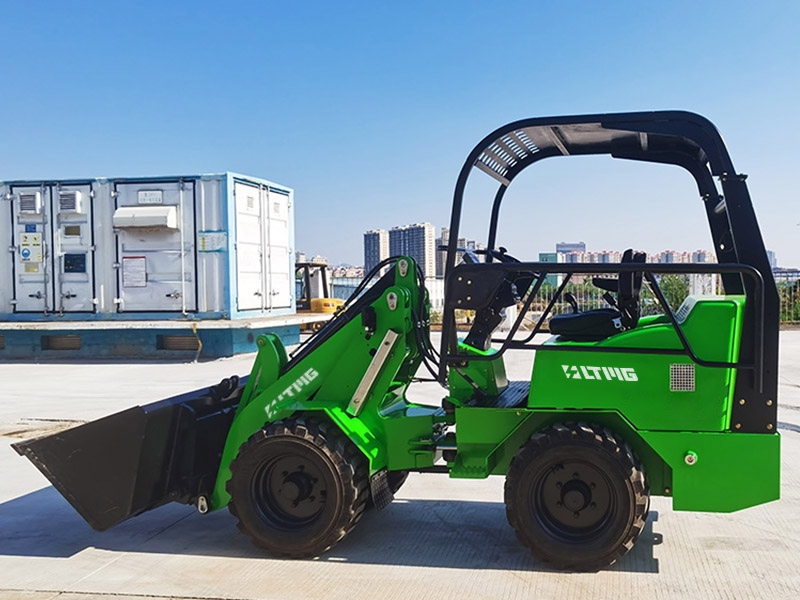

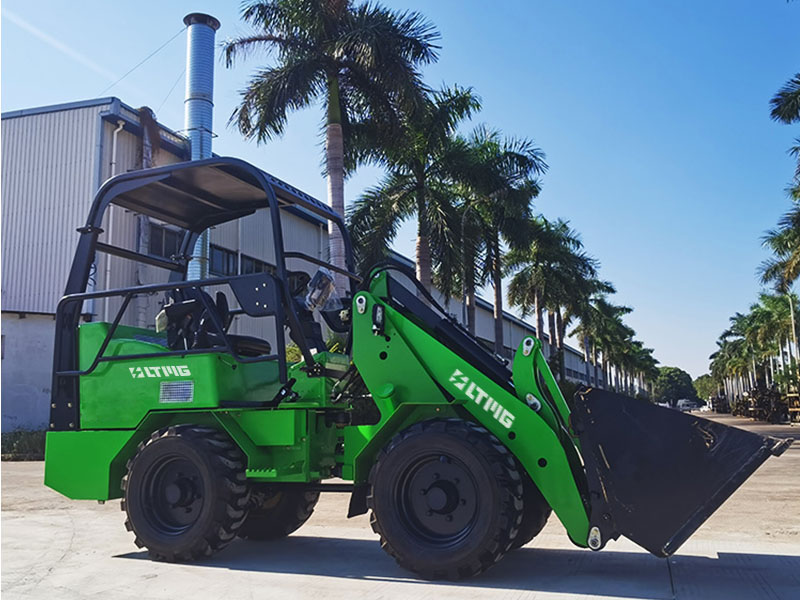

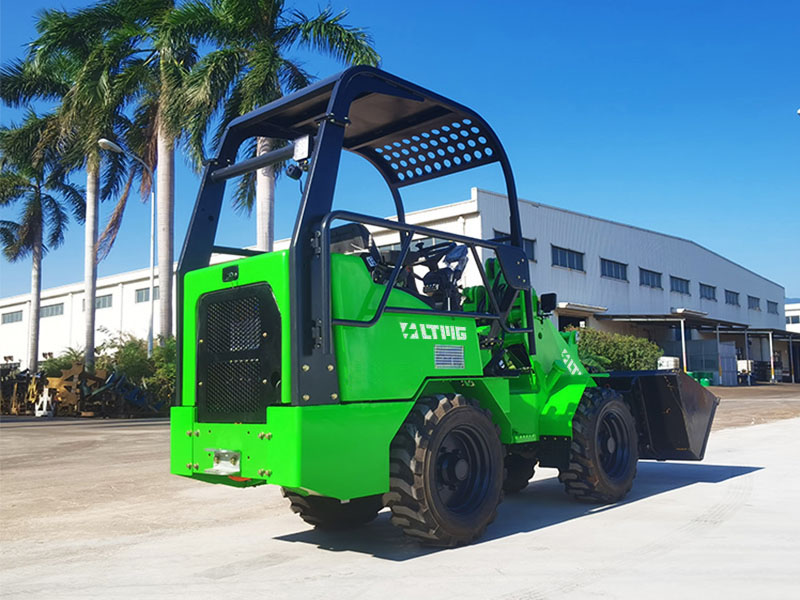

The operating weight of the 0.7 mini battery loader is 2450Kg, the unloading height is 2200mm, it is equipped with 144v/155ah battery, it has strong battery life, and is superior in various small projects
Model :
LT907EVLoad Capacity :
700KGOperating Weight :
2450KGBucket Capacity :
0.5m³ODM/OEM :
SUPPORT
1.The LTMG 0.7 ton battery loader combines a compact size with 0.5m³ bucket, making it ideal for maneuvering in tight spaces while still being able to handle significant loads efficiently.
2.With its electric powertrain, the 0.7 ton battery loader provides a clean and quiet operation, eliminating emissions and reducing noise levels for a more environmentally friendly and comfortable work environment.
3.The 0.7 ton battery loader lower operating costs, as compared to diesel-powered alternatives, make it a cost-effective choice, with reduced fuel consumption and maintenance requirements, resulting in long-term savings and increased profitability.
0.7 Ton Battery Loader Parameters
| Main parameter | Operating weight | 2450Kg |
| Load rating | 700Kg | |
| Moving speed | 0-18km/h | |
| Moving motor | Motor type | Permanent magnet synchronous motor |
| Rated power of motor | 20kw | |
| Motor Duty Rating | Duty with non-periodic load and speed variations | |
| Oil Pump Motor | Rated power of motor | 10Kw |
| Motor Duty Rating | Duty with non-periodic load and speed variations | |
| Battery | Battery Type | Lithium iron phosphate |
| Battery Voltage | 144V | |
| Battery rated capacity | 155Ah(standard) | |
| Battery weight | 260Kg | |
| Charging time | AC220V Charge:3h | |
| Operating time with full load | 3.5h | |
| Operating time with rated load | 4-5h | |
| Intermittent operation time | 5-6h | |
| Theoretical lifespan | 25 ºC 0.5c charge and discharge for 3000 times, and the capacity shall not be less than 80% of the nominal capacity | |
| Driving system | Operating voltage of driving system | 144V |
| Electrical system | Voltage of electrical system | 12V |
| Tripping load with bucket(Refer to ISO8313 | Tripping load when straight line driving | 1250Kg |
| Tripping load when full turn | 900Kg | |
| Hydraulic drive system | Displacement | 12 cc |
| Working pressure | 170bar | |
| Hydraulic oil capacity | 30L | |
| tyre | Specifications | 26Í12-12 AS |
| Total width | 1104mm |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
