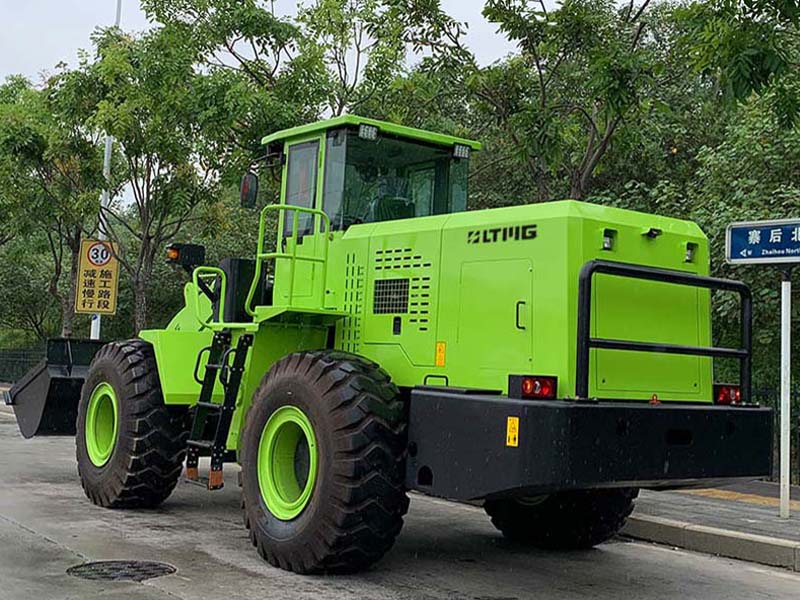

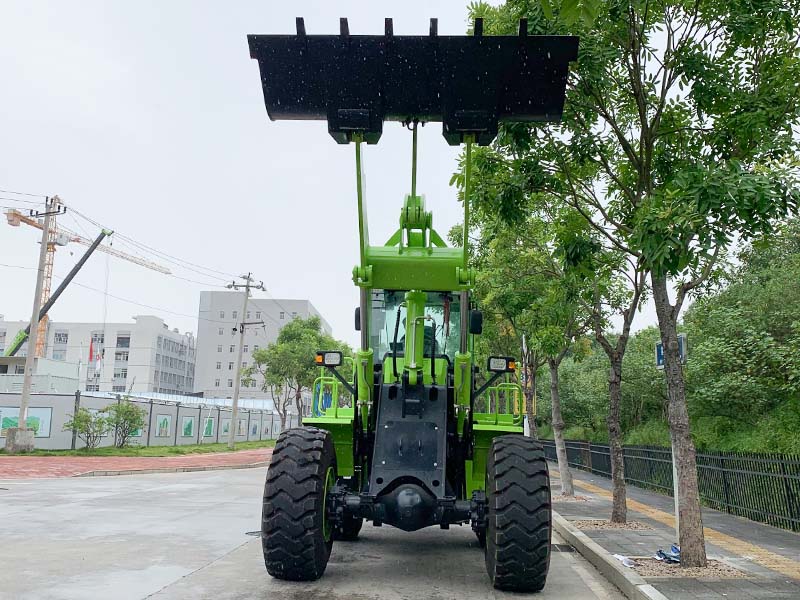

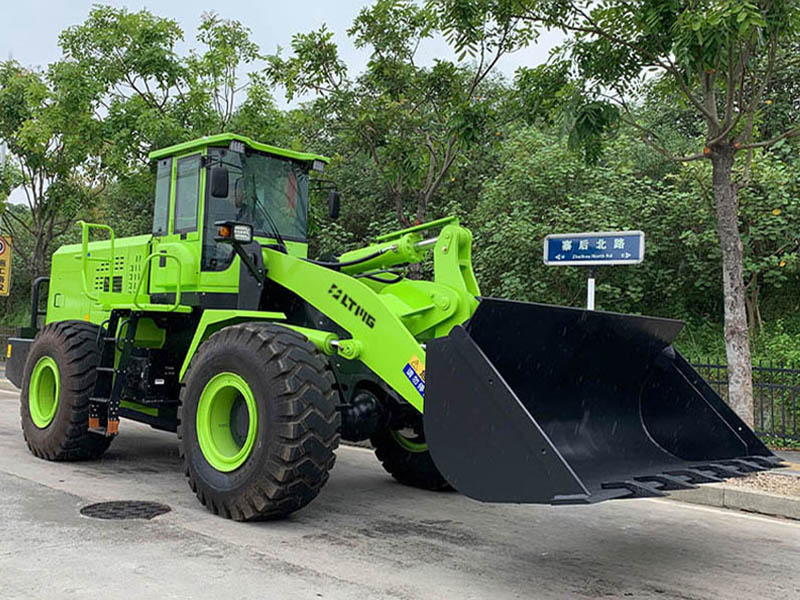

LTMG 5 tons electric loader, equipped with three motors and a continuously variable transmission. This powerful machine is designed to tackle complex working conditions with ease, making it suitable for a wide range of applications. With its energy-efficient design, it not only reduces operating costs but also contributes to a cleaner and greener environment.
Model :
LT950EVLoad Capacity :
5tonsOperating Weight :
18500kgsBucket Capacity :
3-4.5m³ODM/OEM :
SupportAdvantages of LT950EV
The LT950EV is a 5-ton electric wheel loader equipped with three motors, making it highly advanced in the industry. Unlike traditional loaders, it features independent drive of the front and rear axles, eliminating the need for a gearbox. This integrated transmission system ensures efficient and reliable performance, reducing maintenance costs. The LT950EV electric front end loader excels in diverse and complex working conditions while being energy-efficient and environmentally friendly. Its low failure rate guarantees optimal productivity.
The switched magnet motor is robust and long-lasting with a simple and solid structure. It offers high efficiency, flexible system control, and excellent speed regulation performance. Ideal for frequent start-stop and direction changes, it boasts a large starting torque. The motor operates well in extreme temperatures and harsh conditions, without demagnetization risks. Additionally, it helps conserve rare earth resources as it doesn't require permanent magnets.
LT950EV Electric Drive Wheel Loader Parameters
Model | LT950EV | |
Rated load | 5500kg | |
Bucket capacity | 3-4.5m³ | |
Operating weight | 18500kg | |
Rated power | 290kw | |
Dumping height | 3600mm | |
Dumping reach | 1240mm | |
Wheel Base | 3350mm | |
Track Base | 2250mm | |
Maximum traction | 170kN | |
Maximum Rising Power | 174kN | |
Three Items and Time | 9.7s | |
Lifting Time | 5.8s | |
Descending Time | 3.5s | |
Maximum climbing angle | 28° | |
Steering angle | 40° | |
Forward gear | 18/36Km/h | |
Back gear | 18/36Km/h | |
Overall dimensions(L*W*H) | 8660mmX2960mmX3520mm | |
Drive Axle | Brand | Dry Bridge |
Working Hydraulic System | Type | Double Pump Confluence |
Operation Method | Pilot Control | |
Steering Hydraulic System | Type | Flow Amplification |
Braking System | Service Brake | Gas cap oil, clamp disc type |
Hand Brake | Pneumatic control, clamp type | |
Air Conditioning System | Type | Electric, heating and cooling |
Control System | System voltage | DC24V |
Control System | Specification | 23.5-25 |
Battery Life | General working conditions | 6~10h |
Heavy load condition | 5~6h | |
Charging Time | 240kW charging pile | 60min |
Charging Pile Specifications | Optional Specifications | 240-360kW |
Oil Filling | Antifreeze | 45L |
Transaxle oil | 2X17L | |
Hydraulic oil | 200 L | |
Battery Motor | Unit | |
Power Battery | Type | Lithium iron phosphate |
Rated Capacity | 456Ah | |
Store energy | 282kWh | |
Voltage | 618V | |
Protection class | IP67 | |
Cooling method | liquid cooling | |
Drive motor | Rated power | 2x100kw |
Protection class | IP67 | |
Cooling method | water cooling | |
Ambient temperature | ’-40~55°C | |
Altitude | 4500m | |
Hydraulic motor | Rated power | 90kW |
Protection class | IP67 | |
Cooling Method | liquid cooling | |
Ambient temperature | ‘-40~60°C | |
Altitude | 4500m |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

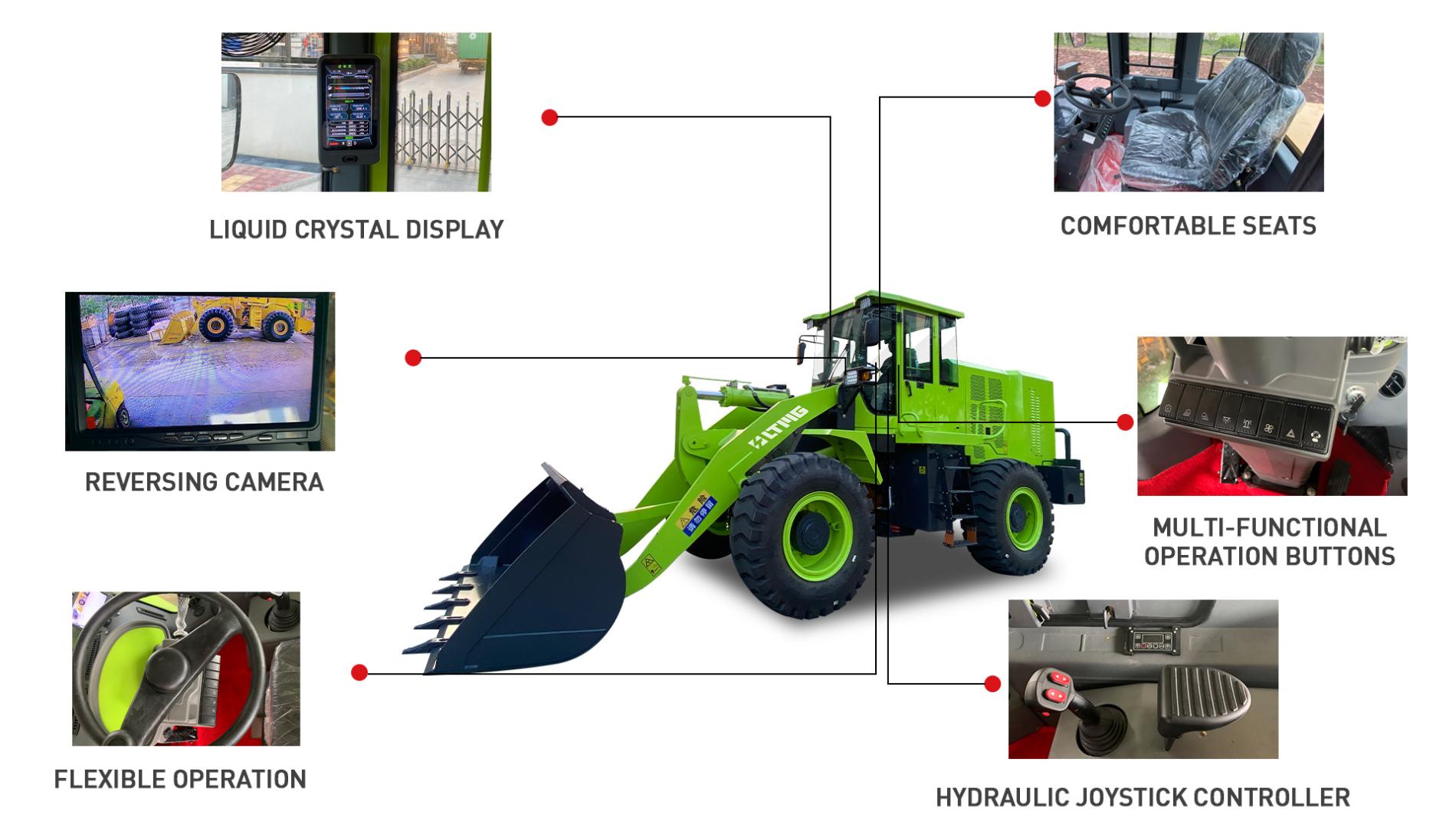

More Lithium Battery Loader Details
1,Improved sealing, enhanced details
Enhanced sealing ensures better protection against dust and water, while attention to detail results in a more polished and sophisticated design.
2,Increased safety
The loader is equipped with a 360-degree surround view camera system, providing a comprehensive view of the surroundings, and features AI pedestrian detection to alert the operator of potential hazards.
3,Enhanced comfort
The loader is equipped with a full coverage cab, offering a 360-degree view and ensuring a comfortable working environment for the operator.
FAQ
1,Q:Are electric loaders more energy efficient than diesel loaders?
A:Yes. Electric loaders use electric energy to drive directly, with higher conversion efficiency and higher energy utilization efficiency. Moreover, through energy feedback and regenerative braking technology, electric loaders can return the energy generated during braking to the battery, reuse the energy, and reduce energy consumption.
2,Q:Why are electric loaders so expensive?
A:Although electric loaders may cost more to purchase than traditional internal combustion engine loaders, over the long term, electric loaders are cheaper to operate. The cost of electricity is relatively low, maintenance costs are also low, and electric loaders are more durable and reliable.
3,Q:What attachments can be equipped with an electric loader?
A:Electric loaders can be equipped with a variety of different attachments and auxiliary equipment to adapt to different work needs. Common attachments include buckets, forks, pallet clamps,auger etc. Other special attachments can also be customized according to specific needs.
4,Q:What type of battery is the LT950EV?
A:LTE950EV is equipped with a 618V/456ah lithium battery, which has high charging efficiency. Compared with traditional lead-acid batteries, its charge and discharge efficiency is higher and its loss is smaller. Charging time takes about 1.5-2 hours.
5,Q:Can we offer OEM/ODM services?
A: LTMG is capable of providing tailored solutions based on our customers' needs. We offer both OEM and ODM services, ensuring that our products meet specific requirements.
