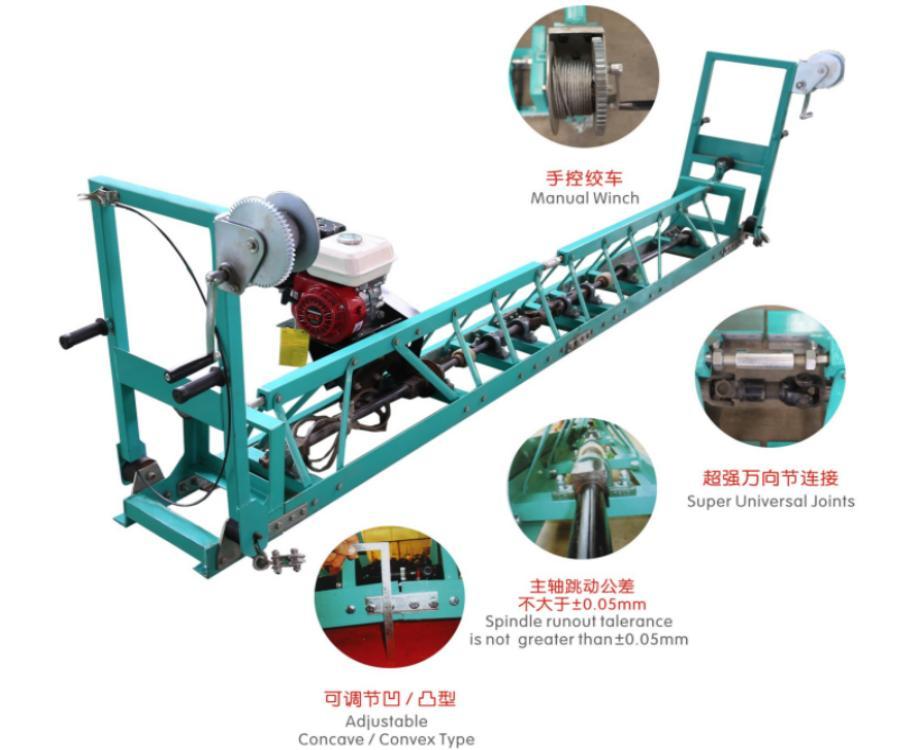

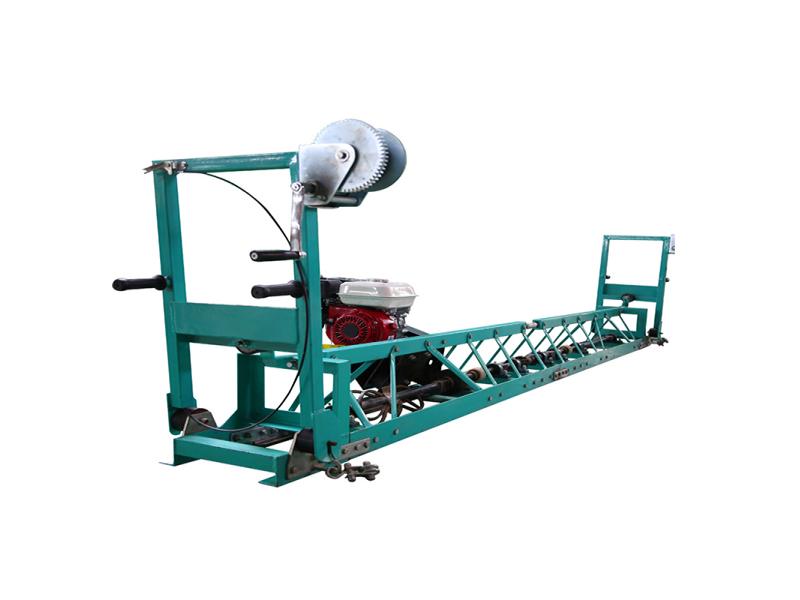

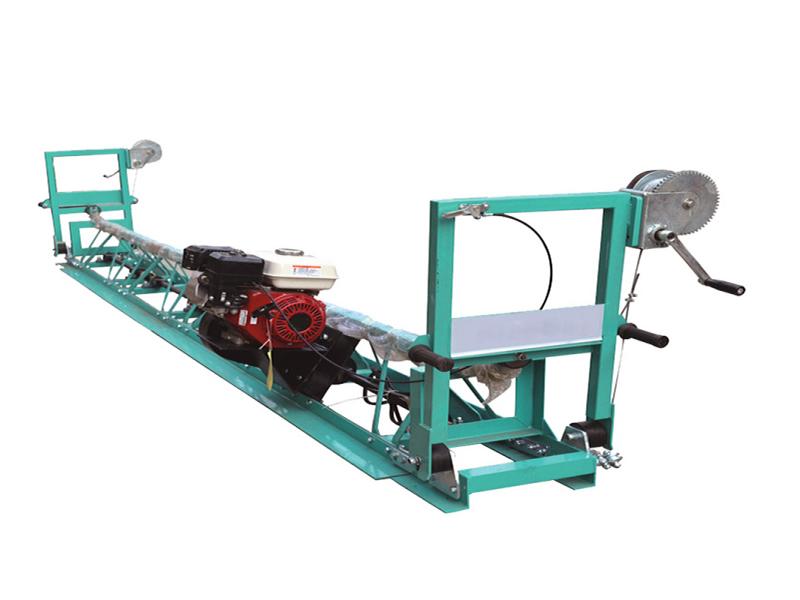

The frame concrete leveling machine comprises a sturdy frame that encases a vibrating or oscillating mechanism, along with a leveling screed. It is designed for efficiently completing various concrete floor works, including roads, bridges, squares, factory housing, and more. This machine excels in compacting, leveling, and calibrating, ensuring your projects are executed with increased smoothness, speed, and precision compared to ever before.
Model :
LCL55-130ODM/OEM :
Support
The Features Of Frame Concrete Leveling Machine
- Higher Construction Efficiency and Continuous Flatness:
Experience a remarkable boost in construction efficiency as our machine ensures a continuous flatness throughout the concrete surface.
Streamline your projects with a level of precision that sets new standards, guaranteeing a smooth and flawless finish every time.
- Versatile Cell Section Options:
Adapt to various project requirements seamlessly with three standard cell sections available in lengths of 250mm, 1000mm, and 2000mm.
Tailor the machine to the specifics of your project, providing flexibility and versatility to meet diverse construction needs.
- Optimal Slump Leveling with Impressive Thickness:
Achieve optimal results with our machine's capability to handle 8-12 slump leveling.
Experience the freedom to work with concrete thicknesses of up to 250mm, ensuring versatility in meeting project specifications.
- Extended Span for Efficient Project Coverage:
Tackle expansive projects effortlessly with the machine's impressive leveling span of up to 16m.
Minimize interruptions and enhance productivity as our machine covers more ground efficiently, contributing to a faster project completion.
The Specification Of Frame Concrete Leveling Machine
| MODEL | LCL-55 ( ≤)5500mm | LCL-90(≤)8500mm | LCL-130(≤)9000mm |
| Nominal Amplitude | 0.6mm | 0.6mm | 0.6mm |
| Vibration Frequency | 70hz | 70hz | 70hz |
| Exciting Force | 11kN/(≤)2000mm | 11kN/(≤)2000mm | 11kN/(≤)2000mm |
| Model | HONDA GX160 | HONDA GX 270 | HONDA GX 390 |
| Types | Gosoline Engine,Air-cooled four-stroke,Ohv,Single Cylinder | Gosoline Engine,Air-cooled,four-stroke,Ohv,Single Cyinder | Gasoline Engine,Air-cooled,four-stroke,Ohv,Single Cyiinder |
| Power | 5.5hp/3600rpm | 9.0hp/3600rpm | 13.0hp/3600rpm |
| Fuel Tank Capacity | 3.6L | 6.0L | 6.5L |
| The Amount OfLubricating Oil | 0.6L | 1.1L | 1.1L |
| Fuel Consumption | 313g/kwh | 313g/kwh | 313g/kwh |
| wo-meler Combinafion Secfion | 405mm*2000mm | 405mm*2000mm | 405mm*2000mm |
| One-meter Combinafion Secion | 405mm*1000mm | 405mm*1000mm | 405mm*1000mm |
| Half Meter Combination Seclion | 405mm*250mm | 405mm*250mm | 405mm*250mm |
| Length | 3-6m | 6-10m | 10-16m |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
More About LTMG Machinery
LTMG Machinery's commitment to quality goes beyond mere functionality – it extends to the very core of our machines, ensuring not just high performance, but durability and longevity that stand the test of time. Each product in our lineup is a testament to meticulous craftsmanship and advanced engineering, offering a seamless blend of innovation and robust construction.
The FAQ Of Frame Concrete Leveling Machine
Q: What is the longest span the machine can cover during leveling?
A: The machine boasts an impressive leveling span of up to 16m, allowing for efficient coverage of large project areas.
Q: How does the machine contribute to a smooth and flawless finish?
A: The machine's vibrating mechanism and leveling screed work in tandem to eliminate imperfections, providing a continuous flatness and a flawless concrete surface.
Q: What power sources are available for the machine?
A: The machine can be powered by internal combustion engines or electric motors, providing flexibility based on project needs and site conditions.
Q: Why choose us? A: As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, such as frame concrete leveling machine but also in-time delivery and comprehensive 7/24 after-sale services.
