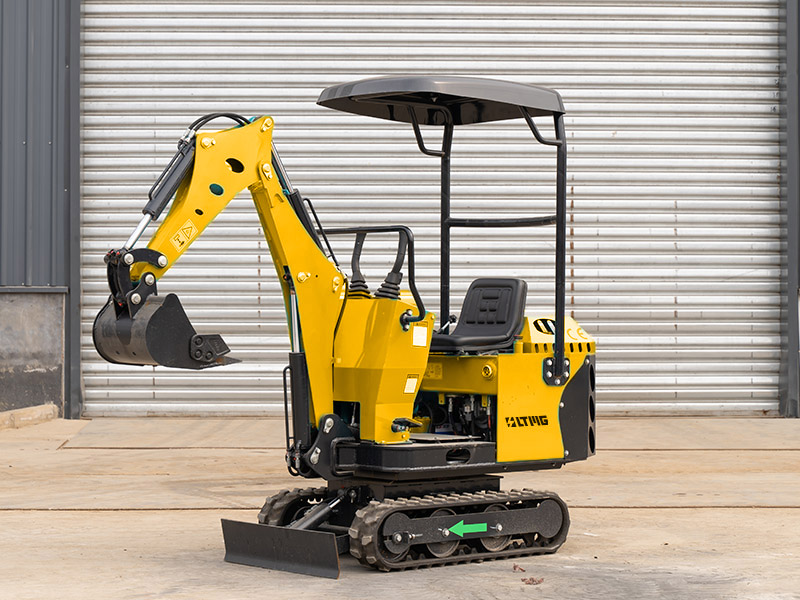

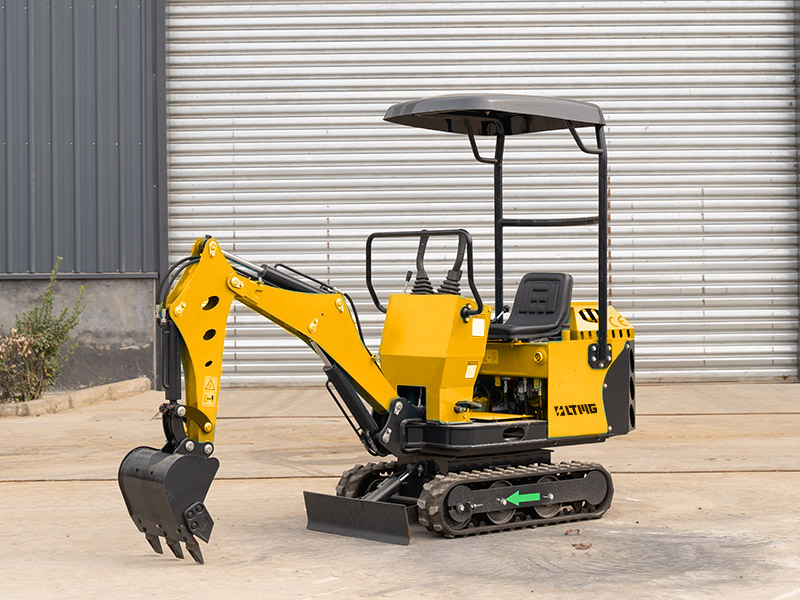

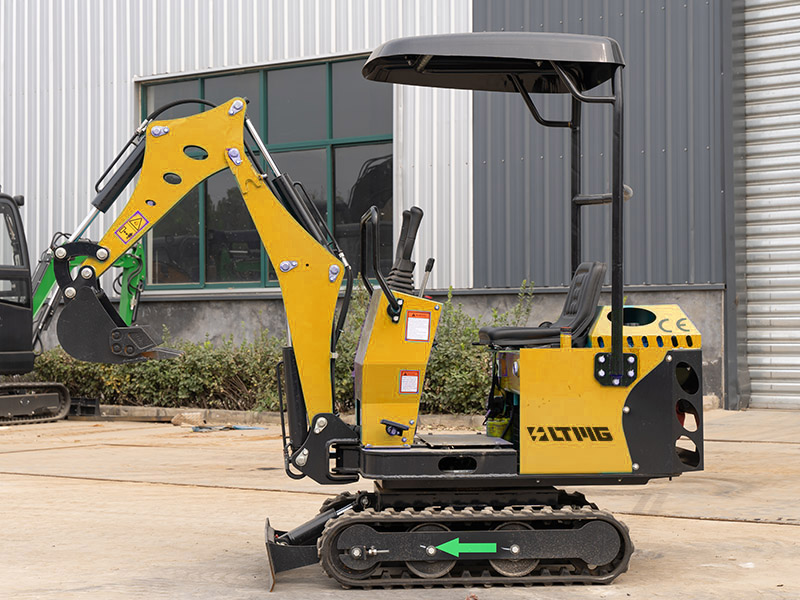

0.9 tonne mini crawler excavator simple, small and flexible, easy to transport, can work in small venues, especially for orchards such as kiwifruit, vineyards, oranges, navel orange value, trenching, fertilization, weeding. With mining, broken, clear hooks, drilling, earth multi-function, can quickly replace the accessories, machine utilization greatly improved.
Model :
LTE09Operating Weight :
850kgBucket Capacity :
0.025m³ODM/OEM :
SUPPORT
0.9 Ton Crawler Excavator Main Features
1. Optional Yanmar (EPA certified) / Changchai / Laidong/ kubote/ KOOP engines, to meet environmental protection, cost control and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3 The boom can swing from side to side with high flexibility to meet the needs of small space operations.
4. Optional with tail or no-tail to meet the construction needs under different conditions.
5. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
0.9 Ton Crawler Excavator Technical Parameters
Performance Parameters |
Unit |
LTE09 |
Operating Weight |
Kg |
850 |
Engine Model |
|
KOOP KD192F |
Rated Power |
Kw |
7 |
Bucket Capacity |
m³ |
0.025 |
Bucket Width |
mm |
380 |
Max Digging Force |
Kn |
7.5 |
System Working Pressure |
Mpa |
18 |
Swing Speed |
rpm |
12 |
Traveling Speed |
km/h |
2.2 |
Gradeability |
° |
30 |
Ground Pressure |
Kpa |
19 |
|
|
|
Operating Range |
|
|
Max. Digging Distance |
mm |
2575 |
Max. Digging Depth |
mm |
1715 |
Max. Digging Height |
mm |
2560 |
Max. Dumping Height |
mm |
1780 |
Min. Turning Radius |
mm |
1480 |
|
|
|
Overall Dimensions |
|
|
Overall Length |
mm |
2600 |
Overall Width |
mm |
720 |
Overall Height |
mm |
2030 |
Min. Ground Clearance |
mm |
80 |
Track Ground Length |
mm |
1140 |
Track Width |
mm |
150 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
