Discover the power of LTMG mini crawler excavator. Equipped with an imported Japanese engine, versatile standard configuration, and multi-function capabilities, it's the ideal solution for a range of applications, such as tunnel construction, horticulture, municipal engineering and so on.
Model :
LTE15Operating Weight :
1500KGBucket Capacity :
0.025m3ODM/OEM :

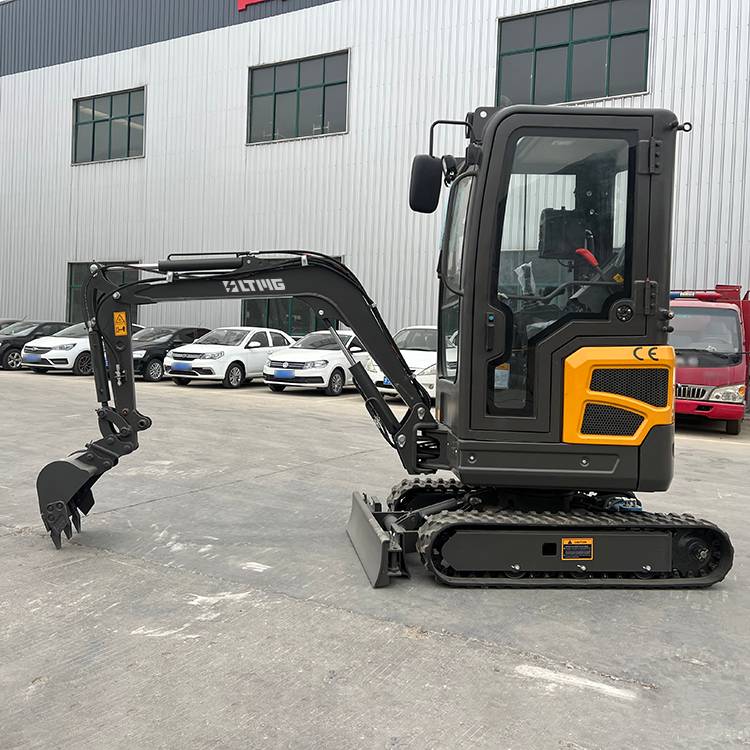

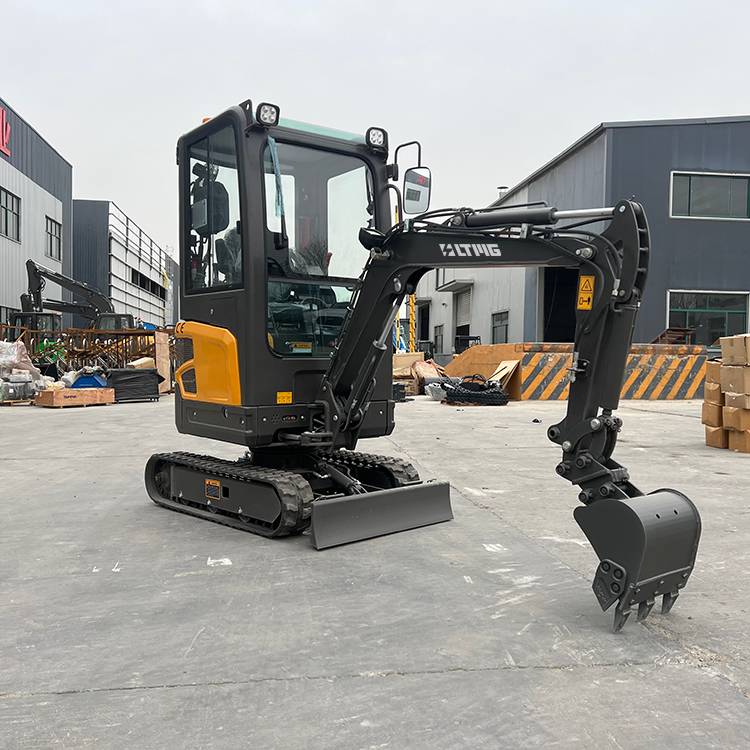

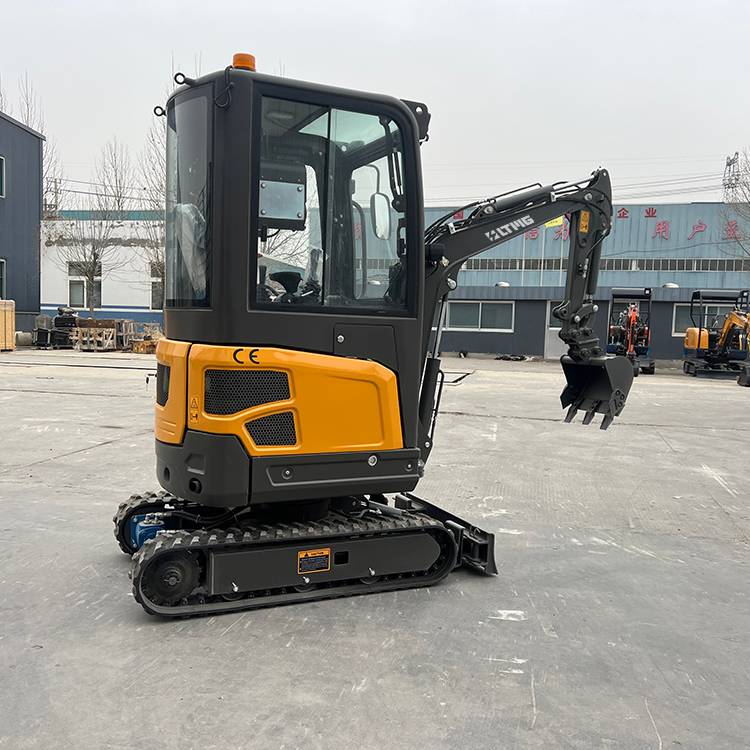

SupportFeatures of 1.5 ton Mini Compact Tracked Excavator
1.Excellent Work Efficiency and Cost-Effectiveness: This bulldozer demonstrates high work efficiency, allowing for efficient completion of tasks. Additionally, it is cost-effective, meaning that it provides good value for its performance.
2.Standard Configuration for Versatility: The bulldozer's standard configuration enables it to perform various tasks. It can flatten a site and perform earth backfilling, which contributes to machine stability during operations.
3.Simple, Small, and Flexible: This bulldozer is designed to be simple and small, making it easy to transport. Its compact size also allows it to operate in small venues, such as orchards (e.g., kiwifruit, vineyards) and citrus farms (e.g., oranges, navel oranges). It can perform tasks like trenching, fertilization, and weeding efficiently in these settings.
4.Multi-Function capabilities: In addition to the standard bulldozing functions, this machine has the ability to perform other tasks. It can be equipped with accessories for mining, crushing, clearing debris, drilling, and more. The quick replacement of these accessories enhances the machine's utilization and allows for a wide range of applications.
Overall, this bulldozer combines efficiency, versatility, and adaptability, making it suitable for various tasks and contributing to improved productivity.
LTE15 Technical Specification | ||
Engine | ||
Model | Kubota D722 10.4KW/2500rpm | |
Max. Turque | 45N.m/2500RPM | |
Type | In-line, water cooled, 4 stroke, Mechanical pump, normally aspirated | |
Displacement | 0.719 | |
No. of cylinder | 3 | |
Main Performance | ||
Swing Speed | r/min | 12-13 |
Traveling Speed(high/low) | km/H | 2.1/3.2km/h |
Grade ability | ° | 58% |
Max. Bucket Digging Force | kN | 9 |
Arm Digging Force | kN | 5.5 |
Ground Pressure | Kpa | 23 |
Hydraulic system pressure | Mpa | 20 |
Machine Weight | KG | 1400 |
Fuel Tank capacity | L | 14.5 |
Hydraulic Tank capacity | L | 14.5 |
Engine oil capacity | L | 3.2 |
Overall Dimensions | ||
Overall Length | mm | 3329 |
Overall Width | mm | 990 |
Overall Height | mm | 2267 |
Mini Ground clearance | mm | 153 |
Track width | mm | 200 |
Axle base(Track length on ground) | mm | 1190 |
Track Gauge | Mm | 790(1100) |
Swing radius at tail | Mm | 655 |
Swing radius at front | Mm | 1812 |
Height of blade | Mm | 210 |
Max.Dozer blade cutting | Mm | 229 |
Max.Dozer blade lifting | mm | 236 |
Bucket Capacity | m3 | 0.025 |
Max. Digging Radius | mm | 3529 |
Max. Digging Depth | mm | 2017 |
Max. Digging Height | mm | 2955 |
Max. Dumping Height | mm | 2077 |
Max. vertical digging depth | mm | 1610 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Transportation of Crawler Mini Excavator

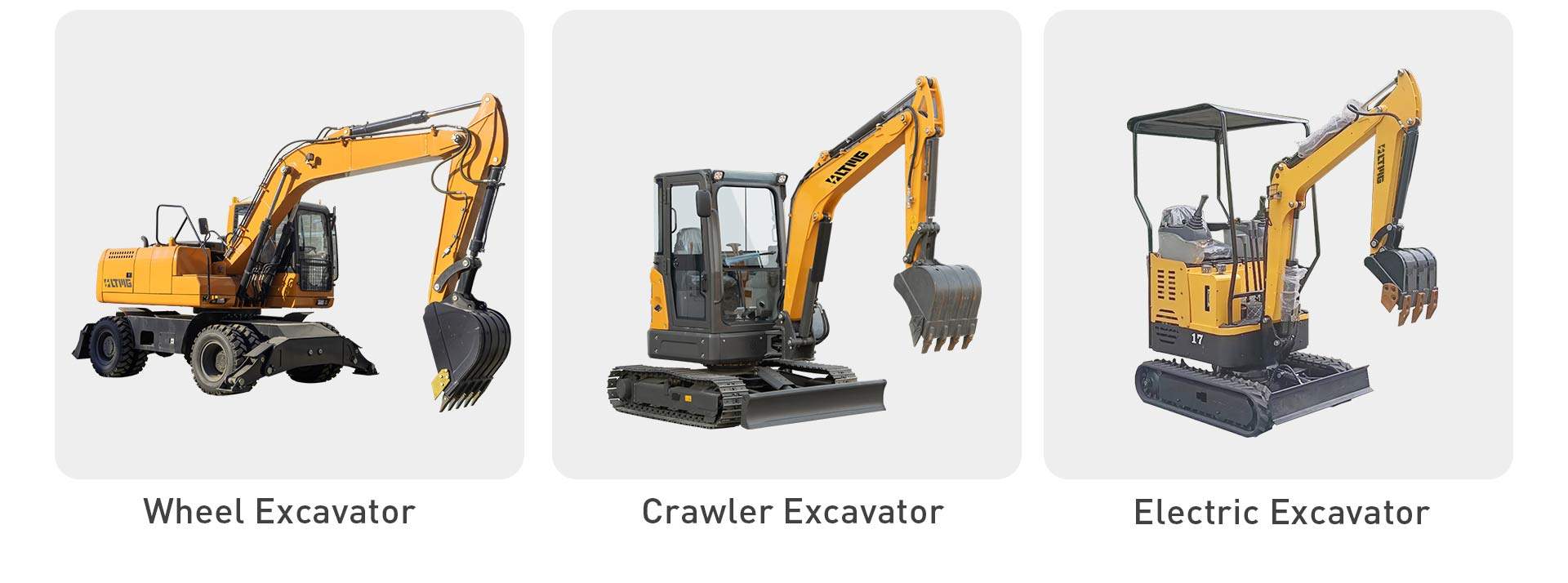

More related products
FAQ
Q.There are several reasons why you should choose us:
A: Excellent work efficiency / Excellent cost-effectiveness / Many standard configuration /Versatile and flexible /Multi-functionality with quick accessory
Q.What range of machines does LTMG Industries specialize in?
A. Wheel Loaders / Forklift Trucks / Excavators / Attachments /Customized Products
Q.What payment methods are available to you?
A.30% Deposit, 70% Balance: This is the standard payment term where a 30% deposit is required upfront, and the remaining 70% balance is settled before shipment.
100% Irrevocable L/C at Sight: We also accept 100% irrevocable Letter of Credit (L/C) at sight.
Q.When do you typically get our products?
A.Typically the delivery time for our products ranges from 15 to 30 days after receiving the deposit.
For standard products that are already in stock, we can deliver them immediately.
However, for customized products, the delivery time may vary depending on the specific requirements of your order. Customization usually requires additional time for production, quality control, and any necessary adjustments. We will provide you with a more accurate estimate of the delivery time based on the details of your customization request.
