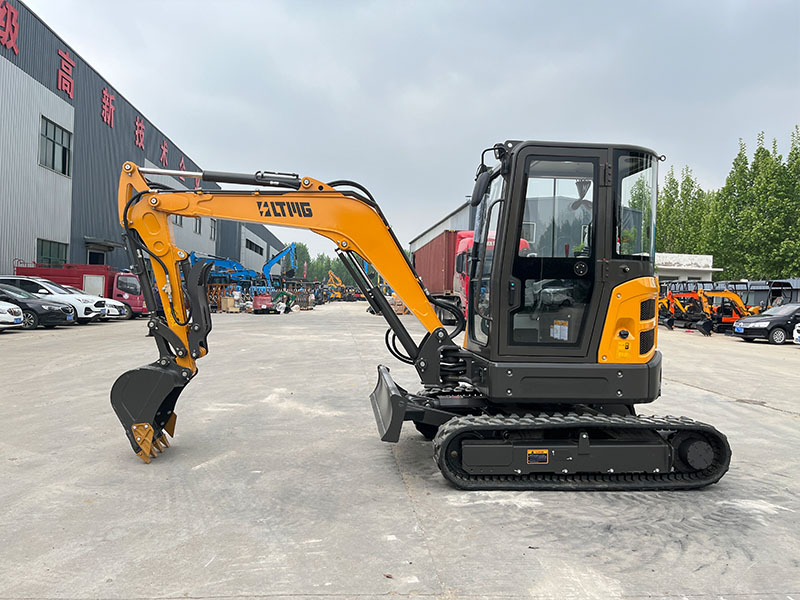

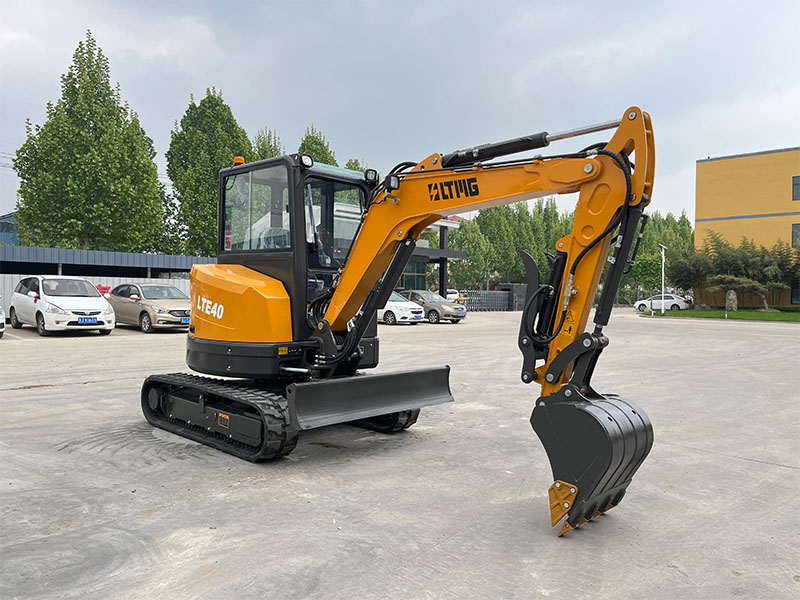

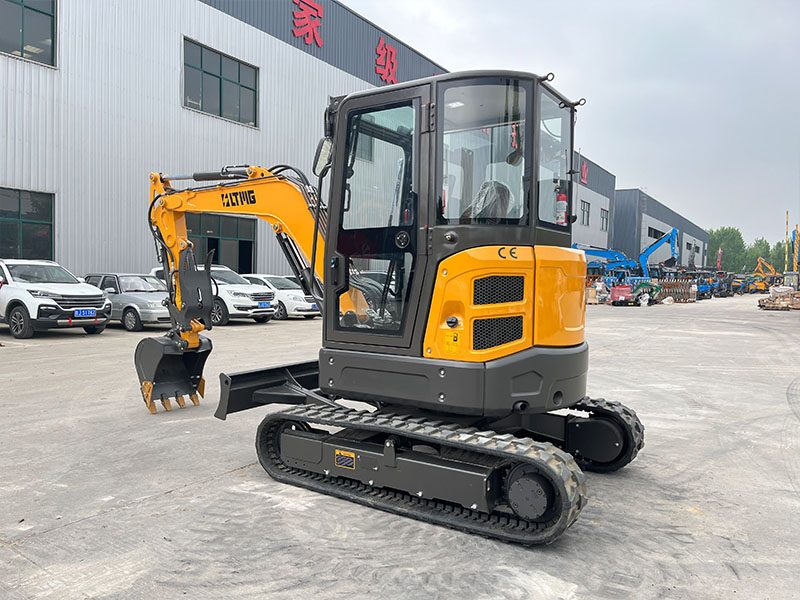

Introducing our versatile and powerful small-sized 4-ton crawlerator! This impressive machine is designed to tackle various excavation tasks with ease. Its compact size makes it suitable for urban construction sites, landscaping projects, and utility repairs. With its advanced features and exceptional capabilities, it's a perfect choice for landscapers and utility workers alike. Transform your worksite efficiency and maximize productivity with our reliable and efficient 4-ton crawler excavator!
Model :
LTE40Operating Weight :
3810KGBucket Capacity :
0.12ODM/OEM :
Available

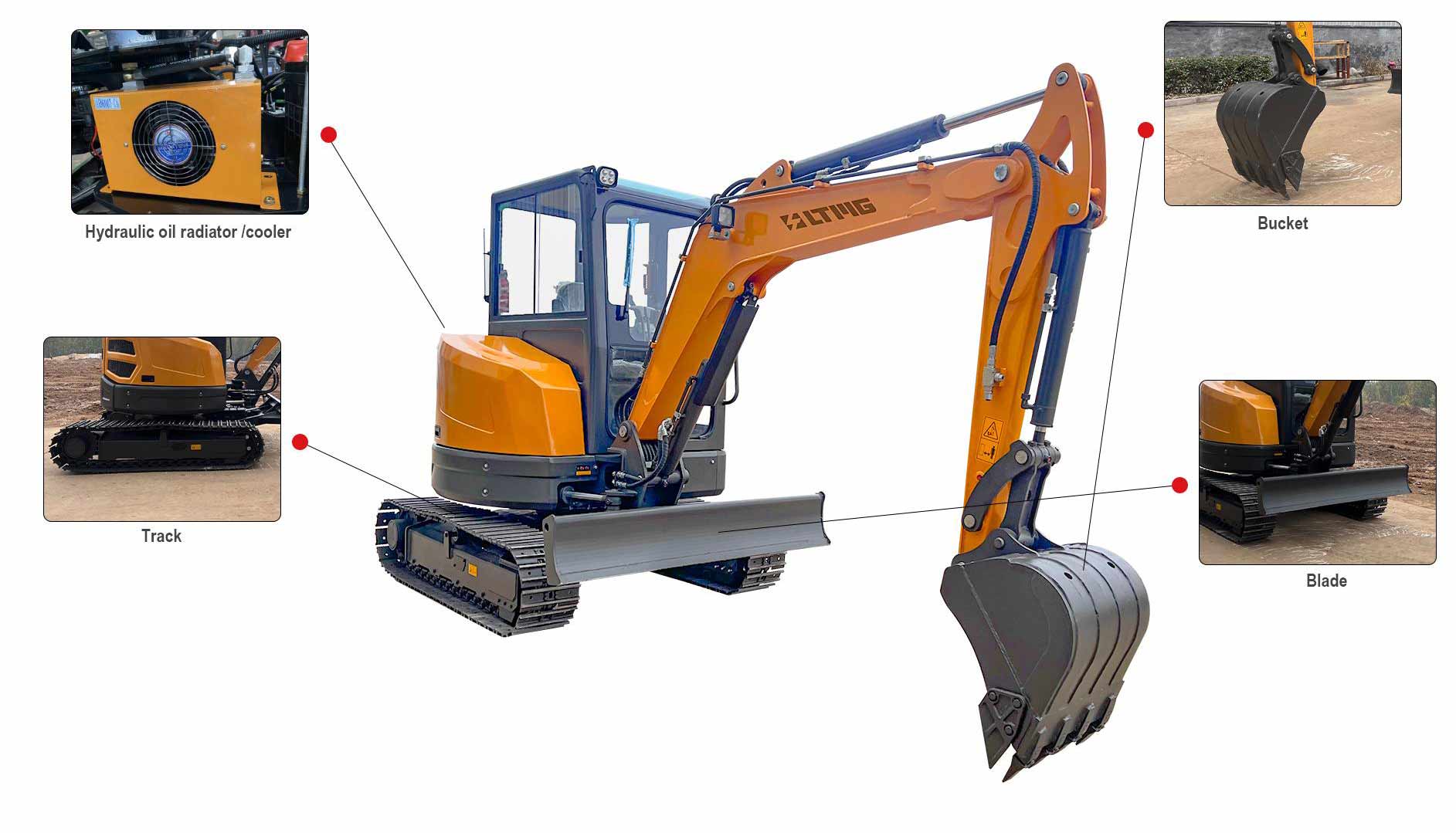

The Product Features of Mini 4-Ton Excavator
1. Japanese Original Imported Engine: This excavator is equipped with a Japanese original imported engine that holds dual certification of Euro V and EPA. The engine ensures high performance, fuel efficiency, and compliance with strict emission standards. It provides reliable power and durability for various construction applications.
2. Load-Sensitive Valve: Our excavator comes with a standard load-sensitive valve, which enhances energy efficiency. This feature optimizes the hydraulic system's response to the load, reducing unnecessary power consumption and increasing overall efficiency. It allows operators to accomplish more work with less fuel consumption, resulting in cost savings.
3. Maximum Digging Depth and Height: With a maximum digging depth of 3,208mm and a maximum digging height of 4,800mm, this excavator offers excellent versatility and reach. It enables efficient excavation, trenching, and material handling tasks, making it suitable for a wide range of construction projects.
4. Top-Quality Pump and Valve Brand: The excavator incorporates top-quality pump and valve brands from China, ensuring reliable performance and smooth operation. The hydraulic system delivers a hydraulic flow rate of 88L/min, allowing for fast and precise movements, efficient digging, and improved productivity on the jobsite.
5. Versatility with Various Attachments: Our excavator is designed to be versatile and adaptable. It can be easily equipped with a wide range of commonly used excavator attachments, such as a hydraulic breaker, auger, bucket thumb, grapple, ripper, and tiltrotator. This flexibility enables the machine to tackle different tasks, expanding its capabilities and productivity on the job.
These five selling points highlight the exceptional qualities and features of your 4-ton excavator, making it an attractive choice for customers seeking performance, efficiency, versatility, and reliability in their construction equipment.

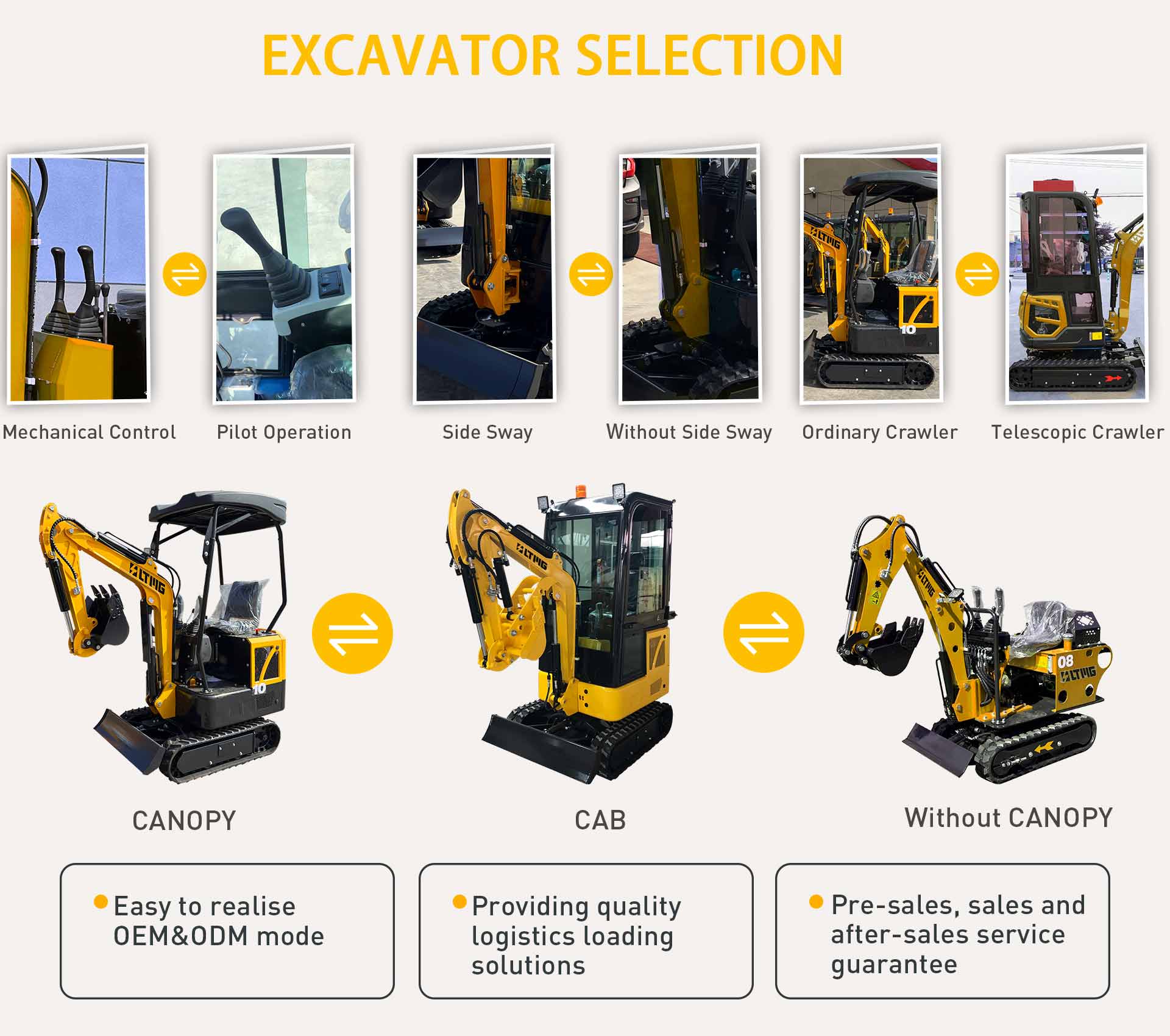

Custom Options & Global Service
The custom options for your Mini Excavator or Micro Digger include choices between Pilot Operation or Mechanical controls, Side Sway boom structure, and different CAB/CANOPY styles. We support your needs with flexible OEM&ODM modes, specialized logistics, and a comprehensive pre- and after-sales service guarantee.
Mini 4 Ton Excavator Parameters
| Model | LTE40 | |
| Engne | Ku-bo-ta | |
| Power | 18.5KW/2200rpm | |
| Max. Turque | 97.4N.m/1500RPM | |
| Type | In-ine, water-cooled, Mechanical pump, normally aspirated | |
| Dspacement | 1.647L | |
| No.of cylinder | 4 | |
| Iain Perforaance | ||
| Swing Speed | r/mn | 0-11 |
| Traveing Speed(high/low) | km/H | 4.4/2.4km/h |
| Grade ability | 58% | |
| Max, Bucket Dlgging Force | kN | 30.4 |
| Arm Digging Force | kN | 18.2 |
| Ground Pressure | Kpa | 32 |
| Hydraulic system pressure | Mpa | 22.5 |
| Machne Weght | KG | 4000 |
| Boom Length | Mm | 2535 |
| Arm Length | Mm | 1400 |
| Fuel Tank capacity | L | 42 |
| Hydraulic Tank capacity | L | 48.5 |
| Engine of capacity | L | 7 |
| Carmer roler(each sie) | 1 | |
| Supporting roler(each sde) | 4 | |
| Overall Dimensions | ||
| Overal Length | mm | 4915 |
| Overal Width | mm | 1720 |
| Overal Height | mm | 2525 |
| Mni Ground clearance | mm | 295 |
| Track wdth | mm | 300 |
| Axle base(Track length on ground) | mm | 1670 |
| Length of track | mm | 2154 |
| Track Gauge | Mm | 1420 |
| Swng radius at tal | Mm | 860 |
| Swng radus at front | Mm | 2538 |
| Height of bade | Mm | 350 |
| Operation parameters | ||
| Bucket Capacity | m² | 0.12 |
| Max. Dggng Radus | mm | 5480 |
| Max. Dlgging Depth | mm | 3208 |
| Max. Digging Height | mm | 4800 |
| Max. Dumping Height | mm | 3406 |
| Max, vertical digging depth | mm | 3208 |
With technological innovation, our product configuration and parameters will continue to change without notice. If there is any doubt, the specific confirmation of our international trade sales shall prevail.
Customizations Service

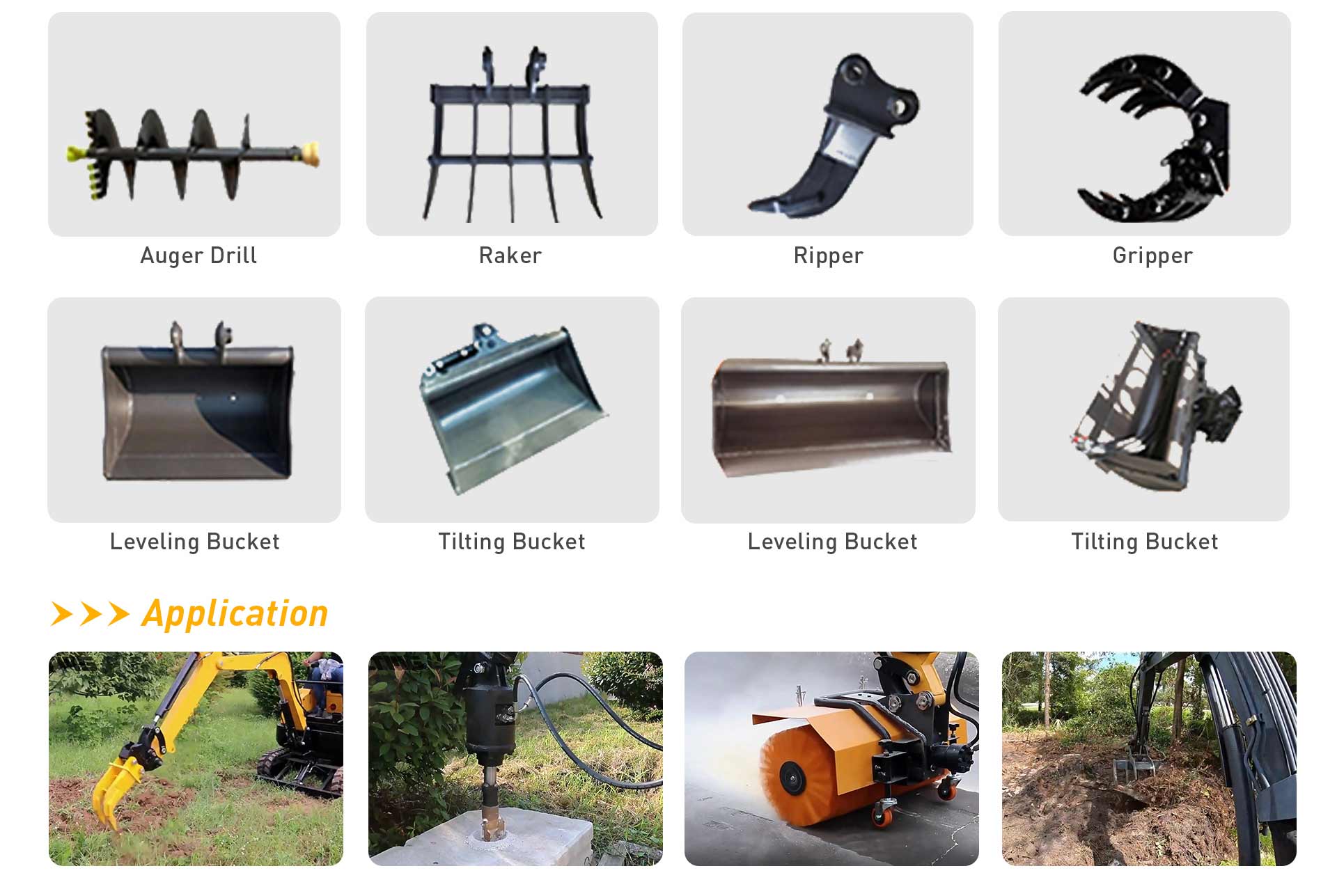

Optional Excavator Attachments

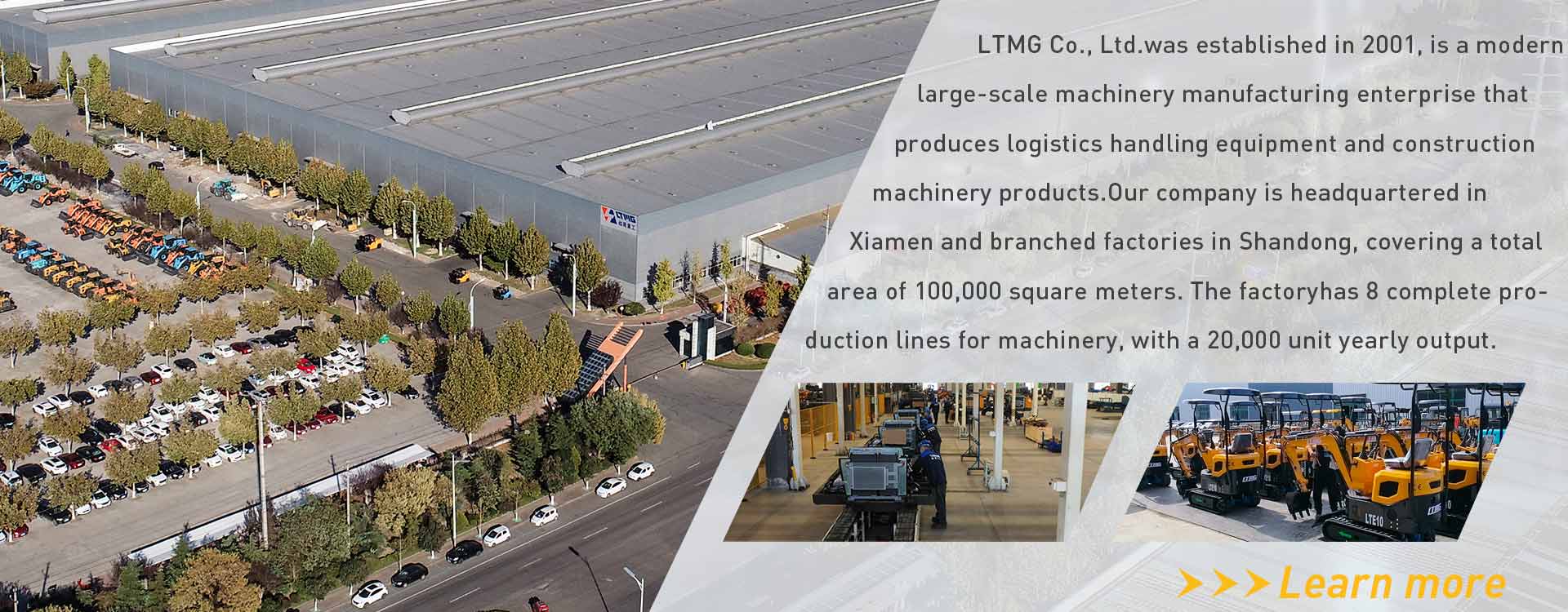

More About LTMG

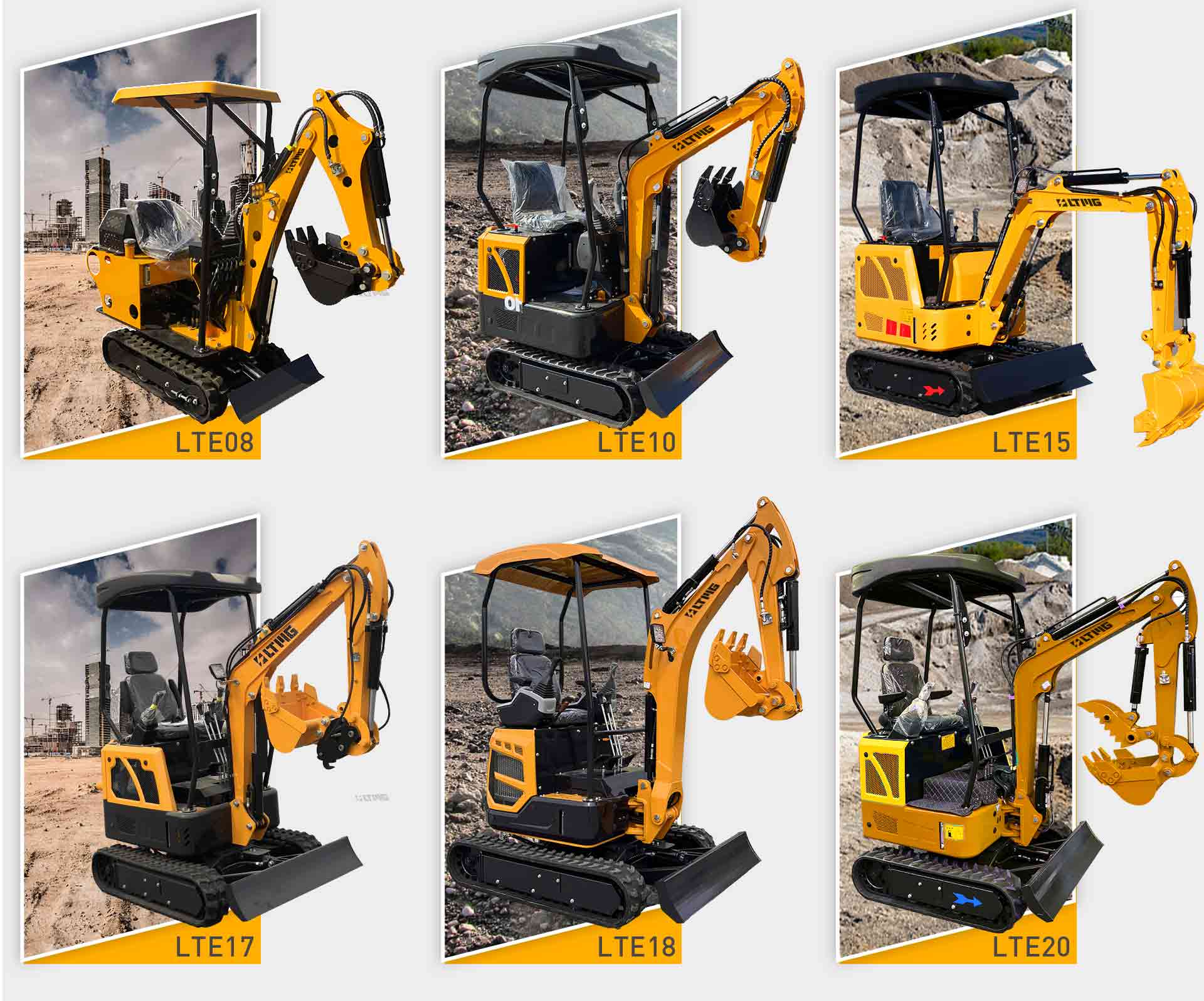

Multiple Tonnage Options
FAQ
Q: What are the features that contribute to a better driving experience?
A: Our 4-ton excavator comes equipped with a standard air-conditioned cabin and hydraulic pilot controls, ensuring a comfortable and precise driving experience.
Q: What kind of after-sales support do you provide?
A: We offer a warranty period of one year or 2000 working hours, ensuring comprehensive after-sales support for our customers.
Q: What is a load-sensitive valve, and how does it benefit the excavator?
A: A load-sensitive valve is a hydraulic system component that adjusts the flow of oil based on the load applied. It helps optimize the excavator's performance, providing better control and efficiency while reducing energy consumption.
Q: What is the "LTMG" brand?
A: LTMG, which is our company specializing in manufacturing and selling construction machinery products. With over 20 years of industry experience, we are dedicated to delivering high-quality and reliable equipment.
Q: Can you provide more information about the excavator's durability and reliability?
A: Our 4-ton excavator is built to withstand tough working conditions. It features a robust construction, high-quality materials, and advanced engineering, ensuring durability and long-term reliability in various construction applications.
