37 Ton big excavator equipped with original imported Isuzu engines, featuring a handle operation and proportional control, ensuring high efficiency and low fuel consumption.
Model :
LTE370Operating Weight :
36800KGSBucket Capacity :
1.8-2.0CBMODM/OEM :
SUPPORT
37Ton Crawler Excavator Characteristics
1. Featuring high-end and top-of-the-line core configurations
1) Cummins engines that meet the third-stage emission standards, ensuring energy-saving and fuel efficiency
2) International brand main pumps and valves
2. World-class hydraulic components, guaranteeing high reliability of the hydraulic system
1) Enhanced reliability and durability thanks to a strong and sturdy high-strength body
2) Strengthened arm, boom, and bucket structures
3. Providing enhanced comfort and coordination, characterized by:
1) A high-rigidity new type of cabin that is quiet and comfortable
2) A color LCD monitor for easy monitoring and maintenance
3) Multiple operating modes to choose from.
37Ton Crawler Excavator Parameter
| Performance Parameters | LTE370 |
| Operating weight(T) | 36.8 |
| Bucket capacity(m3) | 1.8-2.0 |
| Engine model | ISUZU 6HK1X |
| Power (Kw/r/min) | 212/2000 |
| Fuel tank capacity(L) | 595 |
| Traveling speed (Km/h). | 5.2/3.3 |
| Swing speed(r/min) | 8.5 |
| Gradability (%) | 70 |
| Bucket digging force (KN)ISO | 245 |
| Arm length(m) | 2900 |
| Boom(m) | 6470 |
| Ground pressure (KPa) | 70.8 |
| Hydraulic oil tank capacity (L) | 310 |
| Machine Dimensions | |
| A-Overall length (mm) | 11080 |
| B-Overall width(mm) | 3190 |
| C-Total height(Boom top)(mm) | 3180 |
| D-Total height(Cab top)(mm) | 3280 |
| E-Counterweight ground clearance(mm) | 1210 |
| F-Min.ground clearance(mm) | 495 |
| G-Turning radius of vehicle tail(mm) | 3420 |
| H-Ground contact length of track(mm) | 4030 |
| J-Track shoe length (mm) | 4955 |
| K-Track gauge(mm) | 2590 |
| L-Track shoe width(mm) | 3190 |
| M-Track shoe width(mm) | 600 |
| N-Swing frame width(mm) | 2995 |
| Operating Range | |
| 0-Max.digging height(mm) | 9800 |
| P-Max.dumping height(mm) | 6830 |
| Q-Max.digging depth(mm) | 6890 |
| R-Max.vertical wall digging depth(mm) | 6000 |
| T-Max.digging distance(mm) | 10800 |
| U-Max.digging distance at ground level (mm) | 10600 |
| V-Min.swing radius (mm) | 4285 |
| W-Max.height at Min.turning radius (mm) | 8500 |
| X-Distance between the center of swing and tail (mm) | 3420 |
| Z-Counterweight height (mm) | 2265 |
| A1-Ground contact length (during transportation) (mm) | 5720 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

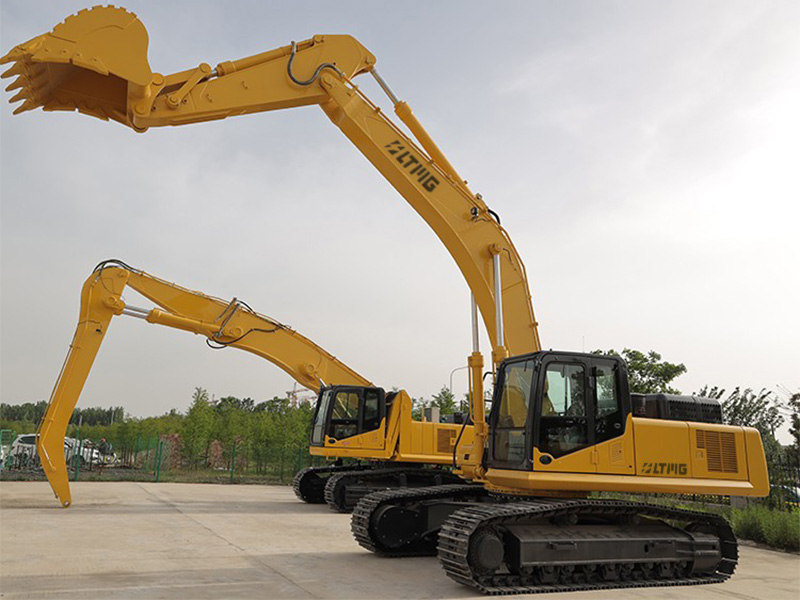

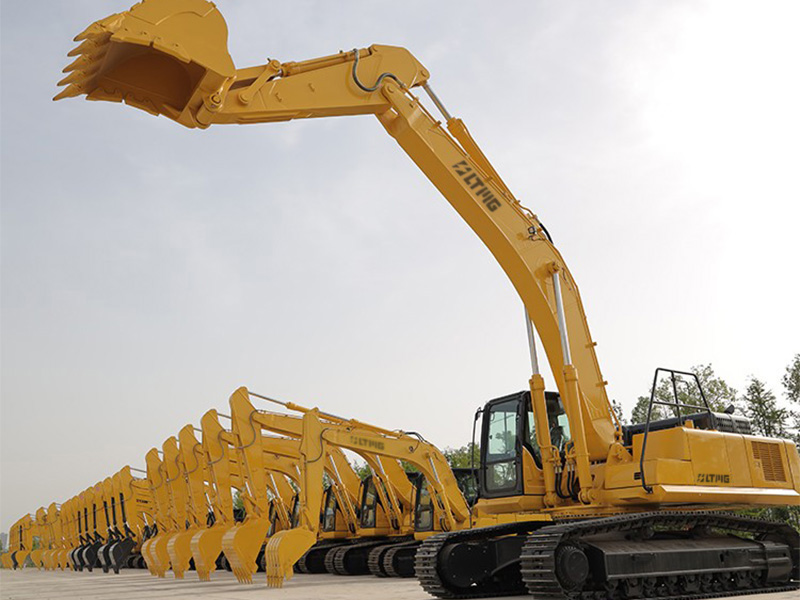

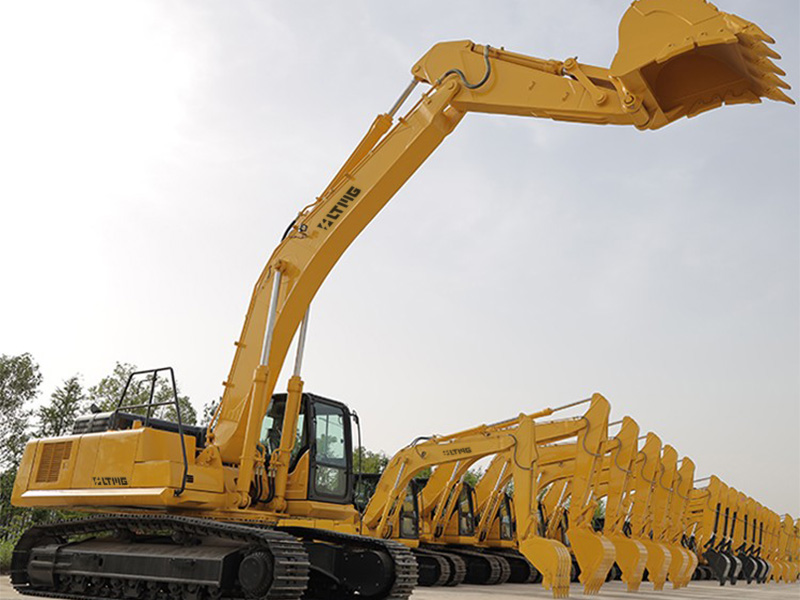

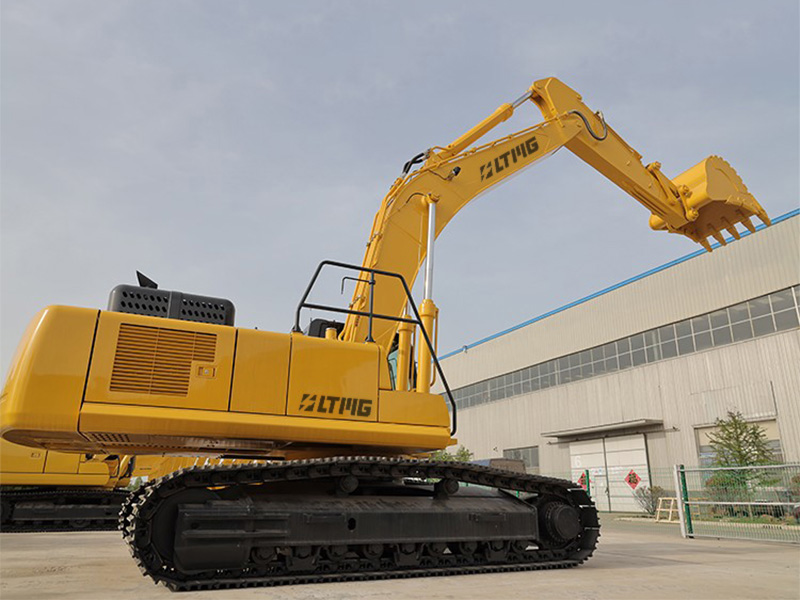

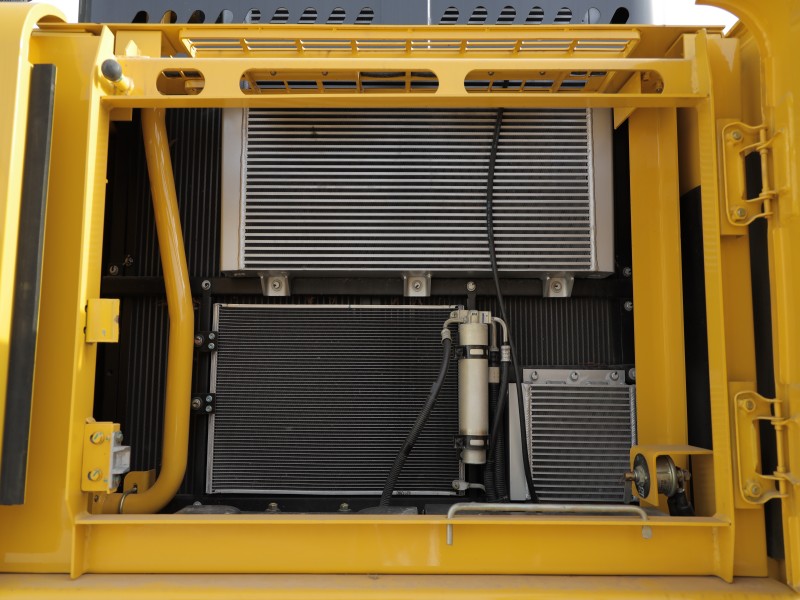

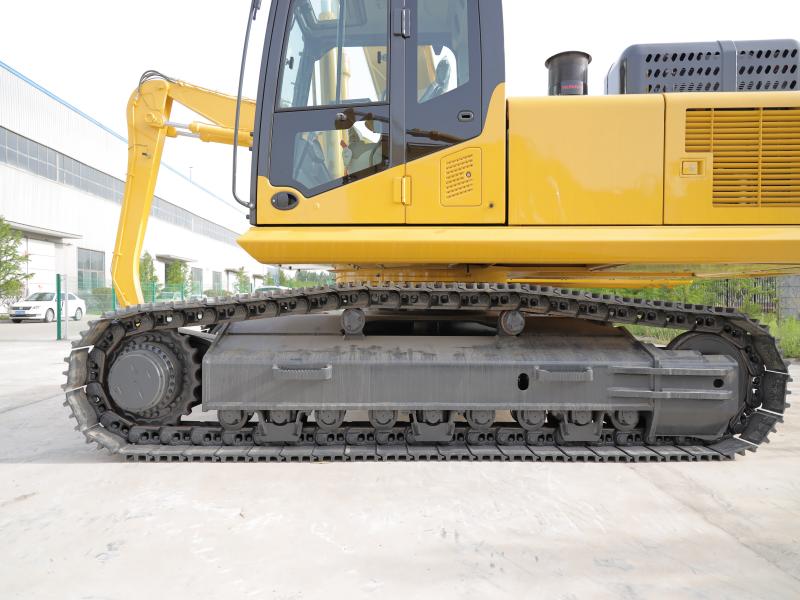

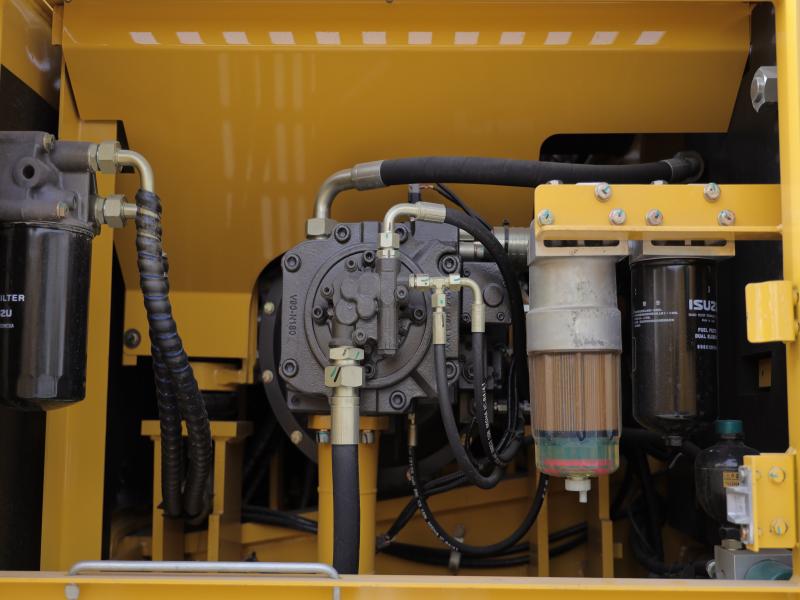

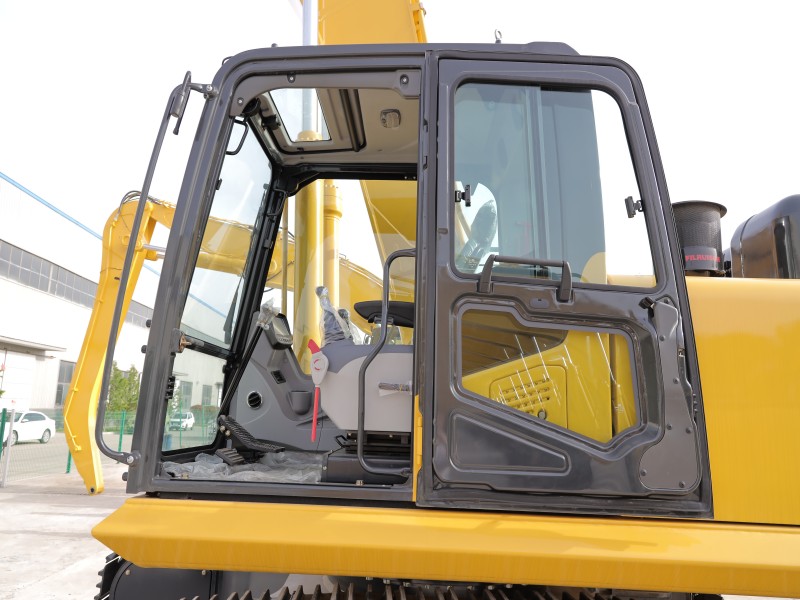

37Ton Crawler Excavator Detail Pictures
FAQ
Q: As an excavator factory, what are the different advantages of LTMG?
A: LTMG's factory implements stricter control over the production process and has expanded its range of excavator models with various configurations. In comparison to other factories in the same industry, LTMG offers a wider range of product categories and more options for customers to choose from.
Q: How long is the lead time for LTMG excavator?
A: For standard 37Ton medium size excavator, the lead time is typically 30-40 days. However, for customized orders, the lead time is longer, usually ranging from 45-50 days.
Q: How is your after-sales service of excavator?
A: We offer a range of after-sales services that provide 24-hour technical support via phone and email.
