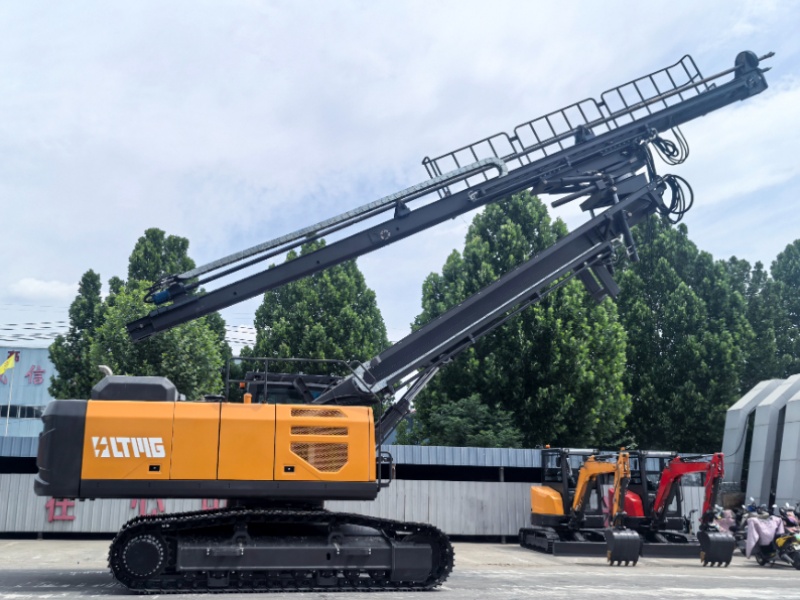

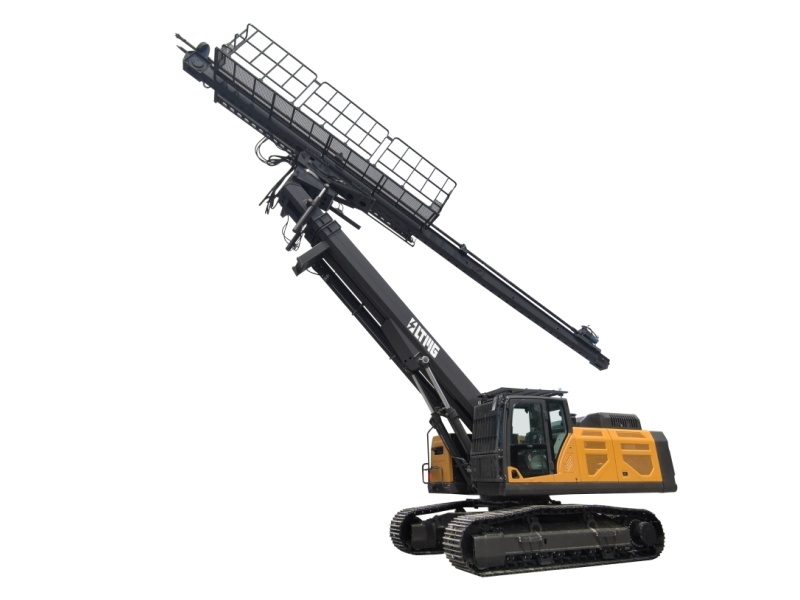

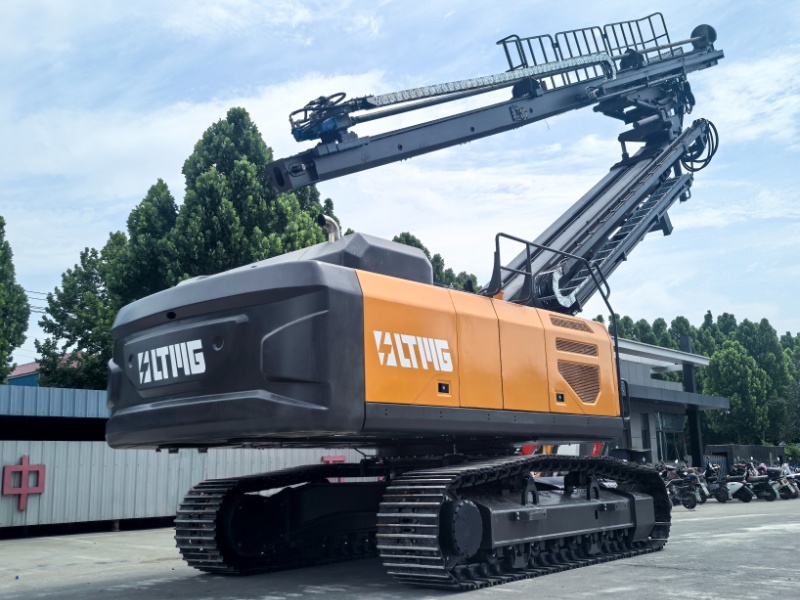

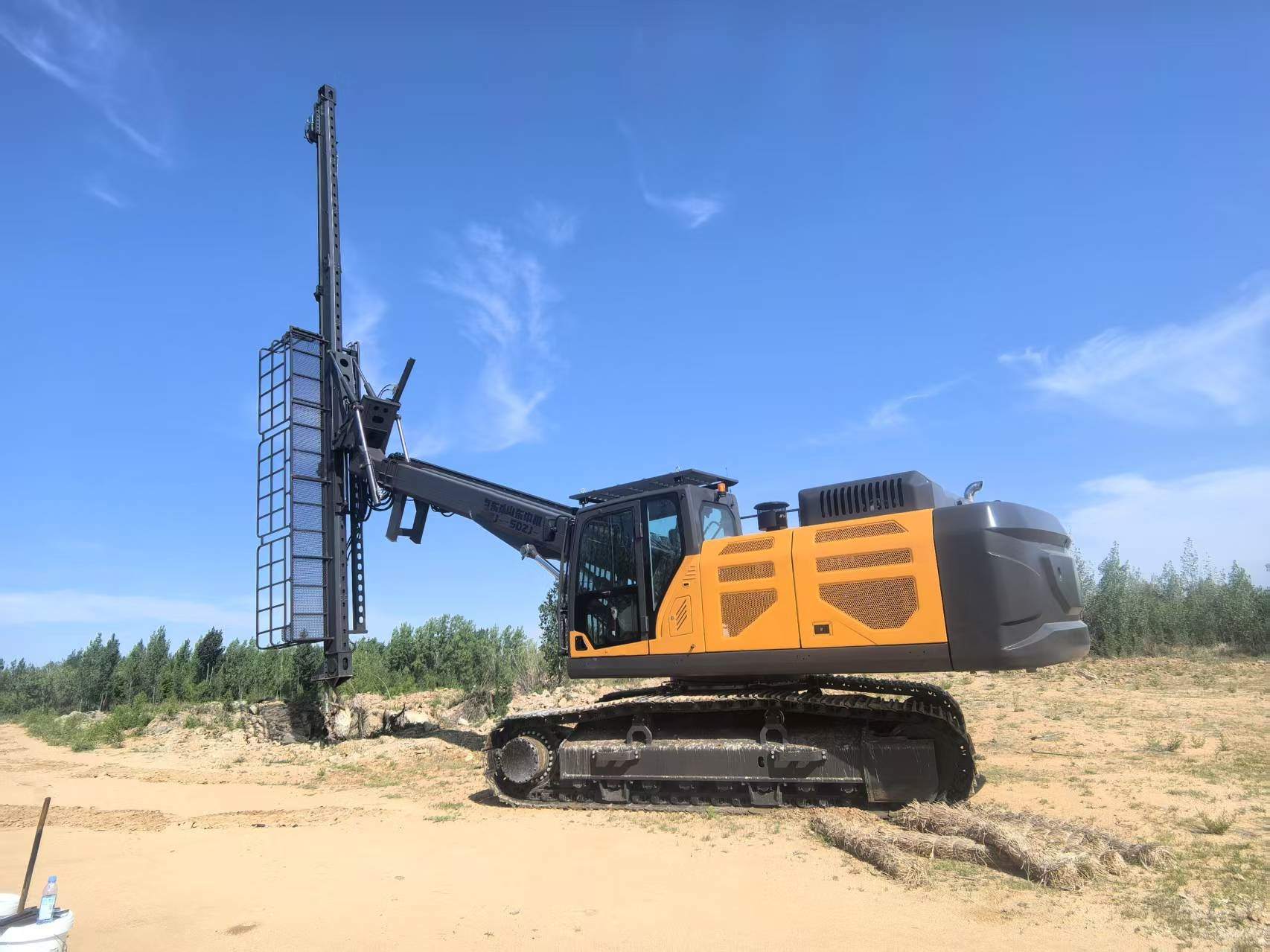

The DR380A anchor drilling rig features a hydraulic rotating arm for vertical and slope drilling. Equipped with a high-pressure screw compressor and central water system, it enables fast, efficient, and eco-friendly drilling. Hydraulic clamping allows quick rod changes, with a single-hole depth of up to 10.8 meters.
Model :
38650kgWeight :
38650KGODM/OEM :
SupportLength, width, height :
16000x3190x3400
High-pressure screw compressor drilling rig: Large air volume and high pressure for fast drilling with effective dust control.
Hydraulic clamping system: Enables quick rod removal and replacement to improve work efficiency.
Deep hole drilling up to 20 meters: Single-hole depth up to 10.8 meters, maximum drilling depth 20 meters.

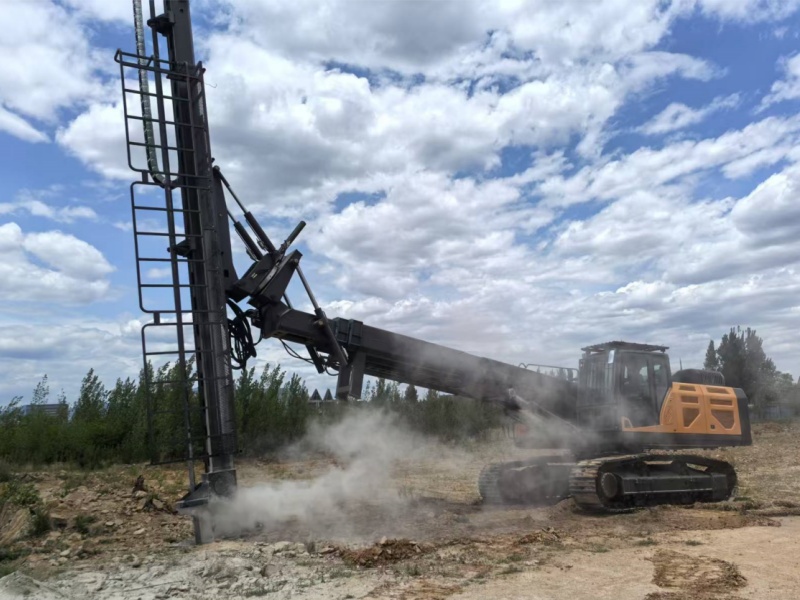

Eco-friendly dust control drilling rig: Central water system reduces dust during drilling for safe and environmentally friendly operation.

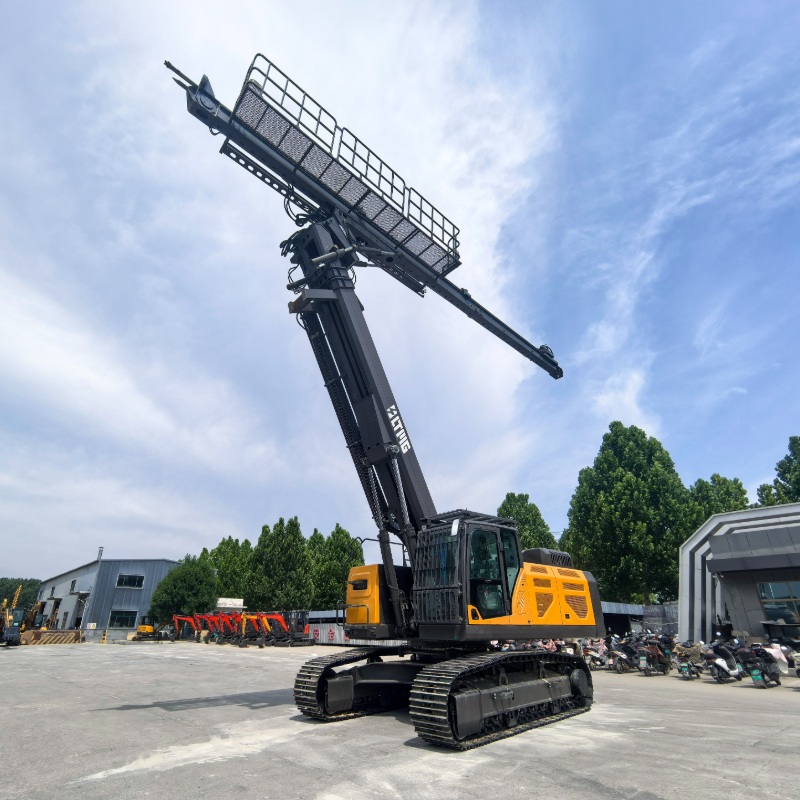

DR380A Multifunctional Anchor Drilling Rig parameter
| Model | DR380A | |
| Engine | Cummins National IV | B6.7CS4 300C 221KW/2200rpm |
| Cummins Euro V | B6.7 173KW/2000rpm |
|
| Deutz Euro V | TCD7.8L6 200KW/2500rpm |
|
| Cummins National II | 6CTAA8.3-C260 194KW/2200rpm |
|
| Hydraulic System | Main Pump Flow | 2x247L/min |
| Main System Pressure | 32MPa | |
| Pilot System Pressure | 4MPa | |
| Air compressor parameters | Working Pressure | 10bar |
| Discharge Volume | 10m³/min | |
| Technical Parameters | Hole Diameter Range | Φ76-180mm |
| Drilling Depth | 20m | |
| Drill Pipe Diameter | Φ65/76 | |
| Maximum Hole Height | 18m | |
| Hole Depth At One Time | 10.8m | |
| Maximum Propulsion Force | 43KN | |
| Maximum Lifting Force | 50KN | |
| Maximum Output Torque Of Drill Pipe | 4000/9000Nm | |
| Weight Of The Whole Machine | 38650kg | |
| Travel Speed High/Low | 3.8/2km/h | |
| Maximum Climbing Degree | 35° | |
| （LxWxH）Overall Dimensions (Lxwxh) | 16000x3190x3400 | |
| Width Of Track Plate | 600mm | |
| Wheelbase | 4099mm | |
| Track Distance | 2590mm |
High-Efficiency Drilling Rig
High-Efficiency Drilling Rig
FAQ

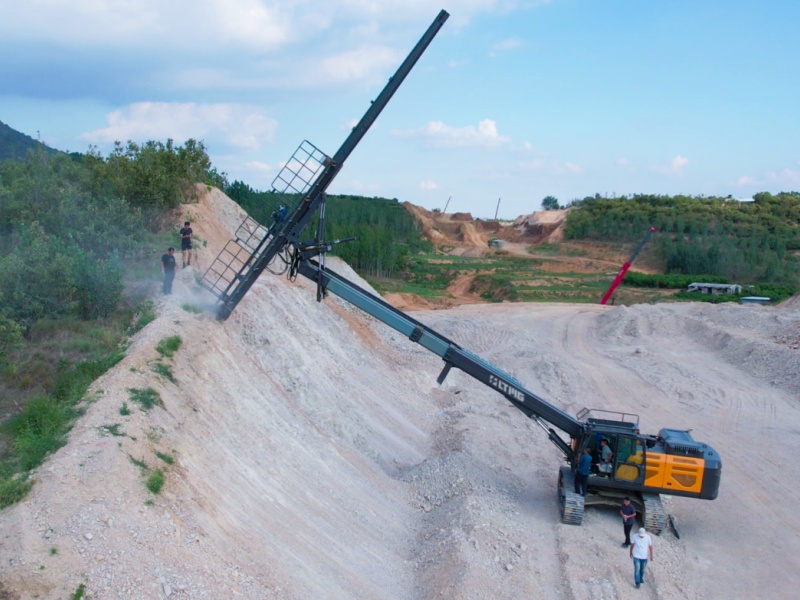

Suitable for foundation anchoring, ground support, slope reinforcement, and other projects requiring efficient drilling.
Yes. The hydraulic clamping system allows quick rod removal and replacement, improving work efficiency.
Equipped with a high-pressure screw compressor and central water system, it enables fast drilling while effectively reducing dust for eco-friendly operation.
