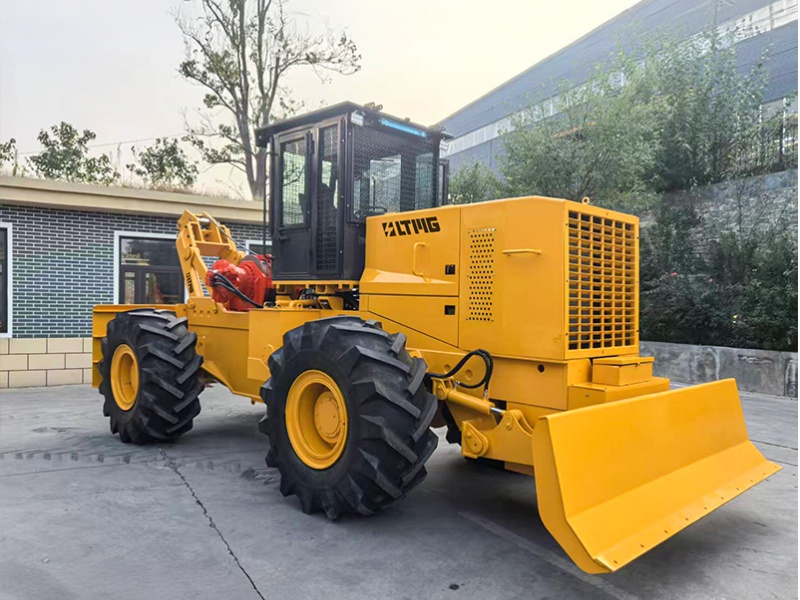

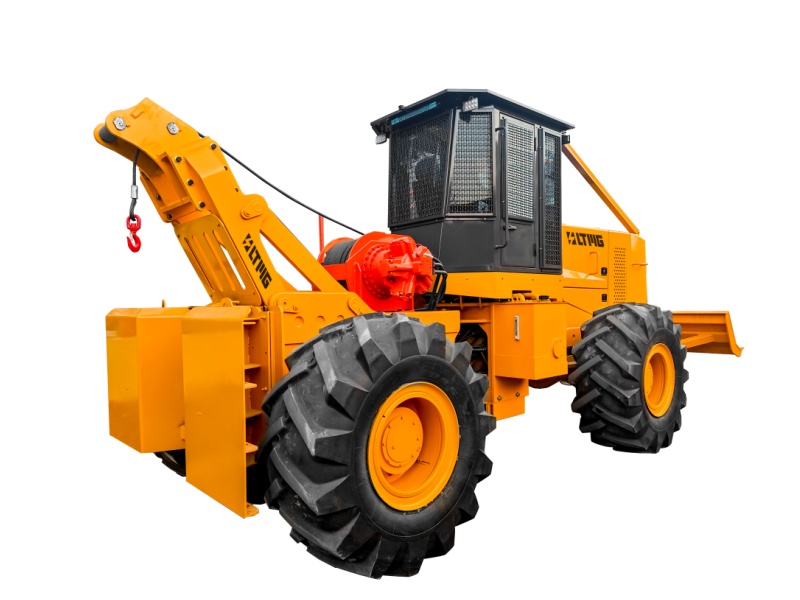

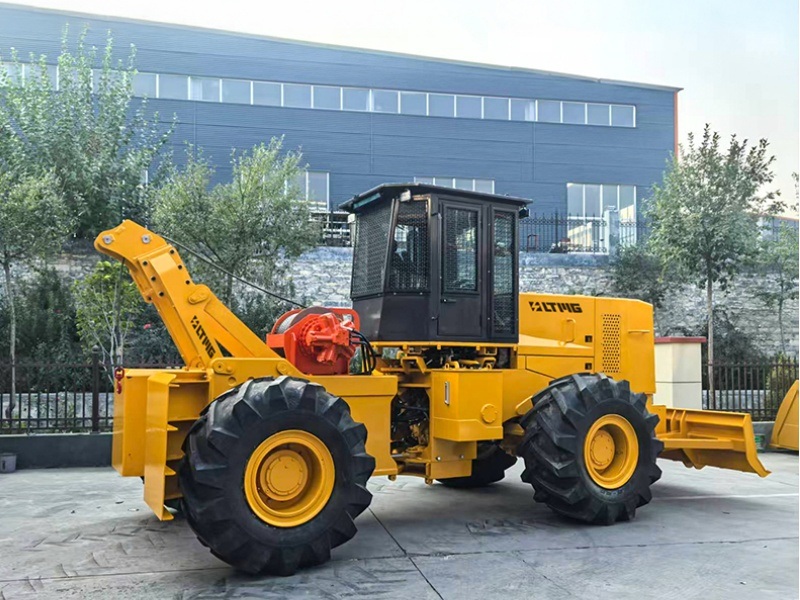

220hp log skidder for efficient timber skidding

220hp log skidder for efficient timber skidding

220hp log skidder, Central articulated frame with a small turning radius ensures excellent maneuverability and stability in narrow spaces. Steyr turbo-charged diesel engine delivers high power and torque with low fuel consumption, while the twin hydraulic system maximizes lift and breakout forces. Ergonomic controls, full hydraulic steering, and durable brakes provide safe, comfortable, and efficient operation.

Model :
SK220
Weight :
17000kg
ODM/OEM :
Support

Inquiry now

Share to :

Product Details

* Powerful & Efficient: Steyr engine with twin-pump system delivers high power, torque, and fuel economy.

* Smooth Hydraulic Control: Full hydraulic steering and pilot operation for flexible, comfortable handling.
* Compact & Stable: Articulated frame enables tight turns and stable operation in narrow spaces.
* Safe & Serviceable: 4-wheel disc brakes and a dust filter for safety; foldable steel covers for easy maintenance.

Parameters of a 220-horsepower log skidder

overall weight	17000kg
winch drive type	hydraulic motor drive
maximum tractive force	172KN
maximum wire rope speed	10 m/min
maximum grade ability	30℃
drum capacity	20*100
diameter of Winch drum（cable type）	1020
lifting height of push plate	819mm
Earth cutting depth of push plate	218mm
overall dimension (L×W×H)	7300×3050×3550mm
minimum turning radius	6300mm
model	WeichaiWP10G220E22
	inline water cooling dry cylinder injection
No. of cylinder-bore/stroke	6－126×130mm
rated power	162kw--2000r/min
maximum torque	920N.m
min fuel-consume ratio	≤215g/kw.h
gear shift	4forward shift 4reverse shift
maximum speed	41km/h
main reducing spiral	bevel gear grade 1reduction
decelerating mode	planetary reduction, grade 1
wheel base (mm)	3450mm
wheel tread	1750mm
minimum ground clearance	430mm
system working pressure	18MPa
boom lifting time	1.5S
fuel tank capacity	280L
service brake	air over hydraulic disc brake on 4 wheels
parking brake	manual parking brake
type specification	23.5-25
front tyre pressure	0.4Mpa
rear tyre pressure	0.35Mpa

With technological innovation, our product configuration and parameters will continue to change without notice;

If there is any doubt, the specific confirmation of our international trade sales shall prevail;

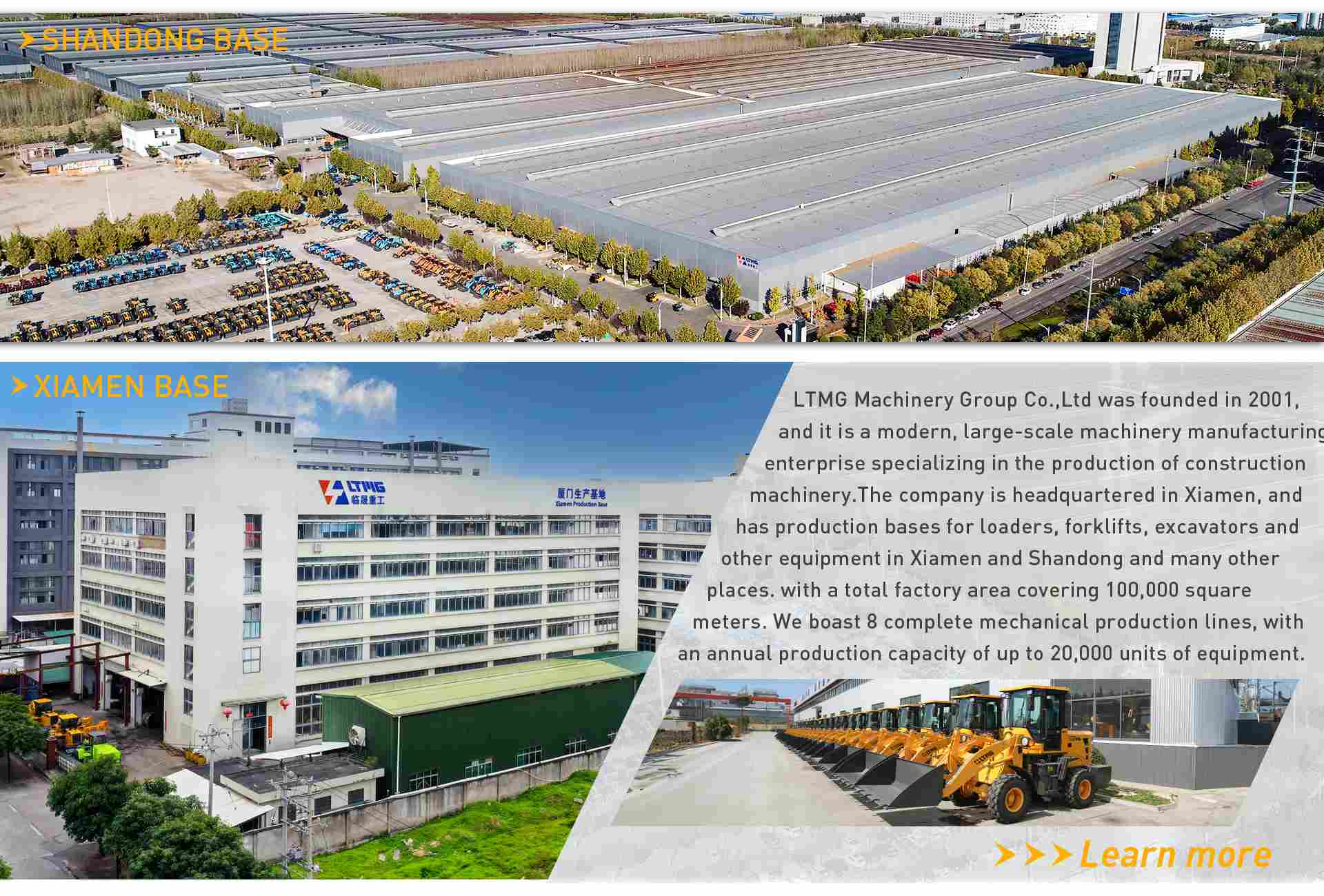

Reliable Factory Manufacturing
