4 Ton Front End Wheel Loader With Upgraded Cabin

4 Ton Front End Wheel Loader With Upgraded Cabin

4 Ton Front End Wheel Loader is equipped with an upgraded cabin, Eaton steering gear and priority valve, 20.5-25-25 Aeolus tires, powerful engine performance, and can easily cope with harsh working conditions.

Model :
LT946
Load Capacity :
4000KG
Operating Weight :
11000KG
Bucket Capacity :
2m³
ODM/OEM :
SUPPORT

Inquiry now

Share to :

Product Details

1. High reliability and productivity. Using Weichai or Cummins engine, the power is strong and reliable. Torque converter and countershaft drive gearbox, assembled separately for higher reliability and easier maintenance.

2. Full hydraulic steering system, power shift transmission, easier operation. The bucket can be automatically leveled to optimize the working device and improve production efficiency.

3. Newly designed cab, comfortable operating environment, optional air conditioning and suspension seat.

4. Various accessory working devices can be provided, such as wood grabber, pipe fork, grass fork, stone bucket, snow knife, pallet fork, etc., to meet different needs.

4 Ton Front End Wheel Loader Parameter

Performance	rated loading	4000kg
	overall weight	11000kg
	rated bucket capacity	2m³
	maximum tractive force	105KN
	maximum breakout force	110KN
	maximum grade ability	30℃
	maximum dump height	3200mm
	maximum dump reach	1100mm
	overall dimension (L×W×H)	723025203250mm
	minimum turning radius	6400mm
Engine	model	Weichai/Cummins
	type	lnline water cooled, four stroke
	rated power	129KW
	maximum torque	500N.m
	min fuel-consume ratio	≤210g/kw.h
Transmission system	torque converter	YJ315
	torque converter	YJ315
	gearbox mode	Power shift normally engaged straight gear
	gear shift	4forward shift 2 reverse shift
	maximum speed	40km/h
Drive axles	main reducing mode	Bevel gear grade lreduction
	decelerating mode	Bevel gear grade lreduction
	wheel base (mm)	2750mm
	wheel tread	1850mm
	ground clearance	400mm
Hydraulic system	system working pressure	16.5Mpa
	boom lifting time	4.83s
	total time	9.15s±0.5s
	fuel tank capacity	130L
	function of levelling automatically	yes
Brake system	service brake	air assist disc brake on 4 wheels
Tyre	type specification	20.5-25

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.

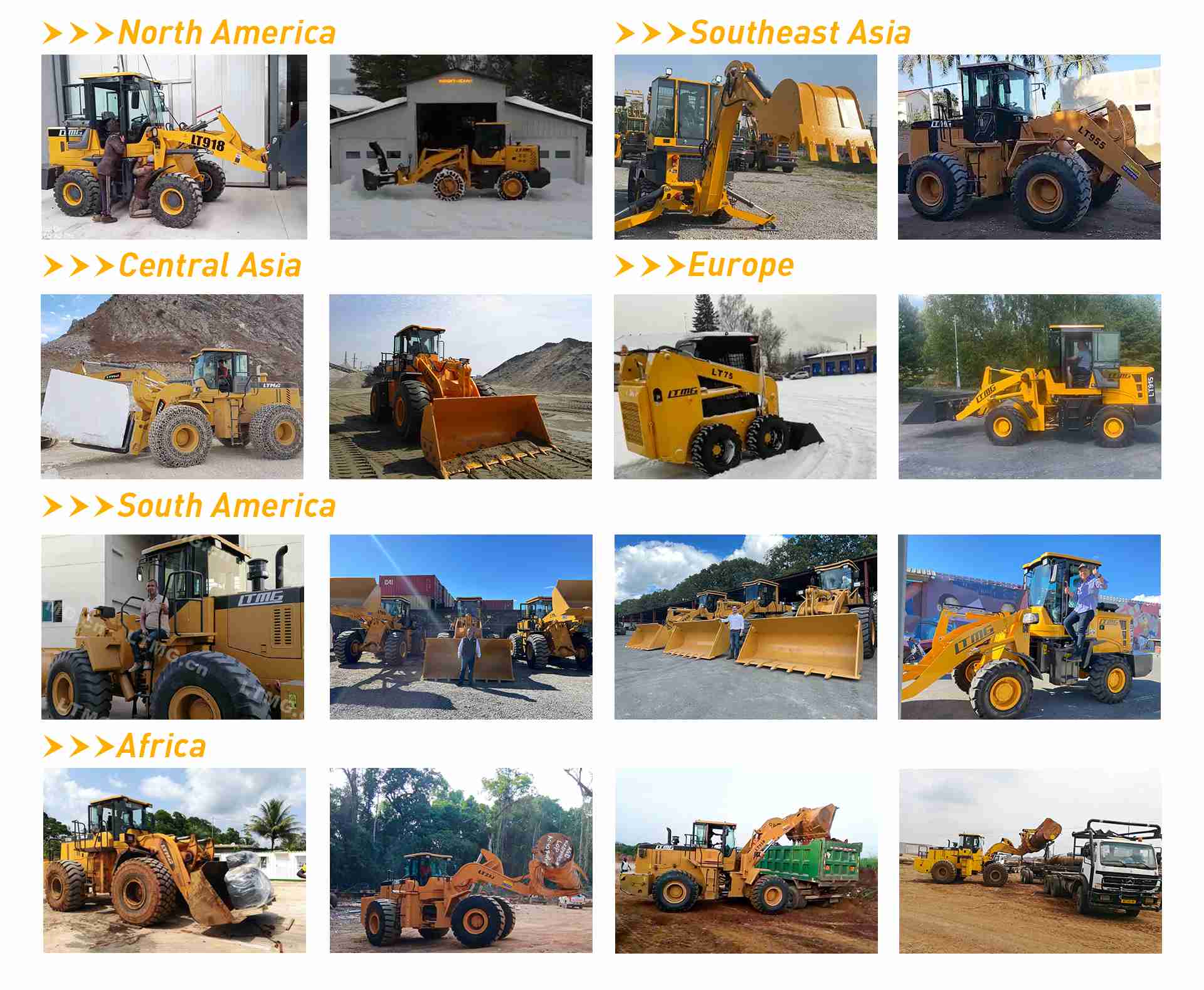

Applications

wheel loader bucket manufacturers

FAQ of 4 Ton Front End Wheel Loader

1.How long is the lead time for a 1.4 ton front end wheel loader?

Delivery time is generally 20~30 days. Stock products or customized products will be advanced or delayed accordingly. Please confirm with sales for details.

2. Is our price competitive?

Under the premise of ensuring product quality, LTMG provides very competitive prices according to the purchase quantity.

3. How to pack the ton front wheel loader during tranDelivery time is generally 20~30 days. Stock products or customized products will be advanced or delayed accordingly. Please confirm with sales for details.
