2.5 ton backhoe loader BLT388T With Imported Italian Carraro Bridge Box

2.5 ton backhoe loader BLT388T With Imported Italian Carraro Bridge Box

BLT388H is equipped with imported Italian Carraro axle box, imported valves, front and rear mechanical operation; reserved for crushing hammer line, anti-rollover cab, imported valves,A-legged as standard

Model :
BLT388T
Load Capacity :
2500kg
Operating Weight :
8200kg
Bucket Capacity :
1.0 m³
ODM/OEM :
SUPPORT

Inquiry now

Share to :

Product Details

2.5 ton backhoe loader BLT388T Characteristic

A.This bridge box is a heavy-duty, imported Italian Carraro bridge box with imported valves and front and rear mechanical operation.

B.It is equipped with Xuzhou Azi tires, with the front wheel size being 14-17.5 and the rear wheel size being 19.5L-24.

C.It also has a reserved crusher pipeline and an anti-rollover cabin（ROPS cabin） with imported valves and an XCMG bridge, which comes standard A eight legs but can also be equipped with H leg.

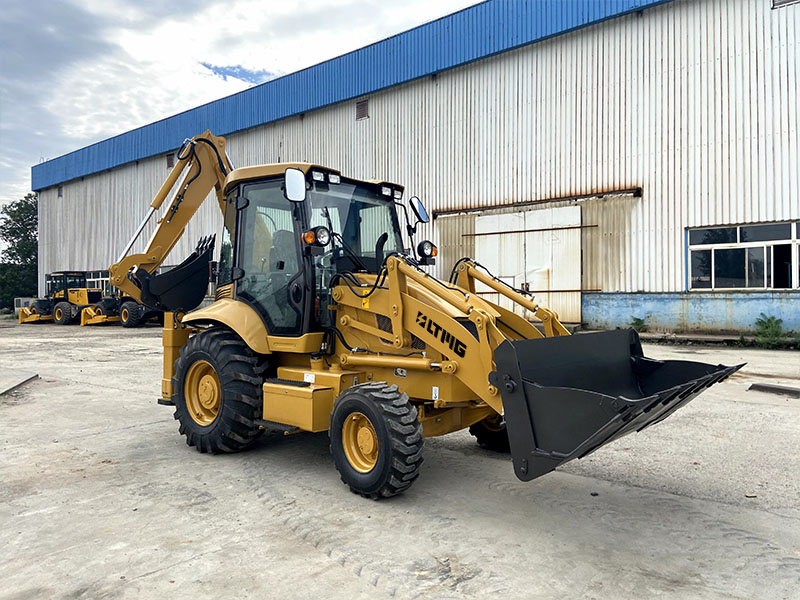

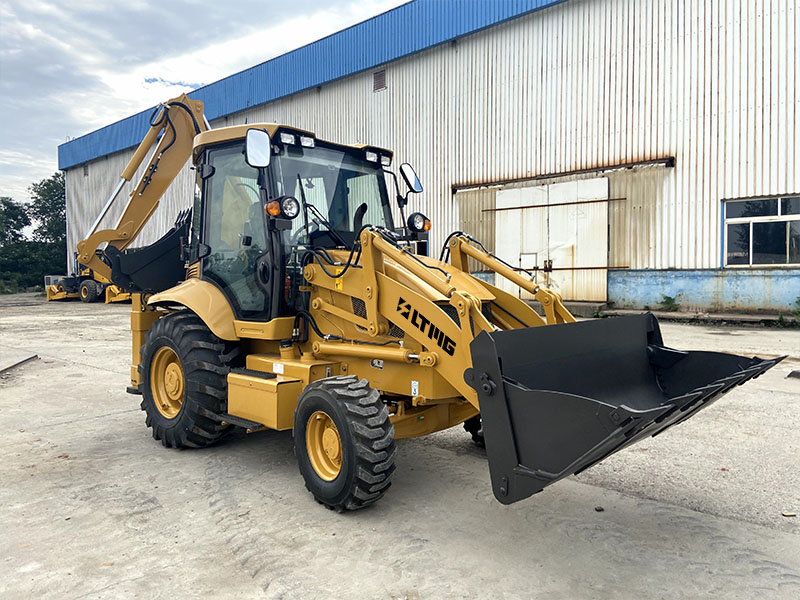

BLT388T with ROPS cabin

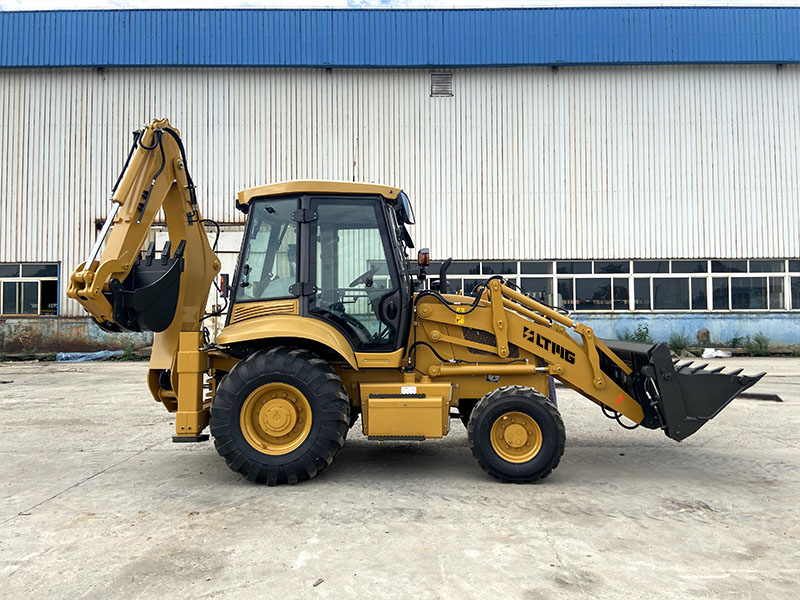

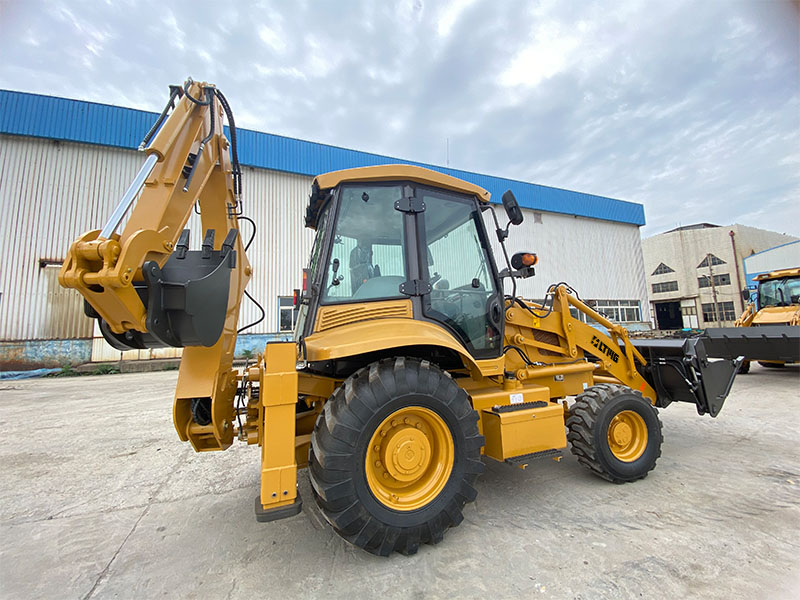

BLT388T with ROPS Cabin and H leg

2.5 ton backhoe loader BLT388T Characteristic

Model	BLT388T
operating Weight	8200kg
Overall Dimension	6150x2250×3763mm
wheel base	2264mm
Min. Ground Clearance	30omm
Modell of steering system	BZz5-250
Steering angle	士36°
Mini turning radius	6581mm
Pressure of the system	12MPa
Breakout Force	38KN
Loading lifting capacity	2500kg
Front Bucket Capacity	1.0 m³
Bucket Dumping Height	2650mm
Bucket Dumping Distance	1025mm
Digging Height	3878mm
Backhoe Capacity	0.3cbm
Max. Digging Depth	4085mm
Single angle of excavator grab	190°
Max. pulling force	39KN
Loading Hydraulic System	16MPa
Digging Hydraulic System	18Mpa
Brand	Carraro - ltaly
Driving Axle Load Capacity	4/18.5T
Rated Dynamic/static load of front axle	9T/22.5T
Rated Dynamic/static load of rear axle	7.5T/18.75T
Brand	Duetz WP4G95E221
Type	lnline Direct lnject Turbocharged
No.of Cylinder-Bore/Stroke	4-105x130
Rated Power	7okw/95HP
Max. torque	380 N.m/1400~1600rpm
Displacement	4.5L
Rated Speed	2200r/min
Min.Fuel Consumption	230g/Kw-h
Gearbox	TLB14WD
Type	Fixed Shaft Power shift/Electric Control
Max.speed	38Km/h
Size	14-17.5/19.5L-24
Service brake	wet internal self-regulatic self-balance type
Parking brake	Spring brake/hydraumatic terminating brake
Digging power of excavator grab	46.5KN
Digging power of dipper	31KN

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
