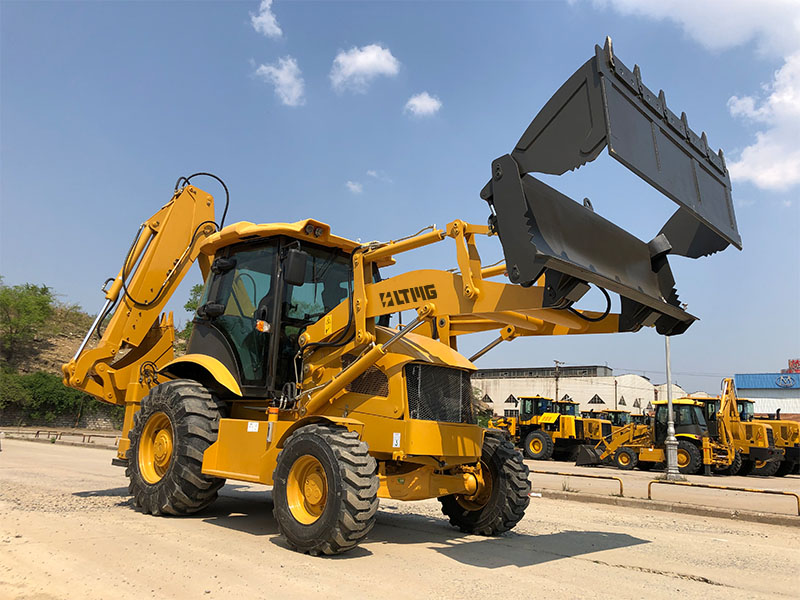

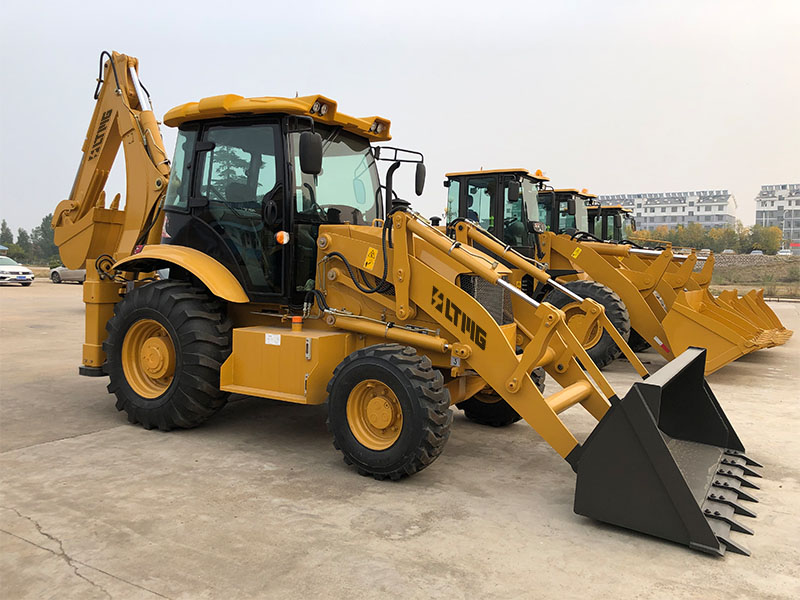

2.5 Ton Backhoe Loader With A leg equipped with Eaton steering gear and priority valve, reversing camera, rear digging hammer line, A-legged as standard
Model :
BLT388Load Capacity :
2500kgOperating Weight :
7600kgBucket Capacity :
1.0/0.3m³ODM/OEM :
SUPPORT

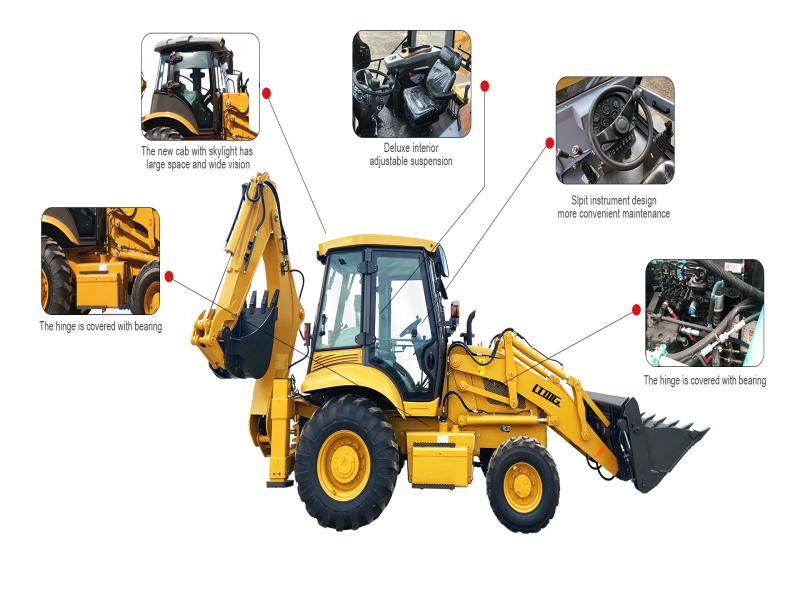

2.5 ton Backhoe Loader Characteristics
1.The joystick operation steering and priority valve are designed to give the operator greater control over the direction and speed of the machine.
2.The reversing camera allows the operator to view what is behind them while they are driving, helping them to avoid any potential hazards and maneuver more easily in tight spaces.
3.The rear digging crusher line is designed to break up hard materials such as rocks and concrete, making it easier for the operator to dig or move materials.
4.The Xuzhou Azi tires are 19.5L-24 in size and come standard with A leg, although H leg can be optionally added for additional stability.
5. The wide view cab provides a clear and unobstructed viwe of the job site, helping operators to work more efficiently and safely.
6. The backhoe loader equipped with adjustable suspension seat, providing maximum comfort and preventing fatigue during long periods of operation.
2.5 ton Backhoe Loader With A leg Technical Parameters
Model | BLT388 |
operating Weight | 8200kg |
Overall Dimension | 6150x2250×3763mm |
wheel base | 2264mm |
Min. Ground Clearance | 30omm |
Modell of steering system | BZz5-250 |
Steering angle | 士36° |
Mini turning radius | 6581mm |
Pressure of the system | 12MPa |
Breakout Force | 38KN |
Loading lifting capacity | 2500kg |
Front Bucket Capacity | 1.0 m3 |
Bucket Dumping Height | 2650mm |
Bucket Dumping Distance | 1025mm |
Digging Height | 3878mm |
Backhoe Capacity | 0.3cbm |
Max. Digging Depth | 4085mm |
Single angle of excavator grab | 190° |
Max. pulling force | 39KN |
Loading Hydraulic System | 16MPa |
Digging Hydraulic System | 18Mpa |
Brand | Carraro - ltaly |
Driving Axle Load Capacity | 4/18.5T |
Rated Dynamic/static load of front axle | 9T/22.5T |
Rated Dynamic/static load of rear axle | 7.5T/18.75T |
Brand | Duetz WP4G95E221 |
Type | lnline Direct lnject Turbocharged |
No.of Cylinder-Bore/Stroke | 4-105x130 |
Rated Power | 7okw/95HP |
Max. torque | 380 N.m/1400~1600rpm |
Displacement | 4.5L |
Rated Speed | 2200r/min |
Min.Fuel Consumption | 230g/Kw-h |
Gearbox | TLB14WD |
Type | Fixed Shaft Power shift/Electric Control |
Max.speed | 38Km/h |
Size | 14-17.5/19.5L-24 |
Service brake | wet internal self-regulatic self-balance type |
Parking brake | Spring brake/hydraumatic terminating brake |
Digging power of excavator grab | 46.5KN |
Digging power of dipper | 31KN |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
Attachments & Applications
LTMG offers a diverse selection of attachments for backhoe loaders, ensuring that customers' specific requirements are met across various applications. Our extensive range includes a tree spade, auger, 4-in-1 bucket, pallet fork, grass grapple, wood grab, and more. These attachments are meticulously designed and engineered to deliver optimal performance and functionality, catering to a wide array of customer needs.
FAQ
Q: What is the product range of our factory?
A: LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying construction machinery and related attachments. We can also customize non-standard products according to customer's requirements.
Q: What Certificates do we have?
A: All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
Q: How about our delivery time?
A: Usually it will take 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Q: Can we provide OEM service?
A: LTMG can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
