LTMG backhoe excavator is equipped with a powerful engine, you have the flexibility to choose between standard domestic, EPA, or Euro V emission standards. Experience unparalleled comfort in the spacious operator cabin, ensuring a more comfortable working environment. Not only that, but our excavator loader features a reinforced and enlarged bucket, providing exceptional durability and strength.
Model :
WZ08-12Load Capacity :
1tonsOperating Weight :
2500kgsBucket Capacity :
0.4m3ODM/OEM :
provide

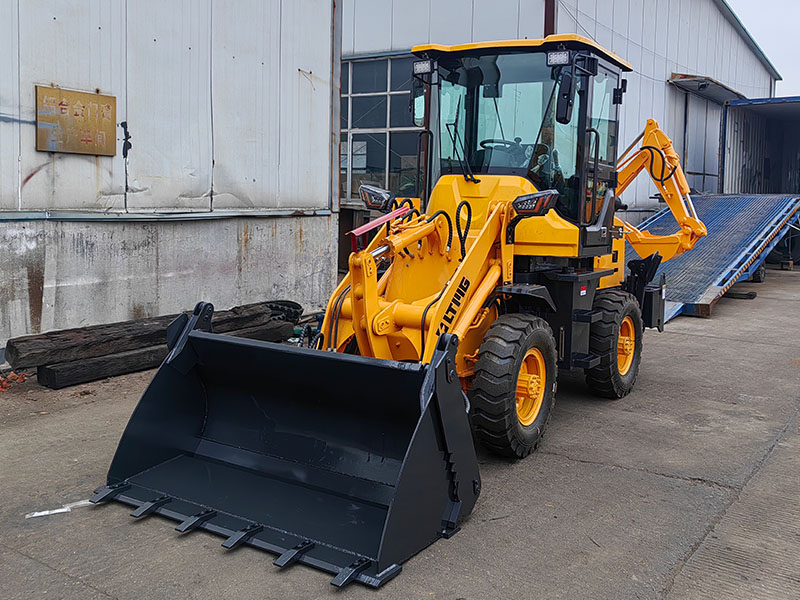

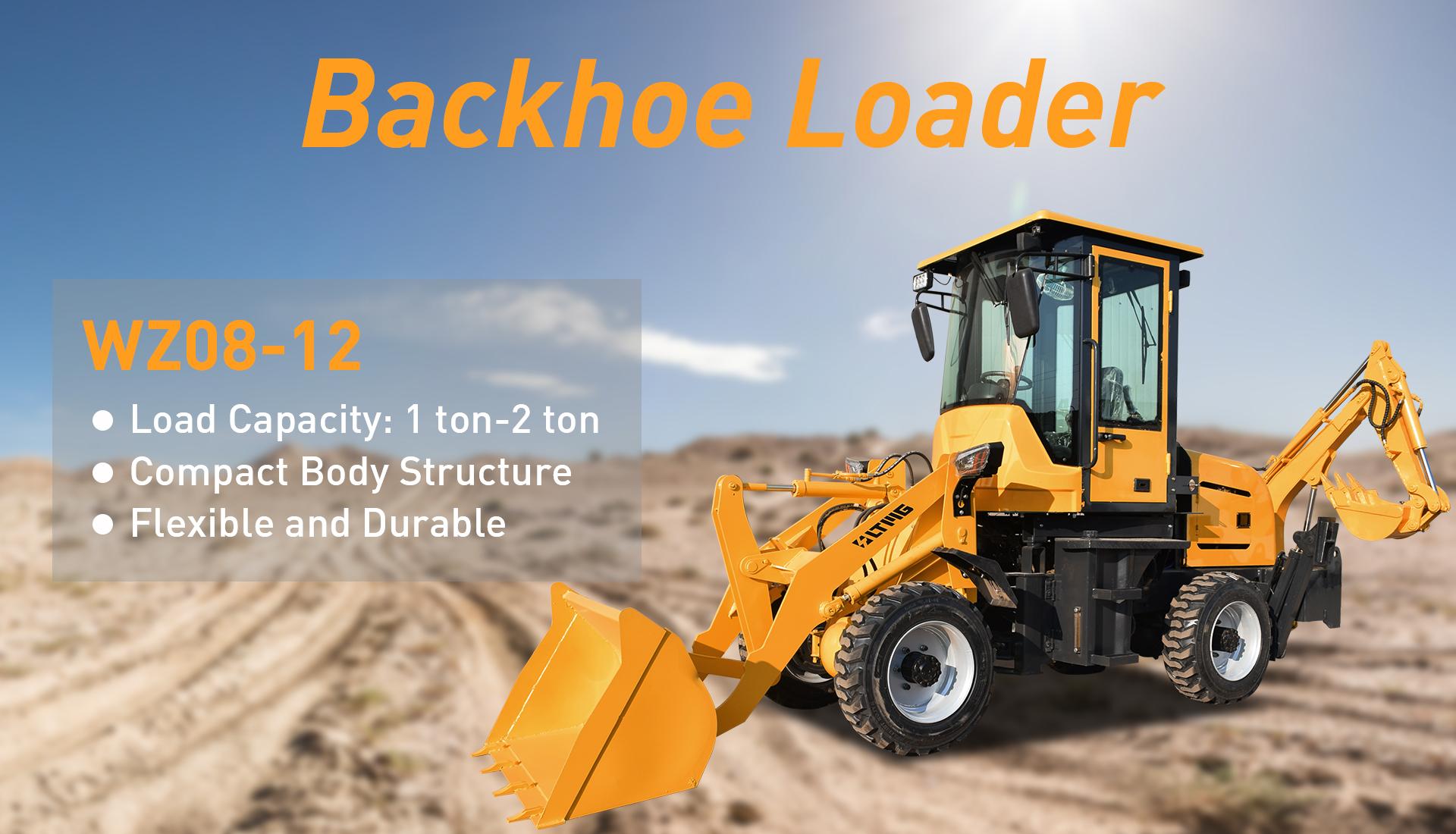

LTMG Backhoe Loader WZ08-12 Features
1. Operating the machine is a breeze with our user-friendly one-two operating handle. It provides a simple and easy-to-operate experience, ensuring efficiency and productivity. The durable construction guarantees long-lasting performance, even in the toughest working conditions.
2. The rear digging side of LTMG backhoe loader allows for folding side digging and free sliding, providing maximum flexibility and versatility on the job site. This innovative design enables smooth and precise maneuverability, enhancing the overall efficiency of the machine.
3. Step into the spacious operation room, thoughtfully designed with a comfortable steering wheel layout. This ergonomic feature ensures convenient operation, allowing operators to work for extended hours without fatigue.
4. The reinforced bucket teeth and guard plate make it highly wear-resistant, capable of handling even the most demanding material handling tasks.
LTMG Backhoe Loader Technical Parameters
| Model | WZ08-12 |
| Dimensions (mm) | 5100*1350*2580 |
| Wheelbase (mm) | 1910 |
| wheel tread(mm) | 1100 |
| Min. ground clearance (mm) | 250 |
| performance parameters | |
| System pressure (MPa) | 16 |
| Machine weight (Kg) | 2500 |
| Max. speed (Km/h) | 20 |
| Max. climbing capacity (°) | 25 |
| Min. turning radius (mm) | 3000 |
| Diggingparameters | |
| Max. digging depth (mm) | 1500 |
| Dig unloading height (mm) | 1500 |
| Max. digging radius (mm) | 2000 |
| Bucket width (mm) | 350 |
| Bucket capacity (m3) | 0.08 |
| max. digging height (mm) | 2600 |
| Maximum digging force (kN) | 25 |
| Rotary Angle of excavator (°) | 180 |
| Loading parameters | |
| Max. unloading height (mm) | 2200 |
| Max. unloading distance (mm) | 800 |
| Bucket width (mm) | 1300 |
| Bucket capacity (m³) | 0.4 |
| Max. loading lifting height (mm) | 3000 |
| Max. breakout force (kN) | 28 |
| Forward shovel action time (S) | 12 |
| Engine | |
| Model | Yunnei 490 |
| Type | Turbocharged, 4 strokes |
| Rate power (KW) | 37 |
| Rate speed (r/min) | 2400 |
| Cylinders-inside diameter | 3-90(4-90) |
| Transmission system | |
| Gearbox | Fixed shaft power shift |
| Number of gear | 2 first/ 2 after |
| Hydraulic torque converter | ZL28F |
| Steering system | |
| Type | Hinged full hydraulic steering |
| Steering Angle (°) | 33 |
| Bridge | |
| Type | Hub reduction |
| Tire | |
| Specifications | 825-16 |
| Front wheel pressure (kPa) | 250 |
| Rear wheel pressure (kPa) | 250 |
| Crane brake | Oil brake drum brake |
| The parking brake | Manul |
| Oil amount | |
| Fuel tank (L) | 20 |
| Hydraulic tank (L) | 20 |
| Other | |
| Drive type | Four-wheel drive |
| Variable speed type | Hydraulic variable speed |
| Braking distance (mm) | 300 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
FAQ
1. What Certificates do we have?
All our products meet the ISO9001 Quality System standards and are certified with the CE certificate. We can also provide EPA approval if required.
2. How about the after-sale service?
We have dedicated engineers available 24/7 to provide comprehensive after-sales service. Rest assured that any issues you encounter with our machines will be promptly addressed by our skilled team. Our engineers are committed to delivering efficient solutions to minimize downtime and ensure your operations run smoothly. Count on us to provide reliable support and resolve any technical problems you encounter in the shortest possible timeframe.
3. Do we offer OEM service?
LTMG Industrial offers a range of customization options to meet our customers' requirements. We provide both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services, ensuring tailored products that align with your specifications.
4. What scenarios is this machine suitable for?
LTMG excavator loaders can be equipped with a diverse range of attachments such as a four-in-one bucket, grass cutter, and hydraulic breaker. These attachments allow our machines to cater to different job requirements in various scenarios.
