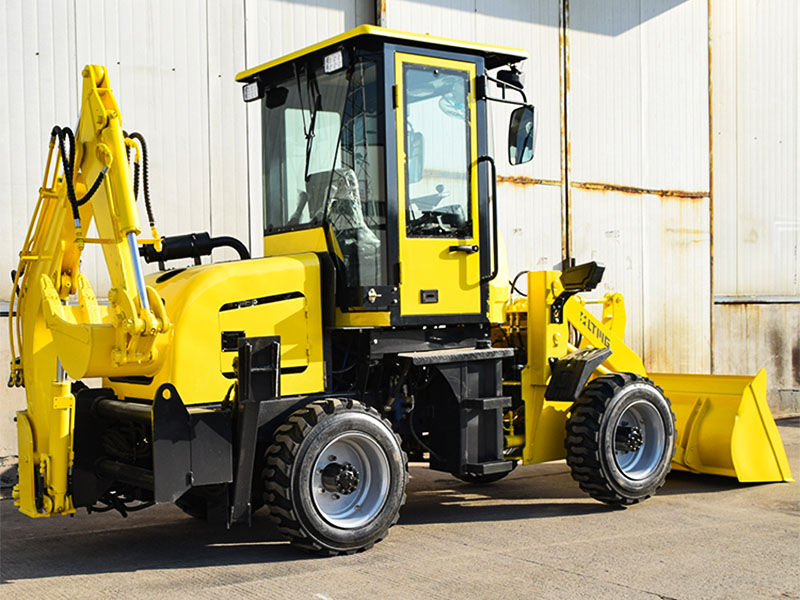

The compact backhoe loader WZ08-12 is a compact backhoe loader with 1 tons front loader capacity，0.8 m³ front bucket capacity and maximum loading dumping height is 2200mm.
Model :
WZ08-12Load Capacity :
1 tonsOperating Weight :
2500KGSBucket Capacity :
0.08m3ODM/OEM :
YES
Prepare to be captivated by its sleek and sophisticated design, exuding a sense of contemporary elegance.

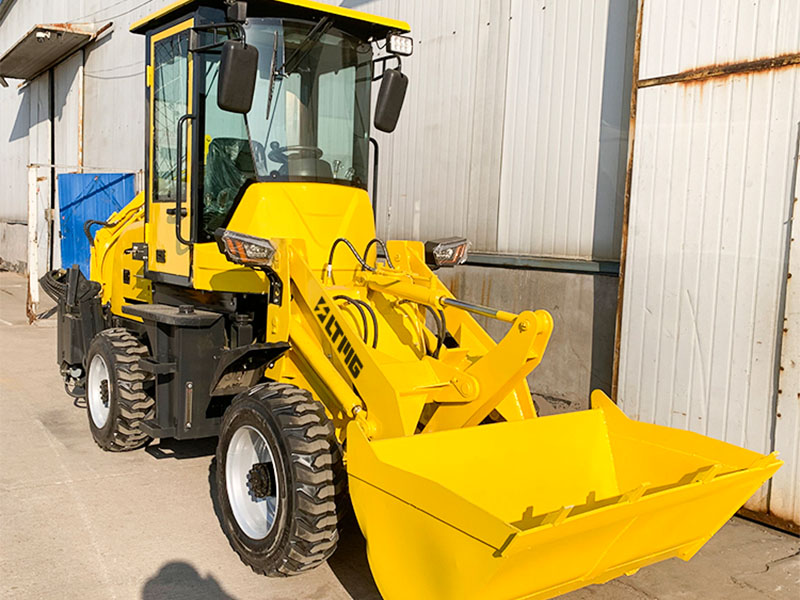

With its compact build, this front loader tractor possesses a unique ability to maneuver effortlessly through narrow spaces, making it ideal for tasks within confined environments.
Its innovative transmission system allows for seamless gear shifting, providing optimal performance in any given situation.
The compact backhoe loader WZ08-12 parameter
| Model | WZ08-12 |
| Dimensions (mm) | 5100*1350*2580 |
| Wheelbase (mm) | 1910 |
| wheel tread(mm) | 1100 |
| Min. ground clearance (mm) | 250 |
| System pressure (MPa) | 16 |
| Machine weight (Kg) | 2500 |
| Max. speed (Km/h) | 20 |
| Max. climbing capacity (°) | 25 |
| Min. turning radius (mm) | 3000 |
| Max. digging depth (mm) | 1500 |
| Dig unloading height (mm) | 1500 |
| Max. digging radius (mm) | 2000 |
| Bucket width (mm) | 350 |
| Bucket capacity (m3) | 0.08 |
| max. digging height (mm) | 2600 |
| Maximum digging force (kN) | 25 |
| Rotary Angle of excavator (°) | 180 |
| Max. unloading height (mm) | 2200 |
| Max. unloading distance (mm) | 800 |
| Bucket width (mm) | 1300 |
| Bucket capacity (m³) | 0.4 |
| Max. loading lifting height (mm) | 3000 |
| Max. breakout force (kN) | 28 |
| Forward shovel action time (S) | 12 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
The LTMG backhoe loader series has revolutionized the construction industry, providing perfect construction solutions to customers across multiple countries and regions worldwide.
Designed with precision and ingenuity, these extraordinary machines have become the epitome of excellence in the field. From large scale construction projects to smaller, more intricate
tasks, the LTMG backhoe loaders have proven their versatility and reliability time and time again.
