2.5ton excavator front end loader equip with luxury enlarged cabin, safe glass, spacious and bright, seat can be used for sleeping, full equipment like fan, radio, A/C etc.
Model :
BLT30-25Load Capacity :
2500KGSOperating Weight :
7200KGSBucket Capacity :
1.0cbmODM/OEM :
Support

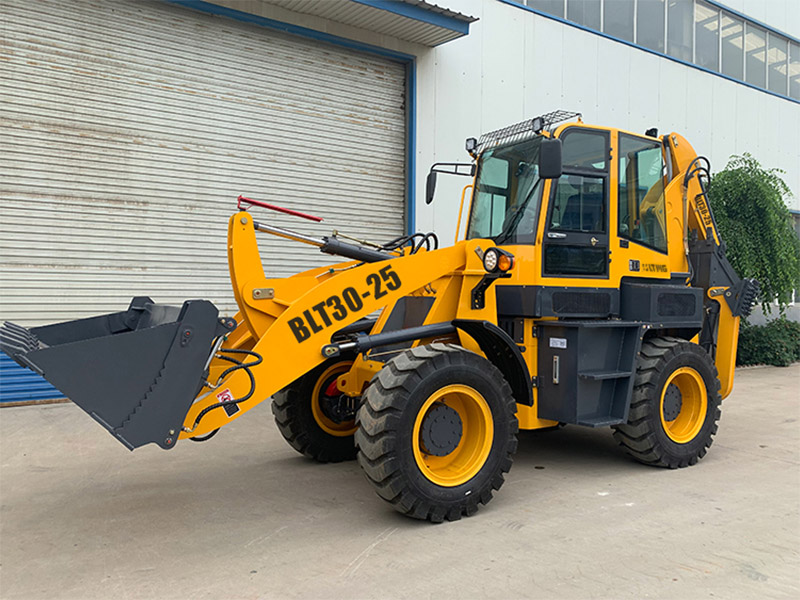

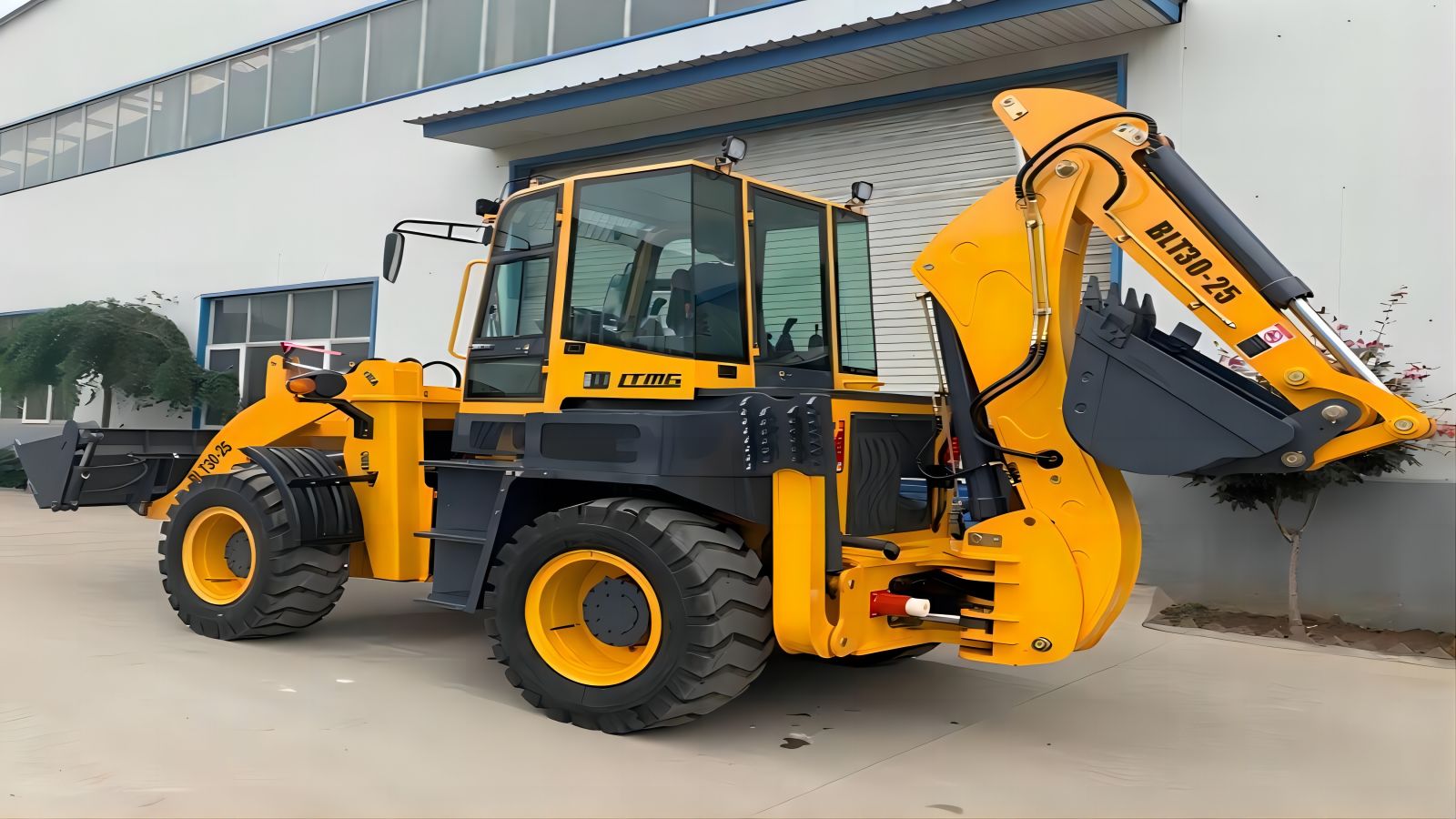

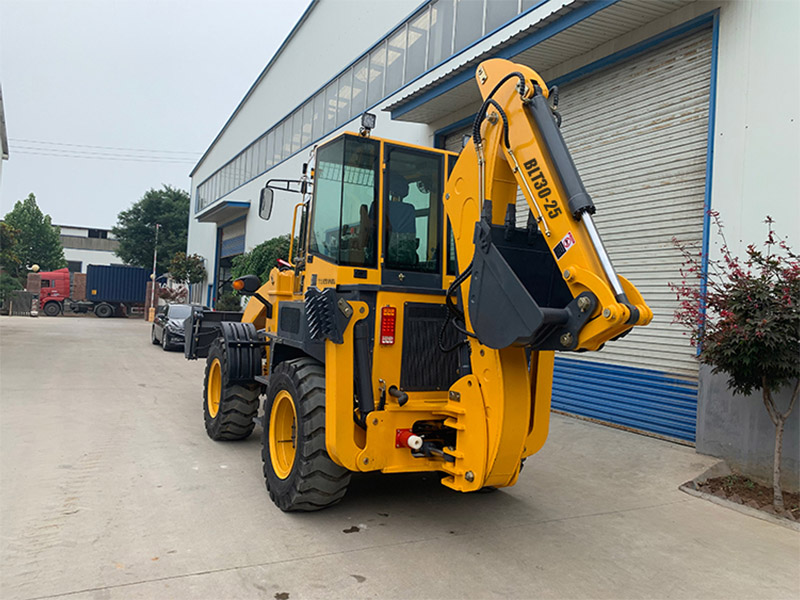

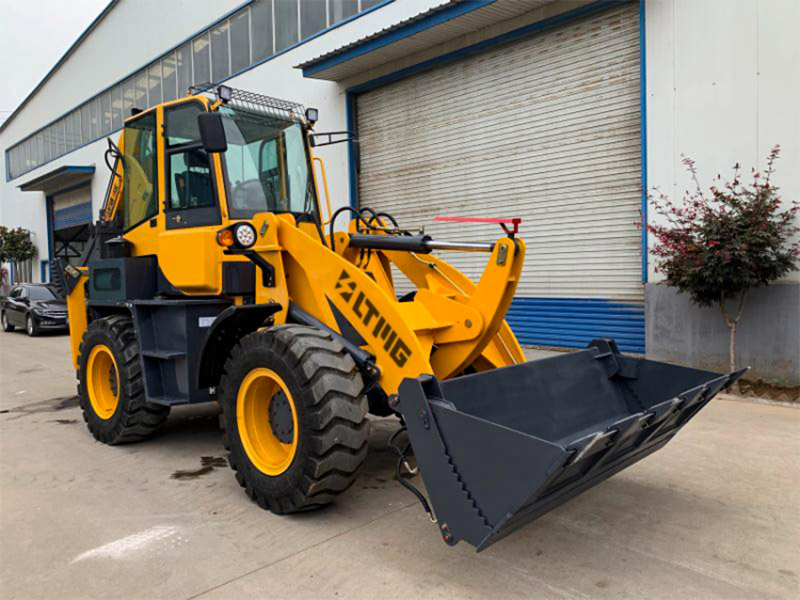

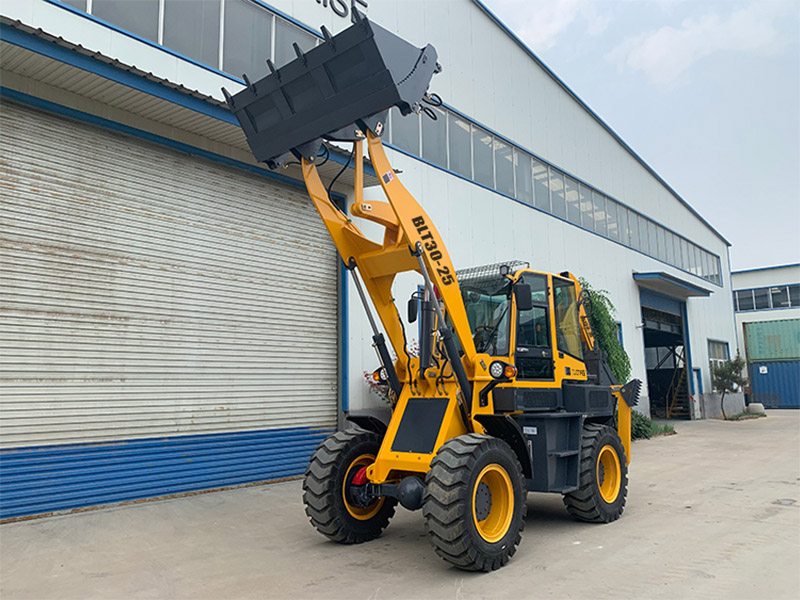

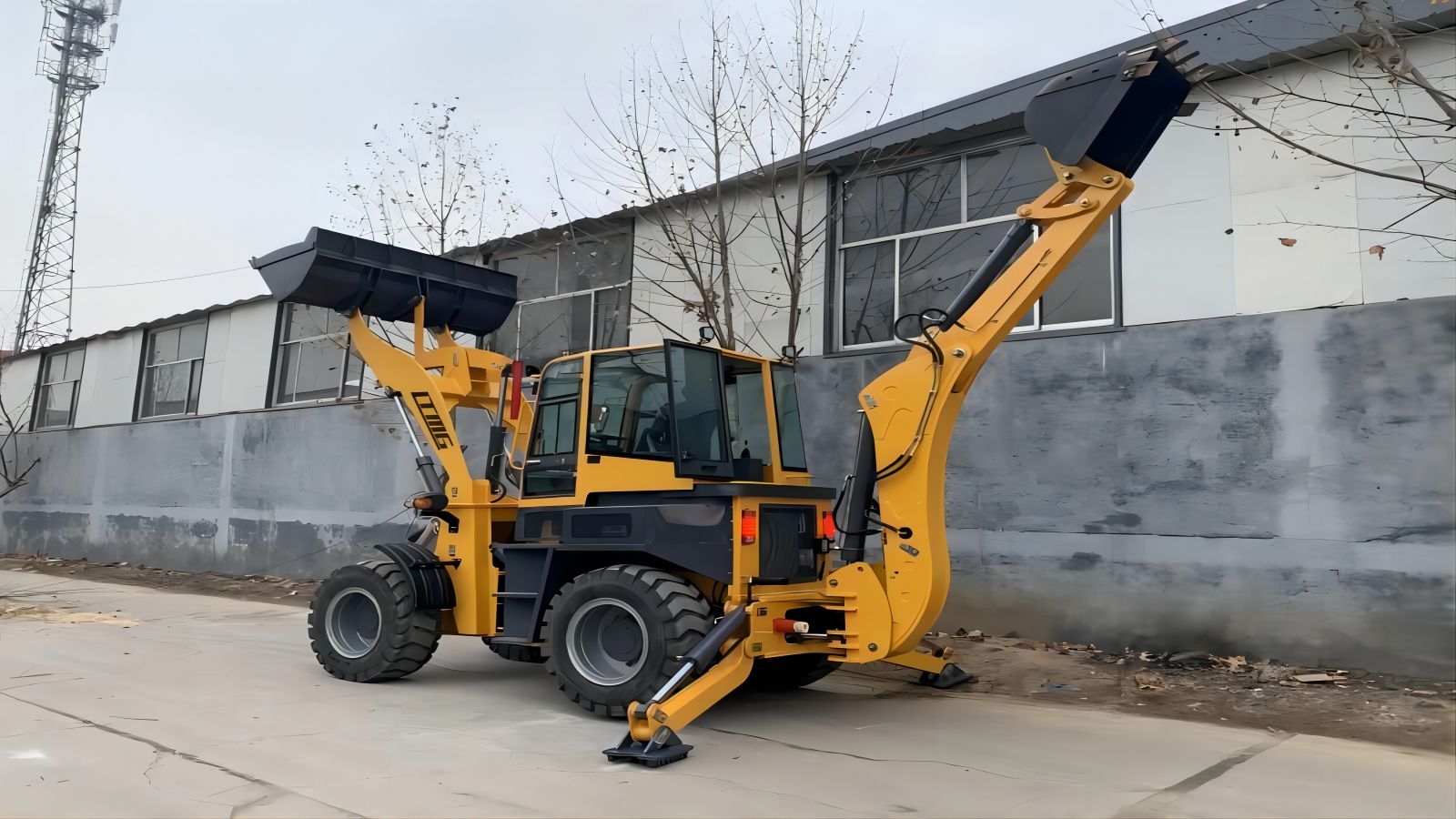

2.5ton Backhoe Loader Characteristics
1. Excavator front end loader is equipped with high-quality hydraulic components from renowned brands, ensuring a long working life and stable performance. It also features an oversized water tank that is resistant to high temperatures.
2. The hydraulic steering system of the loader makes it easy to control and maintain.
3. The hydraulic walking mechanism incorporates the best Chinese torque converter and a continuously variable transmission. The service brake is an air over hydraulic disc brake on all four wheels, equipped with a blast pump.
2.5ton Backhoe Loader Technical Parameter
| Model | BLT30-25 |
| Operating weight | 7200kg |
| Dimensions(L*W*H) | 7800×2300×3180mm |
| Wheel base | 2550mm |
| Min.ground clearance | 300mm |
| Bucket capacity | 1.1m3 |
| Breakout Force | 38kN |
| Loading lifting capacity | 2500kg |
| Bucket Dumping height | 3350mm |
| Bucket Dumping Distance | 062mm |
| Bucket Lifting Height | 4700mm |
| Backhoe capacity | 0.3m3 |
| Max.digging depth | 4250mm |
| Sing angle of excavator grab | 190° |
| Max. pulling force | 39kN |
| Engine | |
| Model | Yuchai |
| Rated Power | 85kw |
| No.of cylinder- Bore/Stroke | 4-108*120mm |
| Max. torque | ≥261.7N.m/1800/r/min |
| Displacement | 4.9L |
| Steering system | |
| Model of steering system | BZZ5-250 |
| Steering angle | ±36° |
| Mini turning radius | 5018mm |
| Pressure of the system | 16MPa |
| Axle | |
| Manufacturer | JINLITE |
| Main Transimmison type | Double Reduction |
| Final reducer | Single stage final reducer |
| T ransmission system | |
| Torque converter | JINLITE |
| Gearbox | Fixed shaft power transmission |
| Gears | F4/R4 |
| Max.Speed | 36km/h |
| Service Brake | Air over Oil Caliper Brake; External Type: Self-regulation; Self-balance |
| Parking Brake | Manual disk brake |
| Tires | 4 |
| Size | 16/70-24 |
| Hydraulic System | |
| Digging Power of Excavator Grab | 46.5kN |
| Digging Power of Dipper | 31kN |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
More about LTMG Co., Ltd.
2.5Ton Backhoe Loader FAQ
Q: As a backhoe loader factory, what are the different advantages of LTMG?
A: LTMG's factory implements stricter control over the production process and has expanded its range of loader models with various configurations. In comparison to other factories in the same industry, LTMG offers a wider range of product categories and more options for customers to choose from.
Q: How long is the lead time for LTMG backhoe loaders?
A: For standard excavator front end loader, the lead time is typically 30 days. However, for customized orders, the lead time is longer, usually ranging from 45 days.
Q: How is your after-sales service of backhoe loader?
A: We offer a range of after-sales services that provide 24-hour technical support via phone and email.
