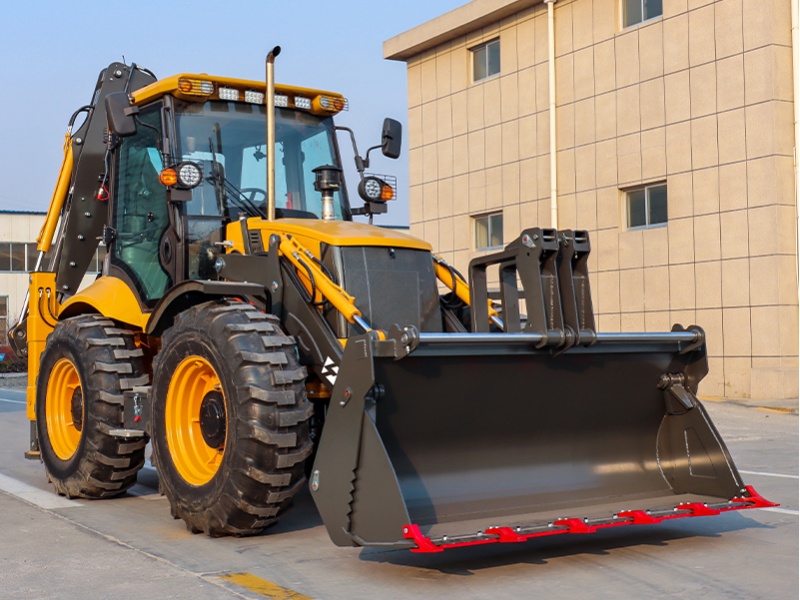

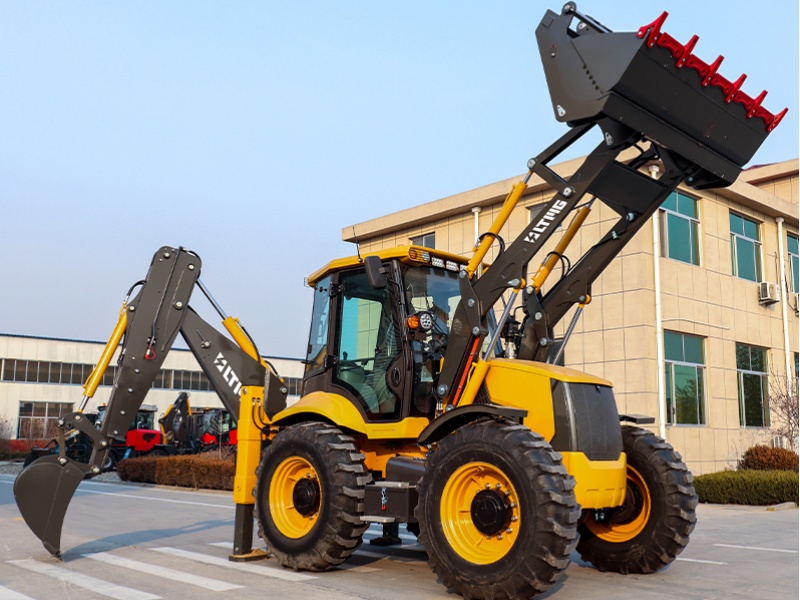

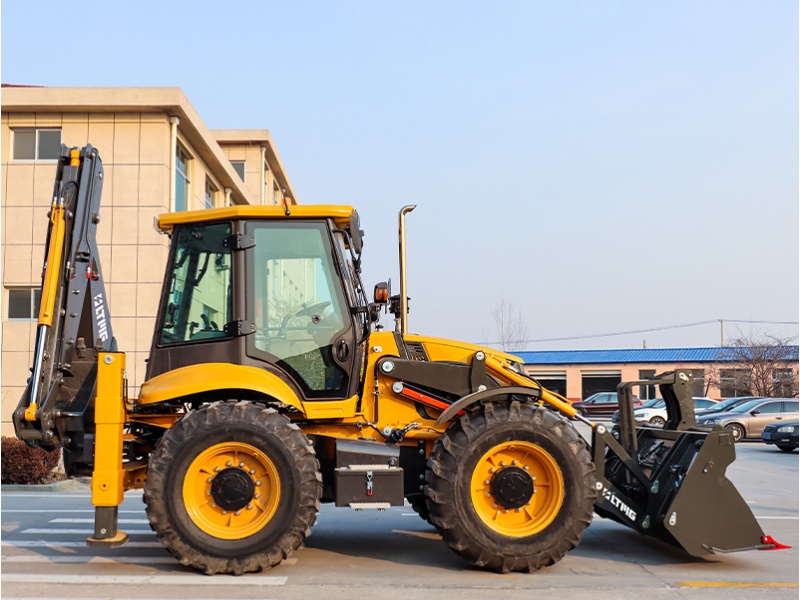

BLT388H-I Backhoe Loader with Telescopic Boom and Side Shift

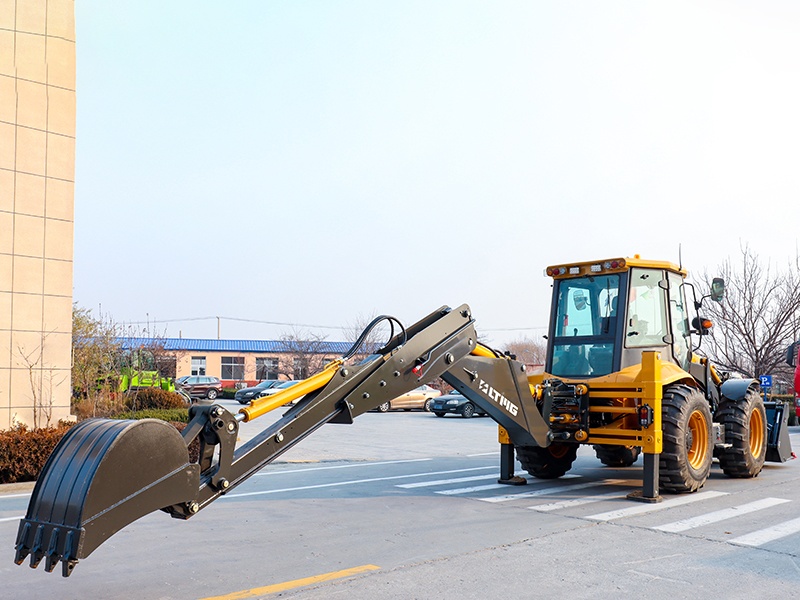

- Telescopic Boom
- The telescopic boom design provides greater digging depth and a wider working range for improved job site flexibility.
- Precision Side Shift System
- Allows lateral movement of the backhoe without moving the machine, improving efficiency in narrow job sites like roadsides and trenches.
- High-Strength Integrated Frame
- The one-piece box-type frame improves machine stability, load distribution, and impact resistance.
- Electric Proportional Control System
- The electric proportional hydraulic system delivers fast response and precise operation for higher working efficiency.
- Spacious Cab with Wide Visibility
- The large glass cab offers excellent visibility and a more comfortable operating experience.
- Durable Steel Structure
- Heat-treated high-quality steel and precision pins improve durability and extend machine service life.
-

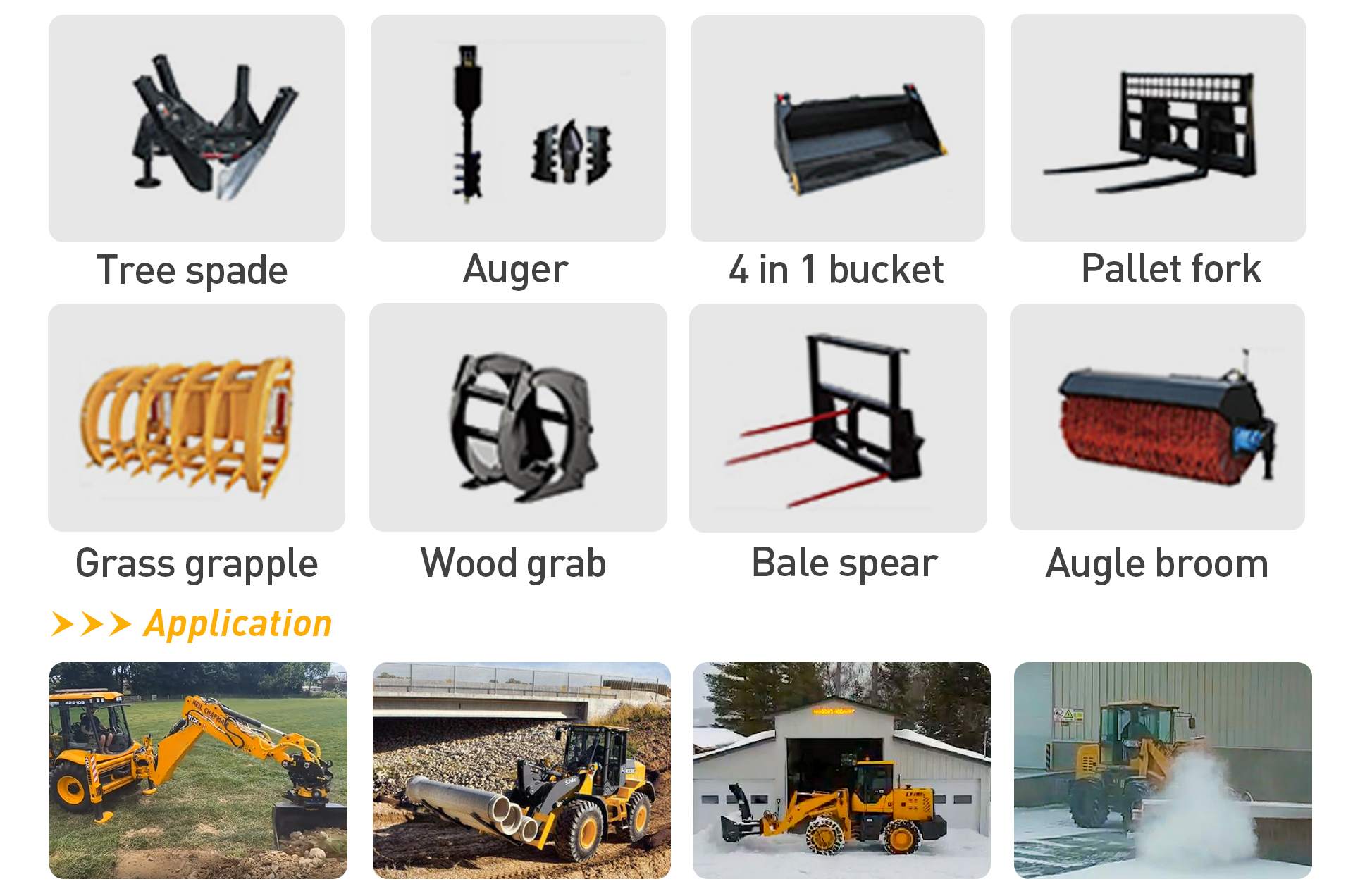

Compatible with Multiple Attachments
This backhoe loader is designed for versatile applications and supports multiple attachments, allowing it to adapt easily to different working conditions such as digging, loading, lifting, and material handling.

BLT388H-I Backhoe Loader Technical Parameters
| Item |
Specification |
| Model |
BLT388H-I |
| Overall Dimension (L*W*H) |
6500*2500*3800mm |
| Wheel Base |
2250mm |
| Min. Ground Clearance |
400mm |
| Min. Turning Radius |
4200mm |
| Operating Weight |
9200/9600 |
| Max.Speed |
38Km/h |
| Max. Climbing Capacity |
35° |
| Max. Digging Depth |
4000/5300mm |
| Max. Digging Radius |
5700/6500mm |
| Max. Lifting Height |
5800/6300 |
| Backhoe Capacity |
0.3m³ |
| Max. Digging Radius |
900mm |
| Max. Dumping Height |
2800mm |
| Max. Dumping Distance |
800mm |
| Bucket Capacity |
1.2m³ |
| Engine Model |
Yuchai 4108 |
| Rated Power |
75KW |
| Rated Speed |
2200r/min |
| Cylinders-Inside Diameter |
4-108 |
| Gear Shift |
4F/4R |
| Tire Size |
16.9-28-14 |
| Drive Type |
Four-wheel drive |
| Transmission Type |
Hydrodynamic transmission |
| Operating System |
Electrically Proportional Pilot Control |
With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail.

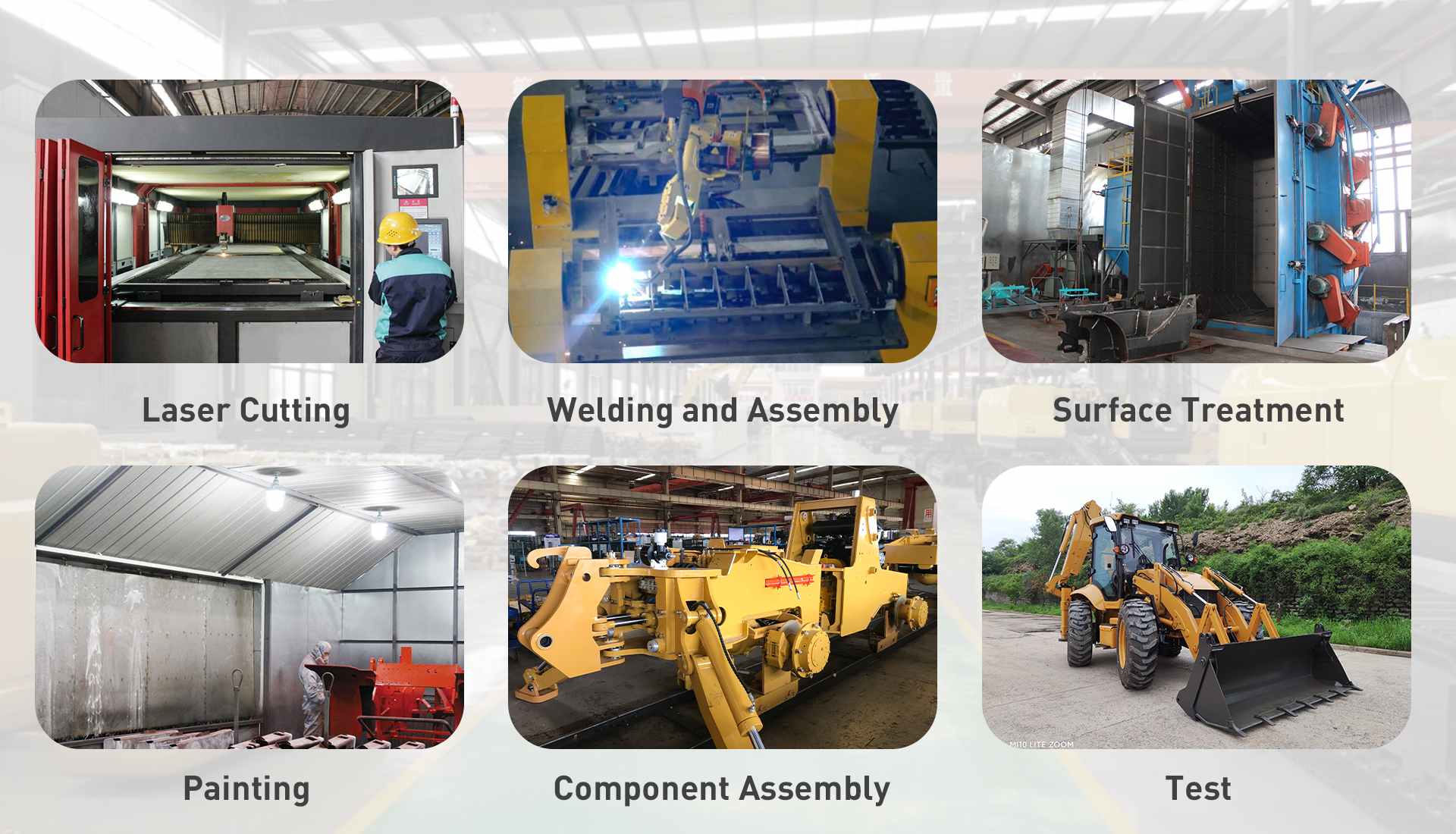

Modern Factory with Full-Scale Manufacturing Capabilities

Secure Transportation Guarantee

Customer Feedback from BLT388H-I Backhoe Loader

Our backhoe loaders have earned the trust of customers from all around the world. From construction sites to agricultural projects, users consistently praise their strong performance, durability, and adaptability to demanding job conditions. With reliable quality and stable operation, our machines continue to deliver proven results across different regions, making them a preferred choice for global customers seeking dependable solutions.


FAQs
How much is a backhoe loader?
The backhoe loader price depends on configuration, engine, attachments, and working capacity. Contact LTMG for the latest quotation and specifications.
What is a wheel loader backhoe?
A wheel loader backhoe combines a front loader and rear excavator in one machine for loading, digging, and material handling work.
