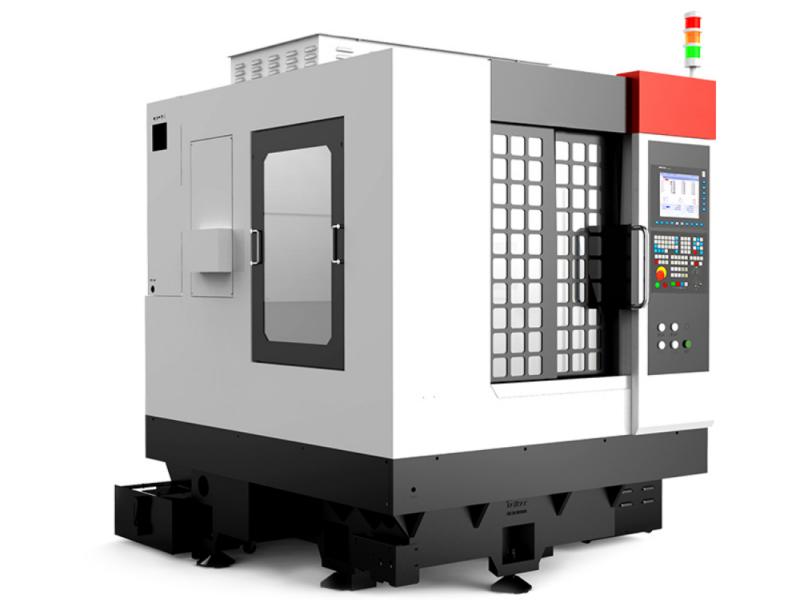

Small Milling CNC Machine product description
Multi-Axis Coordination: The LTMG CNC Machine offers advanced multi-axis coordination, enabling the machining of complex parts with precision and efficiency. Its ability to synchronize multiple axes allows for intricate designs and shapes to be produced with ease.
Environmental Sustainability: With a commitment to environmental responsibility, the LTMG CNC Machine is constructed using renewable or recyclable materials. This feature not only aligns with global sustainability goals but also caters to buyers seeking eco-friendly manufacturing solutions.
Linear Guide Rail System: The machine is equipped with a linear guide rail type three-axis system, ensuring fast operation, high precision, and a compact and rational structure. This system enhances the overall performance and reliability of the machine, making it ideal for demanding machining tasks.
Columnar Structure: The LTMG CNC Machine features a columnar structure with an integrated body, providing excellent shock absorption and stability. This design ensures that the machine operates smoothly, even during high-speed machining processes, enhancing its overall performance and longevity.
High-Speed Electric Spindle: For efficient machining, the machine is equipped with a high-speed electric spindle and P-grade guide rails. This combination allows for high-speed machining with exceptional precision, making it suitable for a wide range of applications.
Applications: The LTMG CNC Machine is ideal for various manufacturing industries, including automotive, mechanical, and electronic manufacturing. Its versatility and precision make it a valuable asset for any production line requiring complex part machining.
LTMG C-400E Technical Parameters
Model | C-400E | |
Workbench | Workbench size(mm) | 400 * 400 |
Distance from workbench to spindle nose(mm) | 210~410 | |
Bearing capacity(Kg) | 200 | |
T-slot size | 5-12*80 | |
Range | X-Axis range(mm) | 400 |
Y-Axis range(mm) | 400 | |
Z-Axis range(mm) | 200 | |
Spindle | Power(Kw) | 6 |
Max turning speed(rpm) | 36000 | |
Spindle diameter(mm) | Φ100 | |
Tool change mode | Pneumatic mode | |
Tool spec and model | ISO25 | |
Maximum clamping tool diameter(mm) | Φ10 | |
Shaft and static runout(5mm from the bottom of spindle)(μm) |
≤2 | |
Speed | Max Idling speed(m/min) | 15 |
Max cutting speed(m/min) | 0-10 | |
Precision | Positioning accuracy:X/Y/Z(mm) | 0.005/ 0.005 / 0.005(300mm) |
Repeat positioning accuracy:X/Y/Z(mm) | 0.004/ 0.004 / 0.004 | |
Circular accuracy(mm) | ≤0.015/φ300 | |
Spindle cooling | Cooling capacity of spindle cooling (W) | ≥1000 |
Lubrication system | Lubrication mode | Automatic grease filling |
Power Supply | Air source(Mpa) | ≥0.6 |
External vacuum source joint | Bore size:φ19,length:2 m | |
Electrical source(Kw) | 15 | |
Magazine | Magazine capacity | 18 |
Magazine type | Semi-umbrella type servo magazine | |
Overall dimension(front-back*left-right*up-down ) ( mm) | Overall size:1600*2500*2200 | |
Other parameters | Weight(Kg) | 3700 |
Is network transmission and monitoring available | Positive | |
Is tool auto-checking instrument equipped | Positive |
LTMG C-400E Technical Parameters
Model | C-1100 | |
Working Platforms | Table size(mm) | 1100*500 |
Distance from table to spindle nose(mm) | 180~330 | |
Maximum load capacity(Kg) | 200 | |
Gantry span | 1180 | |
Aluminium T-slot table | 6-12*80 | |
Direction | X travel(mm) | 280 |
Y travel(mm) | 500 | |
Z travel(mm) | 150 | |
Principal Axis | Spindle spacing(mm) | 280 |
Spindle diameter(mm) | φ100 | |
Spindle power(Kw) | 6.0 | |
Maximum spindle speed(rpm) | 36000 | |
Tool shank type | IS025 | |
Static runout of spindle end (spindle end face 5mm from test bar) (μm) | ≤2 | |
Feed Rate | Maximum air running feed rate (m/min) | 18 |
Maximum cutting feed rate(m/min) | 0-10 | |
Machine Accuracy | Positioning accuracy:X/Y/Z(mm) | 0.005/0.005 /0.005(300mm |
Repeat positioning accuracy:X/Y/Z(mm) | 0.004/0.004 /0.004 | |
Circularity accuracy(mm) | ≤0.015/φ300 | |
Spindle Cooling | Spindle cooler cooling capacity(W) | ≥2000 |
Lubrication | Lubrication method | automatic lubrication |
power source | Pressure of air machine(Mpa) | ≥0.6 |
External vacuum source interface | φ19 inner diameter 2m | |
Power Requirement(Kw) | 35(max)/7(avg) | |
cutlery | Tool magazine capacity | 16T*4 |
Other parameters | External dimensions (front/back*left/right*top/bottom mm) | 2550*2150*2425 |
Weight (Approx.: Kg) | 4000 | |
Whether to configure network transmission and monitoring function | yes | |
Whether to configure tool setting instrument | yes |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
