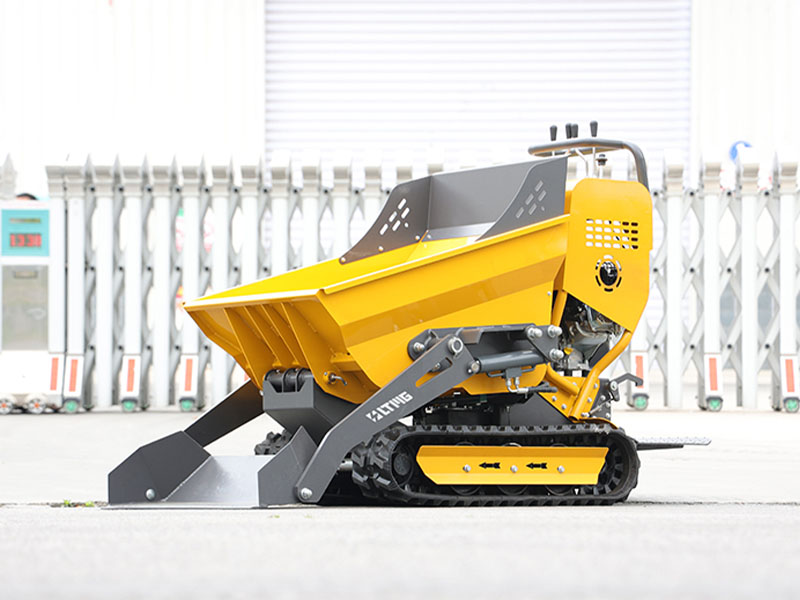

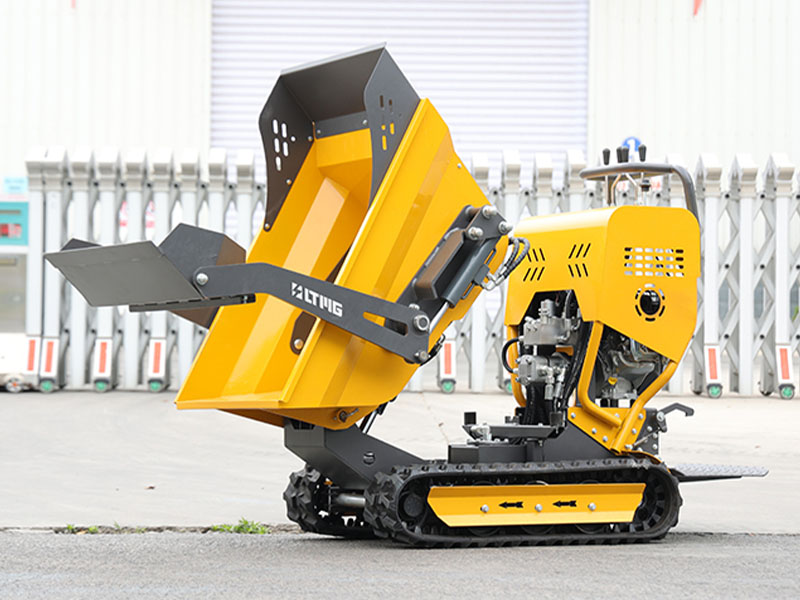

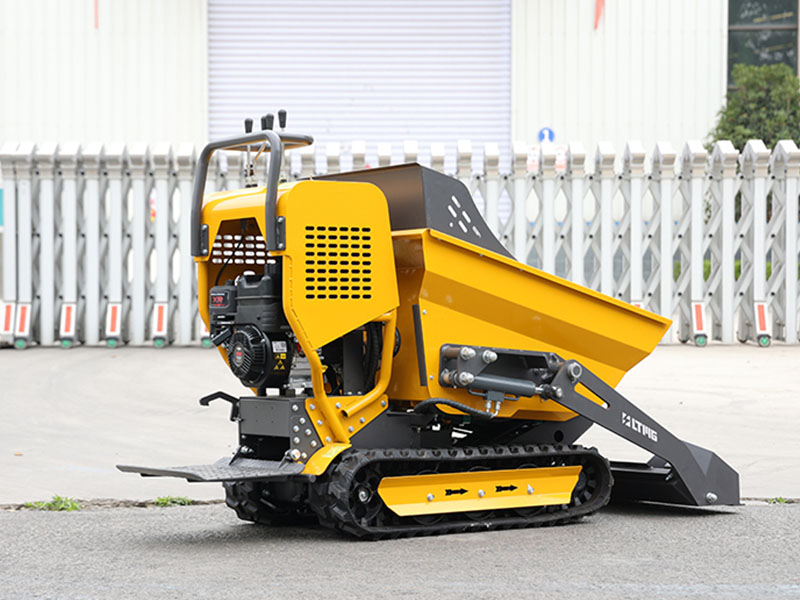

Looking for a mini tracked dumper for your agriculture project? Whether you are a construction professional, a gardener or engaged in any material handling task, this mini tracked dumper is designed to enhance your workflow.
Model :
LCD05Operating Weight :
400 KGODM/OEM :
Support
1. Suitable for small and medium transportation jobs: with its small size and compact design, this mini tracked transporter can handle up to 400kg of materials, suitable for users who need a small transporter for their backyard or around the farm.
2. Versatility of track design: The track provides excellent traction and stability for a variety of terrains. It can also maneuver up steep slopes and move objects effortlessly over bumpy surfaces.
3. Ease of operation: User-friendly controls make operating the hauler a breeze. The operator can quickly get started and manually tumble the bucket effortlessly.
4. Compact Design for Tight Spaces: It can easily fit into spaces that may be difficult for larger machines, providing unmatched flexibility in project execution.
5. Versatile applications: whether it's a construction site or a gardening project, this mini tracked hauler is versatile and suitable for a variety of applications. Its ability to move materials efficiently makes it an indispensable tool in a variety of industries.
Technical Parameters Of Mini Crawler Dumper
|
Model |
LCD05 |
|
|
Machine weight |
400Kg |
|
|
Maximum load |
500Kg |
|
|
Engine parameters |
Brand |
Briggs & Stratton |
|
Model |
130G |
|
|
Displacement (cc) |
208 |
|
|
Total Power (HP)*@3600rpm |
6.5 (4.8KW3600) |
|
|
Fuel Capacity 0 |
3.1 |
|
|
Oil Capacity 0 |
0.6 |
|
|
Net Weight (g) |
16 |
|
|
Integrated valve block |
Composition |
Valve body, back-pressure check valve, liquid-controlled directional valve, |
|
Function |
Controlling the stable work of the vehicle and realising the high and |
|
|
Travelling motor |
Displacement |
200cc |
|
Maximum working pressure |
20MPa |
|
|
Maximum torque |
805Nm |
|
|
Travelling speed |
1.7/3.5 (km/h) |
|
|
Minimum turning radius |
0.95m |
|
|
Track centre distance |
520mm |
|
|
Minimum ground clearance |
85mm |
|
|
Climbing capacity |
20° |
|
|
Hydraulic oil tank capacity |
7L |
|
|
Hydraulic Oil No. |
46#Anti-wear hydraulic oil |
|
|
Tank volume (m²) |
0.22 ( 1040*730*590) |
|
|
LxWxH (mm) |
1517x870x1278 |
|
With technological innovation our product configuration and parameters will continue to change without notice;
if there is any doubt the specific confirmation of our international trade sales shall prevail;

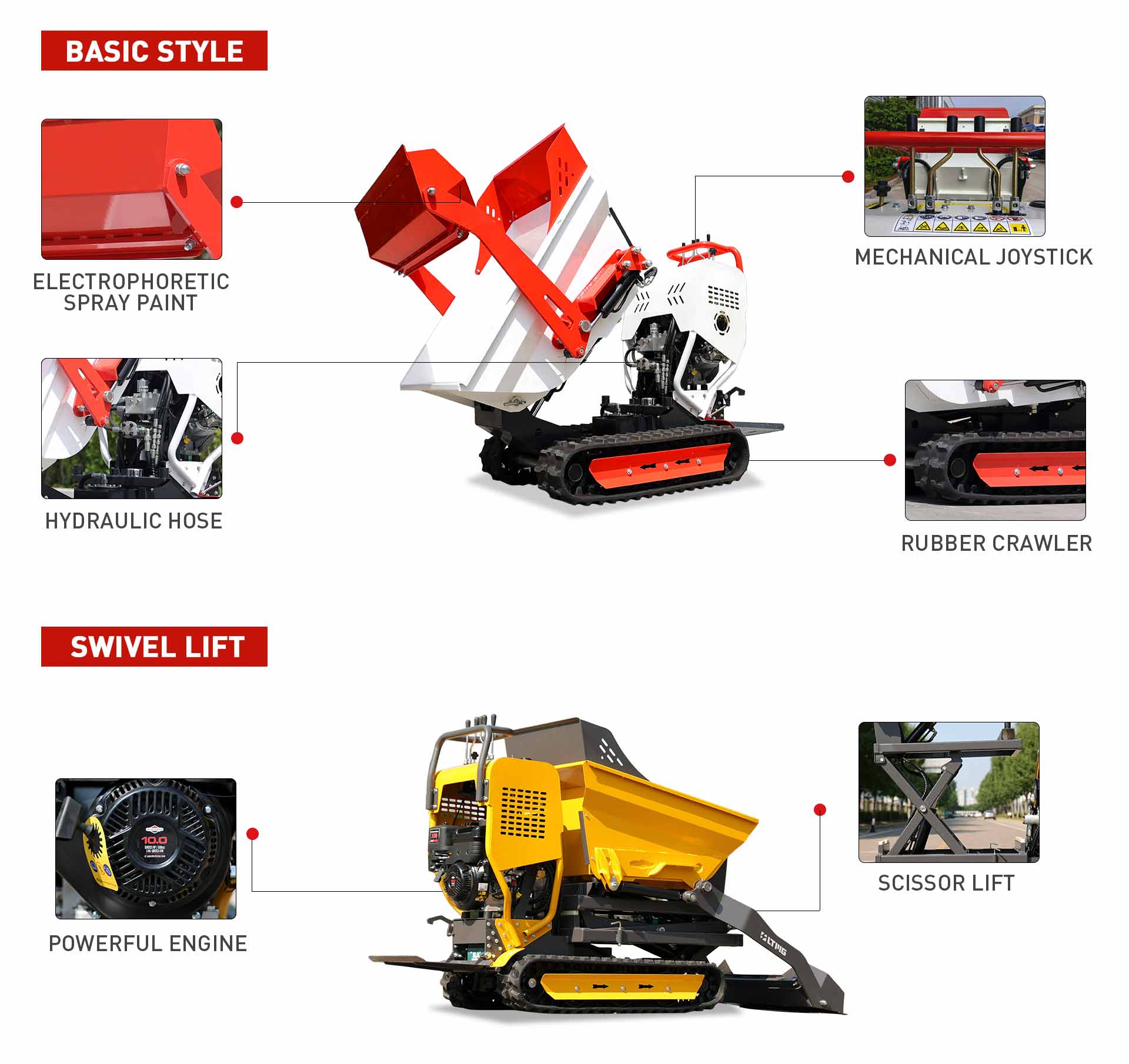

Two Different Models Of Mini Crawler Dumper
FAQ Of Mini Crawler Dumper
Q: How is the design of the mini crawler dumper optimized for efficiency and maneuverability?
A: The design of the mini crawler dumper is compact and lightweight, allowing it to navigate through tight spaces with ease. The crawler track system provides stability on various terrains, and its ergonomic design ensures optimal operator comfort and control.
Q: What type of engine powers the mini crawler dumper, and what are its performance specifications?
A: The mini dumper is typically equipped with a reliable and fuel-efficient engine. Performance specifications may vary, but it is designed to provide sufficient power for carrying heavy loads over uneven terrain while maintaining fuel efficiency.
Q: In which applications can the mini tracked dumper be used?
A: This versatile equipment finds applications in construction sites, landscaping projects, agricultural tasks, and other scenarios where the efficient transportation of materials in confined spaces is essential.
Q: How does the crawler track system enhance the performance of the mini dumper?
A: The crawler track system offers improved traction, stability, and maneuverability, allowing the mini dumper to traverse challenging terrains such as mud, gravel, and uneven surfaces. This feature ensures optimal performance in various working conditions.
Q: Can the mini crawler dumper be customized for specific needs or attachments?
A: Depending on the manufacturer, the mini crawler dumper may offer customization options, such as additional attachments for specific tasks or optional features to enhance functionality. Check with the manufacturer for available customization options.
