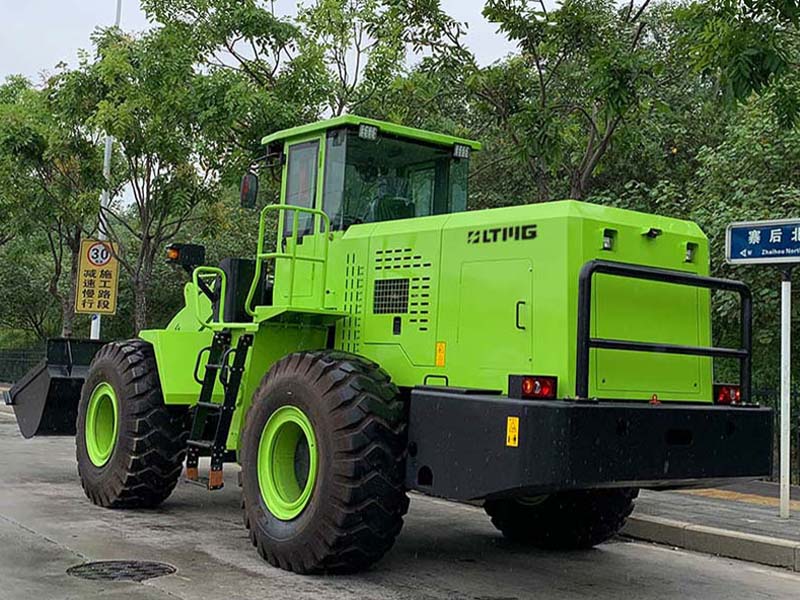

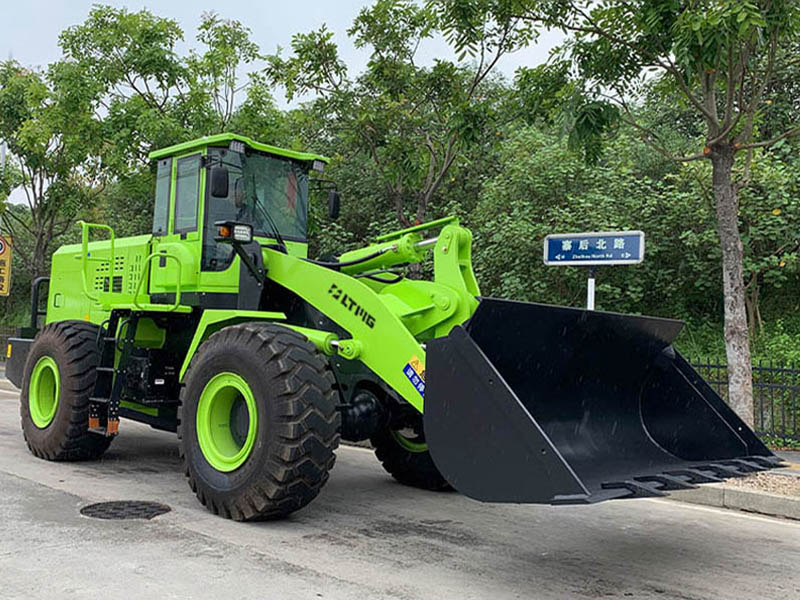

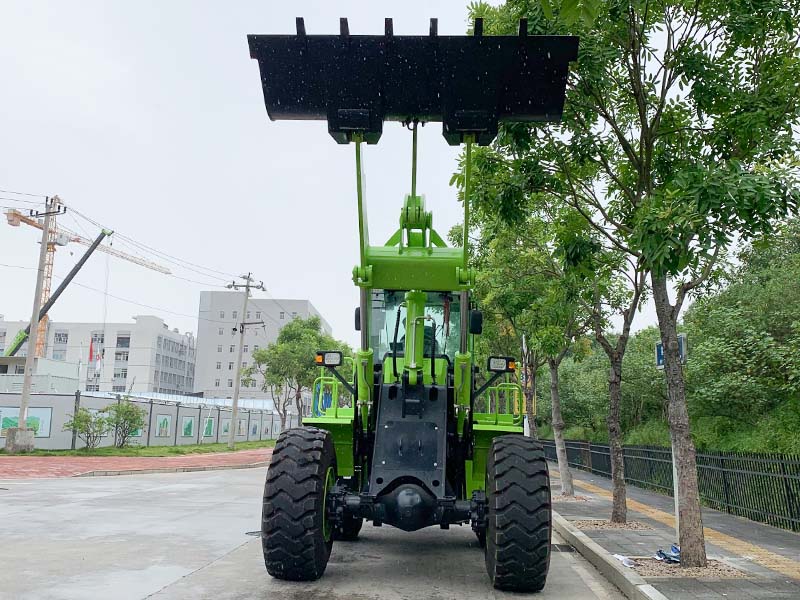

Introducing the LTMG new electric wheel loader, featuring advanced three-motor technology and a powerful switched reluctance motor. With a robust 6-tonne load capacity, it's built to excel in all weather conditions, from heavy rain to snow, extreme heat to cold. Environmentally friendly and energy-efficient, it's the ultimate solution for sustainable material handling."
Model :
LT966EVLoad Capacity :
6000KgOperating Weight :
19000KgBucket Capacity :
4.5m³ODM/OEM :
Provided
The Features Of the New Battery Wheel Loader
High Adaptability and Intelligence
EIC system adopt international standard layout design; Waterproof rating up to IP67, adaptable to rain and snow. Can be operated in closed spaces such as tunnels and mines. Safe operation from -40° to 60° Celsius.
Powerful Drive System.
LTMG electric loader adopts SR(switched reluctance) motor, compared with the common permanent magnet motor on the market, it is more resistant to high temperature and vibration; it also has energy regeneration ability and high system efficiency. The working environment of the loader is generally more severe, switched reluctance motor can do a better match.
Advanced Motor Technology
LTMG electric loader adopts the industry's most advanced "three-motor" technology programme. Compared with the common "two-motor" design, LTMG electric loader abandons the traditional gearbox and adopts independent drive of front and rear axles. The transmission system is not only highly integrated, simple and reliable, with high efficiency and stable driving ability, but also eliminates the maintenance cost of gearbox, high efficiency and energy saving, low failure rate.
Large Capacity Battery
Equipped with 282kWh high-capacity battery pack, which is distributed to the motor controller, water-cooling unit, air-conditioner, etc. through high-voltage power distribution unit, the energy management is carried out by the controller during the operation of the whole vehicle, and the fully charged continuous operation can reach more than 6 hours. There are two standard charging ports on the left side of the vehicle body weight, supporting double-gun fast charging, 240kw charging pile can be fully charged within 1 hour, 300kw charging pile only takes 40-50 minutes to be fully charged.
Techniacl Parameter Of the Battery Wheel Loader
| Model | LT950EV | |
| Rated load | 5500kg | |
| Bucket capacity | 3-4.5m³ | |
| Operating weight | 18500kg | |
| Rated power | 290kw | |
| Dumping height | 3600mm | |
| Dumping reach | 1240mm | |
| Wheel Base | 3350mm | |
| Track Base | 2250mm | |
| Maximum traction | 170kN | |
| Maximum Rising Power | 174kN | |
| Three Items and Time | 9.7s | |
| Lifting Time | 5.8s | |
| Descending Time | 3.5s | |
| Maximum climbing angle | 28° | |
| Steering angle | 40° | |
| Forward gear | 18/36Km/h | |
| Back gear | 18/36Km/h | |
| Overall dimensions（L*W*H） | 8660mmX2960mmX3520mm | |
| Drive Axle | Brand | Dry Bridge |
| Working Hydraulic System | Type | Double Pump Confluence |
| Operation Method | Pilot Control | |
| Steering Hydraulic System | Type | Flow Amplification |
| Braking System | Service Brake | Gas cap oil, clamp disc type |
| Hand Brake | Pneumatic control, clamp type | |
| Air Conditioning System | Type | Electric, heating and cooling |
| Control System | System voltage | DC24V |
| Control System | Specification | 23.5-25 |
| Battery Life | General working conditions | 6~10h |
| Heavy load condition | 5~6h | |
| Charging Time | 240kW charging pile | 60min |
| Charging Pile Specifications | Optional Specifications | 240-360kW |
| Oil Filling | Antifreeze | 45L |
| Transaxle oil | 2X17L | |
| Hydraulic oil | 200 L | |
| Battery Motor | Unit | |
| Power Battery | Type | Lithium iron phosphate |
| Rated Capacity | 456Ah | |
| Store energy | 282kWh | |
| Voltage | 618V | |
| Protection class | IP67 | |
| Cooling method | liquid cooling | |
| Drive motor | Rated power | 2x100kw |
| Protection class | IP67 | |
| Cooling method | water cooling | |
| Ambient temperature | ’-40~55°C | |
| Altitude | 4500m | |
| Hydraulic motor | Rated power | 90kW |
| Protection class | IP67 | |
| Cooling Method | liquid cooling | |
| Ambient temperature | ‘-40~60°C | |
| Altitude | 4500m | |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
