A new generation of intelligent battery electric wheel loaders, selling! The 3 tons electric wheel loader, large capacity battery, strong endurance. Compared with traditional diesel wheel loaders, it has zero pollution and zero emission.
Model :
LT930EVLoad Capacity :
3000KGOperating Weight :
10500KGBucket Capacity :
2m³ODM/OEM :
Support
LTMG 3 ton electric loader product features
1.Robust and reliable electric drive system, suitable for harsh construction machinery application conditions. The use of switched reluctance motor drive, improve work efficiency and production efficiency, reduce maintenance costs.
2.The battery protection class is IP67. The vehicle uses 624V/230AH lithium iron phosphate battery. When working, the machine adopts intelligent temperature-controlled water cooling, which greatly protects the performance of the battery.
3.LTMG battery 3 ton wheel loader features a fast charging system. It only needs to be charged for 40-60 minutes, and it can be fully charged. Greatly improve the work efficiency. The machine adopts patented technology and can be used at an ambient temperature of -44 degrees Celsius to 55 degrees Celsius.
4.Electric drive, zero pollution, zero emissions. 2 cubic meters large capacity bucket. Unloading height 3.2 meters. Suitable for use in medium and large warehouses. Outdoor use also has a good performance. Well received by our customers.
LTMG wheel Loader battery 3 tons product specifications
| Model | LT930EV | |
| Rated load | 3000kg | |
| Bucket capacity | 2m³ | |
| Operating weight | 10500kg | |
| Dumping height | 3200mm | |
| Dumping reach | 1250mm | |
| Wheel Base | 2840mm | |
| Track Base | 1900mm | |
| Maximum traction | 170KN | |
| Maximum Rising Power | 98±5KN | |
| Maximum climbing angle | 28° | |
| Steering angle | 35±1° | |
| Forward gear | 12/20 Km/h | |
| Back gear | 12/20 Km/h | |
| Overall dimensions（L*W*H） | 7200X2250X3220mm | |
| Drive axles | Wet Bridge | |
| Working hydraulic system | Type | Double pump confluence |
| Operation method | pilot control | |
| Steering hydraulic system | priority valve | |
| Braking System | Service brake | Hydraulic brake |
| Hand brake | clamp type | |
| Air Conditioning System | Type | Electric, heating and cooling |
| Control System | System voltage | DC24V |
| Control System | Specification | 17.5-35 |
| Battery life | General working conditions | 6~8h |
| Heavy load condition | 5~6h | |
| Charging time | 300kW charging pile | 30~40min |
| Charging pile specifications | Optional Specifications | 240-360kW |
| Oil filling | Antifreeze | 45L |
| Transaxle oil | 26L | |
| Hydraulic oil | 160 L | |
| Battery motor | ||
| Power Battery | Type | Lithium manganate battery |
| Rated Capacity | 21Ah | |
| Store energy | 143.52KWH | |
| Voltage | V | |
| Protection class | IP65 control box | |
| IP67 control box | ||
| Cooling method | liquid cooling | |
| Drive motor | Rated power | 90/130 kw |
| Protection class | IP67 | |
| Cooling method | water cooling | |
| Ambient temperature | ‘-35~135°C | |
| Altitude | ≤4000m | |
| Hydraulic motor | Rated power | 90/130kw |
| Protection class | IP67 | |
| Cooling method | liquid cooling | |
| Ambient temperature | ‘-35~135°C | |
| Altitude | ≤4000m | |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

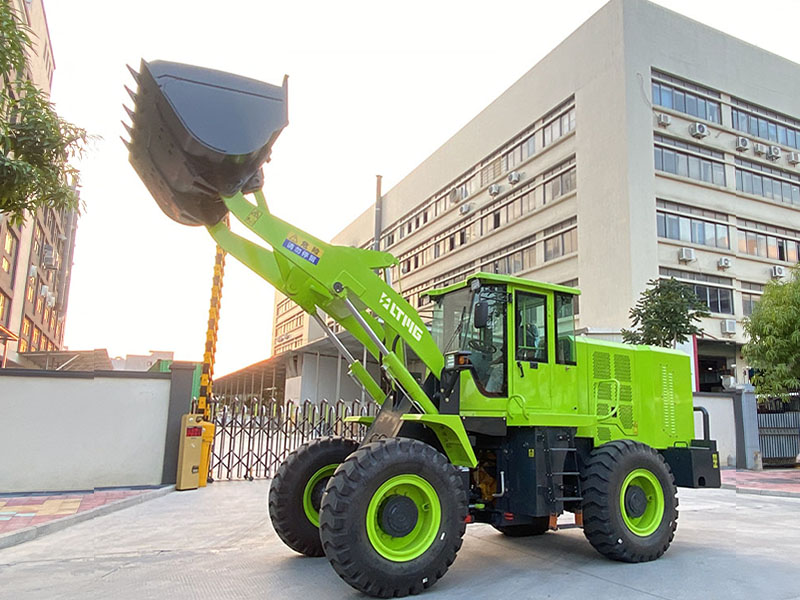

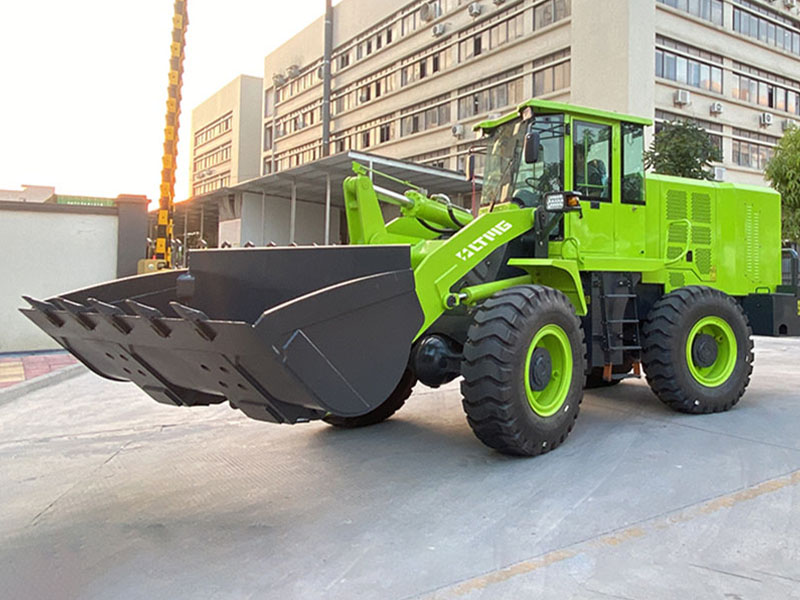

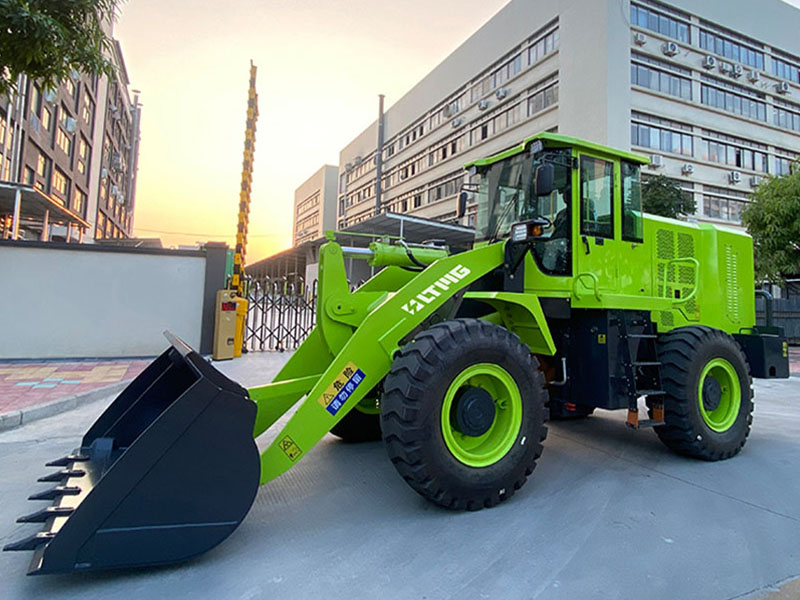

LTMG Wheel Loader Electric Product Details
Loaders electric LTMG brand, comfortable seats bring the operator comfortable working environment. Hydraulic joystick operation, greatly improve the work efficiency. Hd camera, electronic display dashboard, so that the work visual environment expanded, more convenient for the operator to observe the fuselage and around.
LTMG Electric Loaders Professional Delivery Experience
LTMG sells electric loaders to many customers and has accumulated a lot of shipping experience. The delivery personnel make reasonable use of the space of the container, so that the machine can be delivered to the customer in good condition. At the same time for customers to save sea freight.
FAQ
1. What are the advantages of a 3-ton electric wheel loader?
The 3-ton electric wheel loader has excellent maneuverability and flexibility and is suitable for small or crowded job sites. Its dynamic drive system reduces noise and emissions while also delivering efficiency and reliability. In addition, electric loading does not require fuel, reducing operating costs and negative environmental impact.
2. How efficient is the 3-ton electric wheel loader?
The 3-ton electric wheel loader adopts advanced power management system and intelligent control technology to provide excellent work efficiency. Its high-torque electric drive system enables quick start-ups and smooth acceleration, along with precise operating control to increase the speed and accuracy of loading and unloading materials.
3. What is the maintenance cost of a 3-ton electric wheel loader?
Compared with traditional fuel-driven loaders, 3-ton electric wheel loaders have lower maintenance costs. Due to the simple structure and few wearing parts of the electric drive system, maintenance frequency and repair costs are greatly reduced. In addition, electric wheel loaders do not need to replace fuel and filters, saving time and labor costs.
4. What is the battery life and charging time of the 3-ton electric wheel loader?
The 3-ton electric wheel loader is equipped with high-performance lithium battery, which can meet the needs of long-term work. Battery life can be extended based on usage and maintenance, typically up to thousands of charge and discharge cycles. Charging time depends on the charging device and power source used, but is usually completed within a few hours. In addition, some models also support fast charging, which can restore most of the power in a shorter period of time, improving work continuity and efficiency.
5.Is LTMG a manufacturer of electric loaders?
Yes. LTMG has rich production and sales experience in the field of electric loaders.
6.What certificates does LTMG have on electric loader products?
We have CE certificate, ISO certificate, COC certificate, and MSDS certificate on lithium battery and so on. To meet the import needs of customers.
