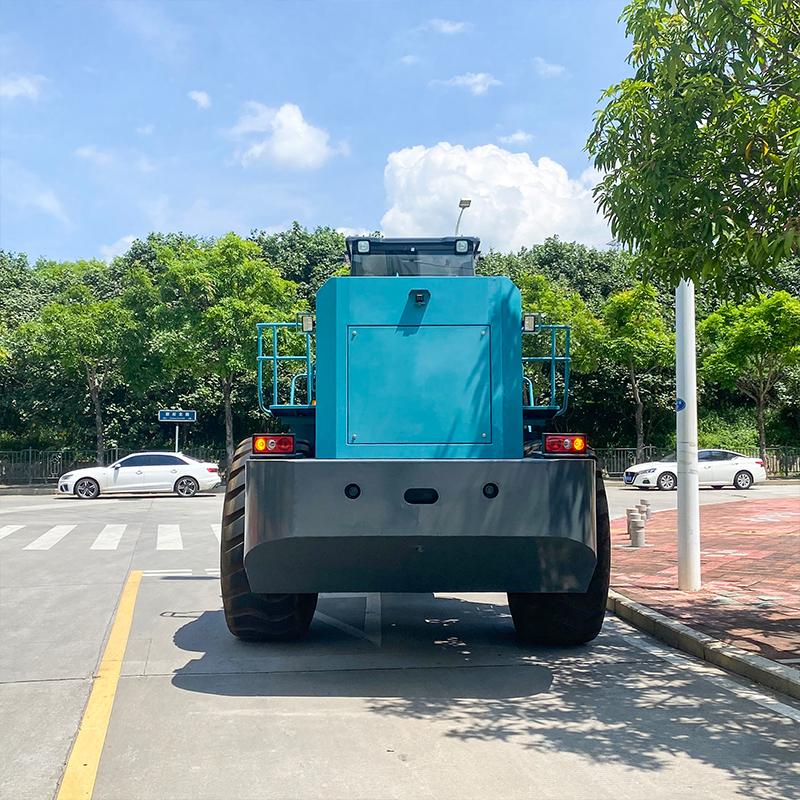

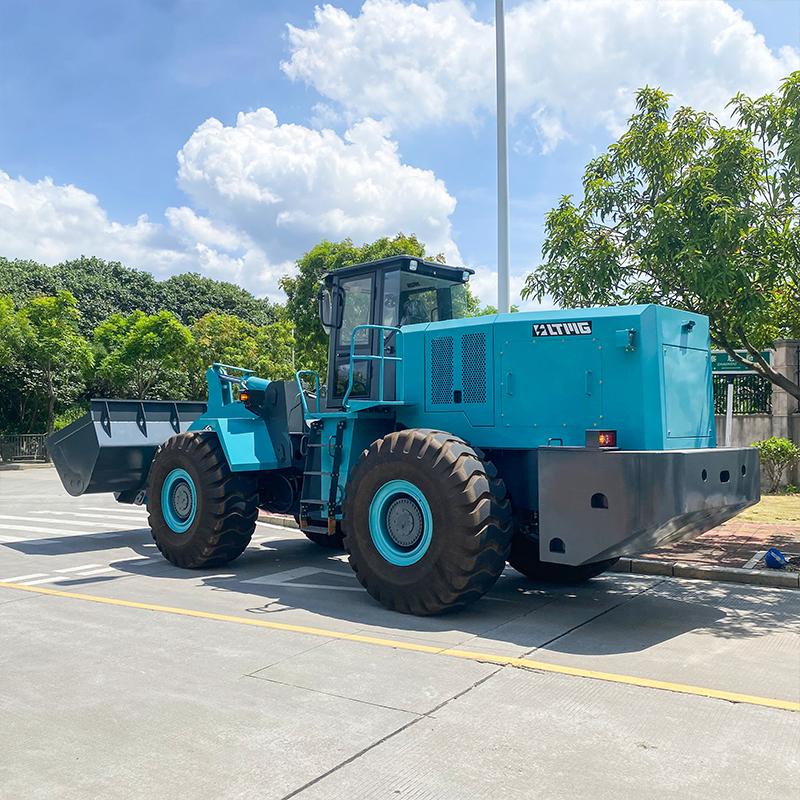

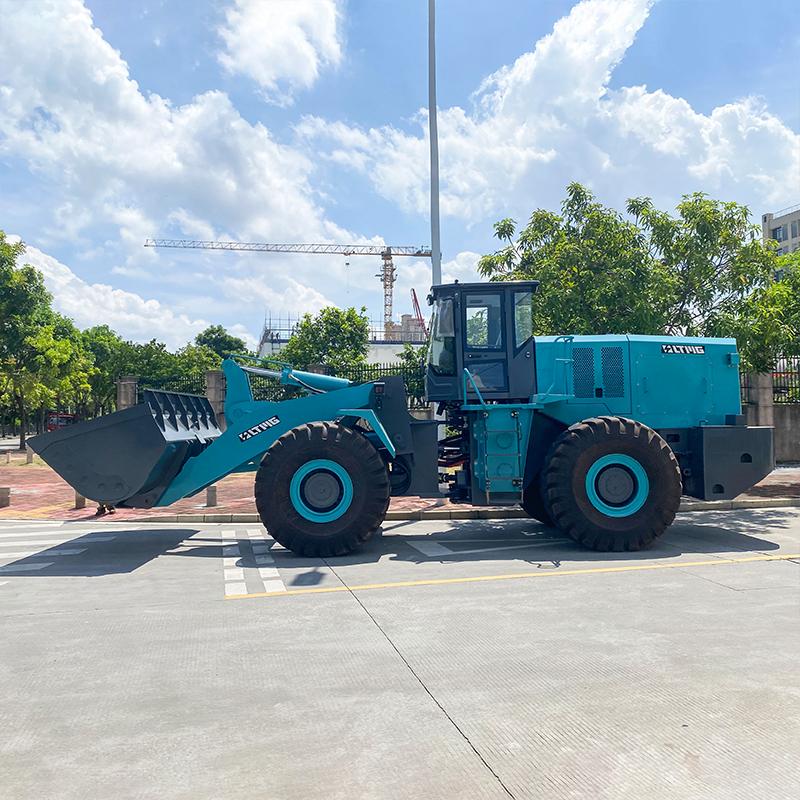

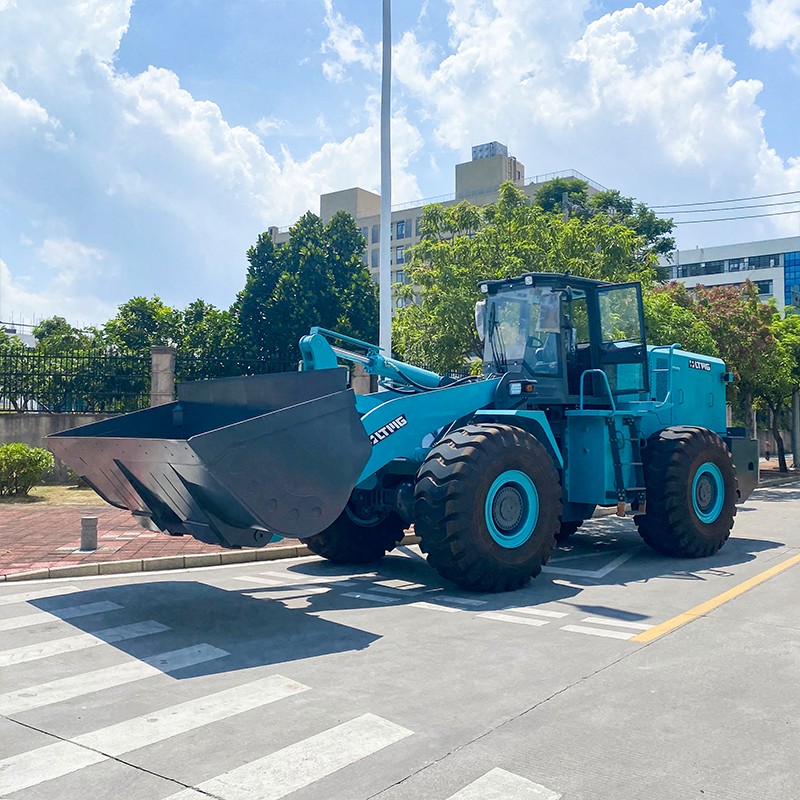

The 7 ton electric loader, with low - noise, low - power electric drive and a lithium battery paired with a small diesel engine, ensures longer operation, high fuel efficiency and low emissions. It's also versatile for shoveling, transporting and light digging.
This 7 ton electric loader combines battery power with a low power diesel engine for quiet, efficient operation. Ideal for shoveling, loading, and transporting materials like soil, stone, and rock, it offers low fuel consumption and enhanced range.
1. Adopting high - efficiency permanent magnet synchronous motor to provide power for the whole machine, compared with the traditional engine, it is small in size, light in quality, high in power density and high in reliability.
2. Vehicle intelligence level is high, safe and comfortable, energy saving.
3. The controller is integrated into an all - in - one controller with dual motors running independently of each other.
4. Reinforced heavy - duty frame with strong load - bearing capacity and enhanced strength of structural parts to adapt to heavy - duty working conditions.
5. Reinforced heavy - duty drive axle with high load - bearing capacity, optimised and enlarged axle - shell cross - section, reinforced main reduction and wheel edges for more stable and reliable quality.
6. Dual gun fast charging, fast charging in extreme cold and hot environments.
LT970EV Electric Drive Wheel Loader Parameters
|
Rated Load |
7000kg |
|
|
Bucket Capacity |
4.2-4.5m³ |
|
|
Operating Weight |
25000kg |
|
|
Rated power |
510kw |
|
|
Dumping Height |
3752mm |
|
|
Dumping Reach |
1479mm |
|
|
Wheel Base |
3700mm |
|
|
Wheel Tread |
2300mm |
|
|
Max. Traction |
195KN |
|
|
Max. Rising Power |
210KN |
|
|
Total Time |
9.7S |
|
|
Lifting Time |
5.8S |
|
|
Dumping Time |
3.5S |
|
|
Max. Climbing Angle |
28° |
|
|
Turning Angle |
40° |
|
|
I/II Forward Gear I/II |
18/36km/h |
|
|
I Reserve Gear I |
18/36km/h |
|
|
Overall Dimensions（L*W*H） |
9782x3007x3587mm |
|
|
Service Brake |
Air-jack oil, clamp disc type |
|
|
Hand Brake |
Pneumatic control, clamp disc type |
|
|
Air Conditioning System |
Electric, heating and cooling |
|
|
System Voltage |
DC-24V |
|
|
Tire Model |
26.5-25 |
|
|
Battery Life |
5-7 |
|
|
Charging Time |
60min |
|
|
Power Battery |
Type |
Lithium battery |
|
Rated Capacity |
608Ah |
|
|
Store Energy |
350kWh |
|
|
Nominal Voltage |
576V |
|
|
Working Hydraulic System |
Type |
Double pump confluence |
|
Operation Method |
Pilot control |
|
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
