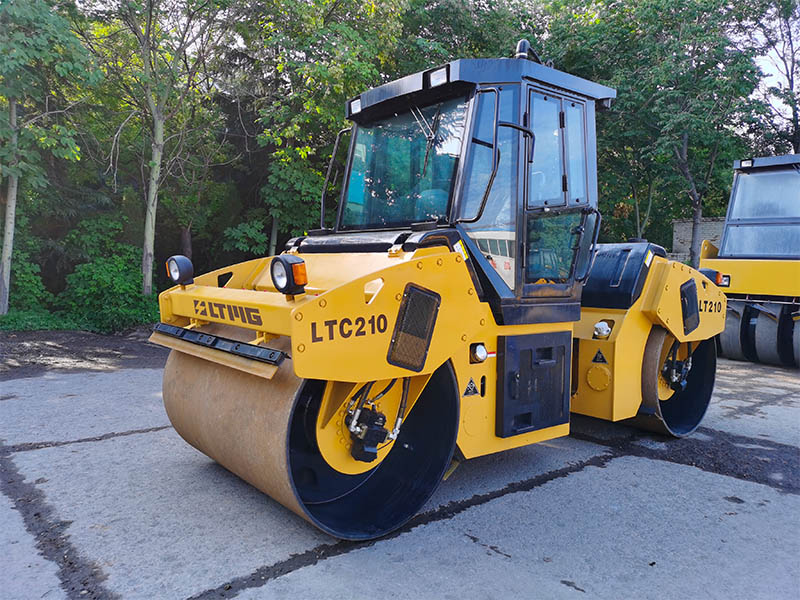

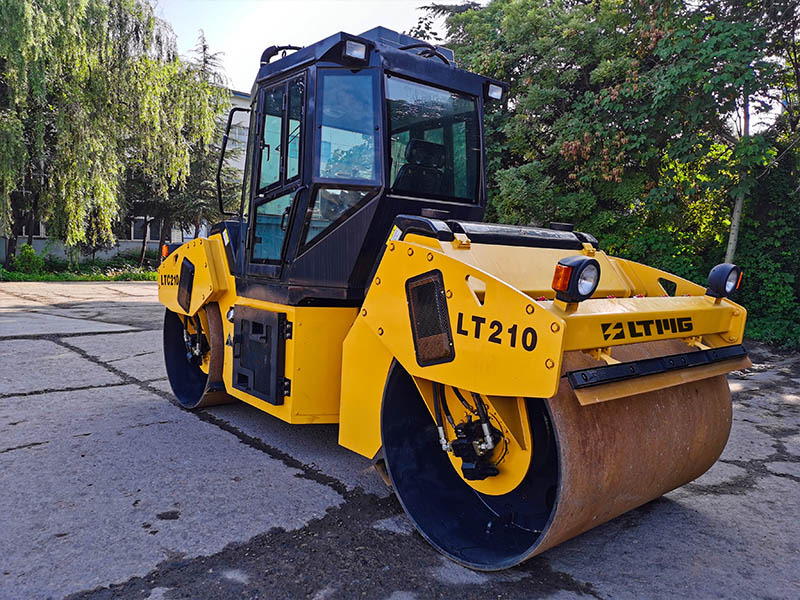

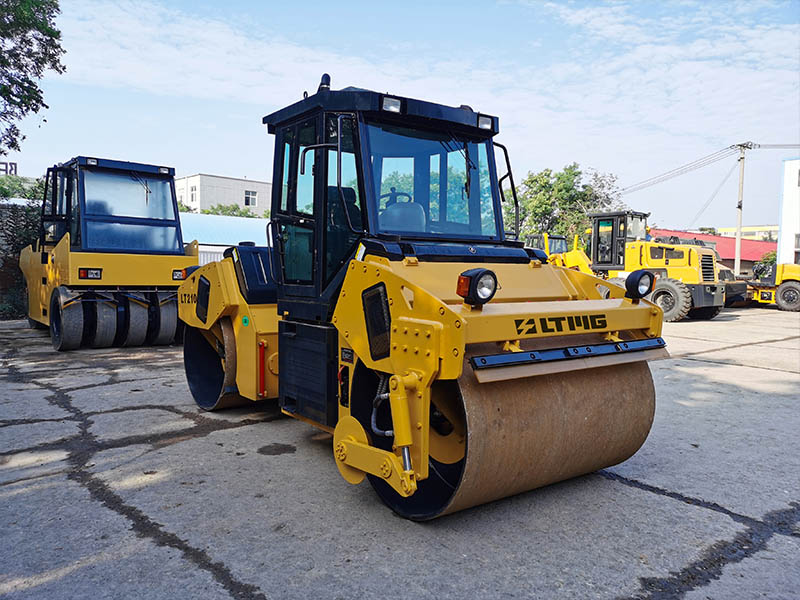

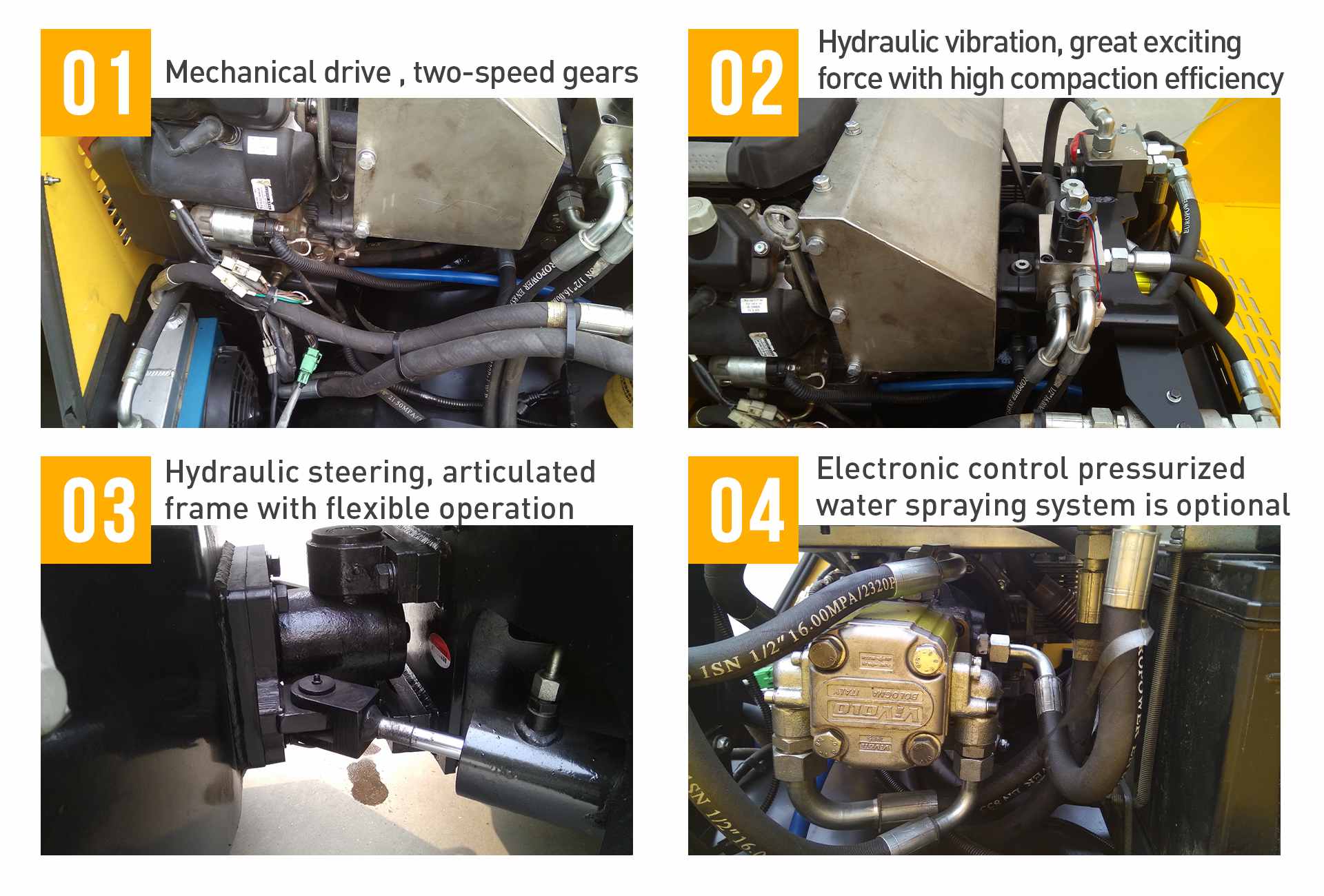

The 10-ton double drum road roller features full hydraulic two-wheel drive and a Cummins 4BT3.9 diesel engine. The travelling and vibration systems use imported SAUER plunger pumps, motors, high-pressure pipes and joints, and the front and rear wheels are electronically controlled, air-conditioned cab with swivel seat as standard.
Model :
LTC210Operating Weight :
10000KGPower :
97KWCompaction Width :
2100MMODM/OEM :
SUPPORT
10 ton double drum road roller effect a powerful centrifugal force and a great static linear load. They are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings, and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways, and industrial areas, etc.
10-ton Double-drum Road Roller Parameter
| Model | LTC210 | |
| Operating mass | Kg | 10000 |
| Static linear load | N/cm | 276 |
| Vibration amplitude | Hz | 30 |
| Vibration frequency | mm | 1.8 |
| Centrifugal force | kN | 270/140 |
| 1st gear | 1.8 | |
| 2nd gear | 3.7 | |
| 3rd gear | 9.7 | |
| Grade ability | % | 35 |
| Turning angle | 35 | |
| Ground clearance | mm | 360 |
| Electrical voltage | v | 24 |
| Turning radius | mm | 7000 |
| Vertical oscillation | 8 | |
| Type size | 17.5-25 | |
| Overall length | mm | 5640 |
| Overall width | mm | 2258 |
| Overall height | mm | 2970 |
| Vibration round width | mm | 2100 |
| Drum diameter | mm | 1400 |
| Drum rim thickness | mm | 24 |
| Wheelbase | mm | 3080 |
| Diesel model | Cummins6BT5.9 | |
| Diesel power | kW | 97 |
| Diesel speed | r/min | 2000 |
| Fuel tank capacity | L | 180 |
| Hydraulic tank capacity | L | 150 |
With technological innovation, our product configuration and parameters will continue to change without notice
If there is any doubt, the specific confirmation of our international trade sales shall prevail
Double Drum Road Roller Application
Reliable Shipping Guaranteed

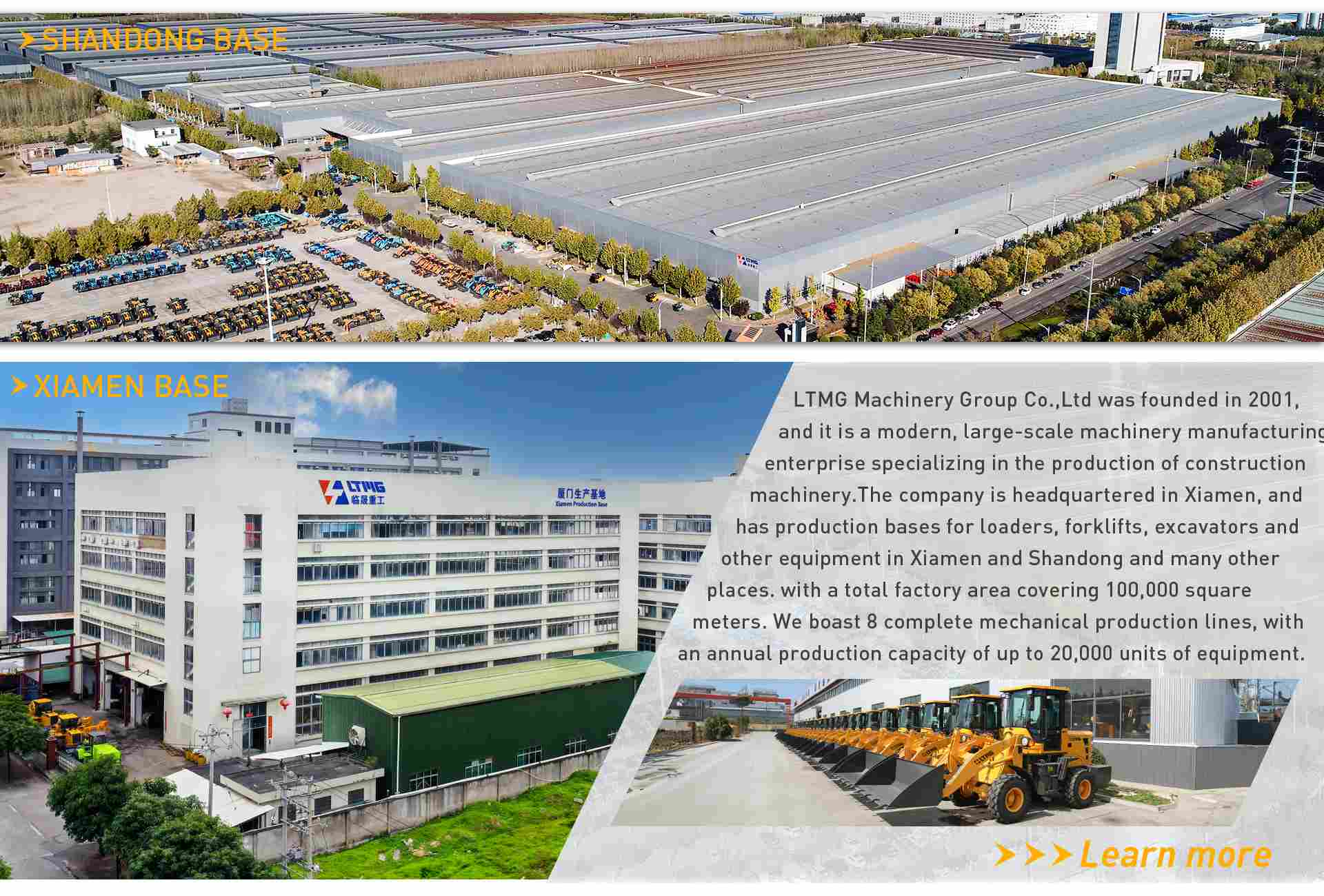

Direct-from-Factory Production
More Product Options Available
