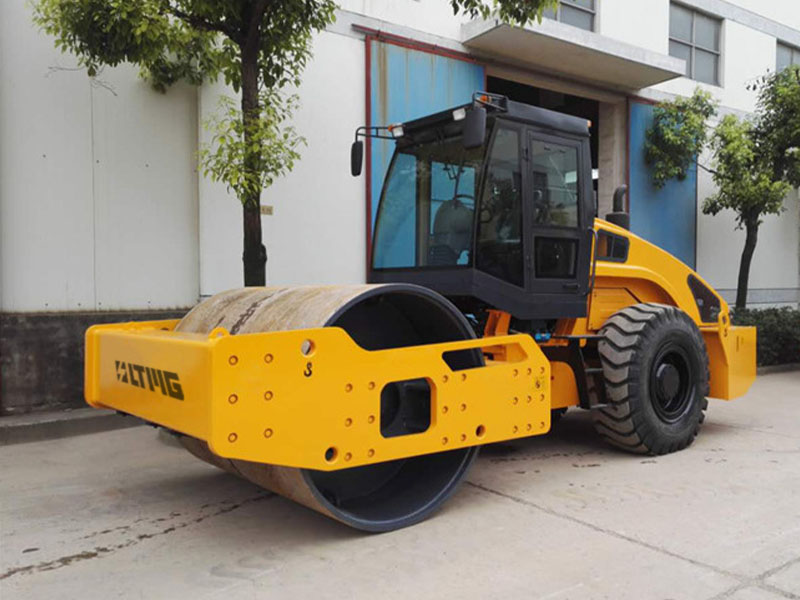

12 ton vibrating smooth drum roller
12 ton vibrating smooth drum roller
12 ton vibrating smooth drum roller

12 ton vibrating smooth drum roller

The 12 ton vibrating smooth drum roller is equipped with a Weichai engine, which has powerful power and high fuel efficiency; it adopts hydraulic steering and articulated frame, which is flexible in operation and high in compaction efficiency

  • Model :

    LTC120
  • Operating Weight :

    12000KG
  • Power :

    82KW
  • Compaction Width :

    2100MM
  • ODM/OEM :

    SUPPORT
  • Share to :
  • Youtube
  • Facebook
  • Instagram
  • linkedin
  • twitter

12 ton vibrating smooth drum roller is suitable for the compaction of large-scale engineering foundations such as high-grade highways, dams, railways, and airports. It can roll non-cohesive and semi-cohesive materials such as sand, gravel, crushed stone, and rock fill.

1. Equipped with 4-cylinder supercharged Weichai power, with large power reserve, high efficiency, energy saving and environmental protection;

2. Hydraulic vibration, electronically controlled vibration, large excitation force, good compaction performance;

3. Equipped with a special gearbox for road rollers with a synchronizer, the transmission torque is large, and the shifting is easy;

4. Pneumatic-assisted hydraulic caliper disc service brake, inner expansion drum mechanical parking brake, safe and reliable

5. The cab is equipped as standard, and heating and cooling air conditioners are optional. Improve driving experience

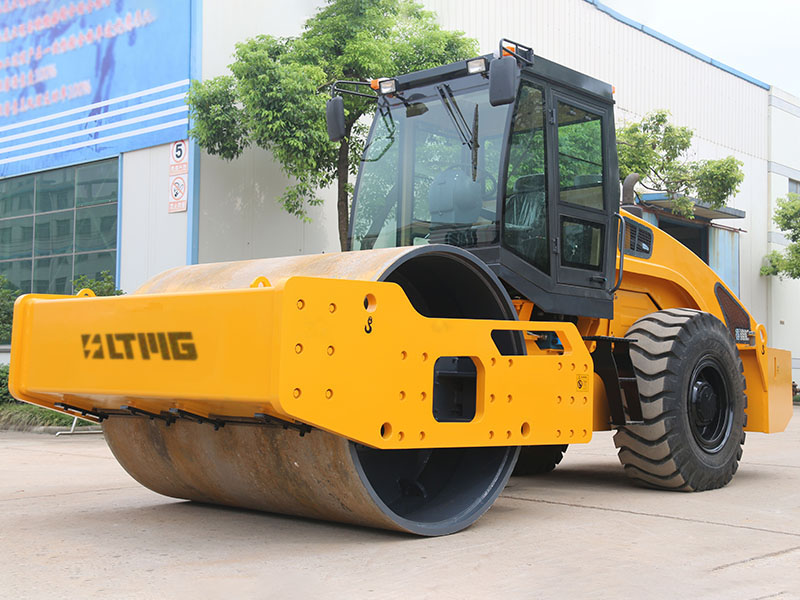

12 ton vibrating smooth drum roller



12 ton vibrating smooth drum roller parameter

item unit LTC120
Operating Weight kg 12000
Rolling width mm 2100
Theoretical amplitude mm 1.6/0.8
Vibration frequency Hz 30
Exciting force KN 260/132
Driving speed Forward(Ⅰ/Ⅱ/Ⅲ) km/h 2.5/5.0/10.5
Driving speed Rear(Ⅰ/Ⅱ) km/h 2.5/5.0
Engine model   Weichai WP4G110E221
Engine power Kw 82
Engine speed r/min 2000
Overall dimensions(L*W*H) mm 5850×2240×3010

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;



LTMG compactor case

In the realm of corporate achievements, the LTMG compactor case stands as a testament to unparalleled innovation and groundbreaking solutions. With the vision to exceed

expectations and revolutionize the industry, LTMG has solidified its reputation as a leader in compactors.

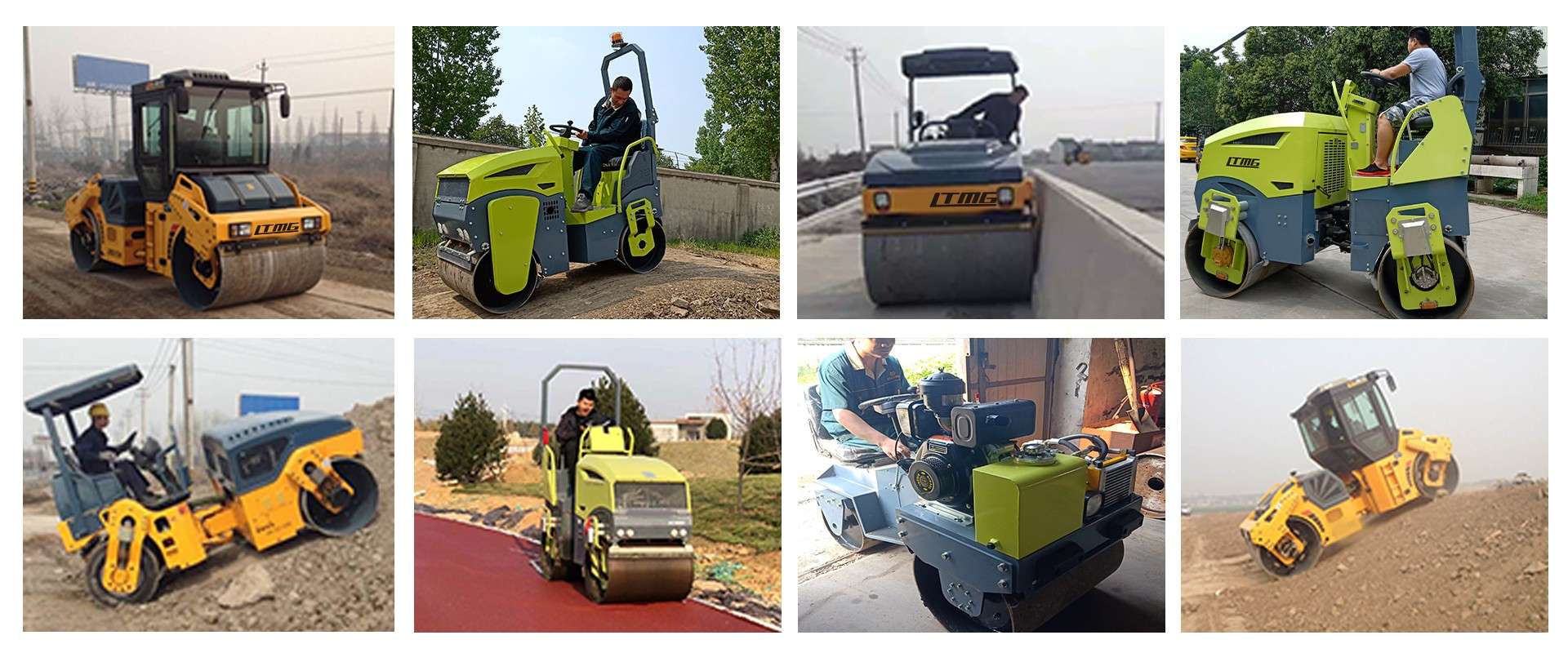

vibrating smooth drum roller application
