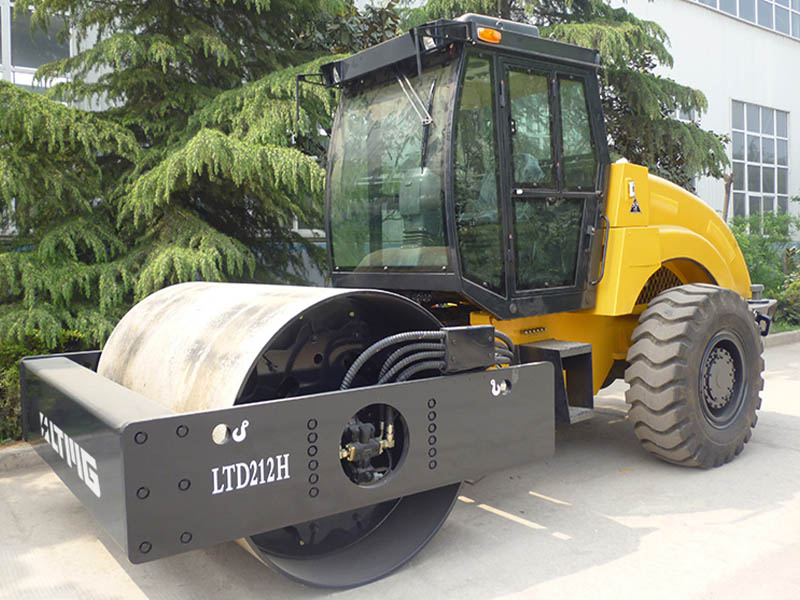

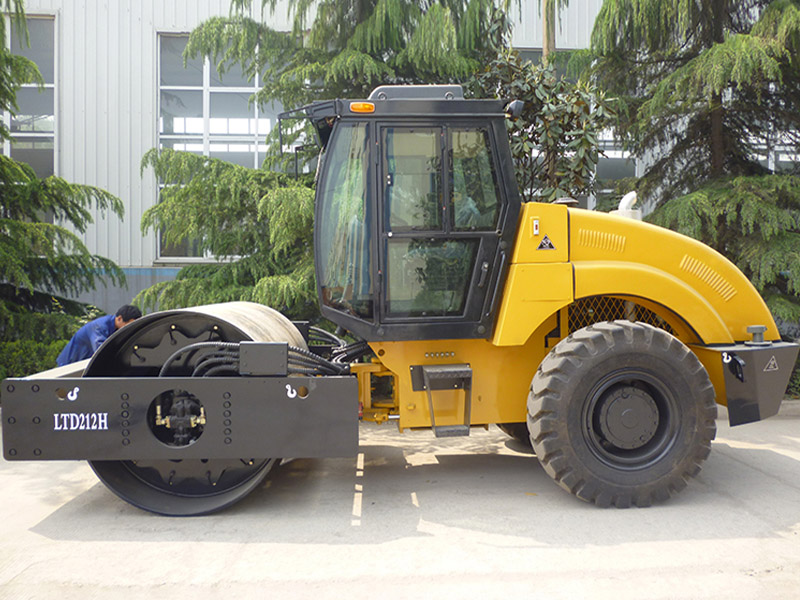

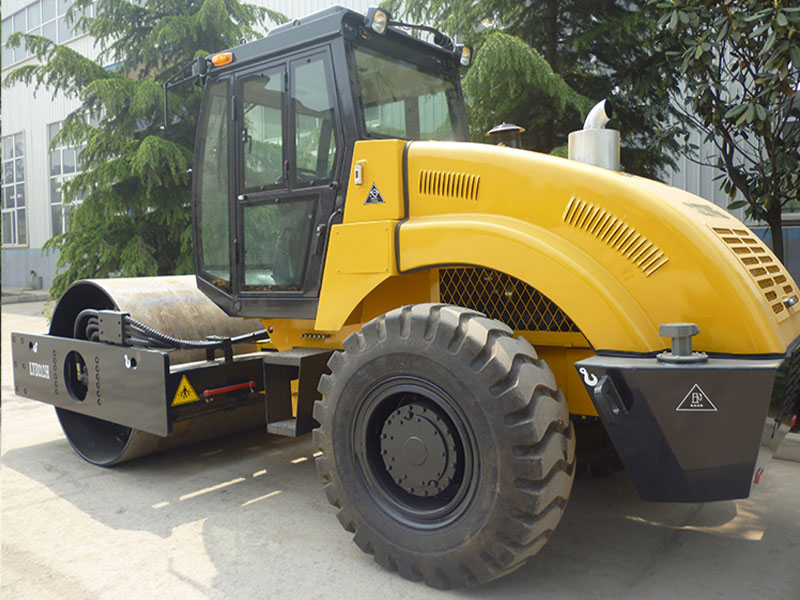

LTD212H single drum vibratory roller adopts hydrostatic all-wheel drive, stepless speed change, hydraulic vibration engine adopts Cummins 6BT5.9 diesel engine, special drive axle for roller, walking system and vibration system adopt imported SAUER or REXROT plunger pump and motor, equipped with Air-conditioned cab with anti-ultraviolet glass and rollover protection function, optional compaction degree random detector.
Model :
LTD212HOperating Weight :
12000KGPower :
110KWCompaction Width :
2100ODM/OEM :
SUPPORT1.Power system:cummins B-series turbocharged diesel engine,have high coefficient of power reserve,fit for the operating condition above 4000 meters altitude;
2.Full hydraulic ,full wheels drive,frequency and amplitude conversion ,articulated steering ,two setpless CVT,advanced technology ,blocking the oil supply to brake the vehicle, safe and reliable;
3.Streamline outline,circular windshield glass and curvy hood form a unique style;
4.Hydraulic pump and vibrating motors are the 90 series made by the american manufacturer Sauer;
12 ton Single Drum Vibratory Parameter
Model | LTD212H | |
Operating mass | kg | 12000 |
Static linear load | N/cm | 326 |
Vibration amplitude | mm | 1.7/0.8 |
Vibration frequency | HZ | 28/35 |
Centrifugal force | KN | 260/160 |
Max.travel speed | Km/h | 12 |
Grade ability | % | 35 |
Turning radius | mm | 7000 |
Vibration drum width | mm | 2100 |
wheelbase | mm | 3060 |
Min.ground clearance | mm | 360 |
Overall dimension | mm | 5650x2280x3000 |
Diesel power | kw | 110 |
Diesel model | Cummins6BT5.9 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
