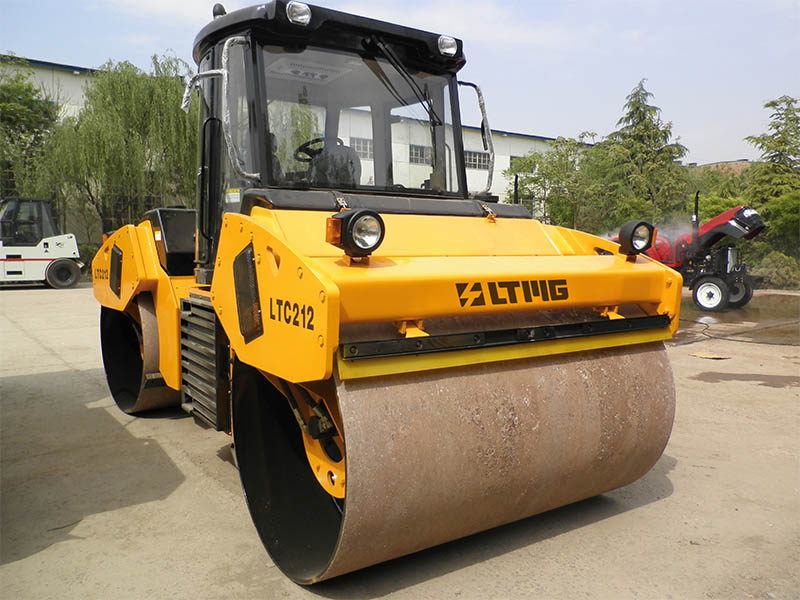

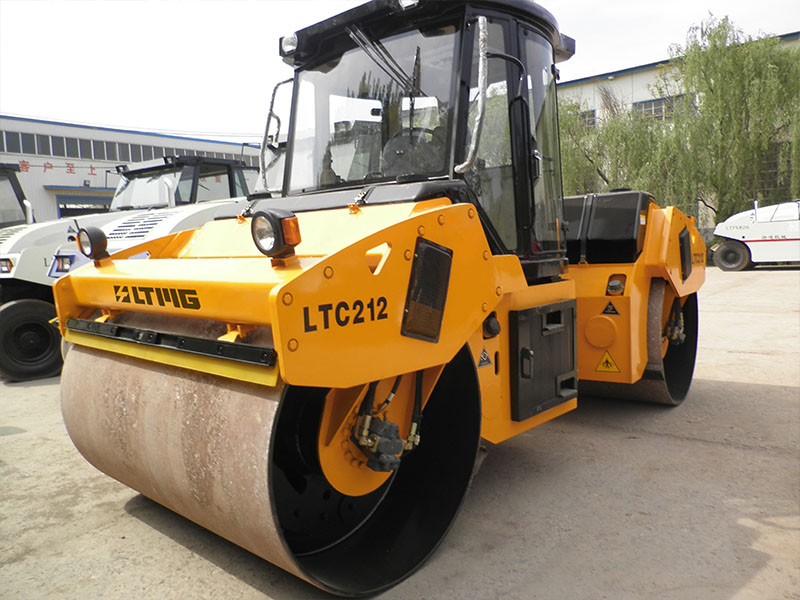

12 ton double drum vibratory roller is equipped with Cummins 6BT5.9 diesel engine, walking system and vibration system using imported SAUER or REXROT piston pumps, motors, optional articulated steering with crab device.
Model :
LTC212Operating Weight :
12000KGPower :
97KWCompaction Width :
2100MMODM/OEM :
SUPPORT
12 ton double drum vibratory roller is specifically designed for large-scale foundation construction projects. They are built to handle-cohesive materials such as sandy soil, gravel, crushed stones, rock fillings, and slightly cohesive soils. These rollers are commonly used in the construction of high-class highways, mines, dams, airports, harbors, railways, and industrial areas.
12 ton double drum vibratory roller feature
1.Mechanical travel drive and double amplitude: The rollers are equipped with a mechanical travel drive system, allowing them to move efficiently. They also have a double amplitude feature, which enhances their compaction capability.
2.Hydraulic vibration and steering: The rollers utilize hydraulic vibration to enhance compaction efficiency. They also have hydraulic steering, which makes them easy to maneuver on the job site.
3.Optimal function/price ratio and reliable performance: The rollers are designed to offer a balance between functionality and cost-effectiveness. They provide reliable performance in various working conditions.
4.Cummins 6BT5.9 diesel engine: The rollers are powered by a reliable Cummins 6BT5.9 diesel engine. This engine ensures convenient operation and maintenance of the machine.
5.Dual brake system: The machine is equipped with two sets of brake devices for enhanced safety and dependability. It includes both a hand brake and a foot pedal brake.
6.Spacious and comfortable cab: The rollers have a spacious and comfortable cab, designed to provide the operator with a comfortable working environment. The cab is mounted on top-quality rubber damping elements, reducing vibrations and enhancing operator comfort.
7.Advanced hydraulic vibration technology: The rollers incorporate world-advanced hydraulic vibration technology. This technology provides high reliability, easy maintenance, and low operating costs.
8.Padfoot or removal padfoot option: The rollers can be equipped with either a padfoot drum or a removal padfoot drum, depending on the specific requirements of the job site. This versatility allows for efficient compaction of different types of soil.
12 ton double drum vibratory roller parameter
| Model | LTC212 | |
| Operating mass | Kg | 12000 |
| Static linear load | N/cm | 276 |
| Vibration amplitude | Hz | 30 |
| Vibration frequency | mm | 1.8 |
| Centrifugal force | kN | 270/140 |
| 1st gear | 1.8 | |
| 2nd gear | 3.7 | |
| 3rd gear | 9.7 | |
| Grade ability | % | 35 |
| Turning angle | 35 | |
| Ground clearance | mm | 360 |
| Eectrical voltage | v | 24 |
| Turning radius | mm | 7000 |
| Vertical oascillation | 8 | |
| Type size | 17.5-25 | |
| Overall length | mm | 5640 |
| Overall width | mm | 2258 |
| Overall height | mm | 2970 |
| Vibration round width | mm | 2100 |
| Drum diameter | mm | 1400 |
| Drum rim thickness | mm | 24 |
| Wheelbase | mm | 3080 |
| Diesel model | Cummins6BT5.9 | |
| Diesel power | kW | 97 |
| Diesel speed | r/min | 2000 |
| Fuel tank capacity | L | 180 |
| Hydraulic tank capacity | L | 150 |
With technological innovation, our product configuration and parameters will continue to change without notice
If there is any doubt, the specific confirmation of our international trade sales shall prevail

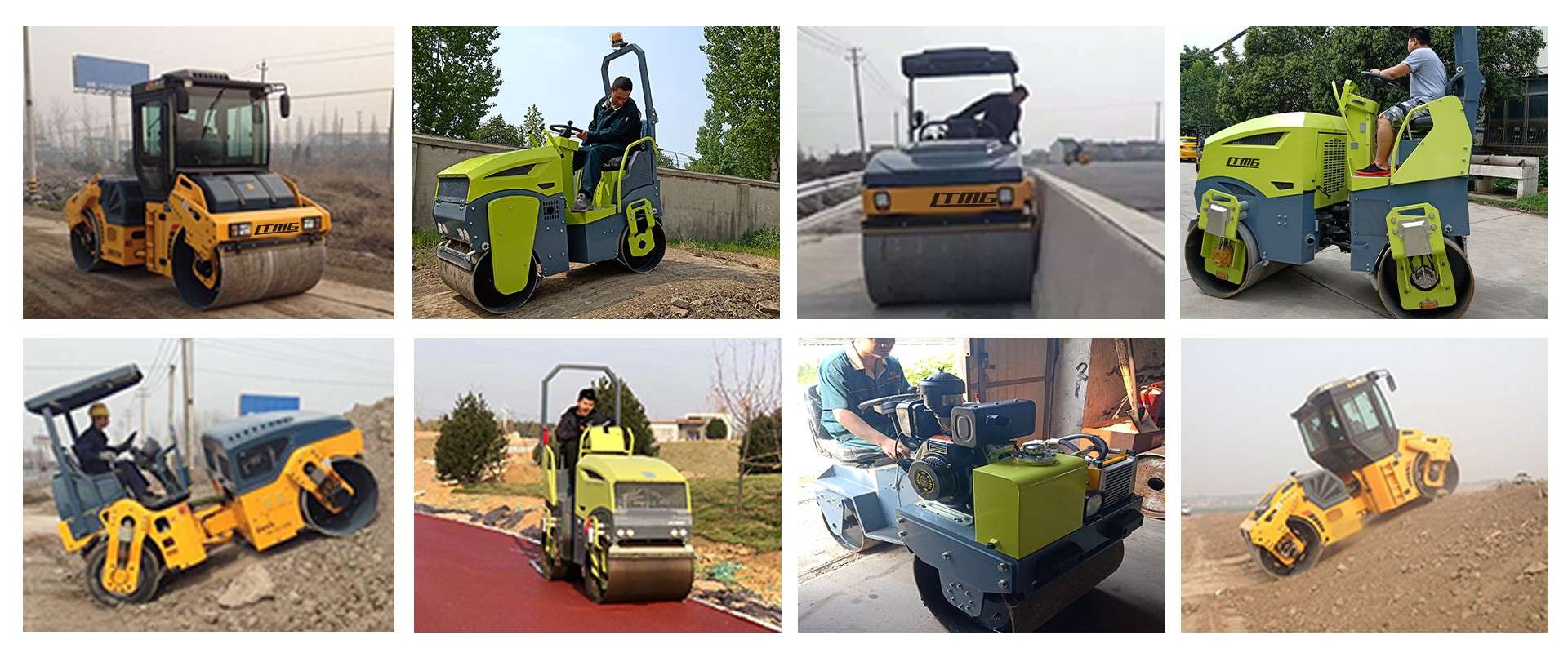

double drum vibratory roller application
