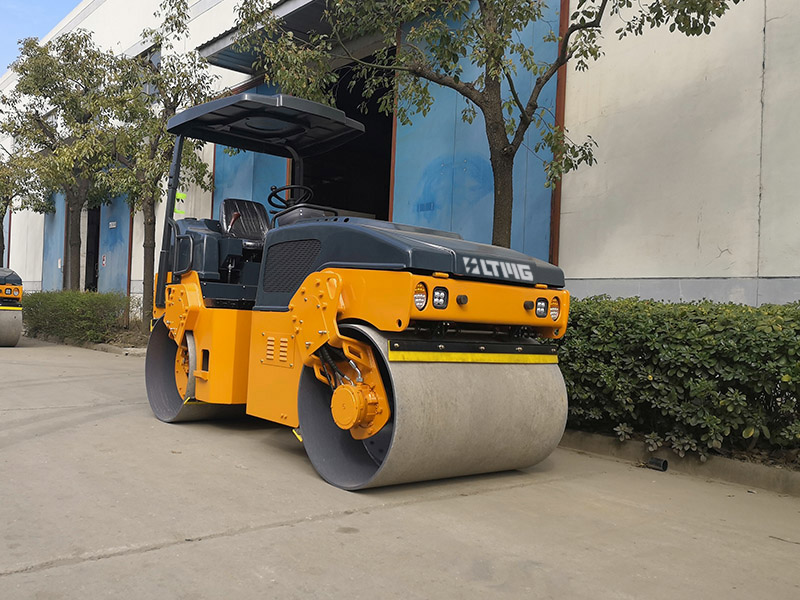

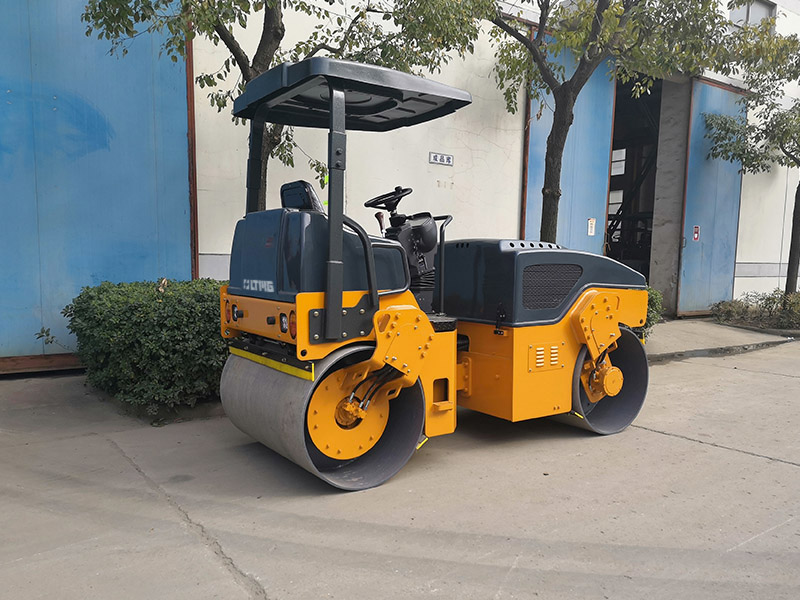

4.5 Ton Double Drum Vibratory Roller

4.5 ton double drum vibratory roller is equipped with Changchai 4L68 engine, compaction width 1350mm, hydraulic steering, articulated frame, flexible steering, and can work flexibly in narrow places.

Model :
LTC45
Operating Weight :
4500KG
Power :
36.8KW
Compaction Width :
1350MM
ODM/OEM :
SUPPORT

Inquiry now

Share to :

Product Details

Compacting and repairing the general road base and asphalt pavement in city road, inter-city and township road, water conservancy project, sports and other industrial site and so on.

4.5 ton double drum vibratory roller main feature

1. Hydraulic double drum drive, infinitely variable speed

2. Vibratory roller Hydraulic double drum vibration electronic controlled starting of vibration, great exciting force with high compacting efficiency.

3. Hydraulic steering, articulated frame for flexible operation.

4. Equipped with electronic control pressurized water spraying system, high volume anti-corrosive water tank

5. Hydraulic service brake electronic self-locking parking brake, safe and reliable

6. The front cover can be turned up in a big angel for easy maintenance

7.Equipped with imported famous brand hydraulic components with reliable performance

8. A trailer is provided for convenient transportation

9. Imported engines are optional

4.5 ton double drum vibratory roller parameter

Item	unit	LTC45
Operating Weight	kg	4500
Rolling width	mm	1350
Vibration frequency	Hz	55
Theoretical amplitude of vibration	KN/Kn-m	0.5
Exciting force	km/h	42
Travel speed		0~10
Engine model		WP3.2G50
Engine power/speed	Kw/r/min	36.8/2500
Overall dimensions(LWH)	mm	3170×1500×2580

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;

How do we load the double drum vibratory roller? Ensure the safe transportation ?
