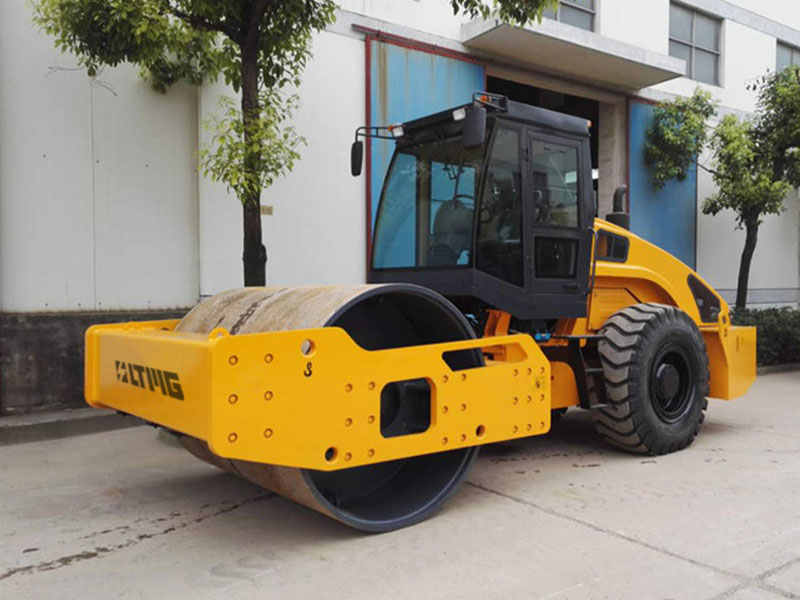

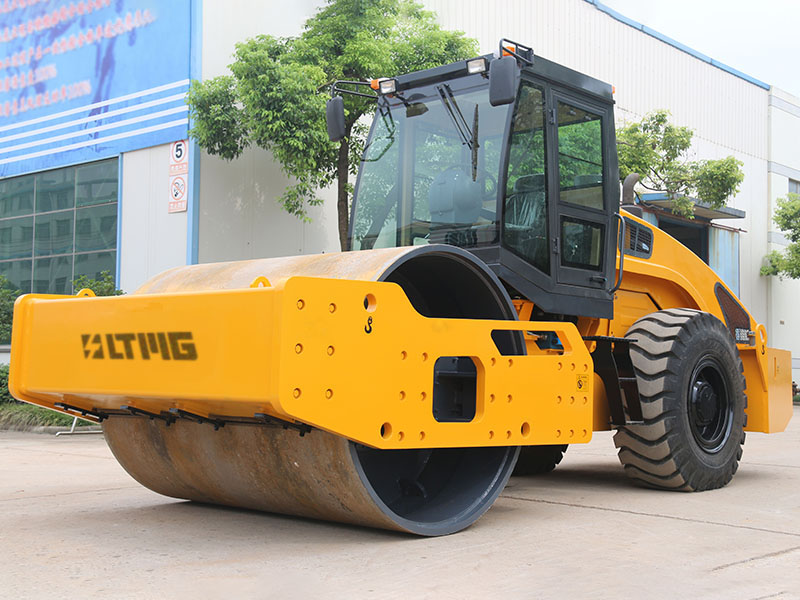

16 Ton Vibration Road Roller Machine is equipped with a cab and a Weichai engine as standard, and can be equipped with a heating and cooling air conditioner and a Cummins engine to meet different operating needs.
Model :
LTC160Operating Weight :
16000KGPower :
118KWCompaction Width :
2130MMODM/OEM :
SUPPORT
16 Ton Vibration Road Roller Machine Main Feature
1. Hydraulic vibration, electronic controlled delayed starting of vibration, great exciting force with high compacting efficiency.
2. Hydraulic steering, articulated frame with flexible steering and operation.
3. Adopt specific gearbox with synchronizer, big transmission torque, easy to shift gear.
4. Hydraulic clamp disc service brake, mechanical drum-style parking brake,ensure safe and reliable
5. Rear engine cover can be turned up for big angle for convenient maintenance
6.Equipped with famous brand hydraulic components with reliable performance
7. Tires with different tread patterns are optional
8.Engines are optional
9.Standard equipped with cabin, air conditioner is for your choice.
10. Road roller with padfoot is optional
16 Ton Vibration Road Roller Machine Main Parameter
| i tem | unit | LTC160 |
| Operating Weight | kg | 16000 |
| Rolling width | mm | 2130 |
| Vibration frequency | Hz | 30 |
| Theoretical amplitude of vibration | mm | 1.8/0.9 |
| Exciting force/ | KN | 325/165 |
| Travel speed | km/h | 2.5/5.0/10.5 |
| Engine model | WP6G 160E | |
| Engine power/speed | kW/r/min | 118/2000 |
| Overall dimensions(L*W*H) | mm | 6140*2280*3080 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

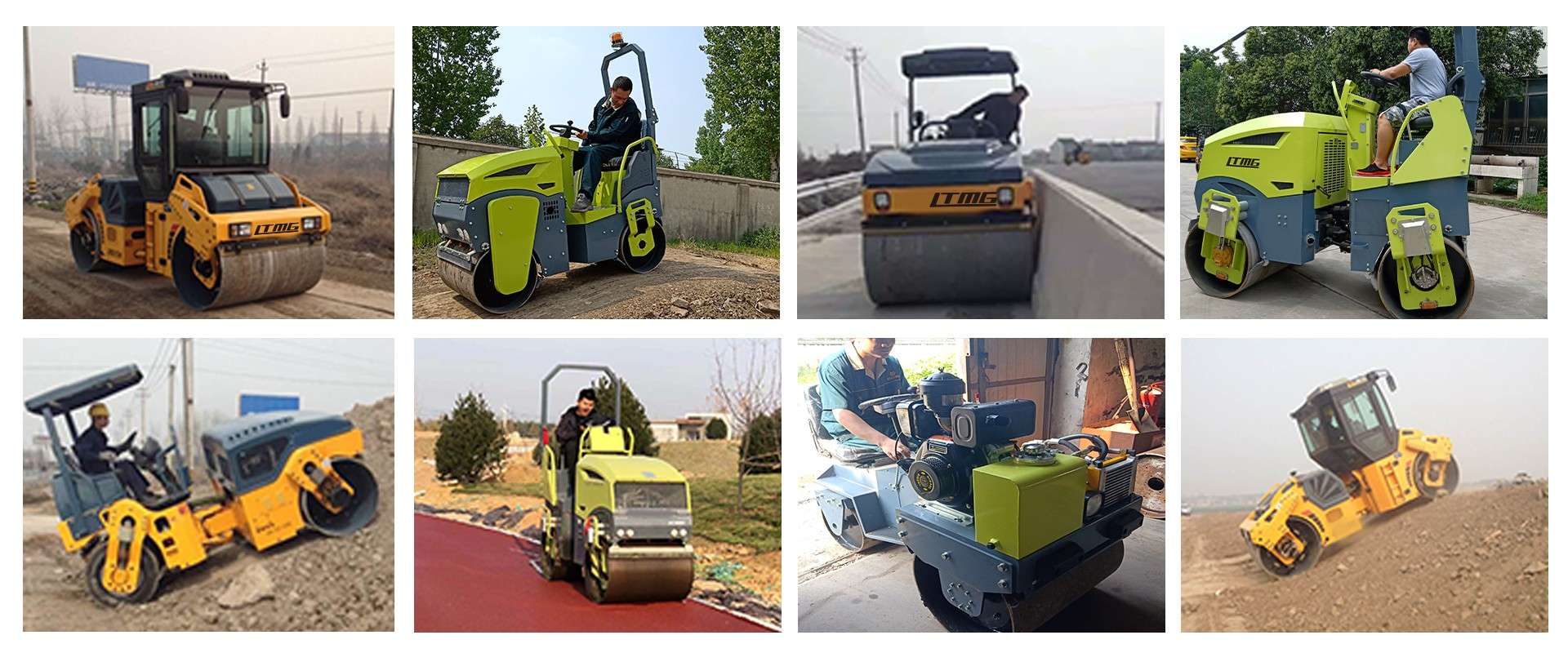

LTMG Road Roller Application
LTMG Road Roller Cabinet Details
