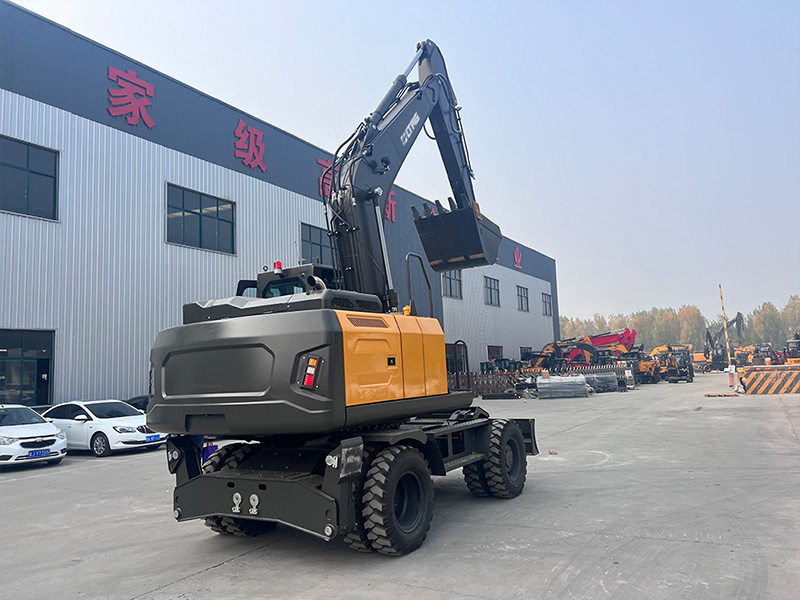

The 18t wheeled excavator is an all terrain, multi-purpose spider excavator that is fully suitable for plateau and plain areas. It adopts a wheeled driving/walking chassis, consisting of wheeled driving. It can go to places that other mechanical equipment cannot go to, such as mountain valleys, swamps, plateaus, and cold regions. Engineering operations such as excavation, lifting, crushing, drilling, and pile planting can be carried out.
Model :
LWE180Operating Weight :
18000kgBucket Capacity :
0.8m³ODM/OEM :
SUPPORT
Innovative electro-hydraulic control system
Adopting a dual pump, dual loop constant power control system, the engine can provide strong working force. The optimized operating performance of the engine reduces power loss.
Automatic air conditioning
Standard air conditioning maintains fresh air inside the driver's cabin. Fast temperature control ensures comfortable temperature in the driver's cabin throughout the year.
18 Ton Wheel Excavator Technical Parameters
| Performance Parameters | Unit | LWE180 |
| Operating Weight | Kg | 16000 |
| Engine Model | Cummins B5.9CS4-150C | |
| Rated Power | Kw | 111kw/2200RPM |
| Bucket Capacity | m³ | 0.8 |
| Max Digging Force | Kn | 100 |
| Swing Speed | rpm | 0-12 |
| Traveling Speed | km/h | 0-35 |
| Gradeability | ° | 25 |
| Operating Range | ||
| Max. Digging Radius | mm | 8363 |
| Max. Digging Depth | mm | 5350 |
| Max. Digging Height | mm | 8800 |
| Max. Dumping Height | mm | 6310 |
| Min.Swing Radius | mm | 2723 |
| Overall Dimensions | ||
| Overall Length | mm | 8050 |
| Overall Width | mm | 2595 |
| Overall Height | mm | 3255 |
| Undercarriage width | mm | 2595 |
| Boom length | mm | 4800 |
| Arm length | mm | 2500 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
