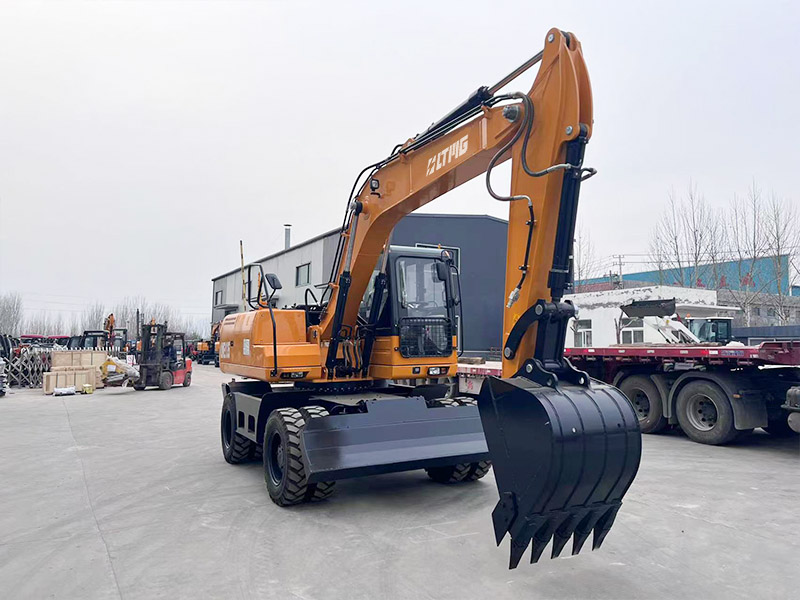

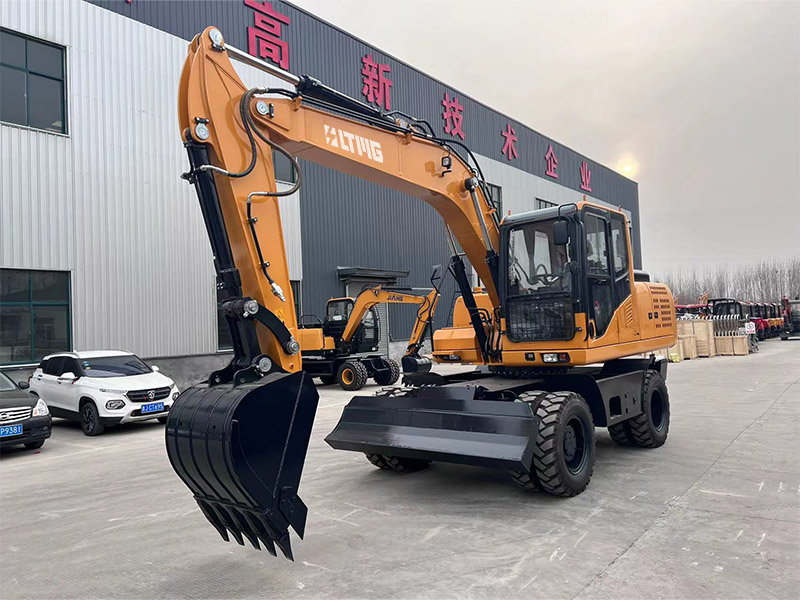

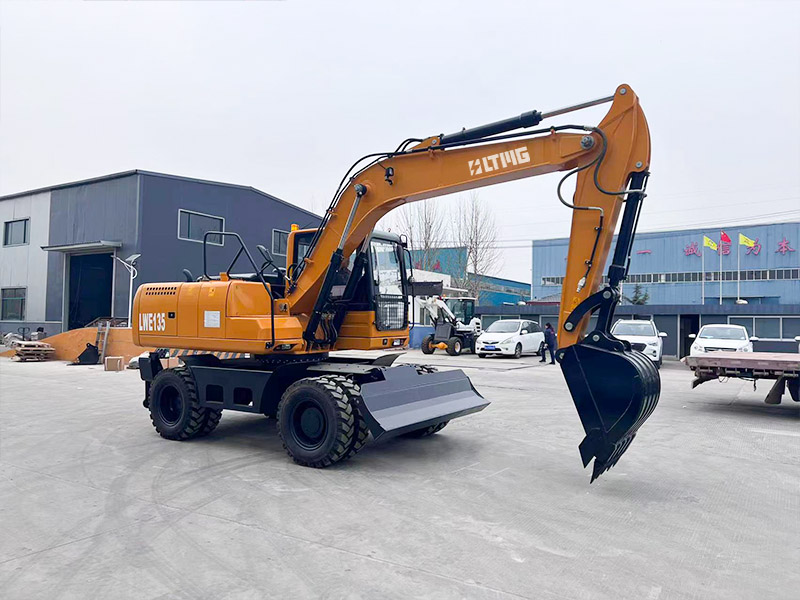

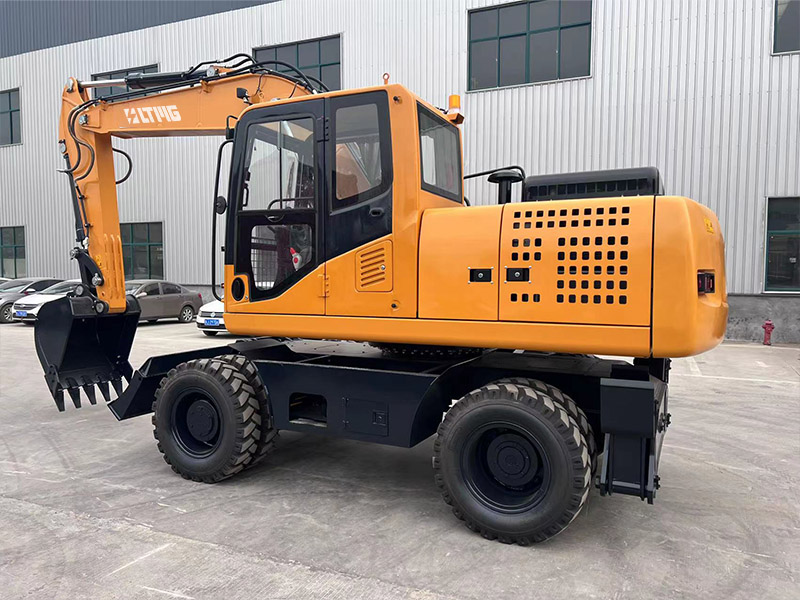

Optional Engine 13.5 Ton Wheel Excavator with CE
Optional Engine 13.5 Ton Wheel Excavator with CE
Optional Engine 13.5 Ton Wheel Excavator with CE
Optional Engine 13.5 Ton Wheel Excavator with CE
Optional Engine 13.5 Ton Wheel Excavator with CE

Optional Engine 13.5 Ton Wheel Excavator with CE

 13.5 Ton wheel excavator is very flexible and can work on highways or off-road. This machine has versatility, allowing you to switch between the required attachments. Drive at high speed in a comfortable cab. Our energy-saving engine and well matched components provide the highest power and low emissions for environmental protection.

  • Model :

    LWE135
  • Operating Weight :

    13500kg
  • Bucket Capacity :

    0.6m³
  • ODM/OEM :

    SUPPORT
  • Share to :
  • Youtube
  • Facebook
  • Instagram
  • linkedin
  • twitter

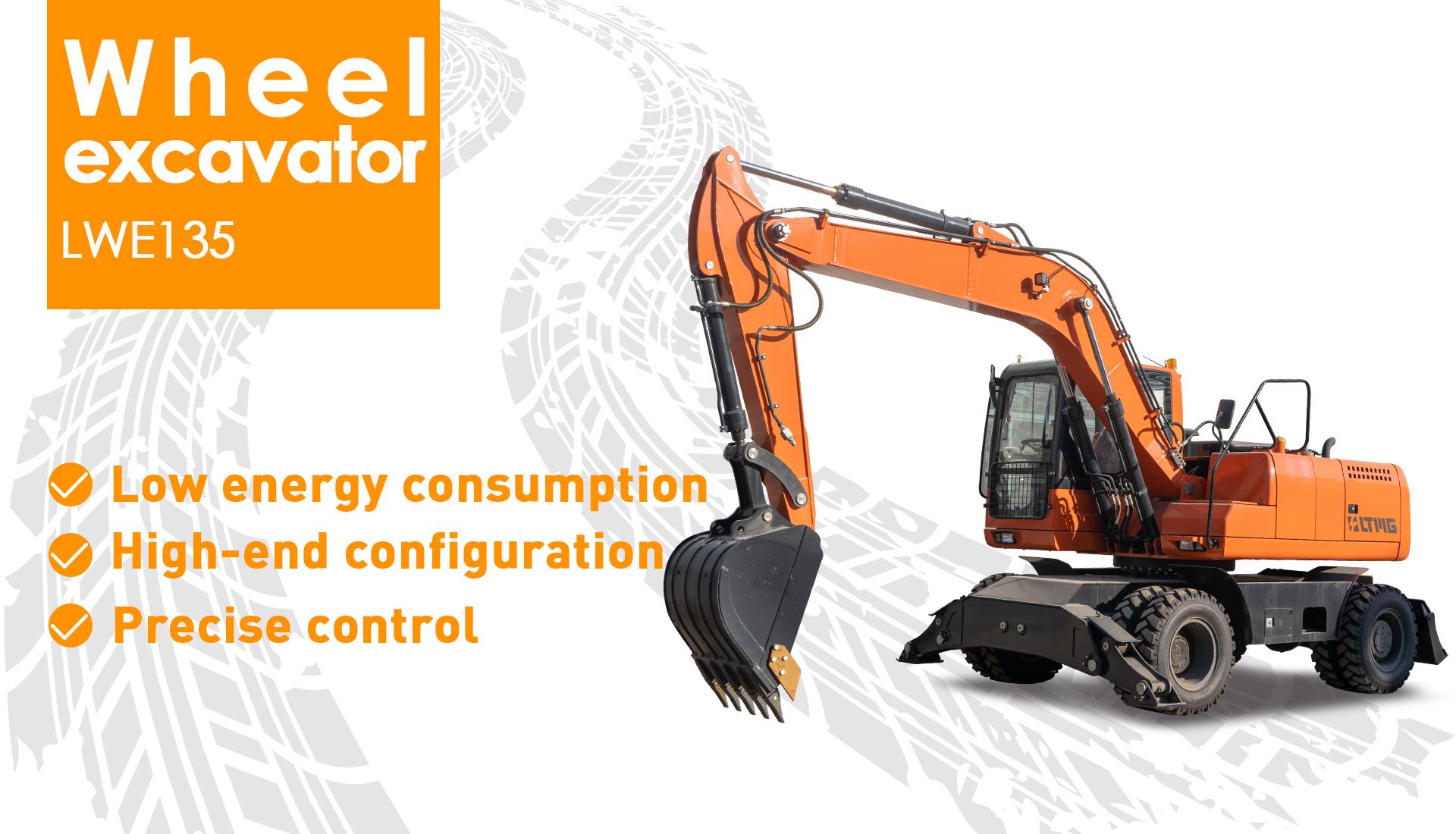

13.5ton wheel excavator

13.5 Ton wheel Excavator Standard Configuration

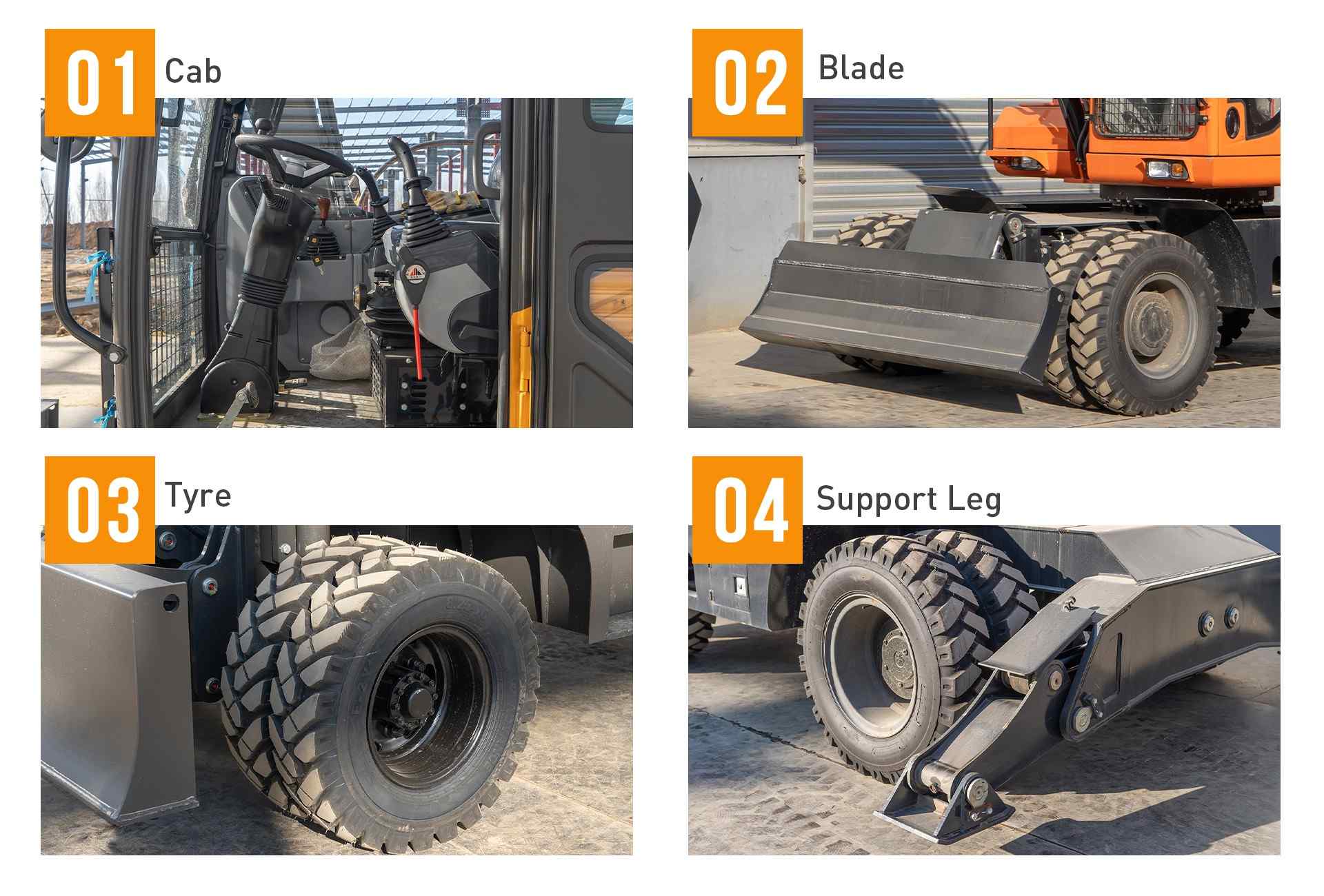

Yuchai engine/Pilot multiplexer/high-quality motor/engineer cylinder, built-in American Parker sealing ring adjustable bulldozer/steel track air conditioning/adjustable driver's seat/standard bucket/hydraulic lock/cab/escape hammer/portable fire extinguisher/audio

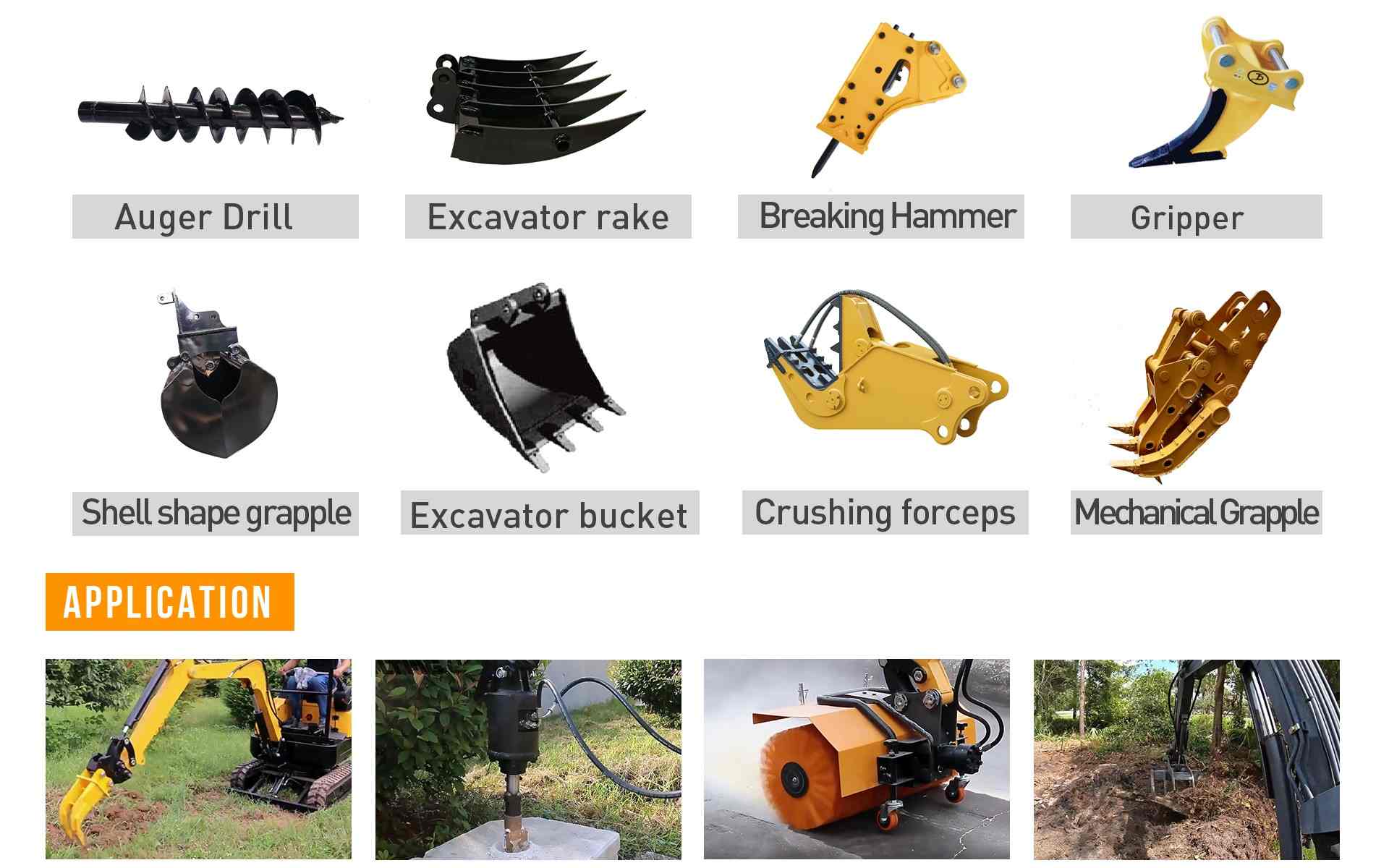

 Optional Configuration

Hydraulic Hammer/Ripper/Log Grab/RakelAuger Drill Large Bucket/Mud Bucket Air Conditioning

Application



Suitable for working environments such as toilet renovation, forced entry of projects, excavation of barren mountains, small-scale earthworks, municipal engineering, concrete crushing, river dredging, etc.

13.5 Ton wheel Excavator  Technical Parameters

Performance Parameters Unit LWE135
Operating Weight Kg 13500
Engine Model   YUCHAI YC4D115
Rated Power Kw 85KW/2200RPM
Bucket Capacity 0.6
Max Digging Force Kn 91
Swing Speed rpm 0-12
Traveling Speed km/h 0-28
Gradeability ° 25

                  Operating Range
Max. Digging Radius mm 8000
Max. Digging Depth mm 4750
Max. Digging Height mm 8930
Max. Dumping Height mm 6520
Tail Swing Radius mm 2420
Max. Blade Dozer Cutting Distance mm 100
Max. Blade Dozer Lifting Distance mm 400

                 Overall Dimensions
Overall Length mm 7520
Overall Width mm 2570
Overall Height mm 3425
Mini.Ground Clearance mm 350
Undercarriage width  mm 2570

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail.
