Compared with crawler excavator, it is more flexible. It is a suitable for urban construction, and a building machine for tire walking. The wheel excavator is suitable for high-speed and long-distance self turning. The speed can reach 28KM/H in general, and the flexible characteristics can quickly replace all kinds of operation devices. The characteristics is protecting the road surface, and it is suitable for hard ground construction. Wheeled excavators are applied to urban tap water, municipal and pipeline maintenance engineering, civil engineering, industrial materials handling, tunnel excavation, water conservancy projects, urban demolition and so on.
Model :
LWE70Operating Weight :
7000kgBucket Capacity :
0.21m³ODM/OEM :
SUPPORT

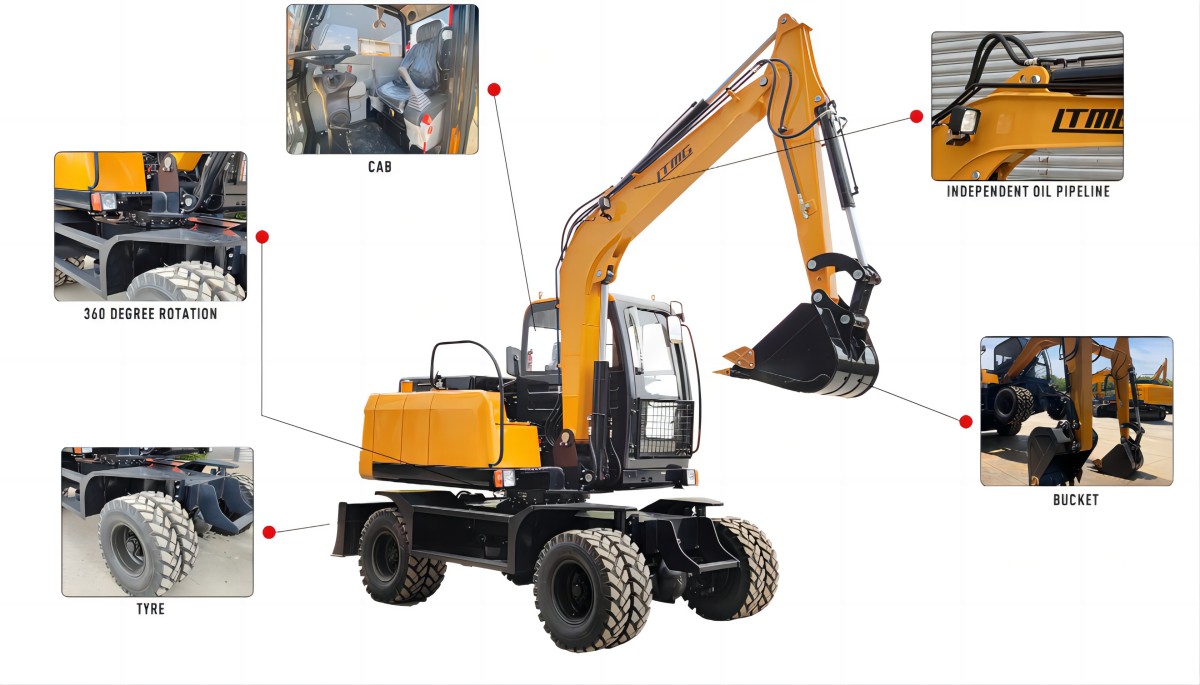

7 Ton Wheel Excavator Main Feature
1. The structural components adopt advanced CNC laser and plasma cutting technology. This part has a high-precision and smooth cutting surface, making the structural assembly more firm and compact.
2. The entire machine structure adopts ABB intelligent welding robot welding and CNC machining center processing, and introduces the ISO quality management system. Through multi-channel inspection and testing programs, welding quality and accuracy are ensured to meet any harsh working conditions.
3. The production workshop is clean and tidy, the assembly line production is complete, and the product quality is more stable and efficient.
4. Professional simulation of actual test drive debugging, more advanced testing instruments, reducing the after-sales failure rate of excavators.
5. The metal appearance adopts a one-time forming process technology, which has higher strength and smoother surface. The entire panel can be opened up and down separately, and the 45 degree angle of the cab flips upwards, creating an original patent that greatly facilitates product maintenance and repair, with better noise reduction function.
6. The entire machine structure adopts professional sandblasting and robot automatic spraying processes. The paint coating is thicker and has better adhesion. The topcoat is made of polyurethane material composed of two parts, which is more beautiful and durable in color. It also supports customized multi-color personalized colors to meet the needs of different customers.
7 Ton Wheel Excavator Technical Parameters
Performance Parameters | Unit | LWE70 |
Operating Weight | Kg | 7000 |
Engine Model | YC4DK85 | |
Rated Power | Kw | 62.5kw/ 2200rpm |
Bucket Capacity | m³ | 0.21 |
Max Digging Force |
Kn |
45 |
Swing Speed | rpm | 0-11 |
Traveling Speed | km/h | 0-28 |
Gradeability | ° | 25 |
Operating Range | ||
Max. Digging Radius | mm | 5830 |
Max. Digging Depth |
mm |
3380 |
Max. Digging Height |
mm |
5730 |
Max. Dumping Height |
mm |
4120 |
Tail Swing Radius | mm | 1940 |
Max. Dozer Cutting Distance | mm | 130 |
Max. Dozer Lifting Distance | mm | 310 |
Overall Dimensions | ||
Overall Length | mm | 5930 |
Overall Width | mm | 2205 |
Overall Height | mm | 2787 |
Mini.Ground Clearance | mm | 260 |
Undercarriage width |
mm |
2250 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail.
