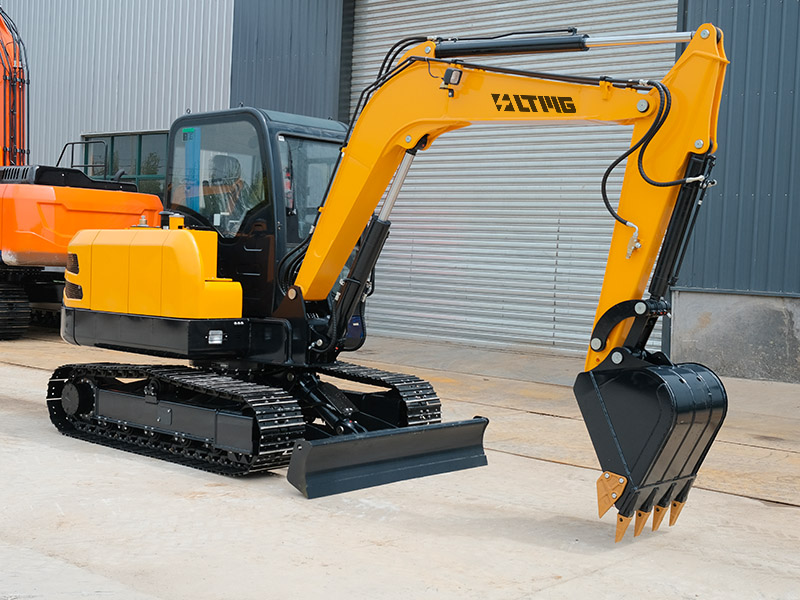

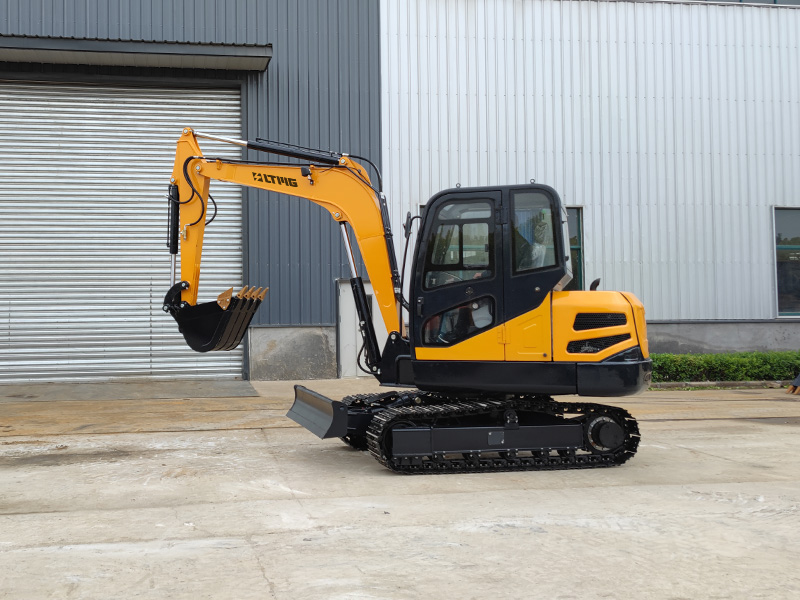

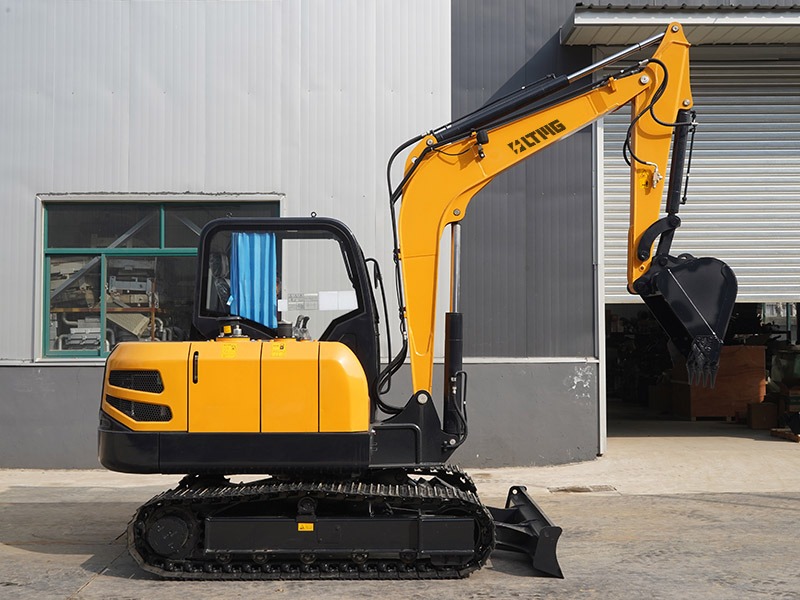

6.5ton crawler excavator
1. equipped with Kubota V2607 42.4KW, lower fuel consumption, noise
2. Increase the heat sink optimization, heat dissipation efficiency is higher, better effect
Model :
LTE65Operating Weight :
6500kgBucket Capacity :
0.21m³ODM/OEM :
SUPPORT
6.5 ton Crawler Excavato Product characteristic
1. Optional EPA Yanma engine, conform to EPA emission standards.
2. Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
3. The hydraulic main valve, pump rotary motor, walking motor and other key parts are further optimized, the product is more reliable, and the action coordination and control are better
6.5Ton Excavator Technical Parameters
| Performance Parameters | Unit | LTE65 |
| Operating Weight | Kg | 6500 |
| Engine Model | Kubota V2607 | |
| Rated Power | Kw | 42.4KW/2000rpm |
| Bucket Capacity | m³ | 0.21 |
| Max Digging Force | Kn | 48 |
| Swing Speed | rpm | 0-11 |
| Traveling Speed | km/h | 2.5~4.2 |
| Gradeability | ° | 70(35°) |
| Operating Range | ||
| Max. Digging Radius | mm | 6128 |
| Max. Digging Depth | mm | 3808 |
| Max. Digging Height | mm | 5499 |
| Max. Dumping Height | mm | 3854 |
| Max. Dozer Cutting Distance | mm | 474 |
| Max. Dozer Lifting Distance | mm | 376 |
| Tail Swing Radius | mm | 1689 |
| Overall Dimensions | ||
| Overall Length | mm | 5940 |
| Overall Width | mm | 1880 |
| Overall Height | mm | 2570 |
| Ground Clearance | mm | 700 |
| Track Width | mm | 400 |
| Undercarriage width | mm | 1800 |
| Undercarriage ground clearance | mm | 353 |
| Dozer Blade | mm | 1880*350 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
