The 0.8tons small lithium electric mini loader is a light-duty loading machine that uses electricity as its power source. It is mainly used for material handling, loading and unloading operations in small spaces, and is especially suitable for agriculture, landscaping, urban street maintenance, small construction sites and other environments.
Model :
LT908EVLoad Capacity :
800kgsOperating Weight :
2650KgBucket Capacity :
0.5 cube meterODM/OEM :
provide

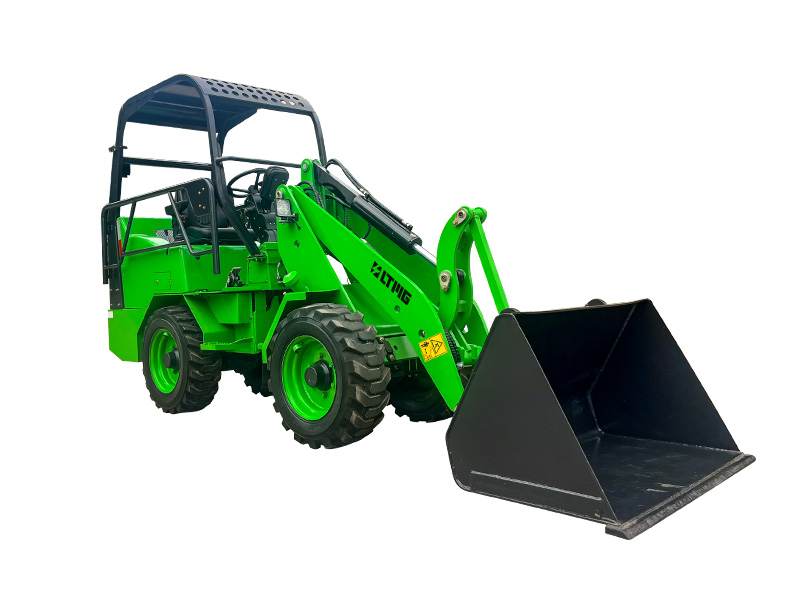

Electric wheel loader-LT908EV
1. Environmental protection and energy saving: Due to the electric drive, there is no tail gas emission, which meets the requirements of low noise and zero pollution, and is suitable for use in places with high environmental requirements.
2. Convenient control: Usually equipped with an advanced electronic control system, which can achieve continuously variable speed and precise control, making driving operations easier and simpler.
3. Compact size: The body size is relatively small, it can operate efficiently in a narrow space, and it is easy to transport and store.
4. Stable performance: Permanent magnet synchronous motors provide stable driving force. Compared with fuel models, they run more smoothly under specific working conditions and have relatively lower maintenance costs.
5. Safe and reliable: Equipped with a complete braking system and various safety devices to ensure safe operation under various working conditions.
LT908EV Electric Wheel Loader Configuration
| Model | LT908 |
| Operating weight | 2650Kg |
| Load rating | 650Kg |
| Moving speed | 0-18km/h |
| Motor type | Permanent magnet synchronous motor |
| Rated power of motor | 20kw |
| Motor Duty Rating | Duty with non-periodic load and speed variations |
| Rated power of motor | 10Kw |
| Battery Type | Lithium iron phosphate |
| Battery Voltage | 288V |
| Battery rated capacity | 90Ah(standard) |
| Battery weight | 260Kg |
| Charging time | DC Charge:1.5h |
| Operating time with full load | 5.5h |
| Width of protective device | 990mm |
| Ground clearance | 178mm |
| Tire center width | 803mm |
| Total width | 1104mm |
| Maximum working height | 3630mm |
| Maximum bucket fulcrum height | 2900mm |
| Bucket level status height | 2649mm |
| Tipping height | 2228mm |
| Working distance (tipping state) | 690mm |
| Shovel depth | 120mm |
| Pivot to bucket lift pin | 550mm |
| wheelbase | 1550mm |
| Rear overhang | 948mm |
| Total length without bucket | 3550mm |
| Total length with standard bucket | 4330mm |
| Seat height | 1208mm |
| Height to top of protective device | 2290mm |
| Angle of maximum lifting height | 48º |
| Maximum tipping angle | 45º |
| Horizontal position plane corner | 48º |
| Departure angle | 24º |
| Corner | 45º |
| Maximum turning radius | 2530mm |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

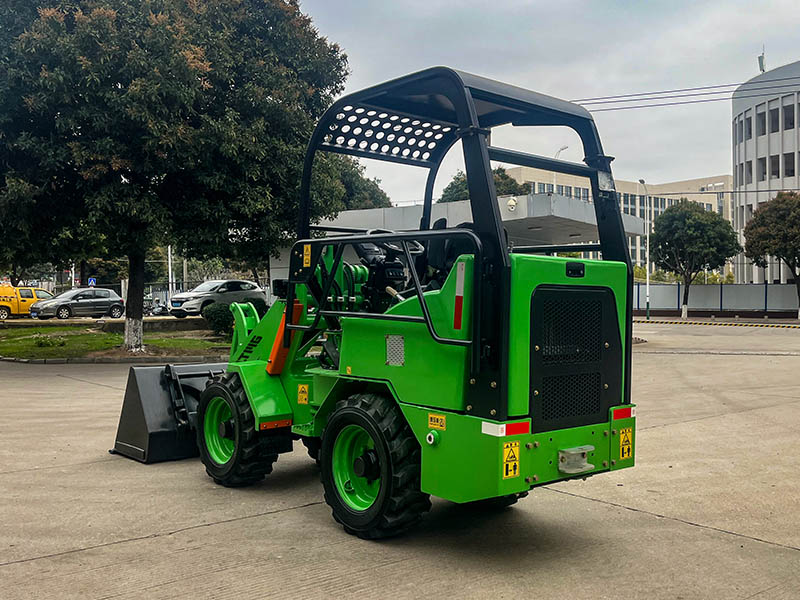

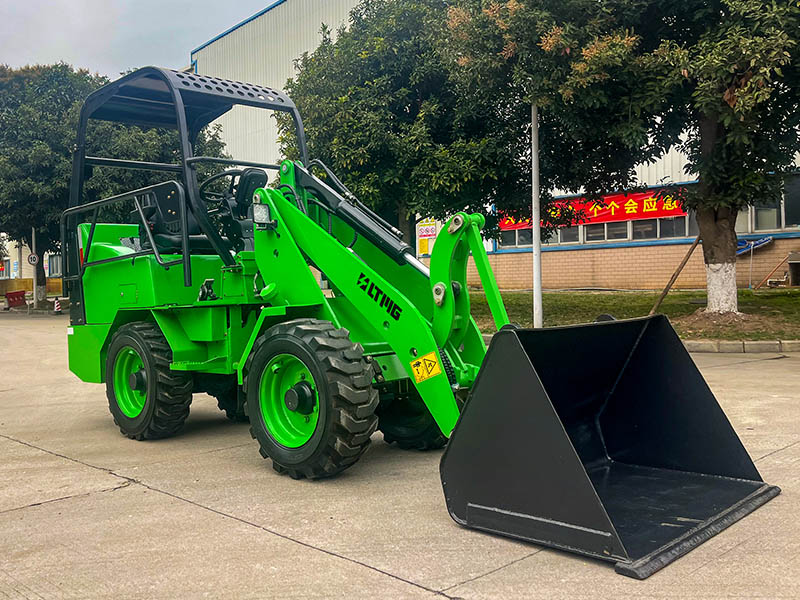

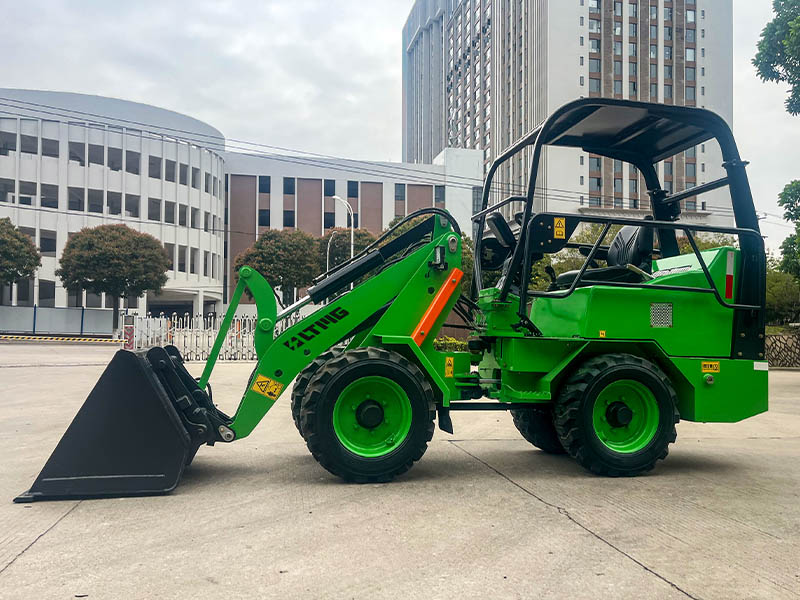

Electric Compact Loader Display
Shipping Plan Of Electric Wheel Loader
FAQ
Q: What occasions are LTMG electric loaders suitable for?
A: Electric loaders are particularly suitable for places with high environmental requirements, strict noise restrictions, or where exhaust emissions are a concern, such as indoor warehouses, food processing plants, ports, construction sites, etc.
Q: What motor does the LTMG electric loader use?
A:LT908EV uses a permanent magnet synchronous motor. Compared with traditional induction motors, it does not require additional excitation current during operation, reducing reactive power consumption and copper losses. This allows the permanent magnet synchronous motor to have higher power conversion efficiency under the same working conditions, thus saving energy.
Q：How long does it take to charge?
A：Charging time takes only one and a half hours. Compared with traditional lead-acid batteries, lithium batteries have more charge and discharge cycles and longer service life.
Q：How about the after-sales service of LTMG？
A：LTMG products come with a 1-year or 2,000-hour warranty. If the spare parts have any problems within the warranty period, without man-made situation, we will delivery it for you for free. And if there is a problem with the machine at any time in the future, we will answer it for you all the way until the machine is restored.
