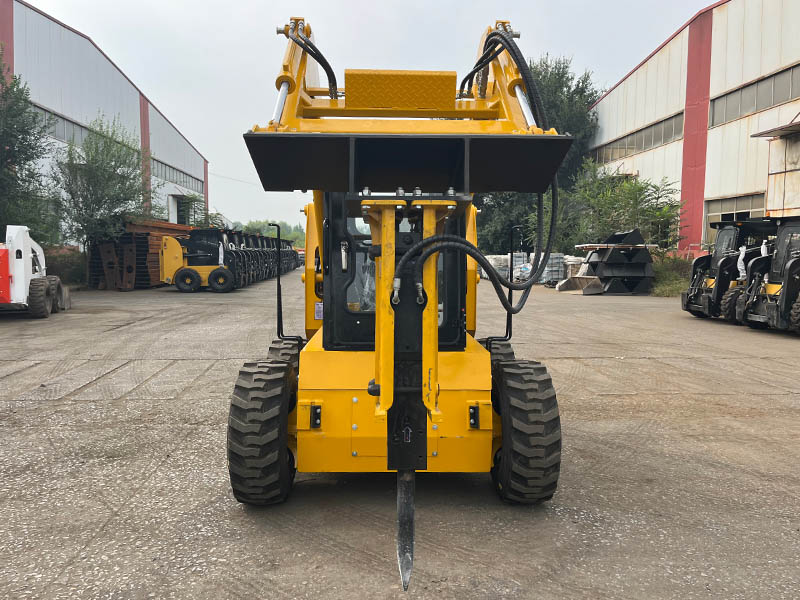

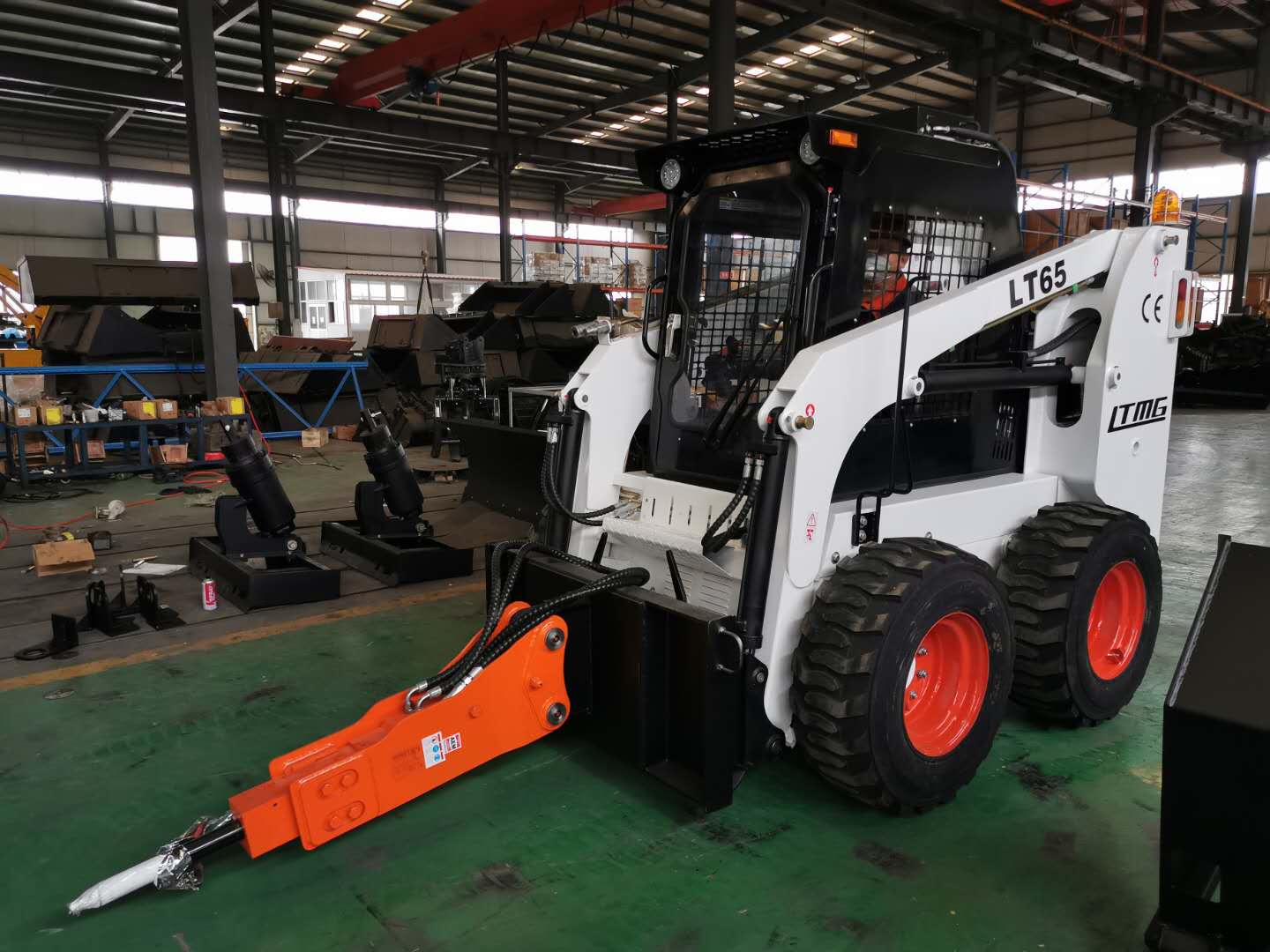

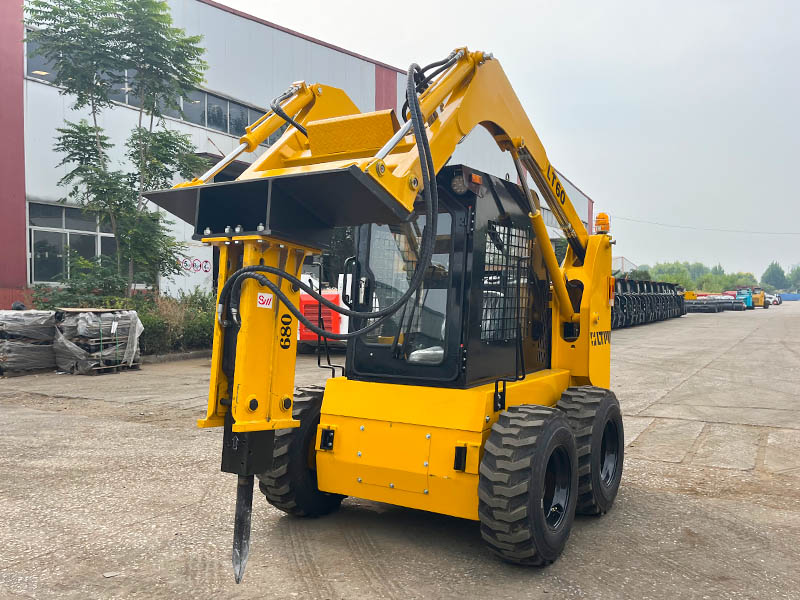

The skid steer loader is equipped with a breaker attachment to achieve multi-functional operations. This attachment is driven by a hydraulic system and has strong impact. It can efficiently complete heavy-duty tasks such as stone crushing and concrete demolition. It can flexibly adapt to the needs of various working conditions and significantly improve the comprehensive utilization rate and work efficiency of the equipment.
Operating Weight :
120kg/250kgODM/OEM :
supportWide range of usage scenarios
1. Building demolition and renovation: In projects such as urban renewal, building demolition, and road renovation, skid steer loaders coupled with breaker hammers can efficiently crush concrete structures, masonry walls, and pavement materials.
2. Mining and gravel operations: In small or medium-sized mining sites, skid steer loaders combined with breakers can quickly break rocks to facilitate subsequent screening and transportation of materials.
3. Landscaping and municipal engineering: During the process of cleaning up old facilities, digging tree roots and leveling the site, when large rocks or hard obstacles are encountered, the breaker can be used to deal with them.
4. Agriculture and animal husbandry applications: In farms or livestock farms, when hard soil, old fences or other obstacles need to be broken, a skid steer loader equipped with a breaker can provide the necessary force.
5. Road maintenance and emergency rescue: In highway maintenance, if the road surface cracks, subsidence, etc. need to be broken and repaired, or if collapsed building debris needs to be cleaned up after a natural disaster, the breaker can come in handy.
Breaking hammer parameters
Index | Unit | 530 | 680 |
operating weight | kg | 120 | 250 |
work pressure | MPa | 9-12 | 11-14 |
work flow | L/mm | 25-50 | 40-70 |
Strike frequency | BPM | 600-1100 | 500-900 |
drill rod diameter | mm | 53 | 68 |
length | mm | 570 | 570 |
width | mm | 1202 | 1660 |
high | mm | 1326 | 1660 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
The Optional Attachments Of Skid Steer Loader

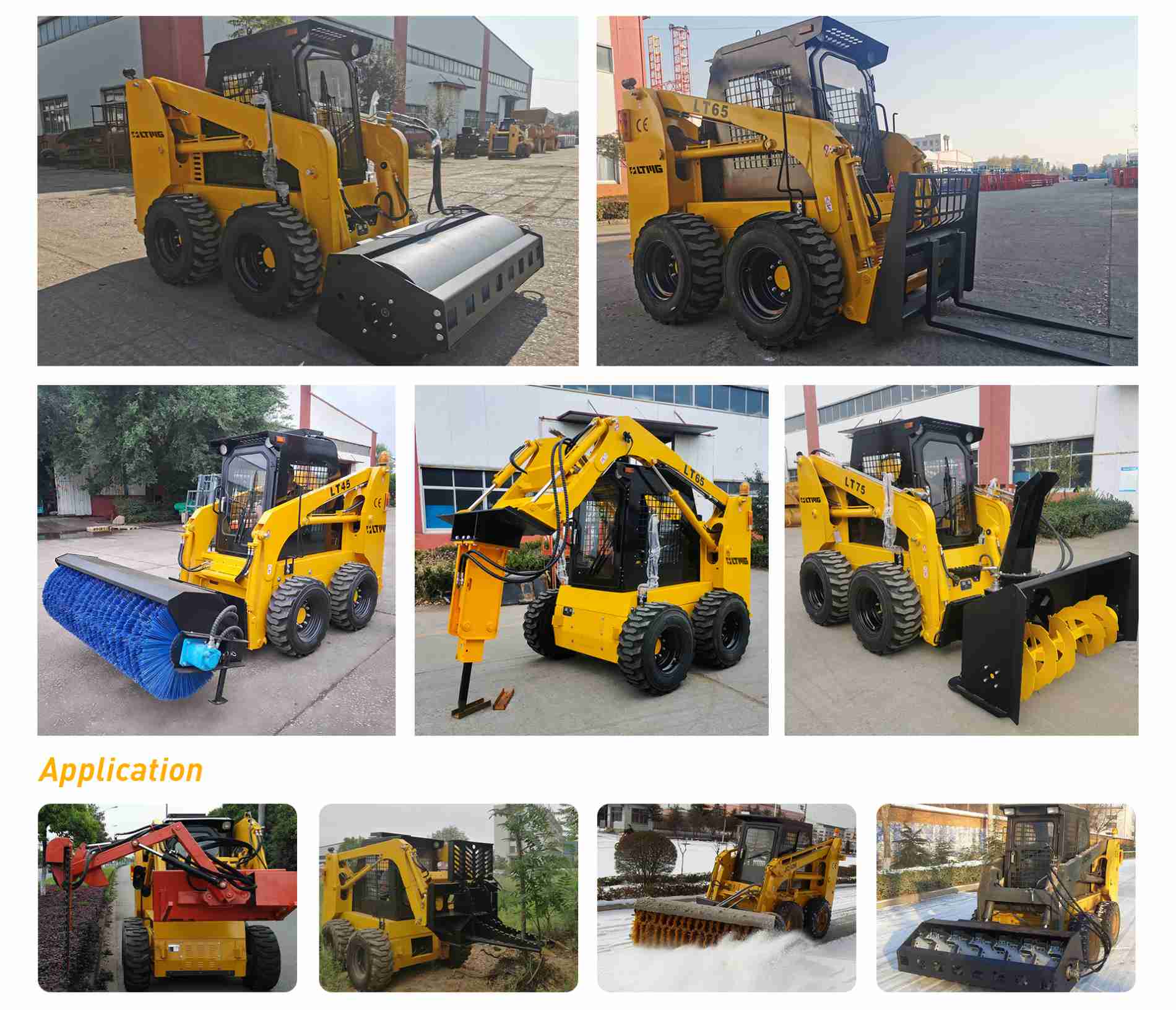

The Application Of Skid Steer With Attachments
