Skid Steer Broom Cleaner Attachment, professional cleaning tool. It has two modes of operation: electronic control and non-electronic control. Different operating methods can help customers deal with different cleaning tasks.
ODM/OEM :
SupportCharacteristics of Skid Steer Broom Cleaner Attachment

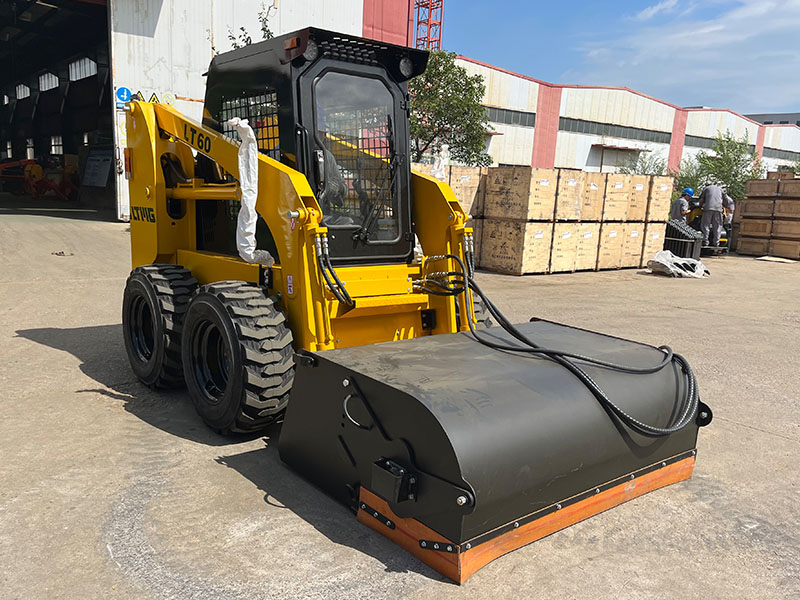

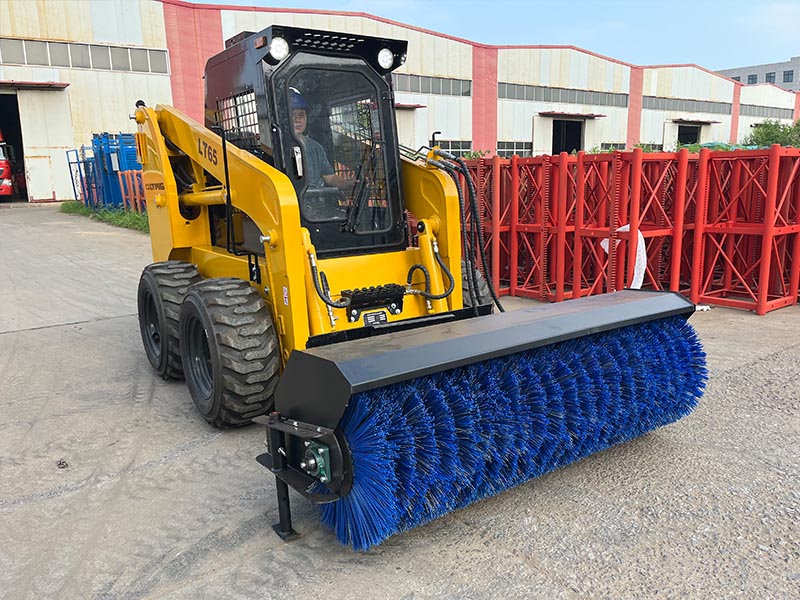

Angle sweeper for skid steer loader
1. Versatility: The skid steer loader’s angle sweeper has multiple functions and can be used to clear snow, dust, garbage and other debris. It can adapt to the cleaning needs of different sites and environments and improve work efficiency.
2. Expandability: The bevel cleaner can be flexibly expanded to adapt to cleaning ranges of different widths. Users can adjust the width of the angled cleaner according to actual conditions, thereby improving the cleaning effect and saving time.
Electronically controlled bevel sweeper
1. Automated operation: The electronically controlled bevel cleaner is controlled by an electronic control system and has automated operation functions. Users can precisely operate the cleaner through the control panel or remote control to achieve remote control and precise adjustment, improve cleaning efficiency and reduce labor intensity.
2. Efficient cleaning: The electronically controlled bevel cleaner has high cleaning efficiency. It can quickly remove debris from the ground through rapidly rotating bristles or scrapers. The high-speed rotation and powerful vibration of the cleaner can effectively remove stubborn stains and ensure a more thorough cleaning effect.
LTMG Angle Sweeper Product Specifications
Specification | 72 " /560 | 72 " /670 | 84 " /670 | 84 " /810 | |||||||||||||||||||||||
Working width | mm | 1828 | 1828 | 2133 | 2133 | ||||||||||||||||||||||
Brush diameter | mm | 560 | 670 | 670 | 812 | ||||||||||||||||||||||
Rotating Angle | ° | 30 | 30 | 30 | 25 | ||||||||||||||||||||||
Working pressure | MPa | 16 | 16 | 16 | 16-21 | ||||||||||||||||||||||
Working flow | L/mm | 50-125 | 50-125 | 50-125 | 40-90 | ||||||||||||||||||||||
Weight | kg | 340 | 380 | 420 | 480 | ||||||||||||||||||||||
Length | mm | 2030 | 2030 | 2335 | 1780 | ||||||||||||||||||||||
Width | mm | 1020 | 1020 | 1050 | 2450 | ||||||||||||||||||||||
Height | mm | 640 | 740 | 740 | 900 |
LTMG Electric Control Angle Broom Product Specifications
Specification | 68 " | 84 " | |||||||||||||||||||||||
Working width | mm | 1727 | 2133 | ||||||||||||||||||||||
Brush diameter | mm | 812 | 812 | ||||||||||||||||||||||
Rotating Angle | ° | 25 | 25 | ||||||||||||||||||||||
Working pressure | MPa | 16-21 | 16-21 | ||||||||||||||||||||||
Working flow | L/mm | 40-90 | 40-90 | ||||||||||||||||||||||
Weight | kg | 420 | 480 | ||||||||||||||||||||||
Length | mm | 1780 | 1780 | ||||||||||||||||||||||
Width | mm | 2050 | 2450 | ||||||||||||||||||||||
Height | mm | 900 | 900 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
Selection of Different Attachments for Skid Steer Loaders
LTMG has been selling skid steer loaders and skid steer loader attachments for over 20 years. According to the requirements of different customers, LTMG produces different attachments to match the skid steer loader. This enables customers to receive better services from LTMG.
FAQ
FAQ 1: What is an angle sweeper?
An angle sweeper is an accessory for skid steer loaders used to clear debris, dust and trash from pavements, roads and other flat surfaces. It can effectively clean bevel and edge areas, improving cleaning efficiency and cleaning quality.
FAQ 2: What is the working principle of the bevel sweeper?
Angle sweepers are powered by the skid steer loader's hydraulic system, using rotating brush blades and powerful suction to sweep the floor. The brush blades rotate to push garbage and dust into the collection box or dust collector, and the suction force will suck the debris into the container to keep the cleaning area clean.
FAQ 3: What are the advantages of bevel sweepers?
Angle sweepers have the advantages of efficient cleaning and improved work efficiency. It can clean narrow bevels and edge areas and is suitable for urban streets, parking lots, warehouses, factories and other places. Angle sweepers can also reduce labor input, reduce cleaning time, and provide higher cleaning quality.
FAQ 4: What is the difference between an angled sweeper and an electronically controlled angled sweeper?
Angle sweepers are usually driven directly by the hydraulic system of the skid steer loader, and the working status of the sweeper is controlled by the operator of the skid steer loader. The electronically controlled bevel sweeper controls the rotation speed, brush angle and suction strength of the sweeper through an independent electronic control system. Electronically controlled bevel sweepers are more intelligent, can be accurately adjusted according to actual cleaning needs, and have higher operational flexibility and precision.
