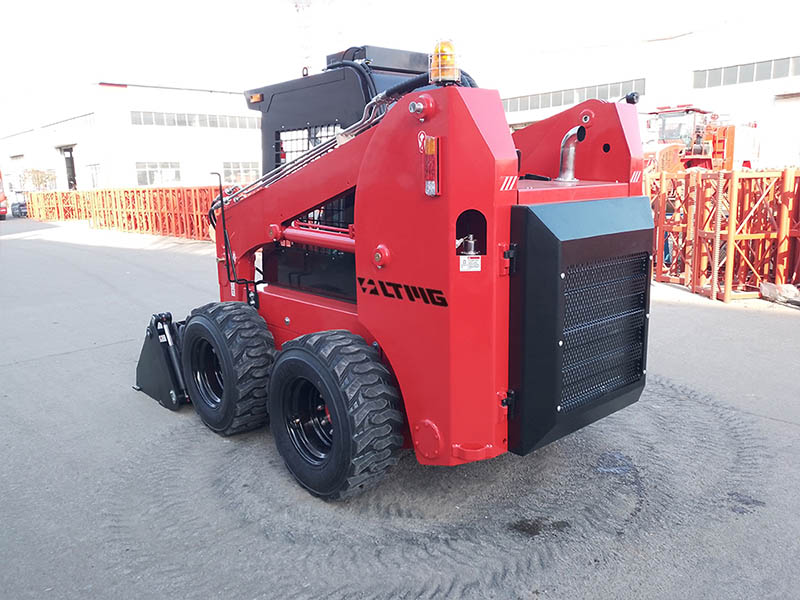

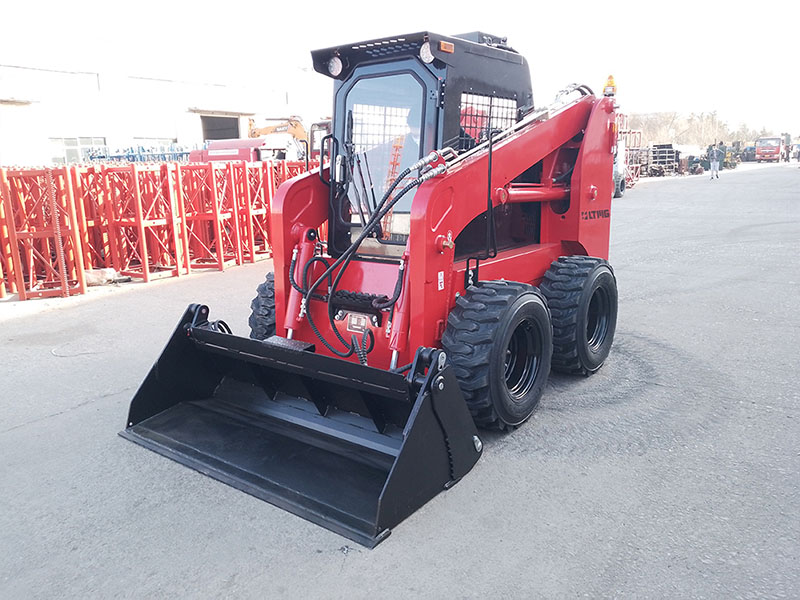

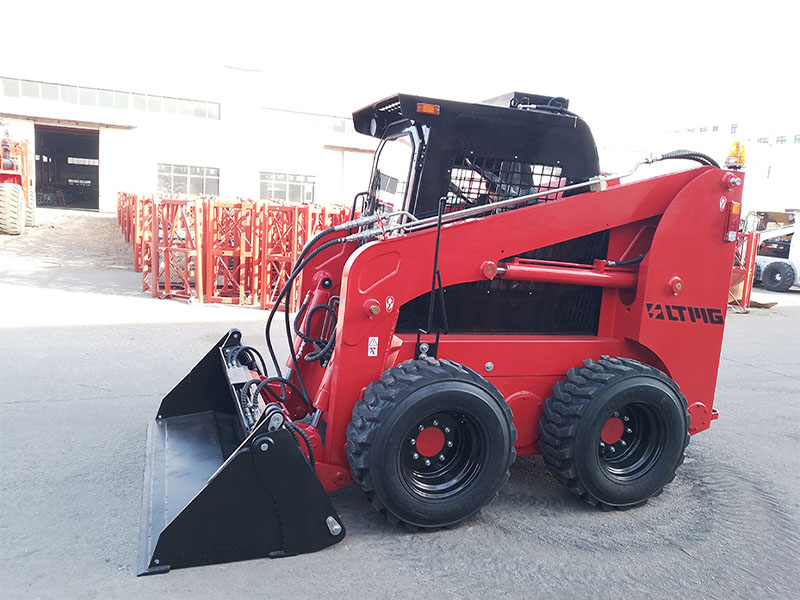

The mini skid steer loader is the perfect solution for tight spaces and small jobs. With a compact design and impressive power, this machine can easily maneuver through narrow paths and tight spots while completing a variety of tasks. Its versatile attachment system helps to tackle any job with ease, making it an ideal choice for landscapers, farmers, and contractors alike. Get the job done quickly and efficiently with skid steer loader.
Model :
LT75Operating Weight :
1050 KGBucket Capacity :
0.5 m³ODM/OEM :
Support

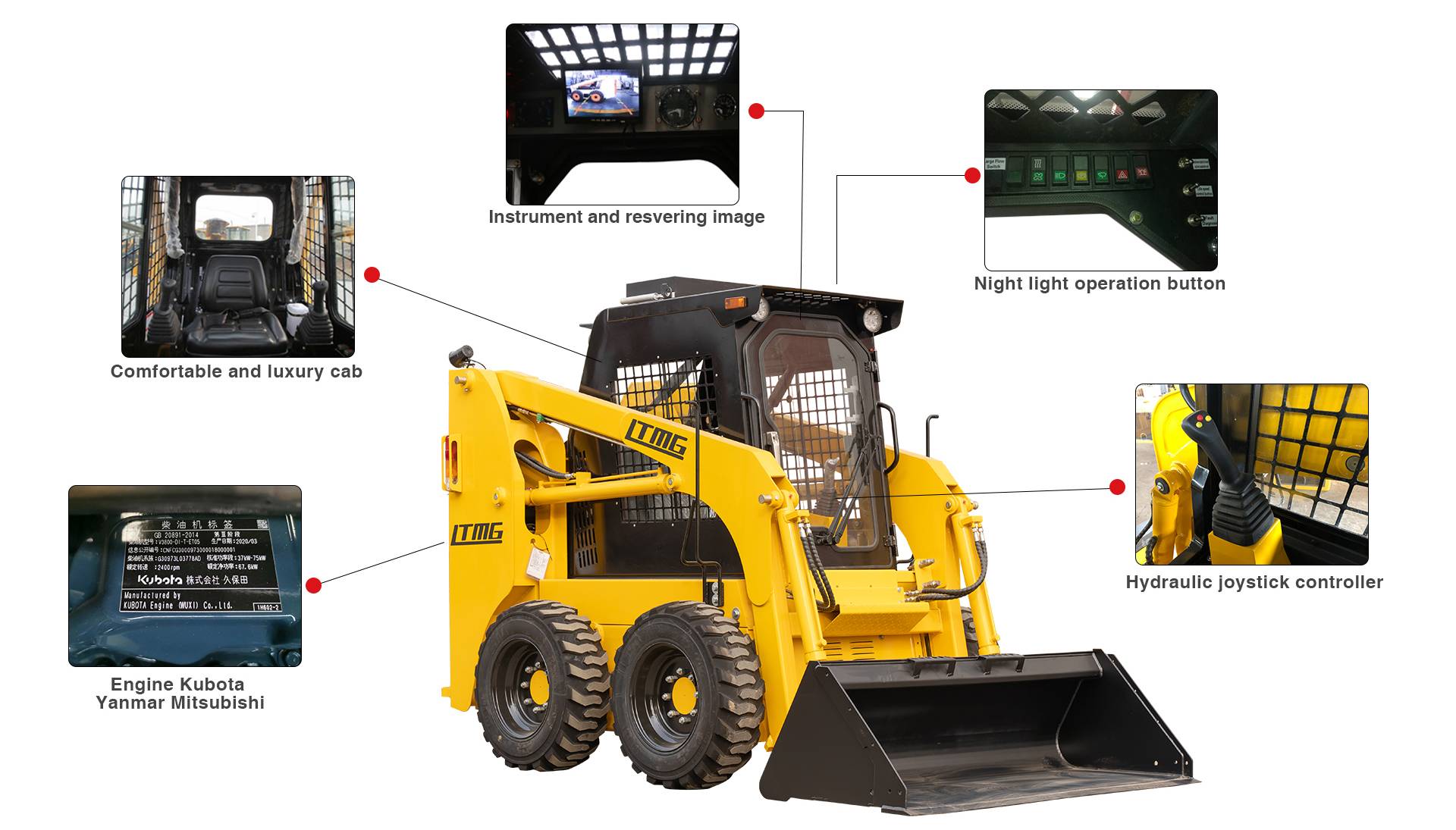

▶ The Features of Wheeled Skid Steers
The Video of Skid Steer Loader With Wood Grab Bucket
▶ Technical Parameters
| Model | LT75 |
| Operating load (kg) | 1050 |
| Max Speed（km/h） | 12\18 |
| Rated flux (L/min) | 75 |
| Tire（track） model | 12-16.5 |
| Engine | Xinchai |
| Engine power | 55kw |
| Rated power (kW) | 55 |
| Fuel tank capacity (L) | 75 |
| Self-weight bucket (kg) | 3800 |
| Bucket capacity (m³) | 0.5 |
| Overall operating height (mm) | 4070 |
| Height to top of cab (mm) | 2160 |
| Without bucket length（mm） | 2880 |
| Overall length with bucket(mm) | 3580 |
| Dumping height(mm) | 2450 |
| Width (mm) | 1880 |
| Bucket width (mm) | 1880 |
| Height to bottom of level bucket(mm) | 2983 |
| Dumping angle at maximum height(° ) | 40 |
| Height to bucket hinge pin (mm) | 3150 |
| Dumping reach(mm) | 700 |
| Rollback o the bucket on the ground(° ) | 30 |
| Rollback of bucket at full height(° ) | 104 |
| Wheelbase(mm) | 1115 |
| Ground clearance(mm) | 205 |
| Angle of departure(° ) | 20 |
| Front turning radius without bucket(mm) | 1250 |
| Front tuning radius(mm) | 2112 |
| Rear tuning radius(mm) | 1774 |
| Rear axle to bumper (mm) | 1082 |
| Tread width (mm) | 1500 |
With technological innovation, our product configuration and parameters will continue to change without notice
If there is any doubt, the specific confirmation of our international trade sales shall prevail.

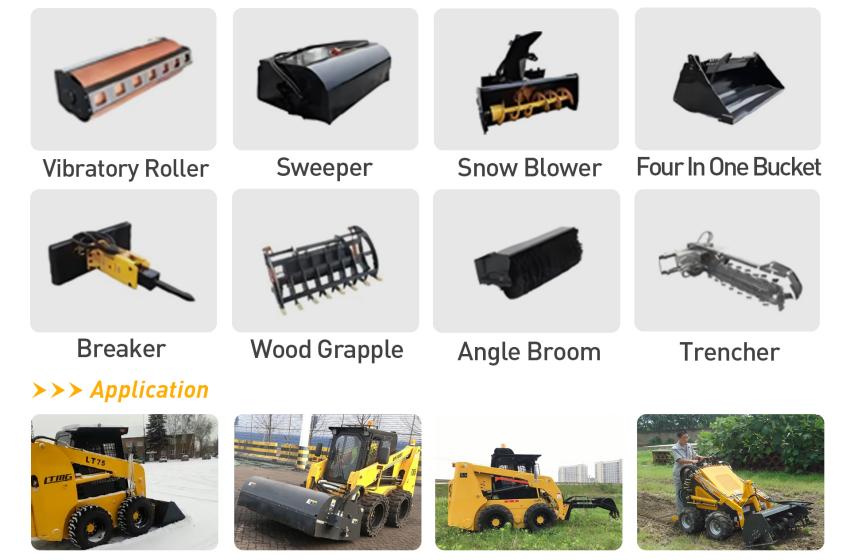

▶ Attachments & Shipping Plan
▶ The application of LTMG Construction Equipment
FAQ
Q: What is a mini wheeled skid steer?
A: mini wheeled skid steer is a compact construction machine that is designed to operate in tight spaces. It is often used for landscaping, construction, and agricultural tasks. The mini wheeled skid steer is equipped with a small frame and four wheels, which allows it to navigate tight corners and maneuver around obstacles.
Q: What are the advantages of a mini wheeled skid steer?
A: The main advantage of a mini wheeled skid steer is its compact size, which allows it to operate in small spaces that are inaccessible to larger machines. It also has a powerful engine and hydraulic system, making it capable of performing a wide range of tasks. Additionally, because it is a wheeled machine, it can move quickly and easily across various terrains, including asphalt, concrete, dirt, and snow.
Q: What types of attachments can be used with a mini wheeled skid steer?
A: A mini wheeled skid steer can be outfitted with a variety of attachments, such as buckets, forks, augers, brush cutters, and trenchers. These attachments can be easily swapped out to suit the specific task at hand. For example, a bucket attachment is ideal for moving dirt or gravel, while a brush cutter can be used to clear overgrown vegetation.
Q: What is the weight capacity of a mini wheeled skid steer?
A: The weight capacity of a mini wheeled skid steer varies depending on the model and size of the machine. However, most mini wheeled skid steers have a weight capacity of between 1,000 and 3,000 pounds.
Q: How does a mini wheeled skid steer compare to a mini track loader?
A: A mini wheeled skid steer is often compared to a mini track loader, as both machines are compact construction machines that are ideal for operating in tight spaces. However, there are some differences between the two. A mini track loader has a greater weight capacity and can operate effectively on uneven terrain, while a mini wheeled skid steer is faster and more maneuverable on flat surfaces. Additionally, a mini wheeled skid steer is often less expensive than a mini track loader.
