Skid steer loader, different from the conventional loader. It is a kind of wheeled special chassis equipment that uses the difference in linear speed of the wheels on both sides to achieve vehicle steering. It is used for the logistics of large construction machinery, site cleaning and project closing operations.
Model :
LTS65Load Capacity :
1000kgOperating Weight :
3800kgBucket Capacity :
0.5m³ODM/OEM :
SUPPORT

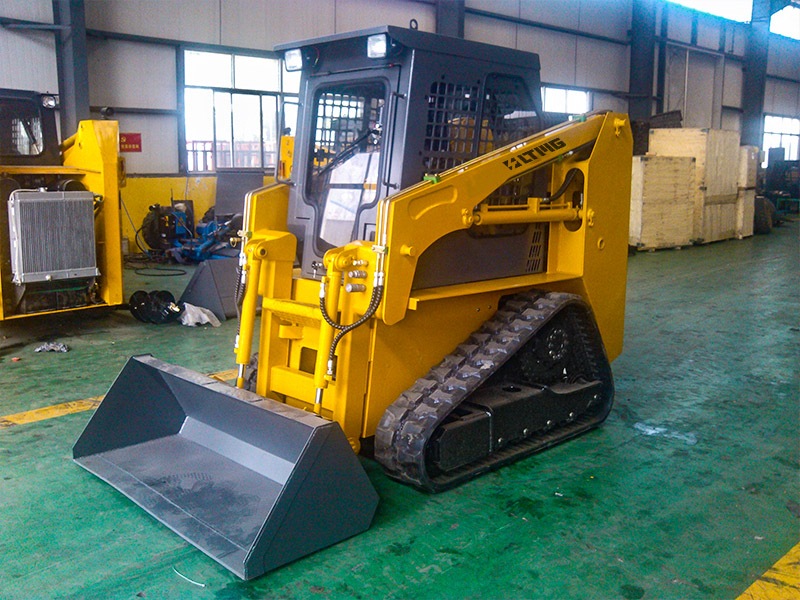

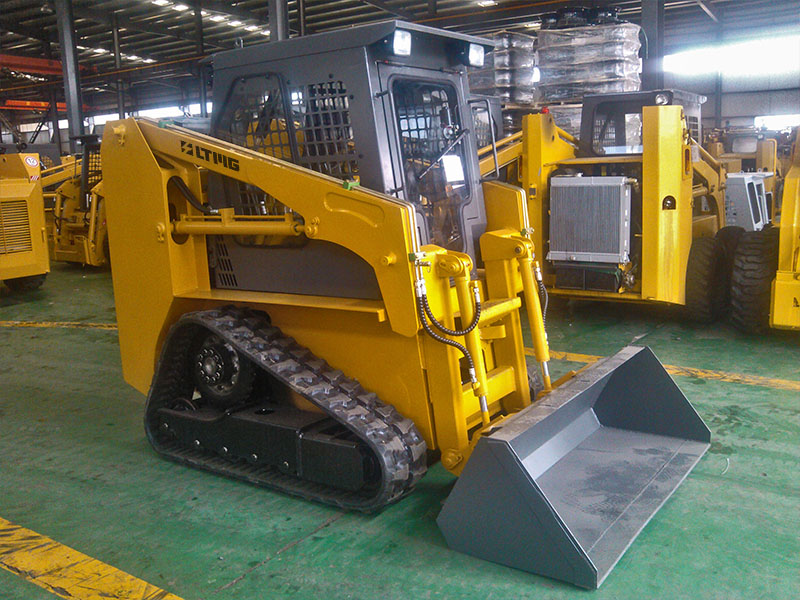

1 Ton Crawler Skid Steer Loader characteristics
1.The transmission system responds to the needs of high load-bearing and provides high torque power output while maintaining power.
2.High-performance engines can provide comprehensive power support, providing a power output interface including various types of engineering devices under various working conditions, ensuring efficiency while ensuring the diversified use of equipment, thereby reducing the idle rate of investors' equipment, but also can significantly improve the relevant work efficiency.

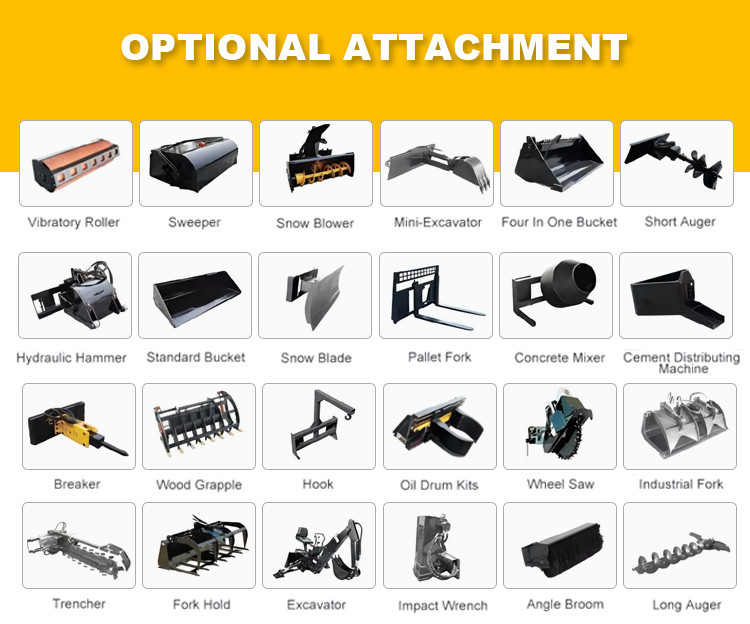

3.Built for versatility, skid steer equipment is able to offer multiple models with multiple flow rates of hydraulic connections, ensuring versatility while ensuring availability.
1 Ton Crawler Skid Steer Loader Technical Parameters
| Model | LTS65 |
| Operating load (kg) | 1000 |
| Max Speed（km/h） | 12/18 |
| Rated flux (L/min) | 80 |
| High Flow Flux (L/min) | 120 |
| Tire（track） model | 320X84 |
| Rated power (Kw) | 55 |
| Fuel tank capacity (L) | 90 |
| dead weight (kg) | 4200 |
| self weight bucket (kg) | 3800 |
| Bucket capacity (m³) | 0.5 |
| Overall operating height (mm) | 3480 |
| Hheight to top of cab (mm) | 2150 |
| Without bucket length（mm） | 2750 |
| Overall length with bucket(mm) | 3500 |
| Dumping height(mm) | 2230 |
| Width (mm) | 1782 |
| Bucket width (mm) | 1830 |
| Height to bottom of level bucket(mm) | 2730 |
| Dumping angle at maximum height(° ) | 40 |
| Height to bucket hinge pin (mm) | 2900 |
| Dumping reach(mm) | 715 |
| Rollback o bucket on ground(° ) | 30 |
| Rollback of bucket at full height(° ) | 104 |
| Wheelbase(mm) | 1500 |
| Ground clearance(mm) | 200 |
| Angle of departure(° ) | 20 |
| Front turning radius without bucket(mm) | 1298 |
| Front tuning radius(mm) | 2010 |
| Rear tuning radius(mm) | 1714 |
| Rear axle to bumper (mm) | 890 |
| Tread width (mm) | 1462 |
With technological innovation, our product configuration and parameters will continue to change without notice
If there is any doubt, the specific confirmation of our international trade sales shall prevail
FAQ about 1 Ton Crawler Skid Steer Loader
1. What are your packaging conditions for skid steer loaders?
Standard export packaging. Depends on the type you need.
2. What are your delivery conditions for skid steer loaders?
EXW, FOB, CFR, CIF, DDU.
3. What is your delivery time for skid steer loaders?
Generally speaking, it takes 15 to 30 days after receiving your deposit. The exact delivery time depends on the items and quantities you order.
4. Do you test your skid steer loaders before delivery?
Yes, we have 100% testing before delivery. We take the quality of our skid steer loaders very seriously.
5. How do you make our business long term and good relationship?
We maintain good quality of skid steer loaders and competitive prices to ensure our customers benefit.
We respect every customer and treat them as our friends, no matter where they come from, we sincerely do business and make friends with them.
