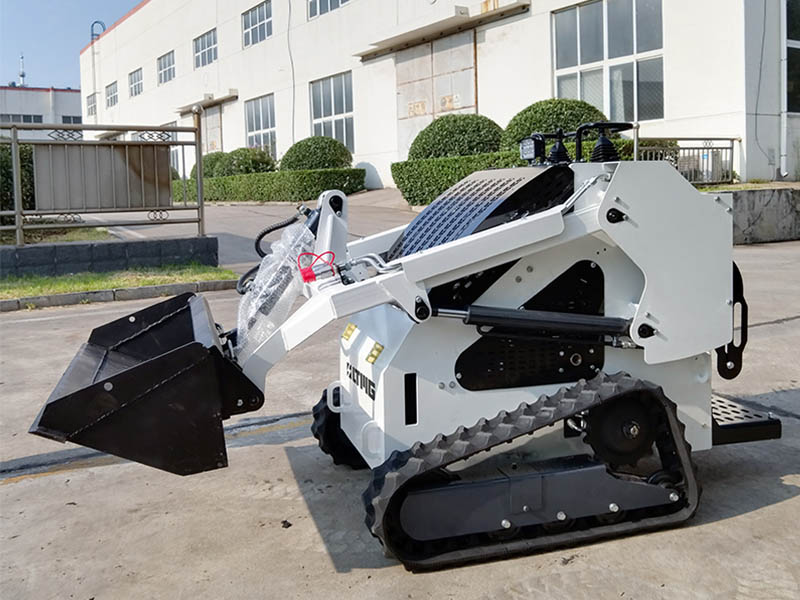

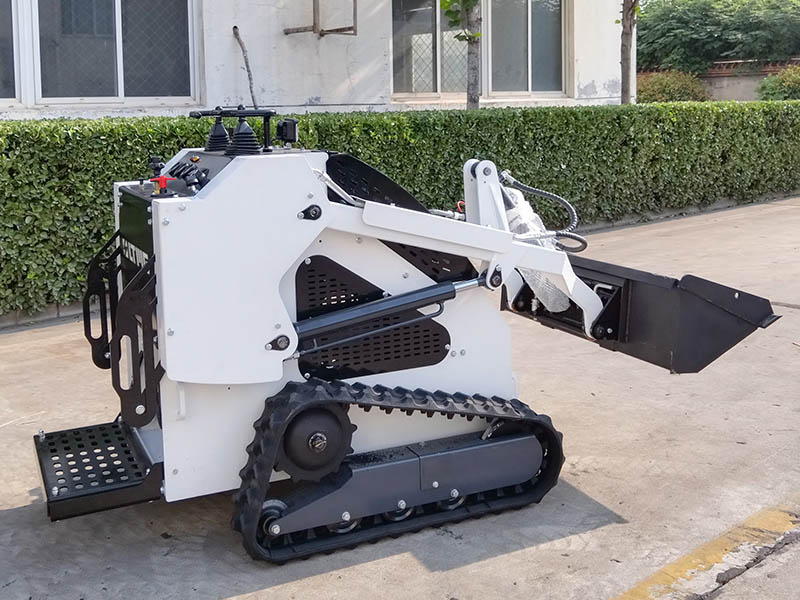

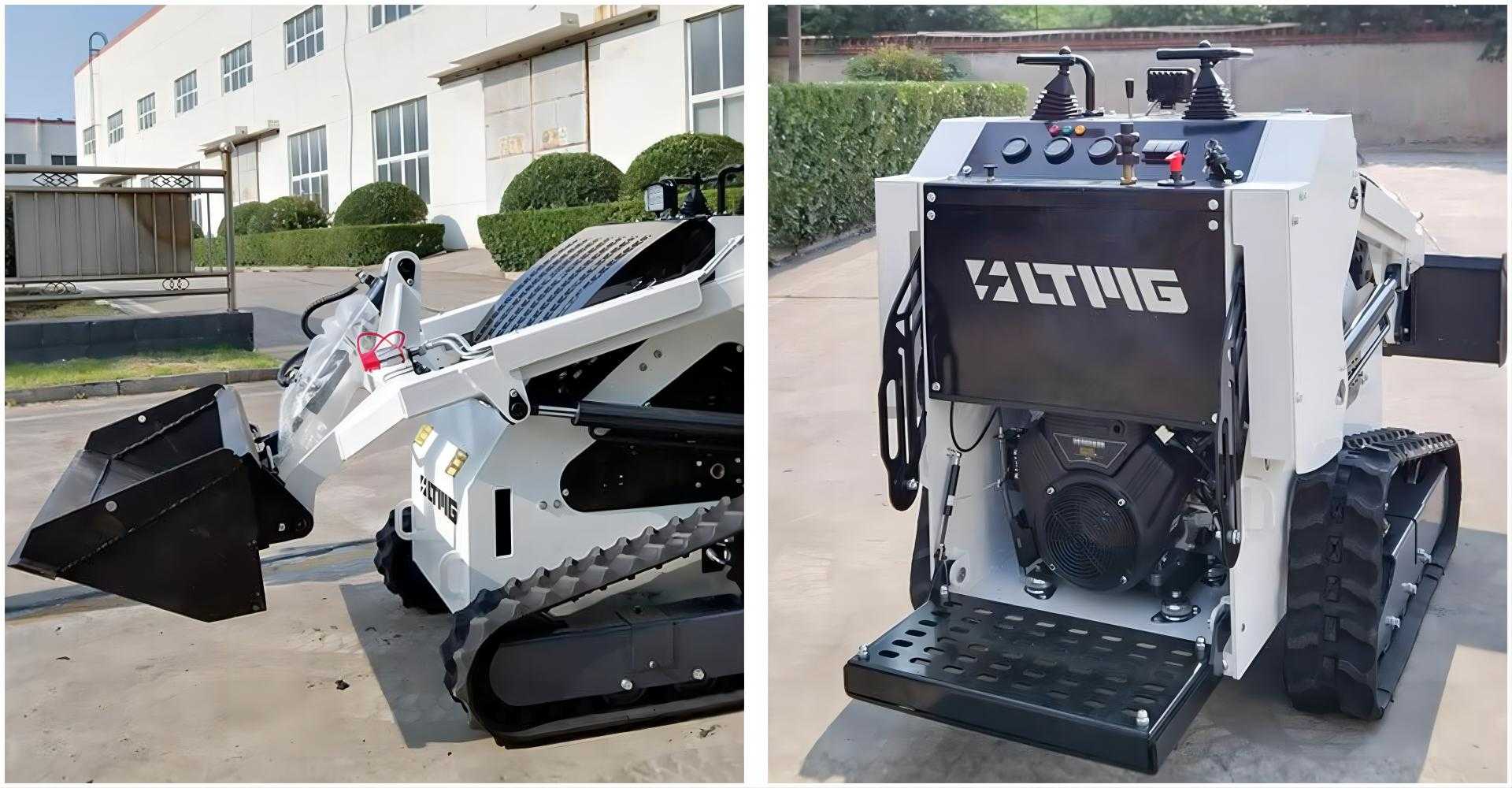

Are you interested in a small eco-friendly loader? Discover the efficiency and versatility of LTMG new electric mini skid steer loader. Compact yet powerful, it offers a choice between lead-acid or lithium batteries, and rubber tracks for smooth operation, it's a reliable and efficient tool for any job.
Model :
LT360D/LT460DLoad Capacity :
200/300 KGODM/OEM :
Support
The Features Of LTMG Electric Skid Steer
1. Compact body, strong passability: the compact design makes it comfortable to pass through even in narrow space, and it can easily cope with various working scenes, such as construction sites, warehouses, gardening and so on.
2. Safe, environmentally friendly, low noise: the electric drive system has no exhaust gas or heat emission, and the low noise design reduces the environmental interference during work, providing you with a more comfortable working environment.
3. Choice of lead-acid or lithium batteries: according to your needs and preferences, we offer a variety of battery options. Whether traditional lead-acid batteries or advanced lithium batteries, they can provide you with long-lasting power support to ensure work efficiency and flexibility.
4. Rubber track design: Adopting rubber tracks with low vibration shock provides you with a smoother and more comfortable operating experience. Whether indoors or outdoors, it can easily cope with various terrains and ensure efficient work performance.
5. Offering over 20 diverse attachments tailored to the mini skid steer loader, coupled with its compact size and versatility, renders this machine an invaluable asset for a wide array of applications.
The Technical Parameters Of LTMG Electric Mini Skid Steer
| Model | LT360D | LT460D | |
| KW | Rated power | 6KW | 6KW |
| rpm | Nominal speed | 2500 | 2500 |
| Battery capacity | 125AH | 200AH | |
| H | Charging time | 1.5/2/4 | 4-6 |
| Battery life | 5 years | 5 years | |
| Full working hours | 4-6 | 4-6 | |
| Kg | Rated load | 200 | 300 |
| Kg | Maximum load | 300 | 400 |
| KN | Maximum lifting force | 3.5 | 4.5 |
| m3 | Bucket volume | 0.12 | |
| Traveling speed | 0-6 | ||
| s | Working three and | 9 | 9 |
| bar | Working system pressure | 17-21 | 17-21 |
| L | Hydraulic oil tank volume | 20 | |
| Kg | Operating mass | 1200 | |
| mm | Track width | 18 | |
| mm | Maximum operating height | 2450 | 2450 |
| mm | Height to bucket pin | 1870 | 1870 |
| mm | Overall height | 1300 | 1330 |
| mm | Maximum height with bucket flat | 1810 | 1810 |
| mm | Overall length without attachments | 1450 | 1680 |
| mm | Overall length with standard bucket | 2100 | 2206 |
| mm | Maximum height unloading angle | 34° | 34° |
| mm | Unloading height | 1510 | 1510 |
| mm | Unloading distance | 450 | 450 |
| Bucket turning angle at ground level | 27° | 27° | |
| Turning angle of the bucket at the highest level | 114° | 114° | |
| mm | Wheelbase | 850 | 850 |
| mm | Ground clearance | 150 | 150 |
| mm | Tail length | 280 | 280 |
| Wheelbase (standard tire) | 720 | 720 | |
| Width (standard tires) | 1000 | 1000 | |
| mm | Bucket width | 1000 | 1000 |
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;

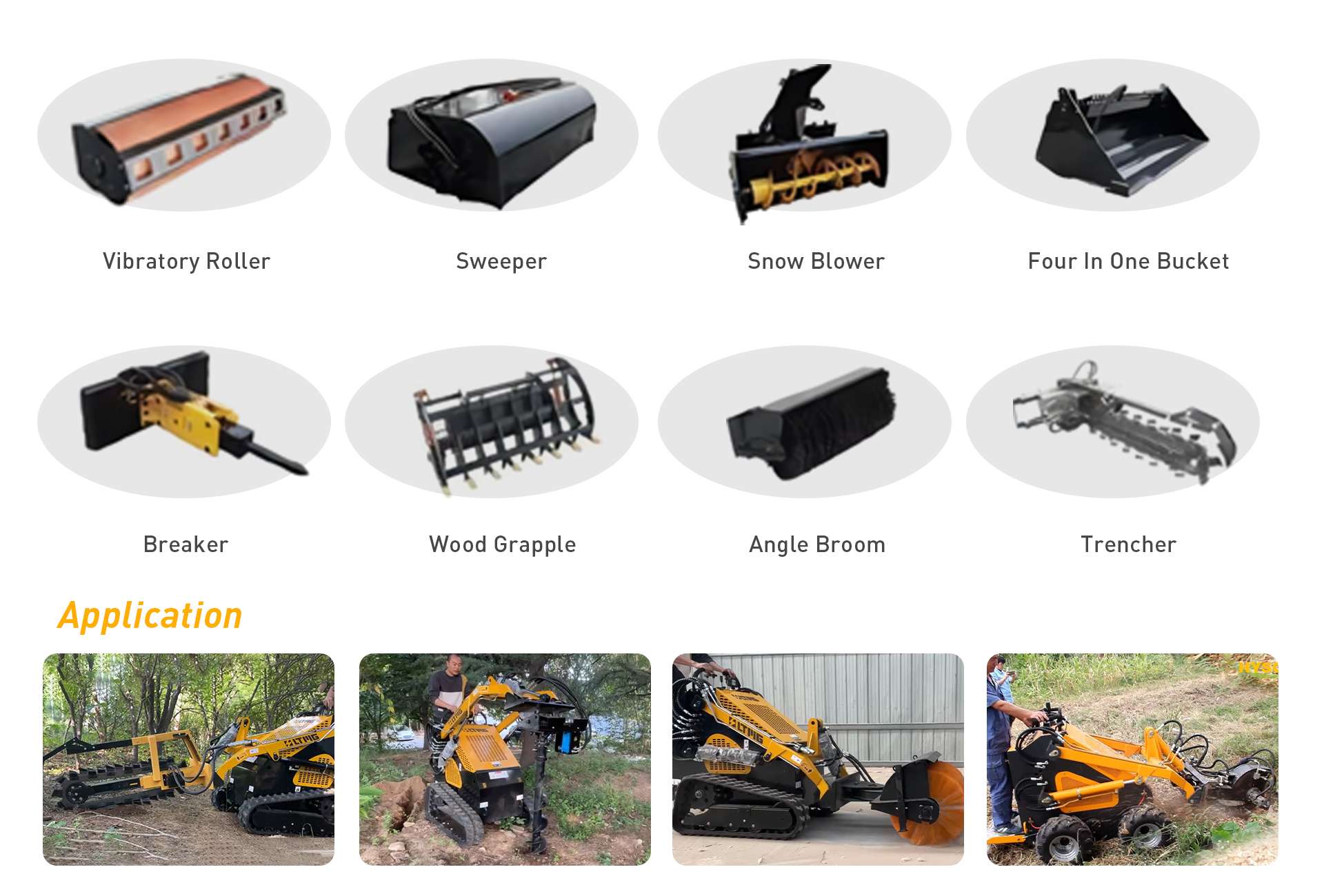

The Attachments Of Mini Electric Skid Steer Loader
FAQ
Q: What is LTMG Machinery Group?
A: LTMG Machinery Group, founded in 2001, is a reputable manufacturer specializing in material handling and construction machinery equipment.
Q: Does LTMG offer technical advice?
A: Yes, LTMG offers friendly, patient and attentive technical advice as our promise.
Q: What's the differences between lead-acid or lithium batteries?
A: Lead-acid batteries are cheaper but heavier, require maintenance, and have shorter lifespans. Lithium batteries are lighter, more efficient, longer-lasting, maintenance-free, and environmentally friendly, albeit pricier initially.
Q: Can attachments be used with Electric Mini Skid Steer Loaders?
A: Yes, Electric Mini Skid Steer Loaders typically come with a variety of attachment options, such as buckets, forks, augers, and sweepers, allowing them to adapt to different job requirements.
